new tails/modding trailer hitch

Finally getting around to taking some pics of the new taillights and the body work done.









Still need to get the billet steps put on. need to grind out a little where the bolts are to get the plate to side flush on the bedside.

and then this past weekend, i started modding my trailer hitch to go back on. with the new bed, the roll pan hangs too low, and i'm too poor to buy an actual hidden hitch. so i'm modifying mine.

before:

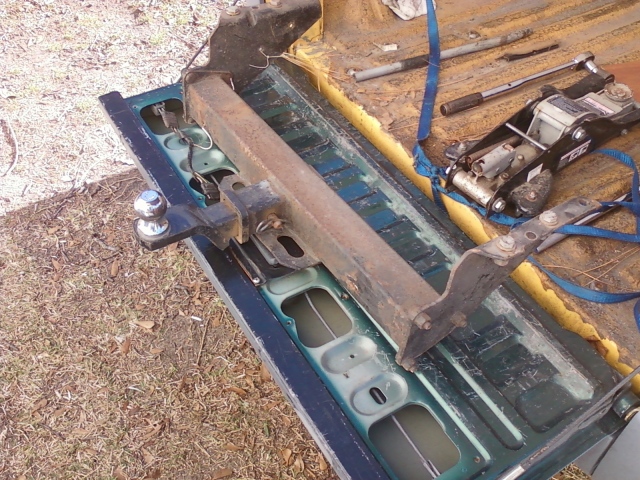

unbolted:


one side cut:


set back in place, clamped in:




out, clamped together. gives you an idea how far up and back it has been moved:


waiting on a new cord to show up for my drill. then i'll get the holes in it and bolted back together. then i can cut the hole behind the tag. already have the flip down tag holder on.
Attached Thumbnails
new tails/modding trailer hitch-sspx00063.jpg   new tails/modding trailer hitch-sspx00053.jpg   new tails/modding trailer hitch-sspx00043.jpg   new tails/modding trailer hitch-sspx00102.jpg   new tails/modding trailer hitch-sspx00093.jpg

new tails/modding trailer hitch-sspx0014.jpg   new tails/modding trailer hitch-sspx0016.jpg   new tails/modding trailer hitch-sspx0005.jpg   new tails/modding trailer hitch-sspx0006.jpg   new tails/modding trailer hitch-sspx0019.jpg

new tails/modding trailer hitch-sspx0020.jpg   new tails/modding trailer hitch-sspx0031.jpg   new tails/modding trailer hitch-sspx0027.jpg   new tails/modding trailer hitch-sspx0023.jpg   new tails/modding trailer hitch-sspx0033.jpg

Reply With Quote
  #2
Old 01-16-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Nice work! I like the lights!
Reply With Quote
  #3
Old 01-16-2012
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Looks good!
Reply With Quote
  #4
Old 01-16-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Looks good! I've never seen lights like that before... are they off of anything in particular?
Reply With Quote
  #5
Old 01-16-2012
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
1939 Lincoln Zephyr!
Reply With Quote
  #6
Old 01-16-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
NIce! i cannot wait to see this thing finished.
Reply With Quote
  #7
Old 01-16-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Have you thought about mounting the hitch so it comes through the plate? I've seen where guys take a old GM plate mount that flips down and then have the hitch come through when the plate is lowered.
Reply With Quote
  #8
Old 01-16-2012
<TX>TORKiT's Avatar
Member
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Name:  Approvedchucknorris.png
Views: 13
Size:  160.4 KB
Reply With Quote
  #9
Old 01-17-2012
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
Quote:
Originally Posted by morris View Post
Have you thought about mounting the hitch so it comes through the plate? I've seen where guys take a old GM plate mount that flips down and then have the hitch come through when the plate is lowered.

Quote:
Originally Posted by drppdyllwrngr View Post

set back in place, clamped in:




waiting on a new cord to show up for my drill. then i'll get the holes in it and bolted back together. then i can cut the hole behind the tag. already have the flip down tag holder on.
plate mount is from a mid 80s camaro
Reply With Quote
  #10
Old 01-17-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Missed that, sorry.
Reply With Quote
  #11
Old 01-17-2012
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I like the hitch setup.
Reply With Quote
  #12
Old 01-17-2012
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
That's awesome!! What color you planning to paint the truck?
Reply With Quote
  #13
Old 01-17-2012
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
truck is going back to the factory yellow, with a charcoal graphic of some time. over all theme will be yellow and dark shadow grey.
Reply With Quote
  #14
Old 01-17-2012
<TX>TORKiT's Avatar
Member
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
It looks like it is getting close. What else needs to get done before you paint it?
Reply With Quote
  #15
Old 01-17-2012
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
finishing of the body work. the handles/emblems have been shaved, but needs another skim of filler and blocked out. need to shave the 3rd brake light, cab seams, and replace the core support. possibly shaving gas tank door as well.

here is the rough plan for this summer (assuming all goes well). get my 93 on the road, take 95 off road. stroked small block going in 95, b2 tank, raised bed floor, narrowed rear, and possible z on the front (staying static). when i do the motor swap and z, the cab will be removed, sent off to get the engine bay repainted, then go from there. they guy that did the bed will do the paint. i traded him upholstery work for the body work, so hoping he may have some more for me.
Reply With Quote
  #16
Old 02-12-2012
drppdyllwrngr's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
Got my hitch all buttoned up and even tested. A friend gave me two old mowers last weekend. Towed them about 60 miles back home. worked great.

bolted up and ready to go back in


bolted to the frame:

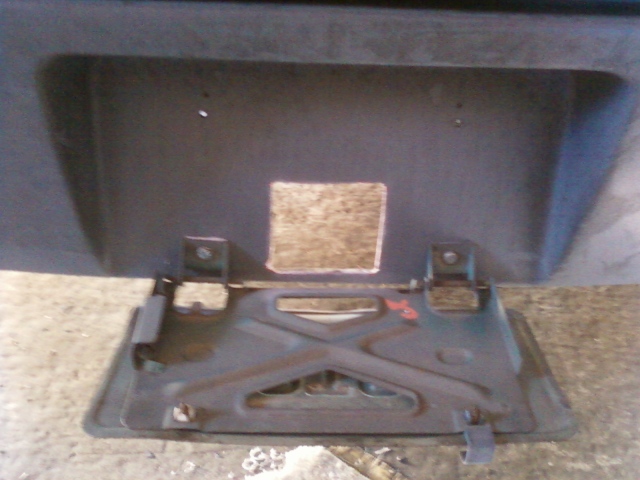

hole cut in the roll pan:
