Out with the old, in with the new!

Finally, after almost two months, the truck is back! I wasn't driving it because the PS pump was going out, and it was squealing like a pig. I thought the squealing was from the pump, but it wasn't.

Anyway, here are some pictures of what was taken out, and put back in!

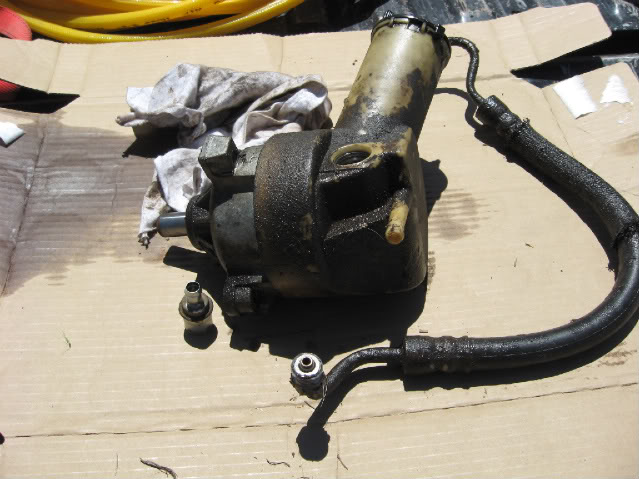

old:
Name:  Picture012.jpg
Views: 0
Size:  66.1 KB

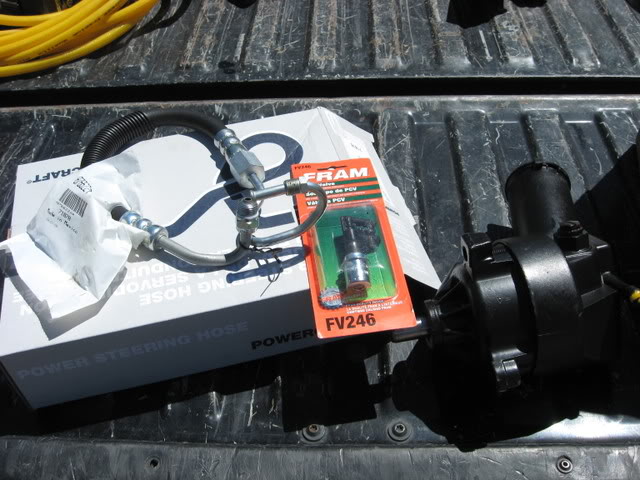

new:
Name:  Picture013.jpg
Views: 0
Size:  70.4 KB

The only trouble we had was taking that pressure hose off. My dad was looking at it for a few minutes, and then goes to his work table in the shop, grabs his grinder, and says "Well, lets see if I can catch your truck on fire!". I immediately said "Should we just use a jig saw?" to which he replied "Well, where is the fun for me then?".

Obviously the truck didn't catch fire, thank god!

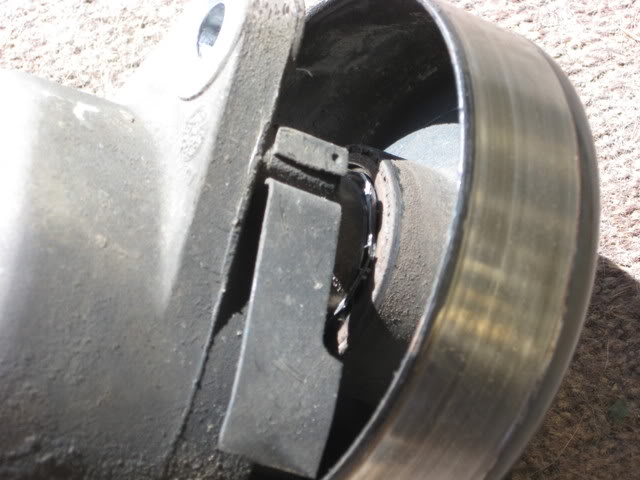

Anyway, we got the pump in, fired it up, and it was still squealing, and my dad saw that the tensioner pulley was not spinning. Bearings went bad. Once we got it off, you could see how it chewed the **** out of them:

Name:  Picture015.jpg
Views: 0
Size:  49.3 KB

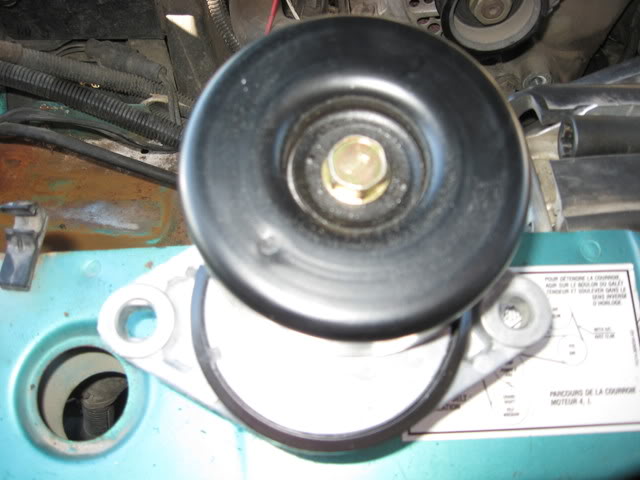

And trip three up to the car parts store (only reason I went to the far away one was cause I was getting better prices from the local one, and I also had a 10% discount card there) landed me the new one:

Name:  Picture016.jpg
Views: 0
Size:  47.0 KB

Got that all put back together, cleaned out the throttle body, and was back in business. I'm real happy now that I got the Ranger back, because it cost me $95 to put gas in the beast, which hurt quite a bit.

So, in total:

Pulley removal tool: $24.29
Power Steering Pump: $55.79
Power Steering Pressure Hose: $32.39
PCV Valve: $3.59
Tensioner Pulley: $62.09

Grand Total: $180.66

If my mechanic would have done it, I bet it would have been double that.

Anyway, I'll have some back road driving pics up tomorrow, though I would at least share the fact that it's actually drivable now!
Reply With Quote
  #2
Old 06-28-2008
Member

Join Date: Apr 2008
Location: Doylestown, PA
Posts: 111
Glad you got it back on the road. Is the new pump a lot quieter?
Reply With Quote
  #3
Old 06-28-2008
Jimmeh's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Quote:
Originally Posted by T173M View Post
Glad you got it back on the road. Is the new pump a lot quieter?
As of yet, no. I am still working the air out of the system after taking it all apart. But no Ford pump I have ever heard on the older models are quiet.
Reply With Quote
  #4
Old 06-28-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
if you would have turned the wheel back and forth about 25 times before starting it the first time it should have bled the system.

Did you try to press the bearings out of that tensioner? That is what I have done in the past and those bearings are only around 10bucks each.
Reply With Quote
  #5
Old 06-28-2008
Jimmeh's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Quote:
Originally Posted by zabeard View Post
if you would have turned the wheel back and forth about 25 times before starting it the first time it should have bled the system.

Did you try to press the bearings out of that tensioner? That is what I have done in the past and those bearings are only around 10bucks each.
I did turn it a bunch. I dug some good grooves in my driveway from turning it. My dad just says on some rigs it takes longer then others.

And we don't have a press, so I couldn't really do that, and I figured I might as well go ahead and get the new pulley. I guess I should have tried to figure out a redneck mechanic way to press it.....

Either way, I am just stoked it's on the road. I was starting to really dislike the manual transmission in the Dodge, just cause I am lazy!
Reply With Quote
  #6
Old 06-30-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Glad you got it back drivable again. I hate it when the trucks down.
Reply With Quote
  #7
Old 06-30-2008
99MazdaB4000's Avatar
Member

Join Date: Apr 2008
Location: Kutztown, PA
Posts: 1,980
glad your truck is back on the road. mine was off for 6 months up until 2 weeks ago. i bet your just as happy as i was!
Reply With Quote
  #8
Old 06-30-2008
REUBER's Avatar
Member

Join Date: Oct 2006
Location: US Army
Posts: 1,722
sweet, good to hear.
Reply With Quote
  #9
Old 06-30-2008
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
yeah it is a good feeling when your truck gets fixed
