Pic Req: Fuel tank skid plates & how they mount

Looking for pics of gas tank skids and how they mount. Post 'em up!

Basically...I've got an 05 skid and mounting it to my '01...and I know that they both mount differently between the years. Need pics!!


Thanks!

Shane
Reply With Quote
  #2
Old 03-13-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
well if it wasnt dark as crap outside i would get pics good job lol...
Reply With Quote
  #3
Old 03-13-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Don't worry about it dude, we can make it fit! Mod it with some superalloys so nothing will pierce the tank and custom mounting brackets, oh yeah dude i got the plan
Reply With Quote
  #4
Old 03-13-2009
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
make it bulletproof
Reply With Quote
  #5
Old 03-13-2009
redranger_02's Avatar
Member

Join Date: Oct 2006
Location: Evansville, Indiana
Posts: 641
Id take pics but I really dont feel like laying on the ground in the dark right now. And they prolly wouldnt be very good
Reply With Quote
  #6
Old 03-14-2009
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
lol. gee...thanks guys. haha. its all good...i'm just tired of seeing the skid sitting outside for 3 months.
Reply With Quote
  #7
Old 03-14-2009
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583

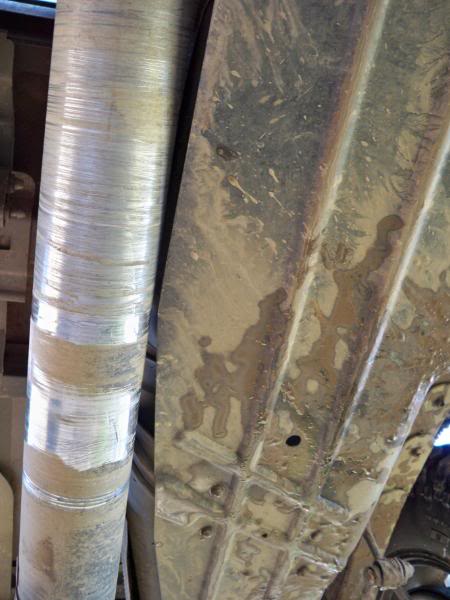

um....check my thread again....where it was rubbin my driveshaft...might show ya somthin.

ill get you another pic or two during the week if you really want..
Reply With Quote
  #8
Old 03-14-2009
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by rstangboi View Post
um....check my thread again....where it was rubbin my driveshaft...might show ya somthin.

ill get you another pic or two during the week if you really want..
This one?

Name:  100_0491.jpg
Views: 5
Size:  54.5 KB
Reply With Quote
  #9
Old 03-14-2009
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
yezzir
Reply With Quote
  #10
Old 03-14-2009
FullThrottle02's Avatar
Member
iTrader: (3)

Join Date: Apr 2008
Location: McHenry,IL
Posts: 586
If you still need pics I will take some tomorrow, the battery in my camera is dead at the moment.
Reply With Quote
  #11
Old 03-15-2009
FullThrottle02's Avatar
Member
iTrader: (3)

Join Date: Apr 2008
Location: McHenry,IL
Posts: 586
[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

I hope that is what you needed.
Reply With Quote
  #12
Old 03-15-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Cmon Shane just make one! or better yet, get a fuel cell
Reply With Quote
  #13
Old 03-15-2009
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Thanks Jason. I think that's what's meant for my truck....your style with bracketry attached to the skid.



Here's what I got to work with....came off an '05 Fx4 Level 2. My tcaseskid, axle, andcenter console came from this truck. I think the streaps have studs sticking down that theskid mounts to....something my truck does not have...




Last edited by Fx4wannabe01; 03-16-2009 at 01:28 AM.
Reply With Quote
  #14
Old 03-16-2009
SparkYZ's Avatar
Member

Join Date: Nov 2007
Location: Granada Hills, CA
Posts: 679
Holy driveshaft rub batman!!

I'll get some pics soon shane. sorry !!!
Reply With Quote
  #15
Old 03-20-2009
Riceman's Avatar
Member

Join Date: Dec 2008
Location: GA
Posts: 576
I read this thread when it started, and am just now realizing my FX4 has that skid... Mine has studs on the bottom of the tank the skid bolts to. I will get you some pics this afternoon if you still want them.
Reply With Quote
  #16
Old 03-20-2009
Auto's Avatar
Member

Join Date: Jan 2008
Location: Jeannette, PA (Pittsburgh
Posts: 511
Yeah Shane you are just missing the brackets. It doesn't actually bolt to the tank straps. In fact the way the skid plate is made you have to drop the drive shaft to get it off. So if you go to the jy trying to get another one remember you have to drop the drive shaft.
Reply With Quote
  #17
Old 03-20-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
thats lame you started with none like some of the others on here. I figured they all had them if my XLT did.
Reply With Quote
  #18
Old 03-20-2009
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by ibowl9 View Post
I read this thread when it started, and am just now realizing my FX4 has that skid... Mine has studs on the bottom of the tank the skid bolts to. I will get you some pics this afternoon if you still want them.
Yea.....yours is the same year range 04-05 that my skid came off of... Please post.

Quote:
Originally Posted by Auto View Post
Yeah Shane you are just missing the brackets. It doesn't actually bolt to the tank straps. In fact the way the skid plate is made you have to drop the drive shaft to get it off. So if you go to the jy trying to get another one remember you have to drop the drive shaft.
Ive found two styles of mounting....one pictured that someone posted for me, and the other kind has studs sticking out hte bottom of the straps.

I went to a Maz Toy yard the other day...found two perfect skids that'll bolt right to my truck that are currently on wrecked b4000's......wanna know the price? $85-95 + a few days waiting time. WTF! screw that! lol.
Reply With Quote
  #19
Old 03-20-2009
01 ranger 4x4's Avatar
Member
iTrader: (1)

Join Date: Nov 2007
Location: Vacaville, CA
Posts: 1,100
i have the same truck as u and mine mount just like above not to the tank itself so im not sure that skid is gonna be a direct fit it may take some modding to fit and if i remember correctly the newer trucks have smaller tanks only 16gal not 19 like your truck but i may be wrong on that
Reply With Quote
  #20
Old 03-20-2009
Riceman's Avatar
Member

Join Date: Dec 2008
Location: GA
Posts: 576
Just took some pics, give me about 5 min to upload to photobucket and i'll have them up.
Reply With Quote
  #21
Old 03-20-2009
Riceman's Avatar
Member

Join Date: Dec 2008
Location: GA
Posts: 576
Did i say 5 min? I meant 20.

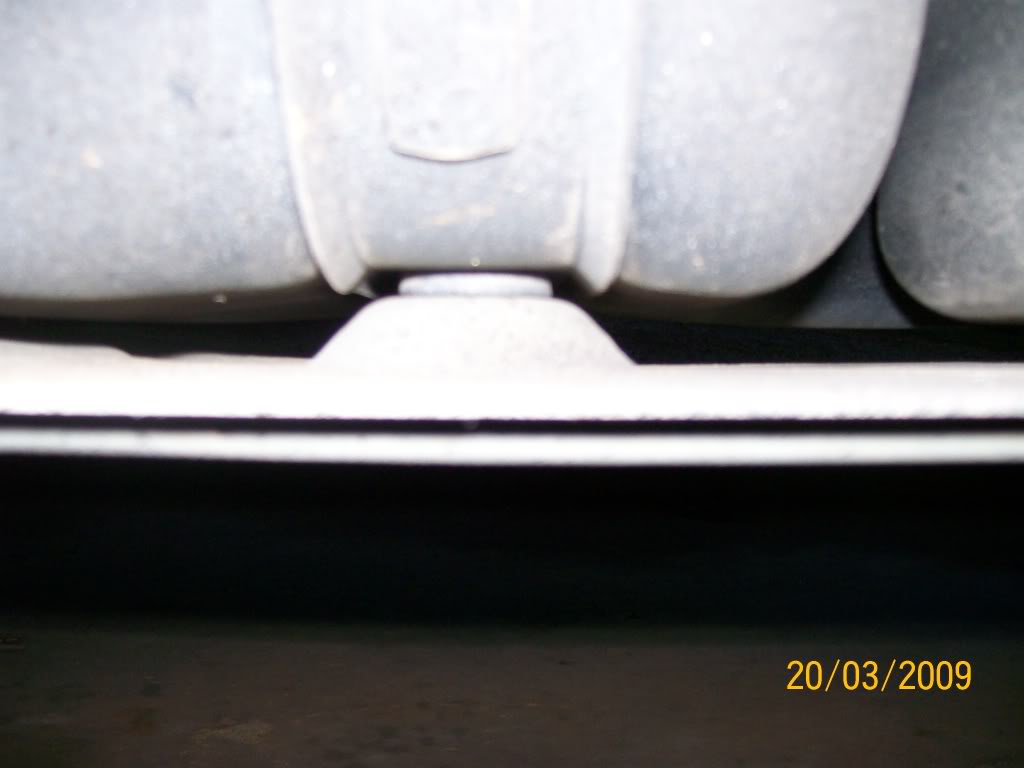

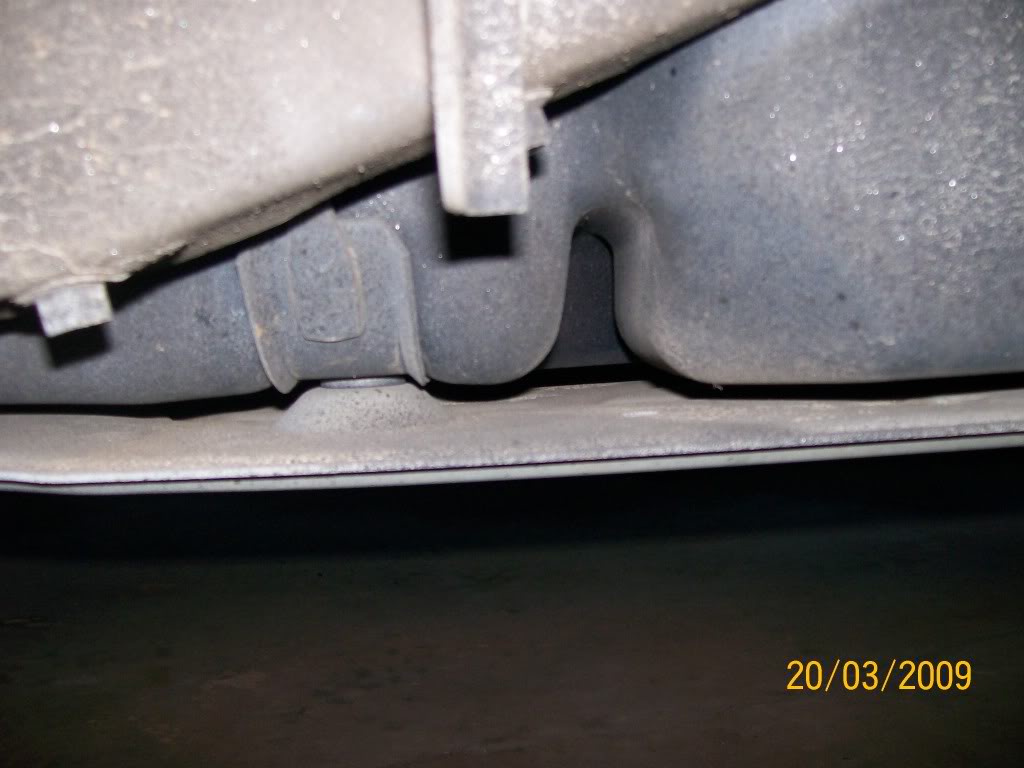

There are four studs that are on the hangars. If you get hangers (assuming they haven't changed the tanks) from an 04-05 FX4, maybe newer? you can make it work.



Name:  100_0510.jpg
Views: 5
Size:  72.9 KB

Name:  100_0511.jpg
Views: 5
Size:  48.5 KB

Sorry for the bad pics, couldn't get far enough away to get a good angle to get decent pics. Damn stock height truck...
Reply With Quote
  #22
Old 03-20-2009
01 ranger 4x4's Avatar
Member
iTrader: (1)

Join Date: Nov 2007
Location: Vacaville, CA
Posts: 1,100
see mine is dif from that
Reply With Quote
  #23
Old 03-21-2009
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
Quote:
Originally Posted by 01 ranger 4x4 View Post
see mine is dif from that
x2 man....i was lookin at mine today...still cant figure out how the skid manages to veer ALL THE WAY OVER to my driveshaft... its so weird.

damn frame flex
Reply With Quote
  #24
Old 10-01-2009
Hillyard's Avatar
Member
iTrader: (8)

Join Date: Jul 2007
Location: Evansville, Indiana
Posts: 1,018
How did you end up getting it mounted FX4wannabe?
Reply With Quote
  #25
Old 10-01-2009
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I ended up using the right skid for my truck....pulled from like a 99 off road. It's the skid with the built in bracketry. Not like ricemans or the pics I posted earlier. I suppose I should update this thread iwth up to date pics. lol.
