Ranger get ACNE removed (56K - Grab a drink)

So the Ranger has had some small rust areas on the rear bumper for a few years and I've been hiding them with "cover up" like a teenager would.

Well this year the surface rust came around from the backside, up, and over the edges.

It looked like @ss so enough was enough. Time for some surgery.

Dr. Chris arrives
Name:  100_0003.jpg
Views: 1
Size:  83.8 KB

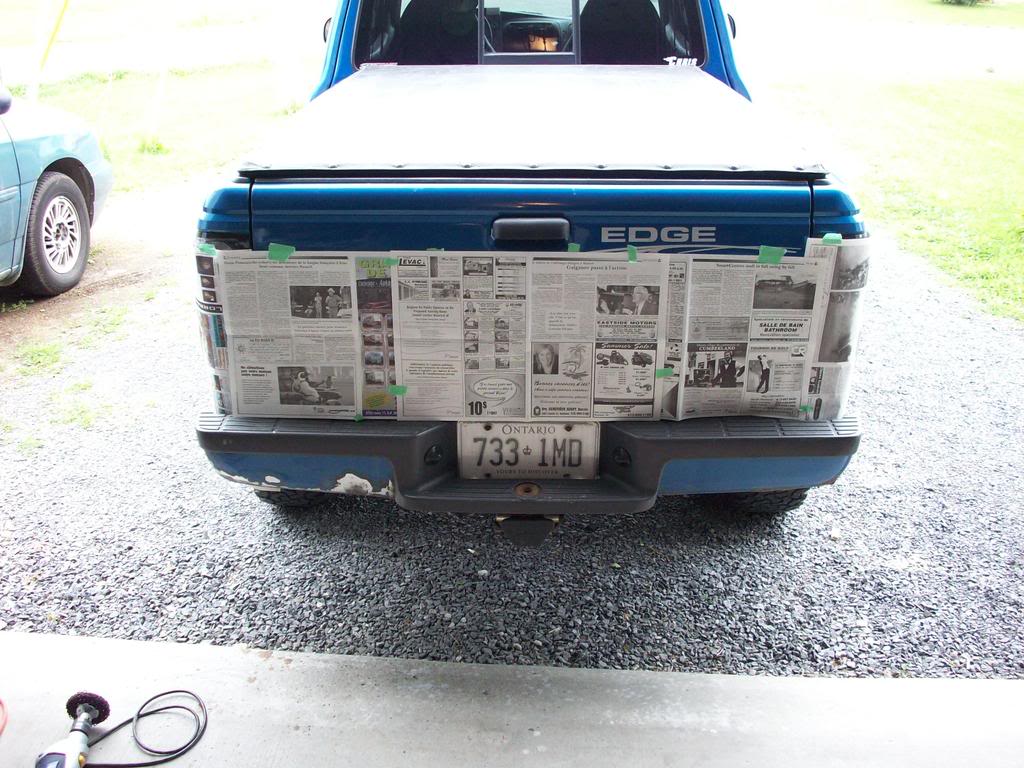

Patient is prepped and stripping begins
Name:  100_0004.jpg
Views: 1
Size:  153.5 KB

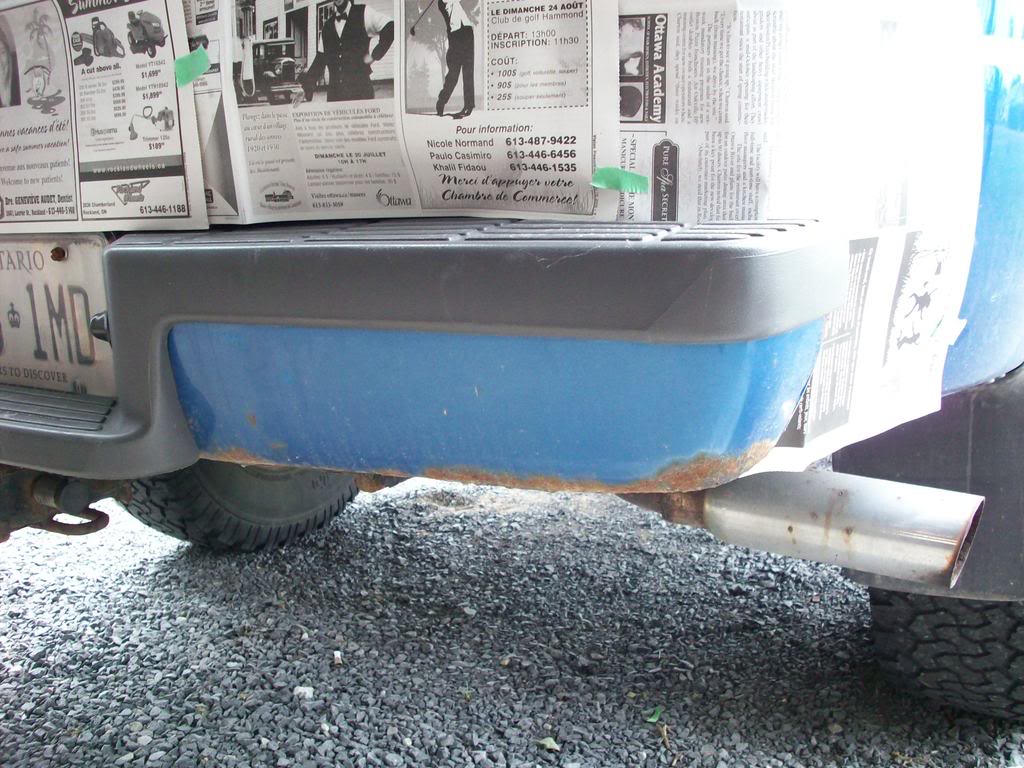

Nasty creeping rust
Name:  100_0005.jpg
Views: 1
Size:  152.4 KB

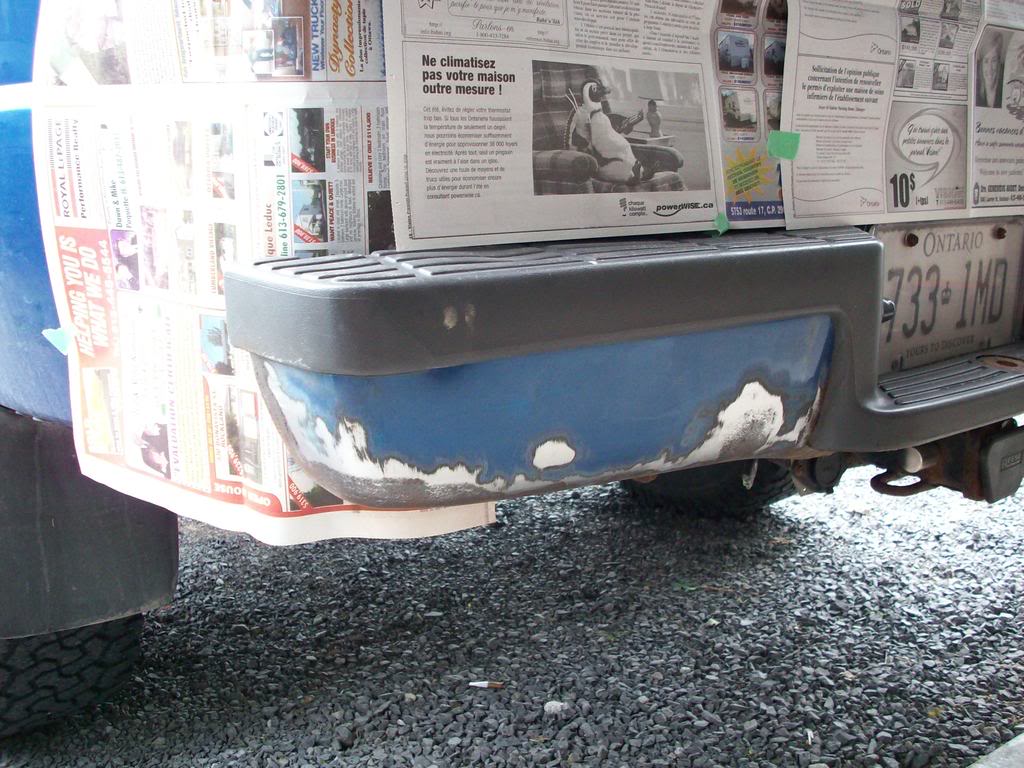

Grinding away
Name:  100_0006.jpg
Views: 1
Size:  156.1 KB

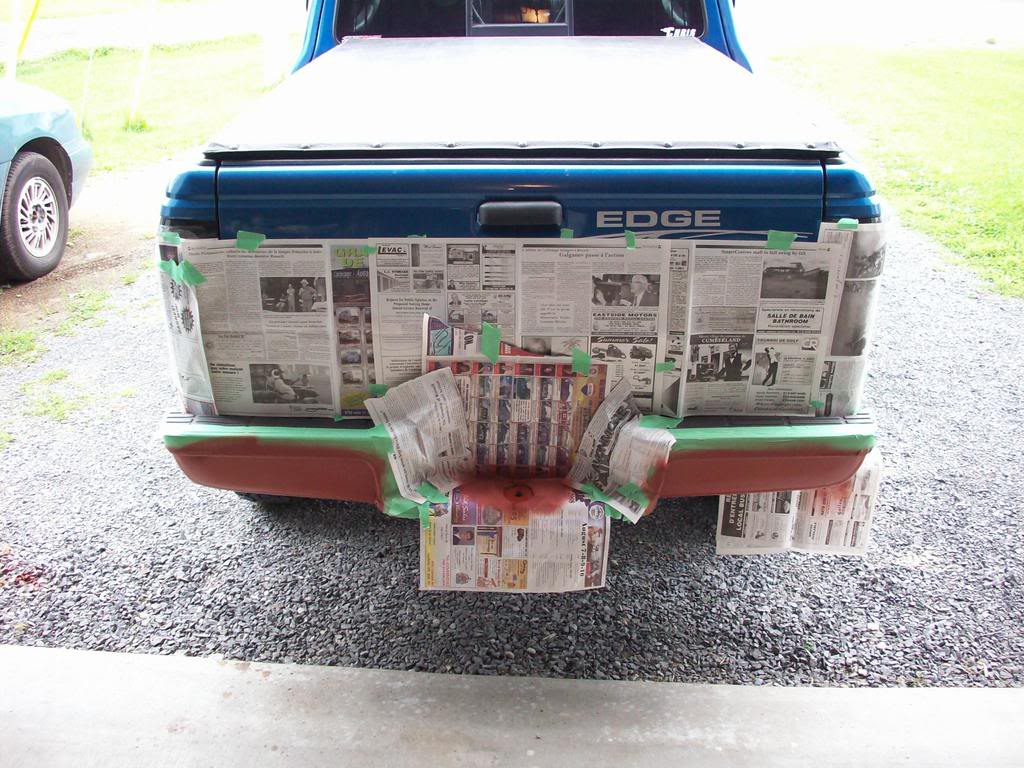

After stripping the entire area from all paint and rust and getting down to clean bare metal, the primer
Name:  100_0007.jpg
Views: 1
Size:  156.9 KB

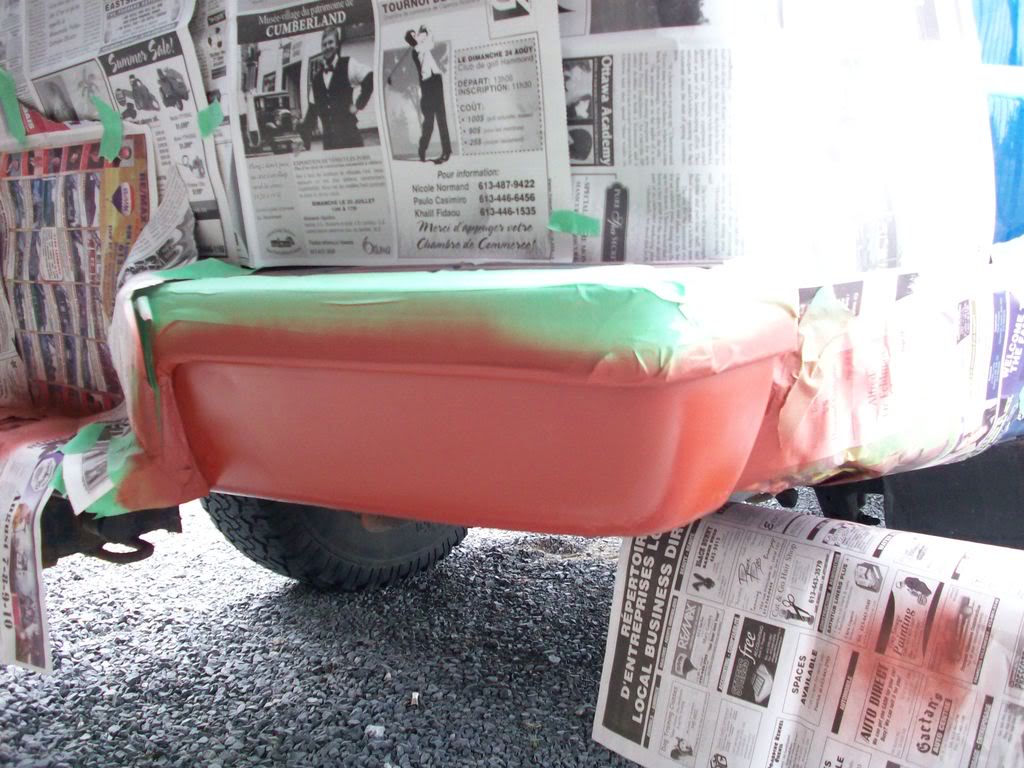

3 coats primer
Name:  100_0008.jpg
Views: 1
Size:  143.3 KB

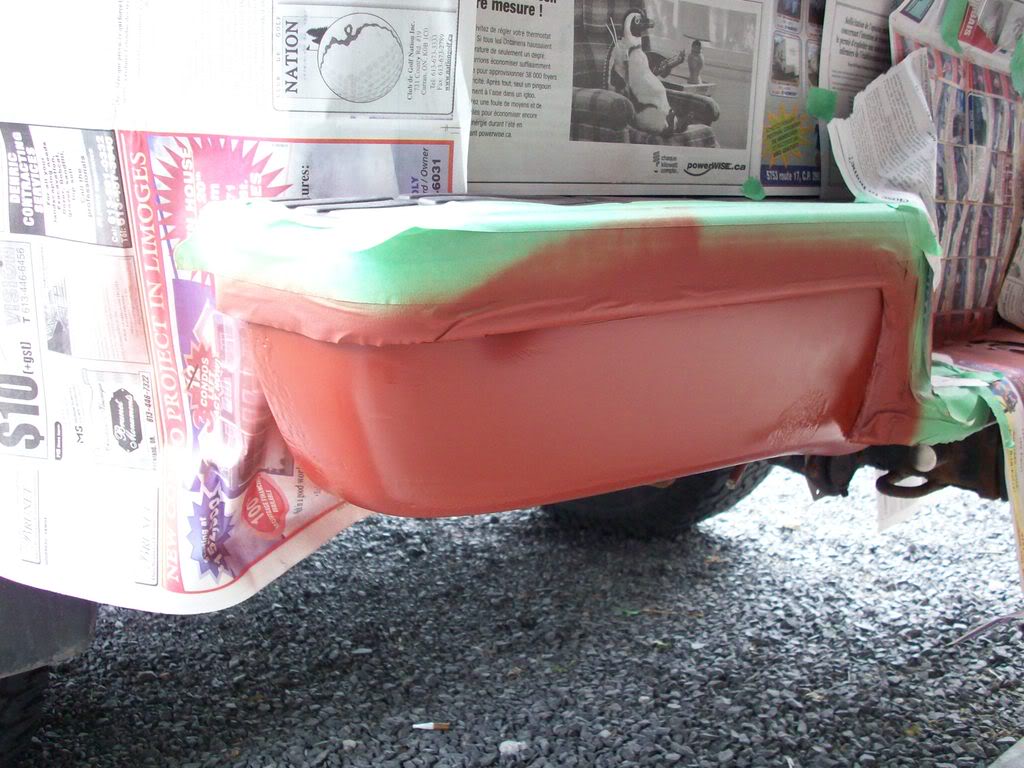

3 coats primer
Name:  100_0009.jpg
Views: 1
Size:  144.0 KB

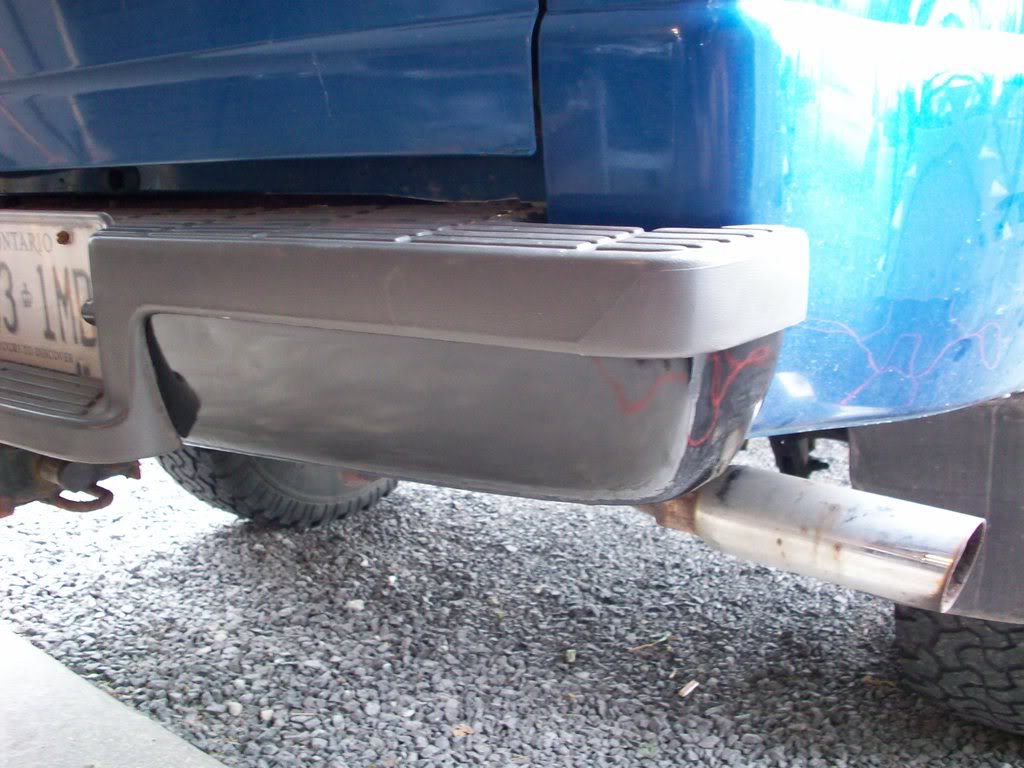

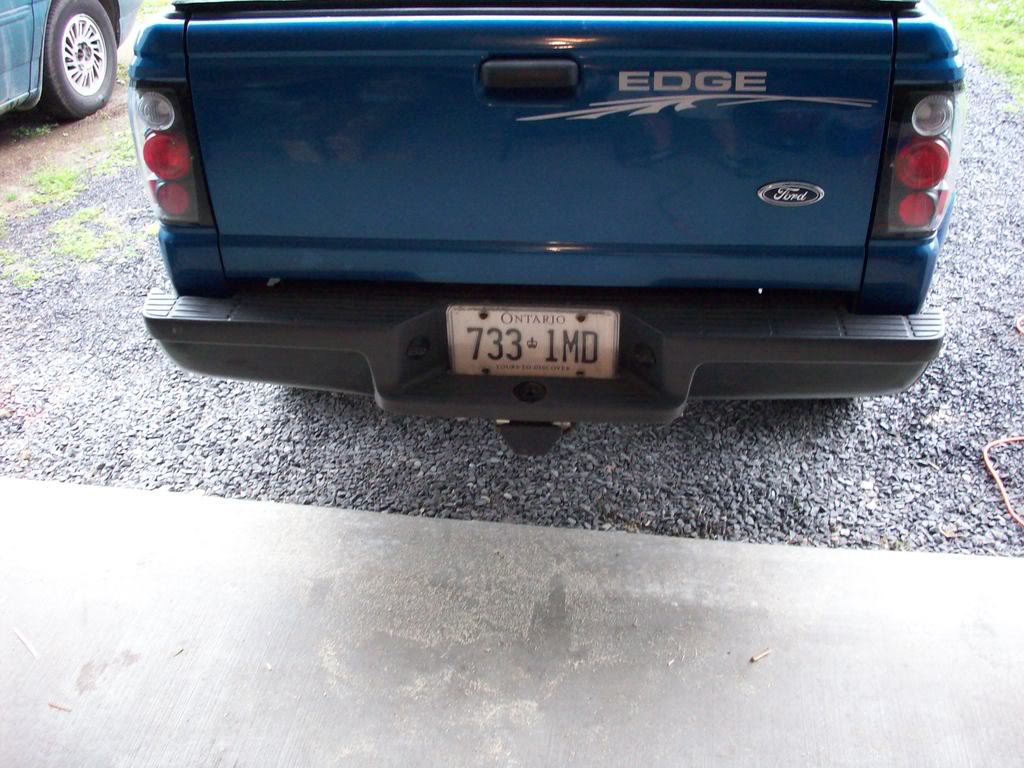

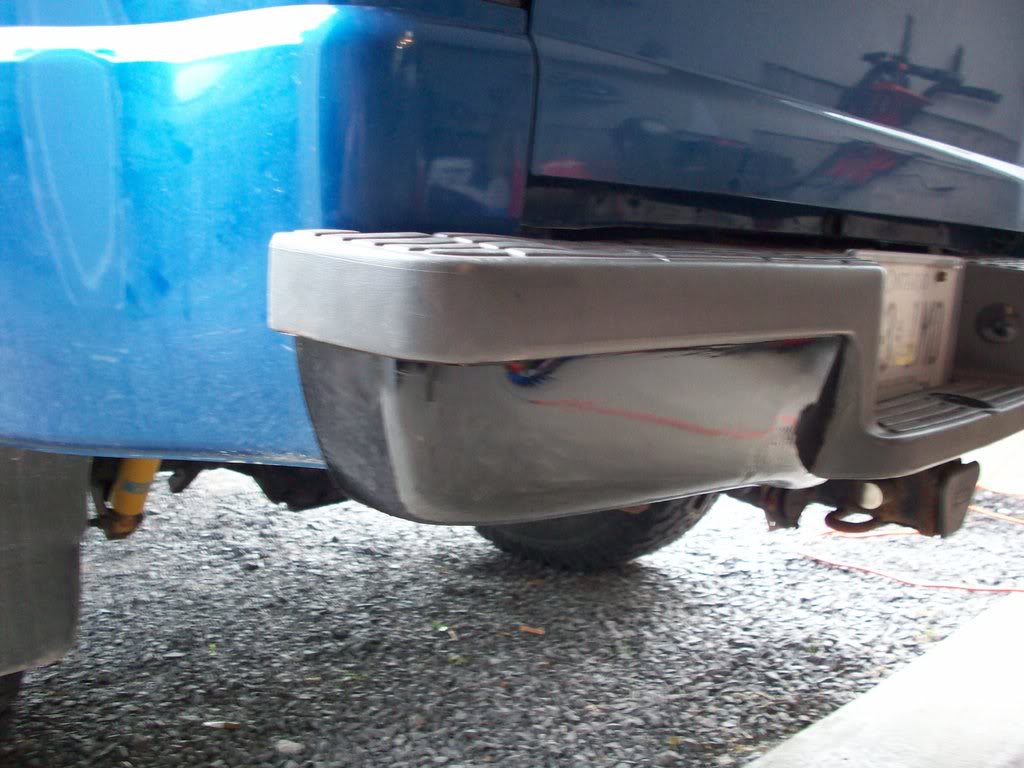

Painted with 4 coats of gloss black rust paint and 4 coats of clear
Name:  100_0010.jpg
Views: 1
Size:  134.3 KB

Name:  100_0011.jpg
Views: 1
Size:  125.8 KB

Name:  100_0012.jpg
Views: 1
Size:  113.6 KB

The patient was released and 3 days later was washed and waxed and a heavy detailing job was done inside and out.
Reply With Quote
  #2
Old 07-24-2008
TrucksGetDirty's Avatar
Member
iTrader: (1)

Join Date: Jun 2008
Location: Florida
Posts: 947
Looks really good.
Reply With Quote
  #3
Old 07-24-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
nice, fyi that bumper cover removes really easy.

do you lack on washing it during the winter months? seems kinda early for that much rust!
Reply With Quote
  #4
Old 07-24-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
How easy beard? I've hada brand new black cover sitting forever cuz removal of the old one is a b!tch for me for some reason. lol.
Reply With Quote
  #5
Old 07-24-2008
Rolldogg's Avatar
Member
Thread Starter

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424
Quote:
Originally Posted by zabeard View Post
nice, fyi that bumper cover removes really easy.

do you lack on washing it during the winter months? seems kinda early for that much rust!
I've slacked on washing it period.....LOL

Last year it was washed twice, this year has been twice already. I have a van that I use for work now, so the Ranger stays parked and gets used sometimes on the weekends. I know last winter was bad.........I washed it in July sometime, then washed it this spring in April.

Mind you it's only the rear bumper that was that bad. Every other piece of sheet metal on the truck is still o.k. Just don't look at the exhaust tip....that needs a good buff too. That surface rust is pitted, but it's just from last winter. It doesn't take much.

I looked at removing the bumper cover, but just left it there. I wasn't going for a crazy job, just mainly got rid of the rust that was formed on the bottom and sides of the bumper. The rear is rust free and under the cover too.
Reply With Quote
  #6
Old 07-24-2008
Rolldogg's Avatar
Member
Thread Starter

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424
Name:  100_0009.jpg
Views: 1
Size:  144.0 KB


You can see the pitting in the metal on the edge and over by the hitch side. I ground all the rust out and off of the area then primed it up. I used rust primer and paint, so that should keep me covered for awhile. Just need to wash it more in the winter months.
Reply With Quote
  #7
Old 07-24-2008
93MVSplash's Avatar
Member

Join Date: Jun 2008
Location: Suwanee,GA
Posts: 264
Nice I have to say looks very good though good job.
Reply With Quote
  #8
Old 07-24-2008
Seahawk's Avatar
Member

Join Date: Mar 2008
Location: Sheboygan County, WI
Posts: 376
Looks great...so how about mine??lol
Reply With Quote
  #9
Old 07-24-2008
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823
looks good
Reply With Quote
  #10
Old 07-24-2008
gatorblue92's Avatar
RF Veteran

Join Date: Jun 2004
Location: Delaware
Posts: 8,238
nice work
Reply With Quote
  #11
Old 07-24-2008
t3ob's Avatar
Member

Join Date: Apr 2008
Location: Olive Branch, MS
Posts: 1,762
great job man
Reply With Quote
  #12
Old 07-24-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Looks real good man, nice work.
Reply With Quote
  #13
Old 07-24-2008
Member

Join Date: Mar 2005
Location: Wichita, KS
Posts: 1,301
Looks good Chris. When we gonna get some full pics of the truck?
Reply With Quote
  #14
Old 07-25-2008
Farwar's Avatar
Member

Join Date: Jul 2007
Location: Ottawa, Canada
Posts: 217
Looks good, why black though and not factory colour? Looks kind of out of place.
Reply With Quote
  #15
Old 07-25-2008
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
Shane -- that piece is just held on with clips from the back get a pair of needle nose pliers and grip and rip you gotta start at one end and work your way over its easy..

IMO -- take the bumper off tho its easier to flip it upside down to grip them
Reply With Quote
  #16
Old 07-26-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Looks like you did a good job, but why black and not blue?
Reply With Quote
  #17
Old 07-26-2008
RangerMuse's Avatar
Member

Join Date: Jul 2007
Location: Colorado
Posts: 1,727
My question is the same as the others why black and not blue? It looks good and you still did a great job but why the change
