And they're in!

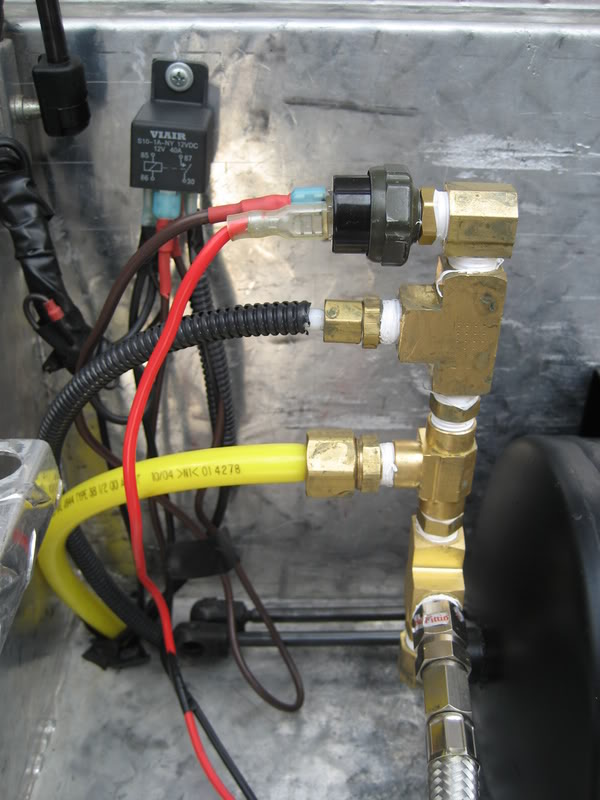

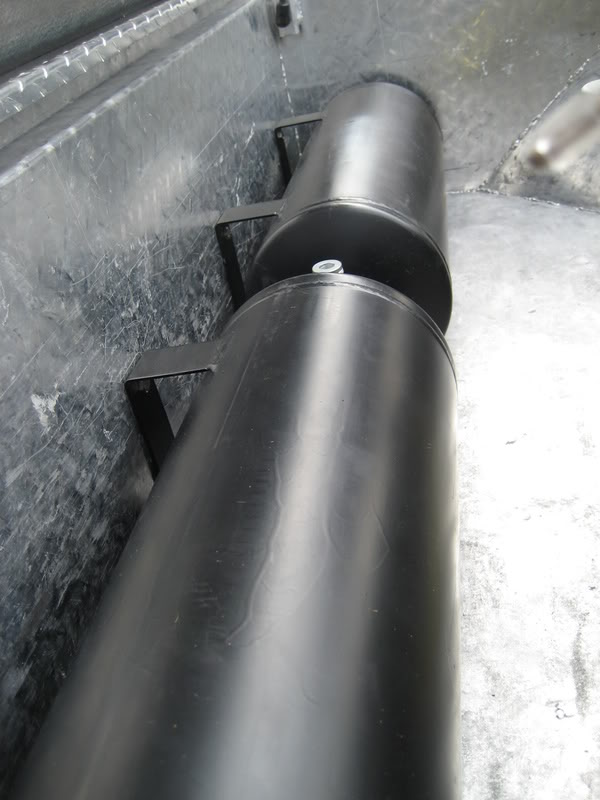

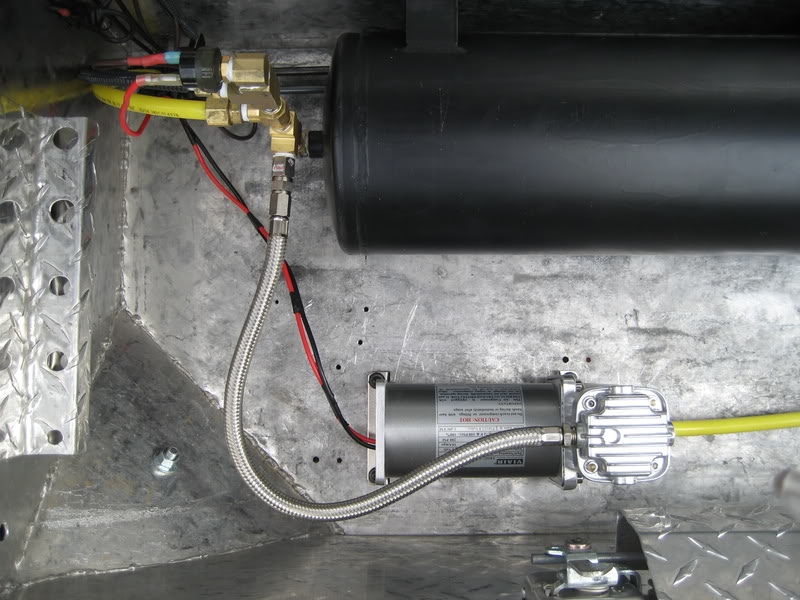

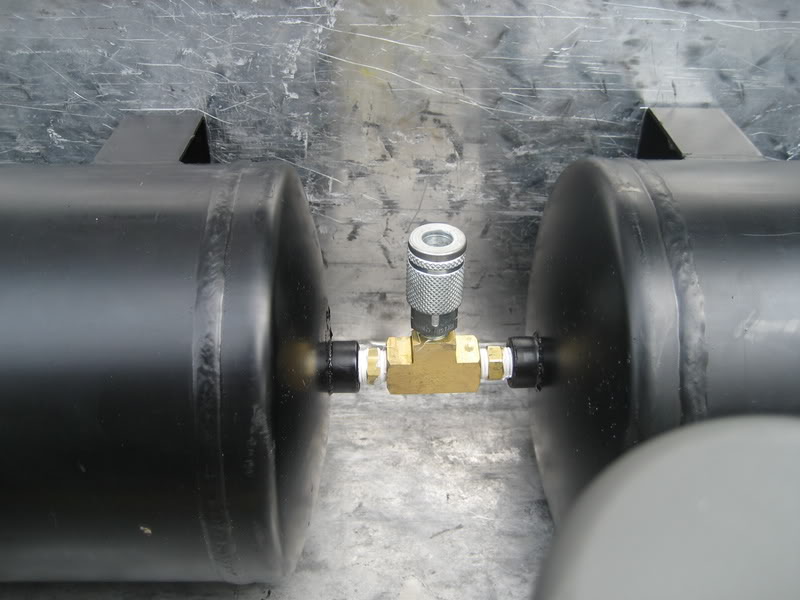

Went from this...

Name:  IMG_2475.jpg
Views: 1
Size:  63.6 KB

Name:  IMG_2474.jpg
Views: 6
Size:  59.9 KB

Name:  IMG_2473.jpg
Views: 1
Size:  73.4 KB

Name:  IMG_2472.jpg
Views: 1
Size:  92.9 KB

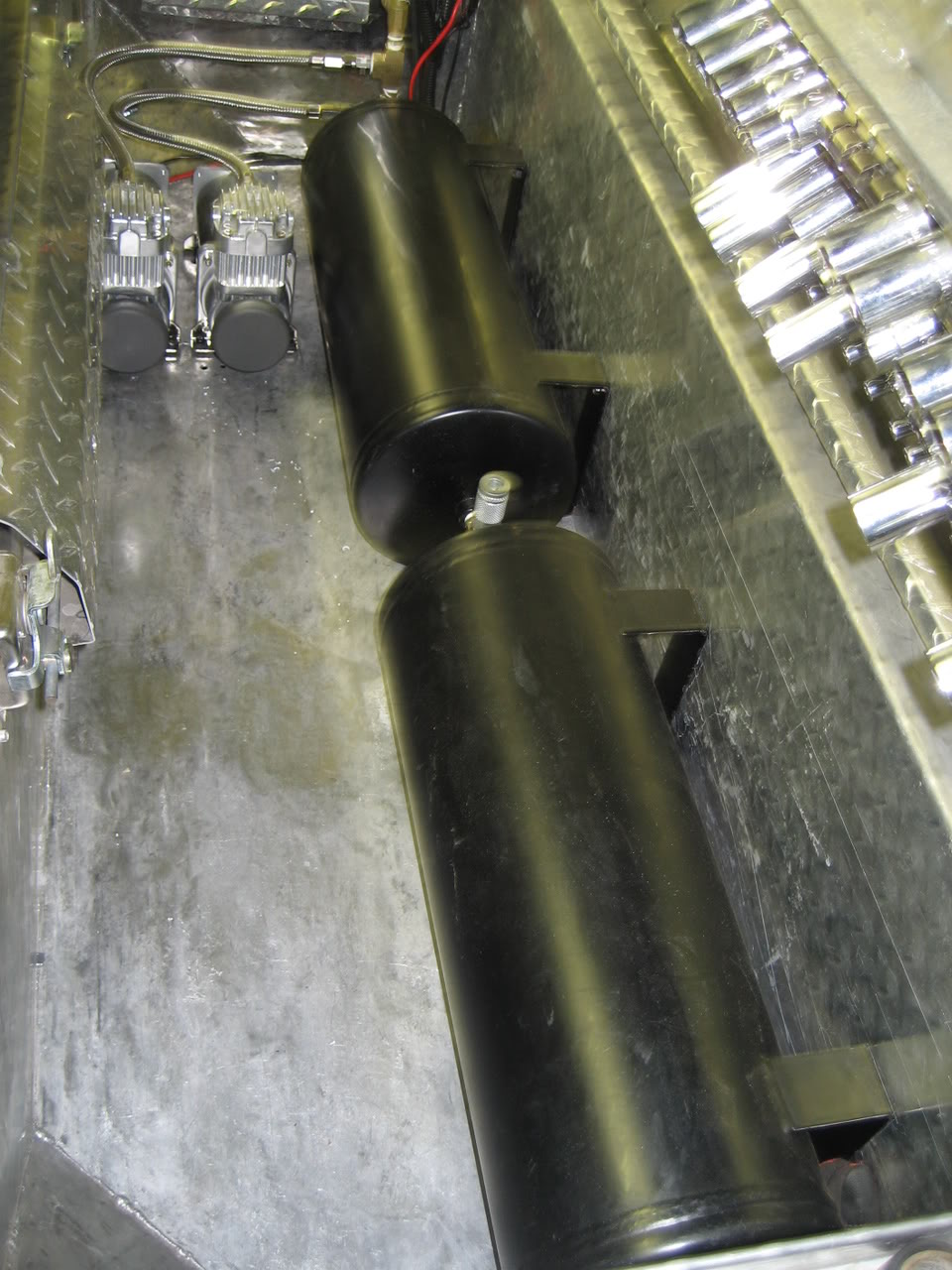

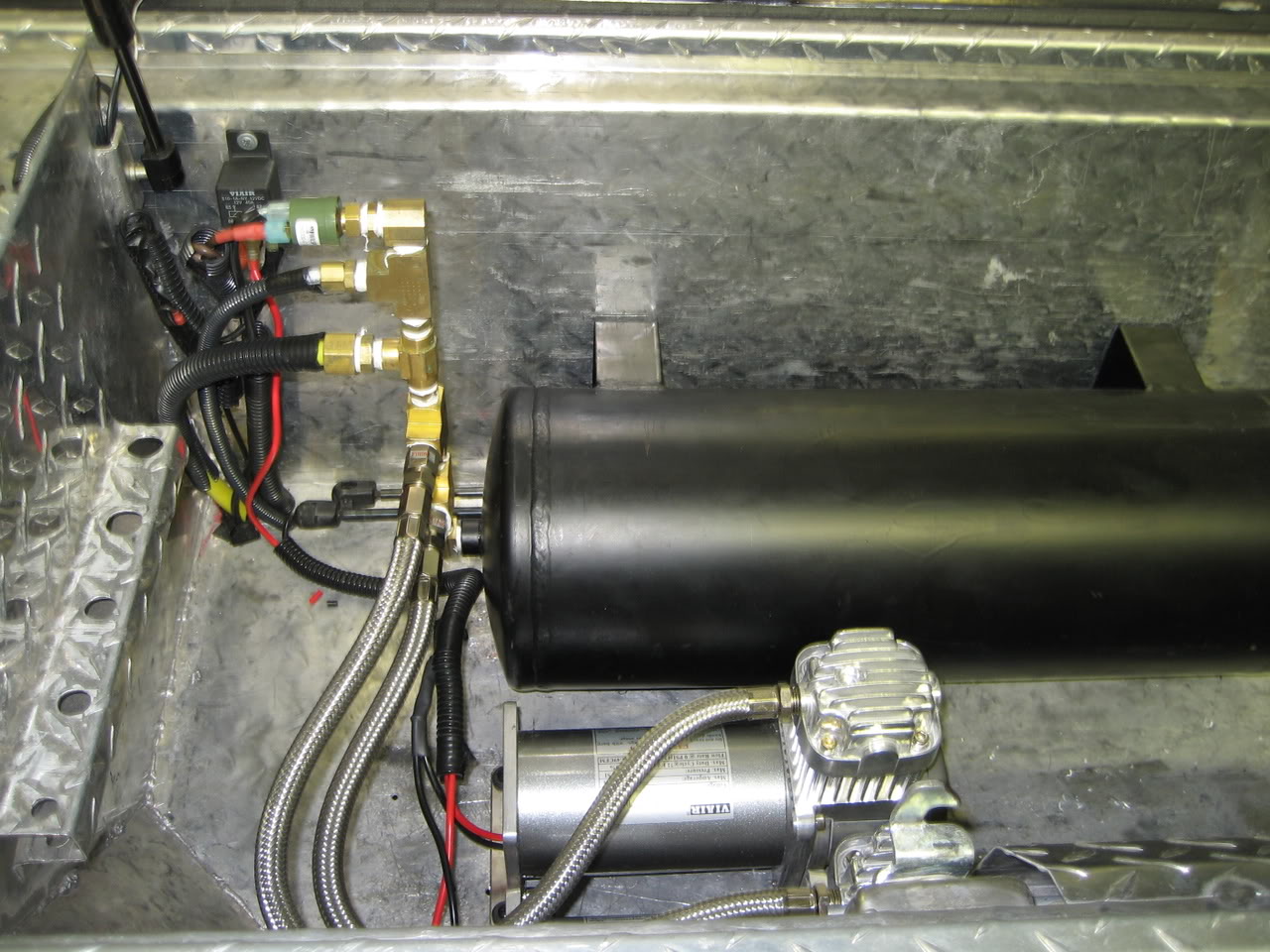

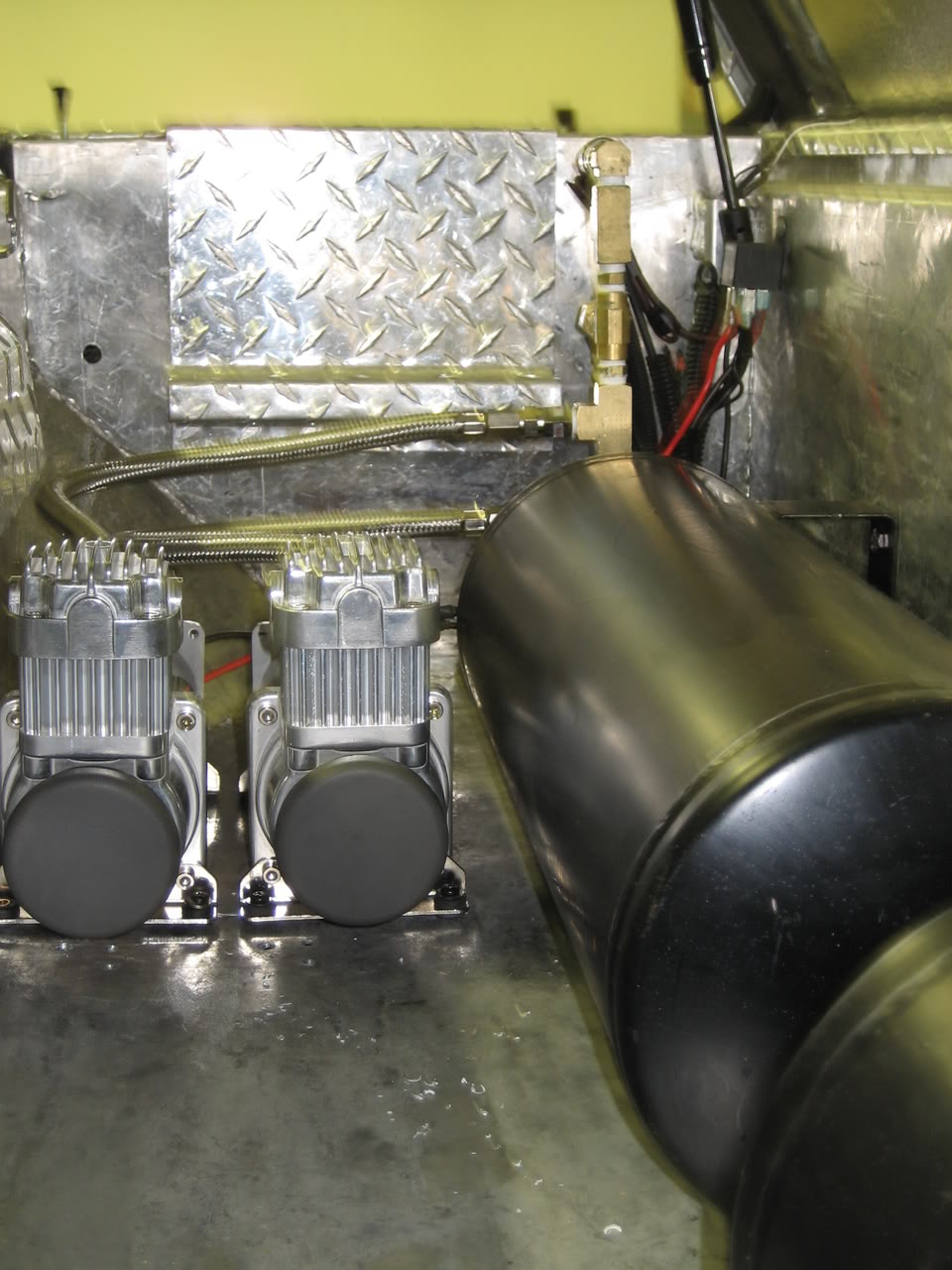

TO THIS!

Name:  IMG_2660.jpg
Views: 1
Size:  181.7 KB

Name:  IMG_2661.jpg
Views: 2
Size:  163.3 KB

Name:  IMG_2664.jpg
Views: 1
Size:  200.6 KB

The fill rate is freakin awesome! Pressure switch that works FTW!

Dual 380c ViAir compressors, 2 - 3gal air tanks... Custom manifold (by me lol) Quick connect for my 25ft air line for misc stuff, 40A relay after the PS, PS at 110/145psi, 1/2in air line to the valve and 1/2in out the valve to the horns, 1/4in to the gauge.

ENJOY! (I shoot to inspire!)
Reply With Quote
  #2
Old 08-17-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
custom manifold? what? those are pieces threaded together. custom would be having grant machine a manifold on the milling machine....

thanks for the idea trevor!!
Reply With Quote
  #3
Old 08-17-2008
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
That's how I roll ninja! lol

I think i'm gonna mask off the things not to be painted and coat the whole thing in black paint, flat black paint. Just for fun to try and clean it up a bit!
Reply With Quote
  #4
Old 08-17-2008
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823
very clean install
Reply With Quote
  #5
Old 08-17-2008
RangerExtreme's Avatar
Member
iTrader: (4)

Join Date: Nov 2007
Location: Robinson, Pa
Posts: 2,047
Damn trevor u love u're horns man!!
Reply With Quote
  #6
Old 08-17-2008
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Let's hear them bad boys!!!
Reply With Quote
  #7
Old 08-17-2008
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
dang, thats awesome!
Reply With Quote
  #8
Old 08-17-2008
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
im with shane all them fittings are just asking for sometype of leak, saying you might not have one now, but yea..

hows it sound inside the toolbox? always wondered that

now i see two compressors, you bought like 3 wheres the others?

Last edited by HighRollerII; 08-17-2008 at 11:34 AM.
Reply With Quote
  #9
Old 08-17-2008
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
i'd try to support that manifold block on the left somewhat. If you do use your tool box, the right smack by something will take that brass clean off. That is a lot of leverage against that bottom fitting
Reply With Quote
  #10
Old 08-17-2008
02oregonedge+'s Avatar
Member
iTrader: (2)

Join Date: Apr 2008
Location: OR!
Posts: 1,086
I love that Effin box....And trust me the horns are LLLLOOOOUUUDDDD!!!!
Reply With Quote
  #11
Old 08-17-2008
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
I challenge you to a horn dual!!
Reply With Quote
  #12
Old 08-17-2008
a311fanam's Avatar
Member

Join Date: Dec 2004
Location: Westerly, RI
Posts: 2,006
whats next? air brakes, air seat? my friend put an air ride seat in his ram, otherwise i dont see the need for so much air...
Reply With Quote
  #13
Old 08-17-2008
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
could double for filling a tire or something too i'm sure. Just carry around a plug kit if you catch a nail or something..
Reply With Quote
  #14
Old 08-17-2008
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
I use the air for horns, filling up tires, I've got a blow gun that comes in handy more often than not which is weird lol... After work I take out the blow gun and blow myself off before i get in my truck... less dust and dirt to clean up later

I bought 5 comps, 2 are shanes, 1 was mine and 2 were my other buddy's comps...

I really don't use my toolbox for all that much stuff... Holds my tools which are neatly organized and my air setup. I'm careful about what I put in the box, trust me lol.
Reply With Quote
  #15
Old 08-17-2008
rsw2159's Avatar
Member

Join Date: Jun 2008
Location: Stanley, NC
Posts: 473
My tank and compressor is mounted in my box too.
All i put back there is my fire gear.
All fits nice and neat.

How do you like running 2 compressors?
Reply With Quote
  #16
Old 08-17-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Sweeeet!
Reply With Quote
  #17
Old 08-17-2008
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
2 compressors is awesome! I can fill the tanks so fast it's great!
Reply With Quote
  #18
Old 08-17-2008
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
You bumped up to 200psi now right? How does it sound now, I am guessing louder but more high pitched.

Looks good tho.
Reply With Quote
  #19
Old 08-17-2008
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
no the grover horns are rated at like 120-125 PSI anything more will just blow out the horn aka like a big blow gun and it will hurt the way it sounds..the diaphram (sp?) can only move but so much then it will let the air just blow out..


is the same way with my nathans they will just become a blow horn..
Reply With Quote
  #20
Old 08-17-2008
TrePaul86's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Actually, my grovers are louder at 145psi compared to 120-125psi...

My setup now is only a 150psi setup.

Evan, package deal me... Nahtans and xcal2! lol
Reply With Quote
  #21
Old 08-17-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
after modding all the grovers, by driling out the air holes(not the inlet hole...but the holes that allow air through the trumpet), and after tuning....i can say 150psi sounds great on his 3 grover trumpets. and they do sound great....BETTER than untouched grovers and 125psi...

Still getting mine fixed up to sound right....just playing with differnet length horns right now.
Reply With Quote
  #22
Old 08-17-2008
MOTOunplugged's Avatar
Member
iTrader: (1)

Join Date: Mar 2008
Location: Covington, Georgia
Posts: 759
trevor... i challenge you to a horn dual. nobody in GA has got me beat yet. even though i have started a popular trend around town. lol
Reply With Quote
  #23
Old 08-17-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
this is a pretty badass set up! i wanna do this someday.
Reply With Quote
  #24
Old 08-17-2008
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
Quote:
Originally Posted by TrePaul86 View Post
Actually, my grovers are louder at 145psi compared to 120-125psi...

My setup now is only a 150psi setup.

Evan, package deal me... Nahtans and xcal2! lol
well i dont know the PSI rating on the grovers i was just throwing out a number i know the nathans are like 120
Reply With Quote
  #25
Old 08-18-2008
BurningRANGERtires's Avatar
Member

Join Date: Jun 2008
Location: North Sin City, NV
Posts: 312
is it actually that loud.. like mine is from japan and does 130db... and its plenty loud..

and for the leaks.. couldn't you just pump up the tanks and put soap water on the fittings and see if bubbles form??
