What the heck is this? and a few pics of the truck!

So my new truck is a 2003 ford ranger 2.3l 5 speed , and while working on it, as go figure the warranty runs out and I have some problems, mainly small leak no biggy

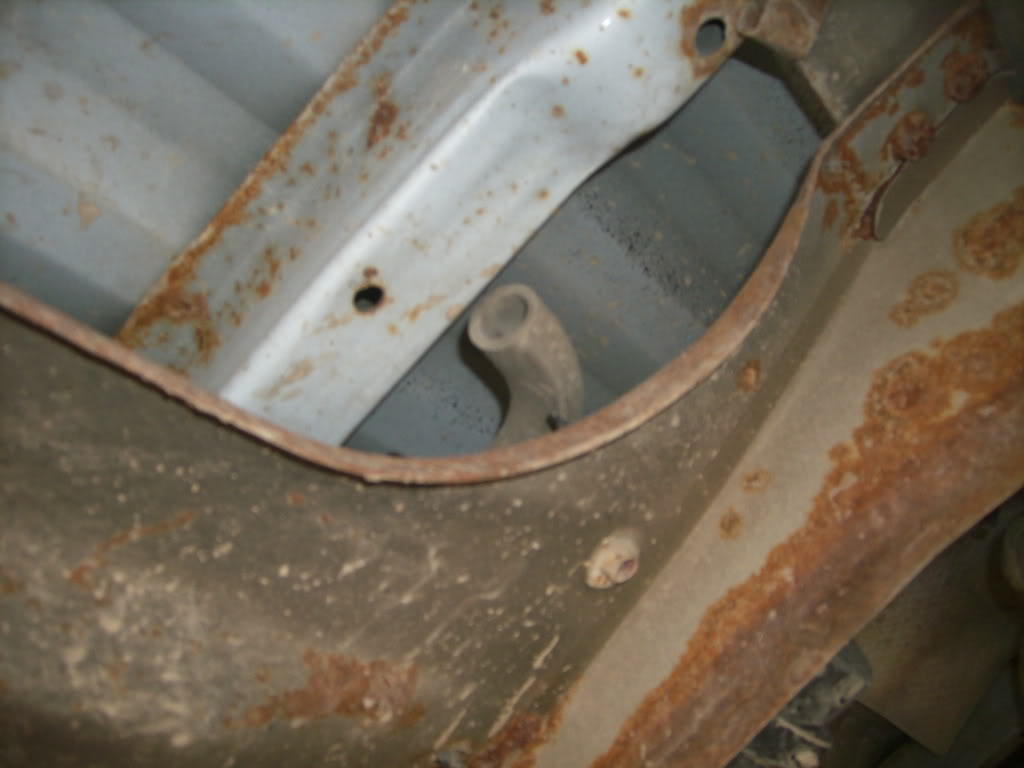

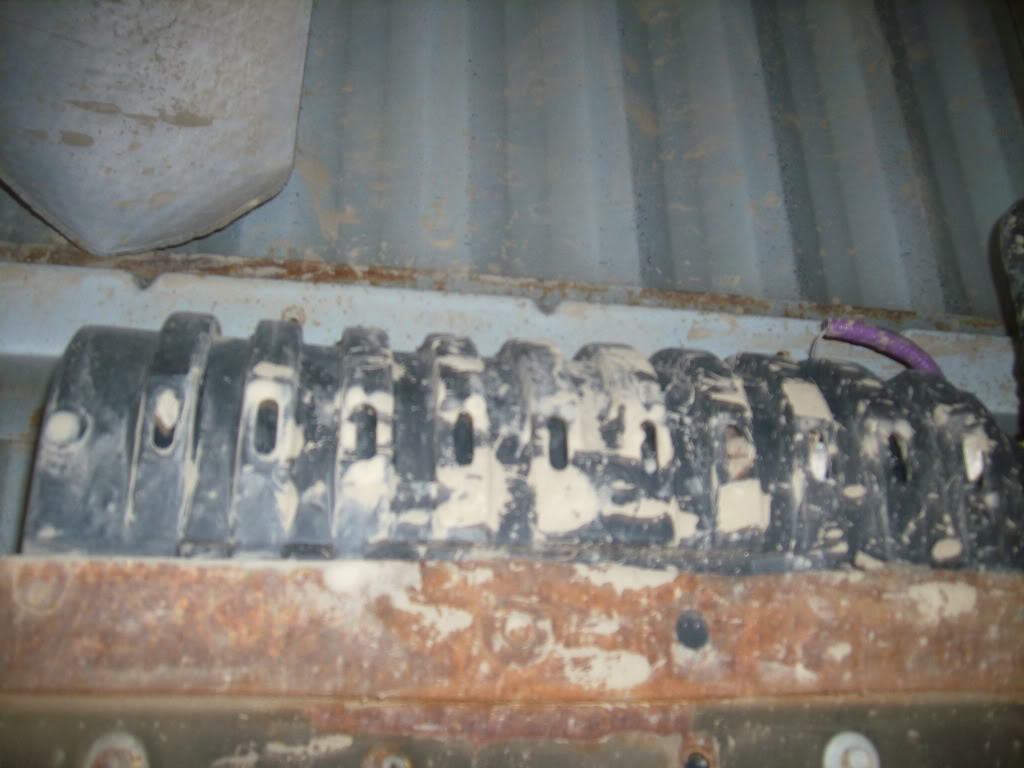

But while under the truck I find something, that wasnt on my 95 ranger, that caught my attention and I wanna know what it is! btw , this is right infront of where the spare tire is, and I also need to know of that hose thats open is supposed to go to something and if I need to worry about water affecting whatever this is!

asked a few members and no one can tell me so I'll ask on the forum lol!

Name:  DSCI0875.jpg
Views: 3
Size:  88.0 KB

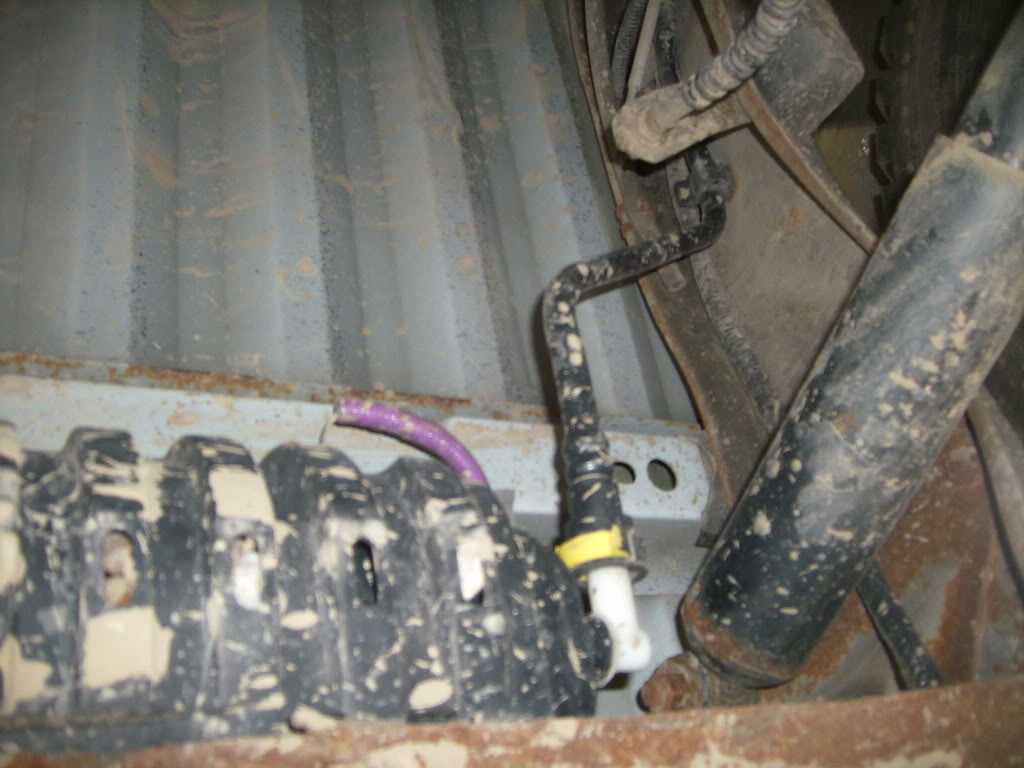

Name:  DSCI0876.jpg
Views: 2
Size:  98.1 KB

Name:  DSCI0877.jpg
Views: 1
Size:  70.2 KB

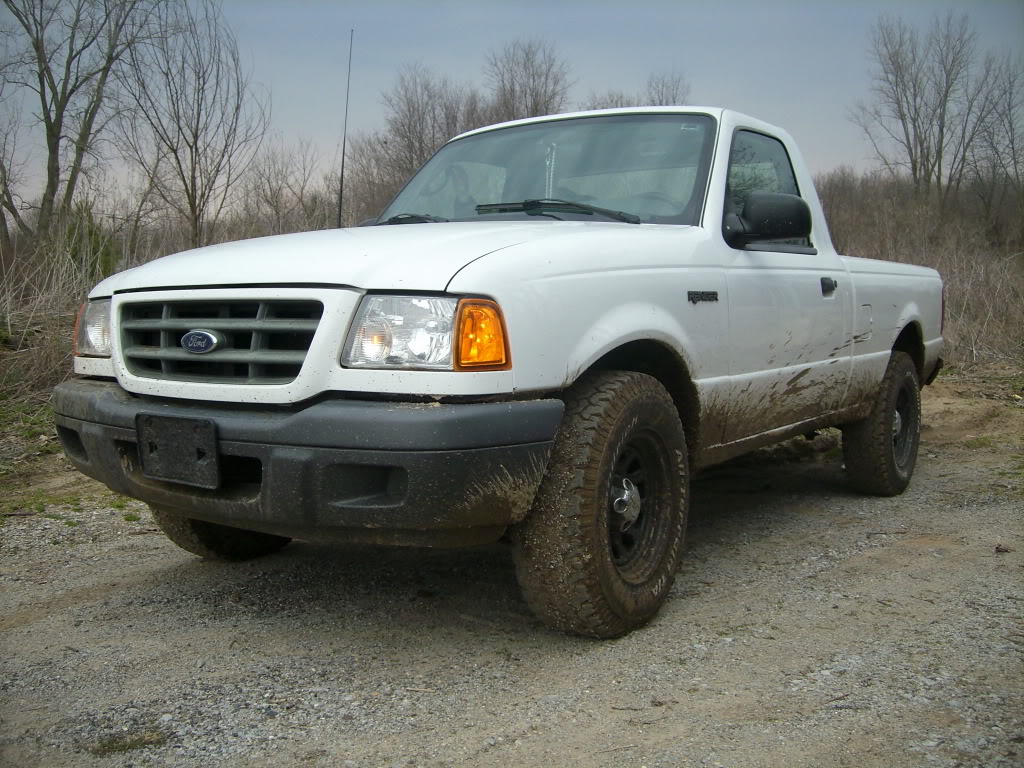

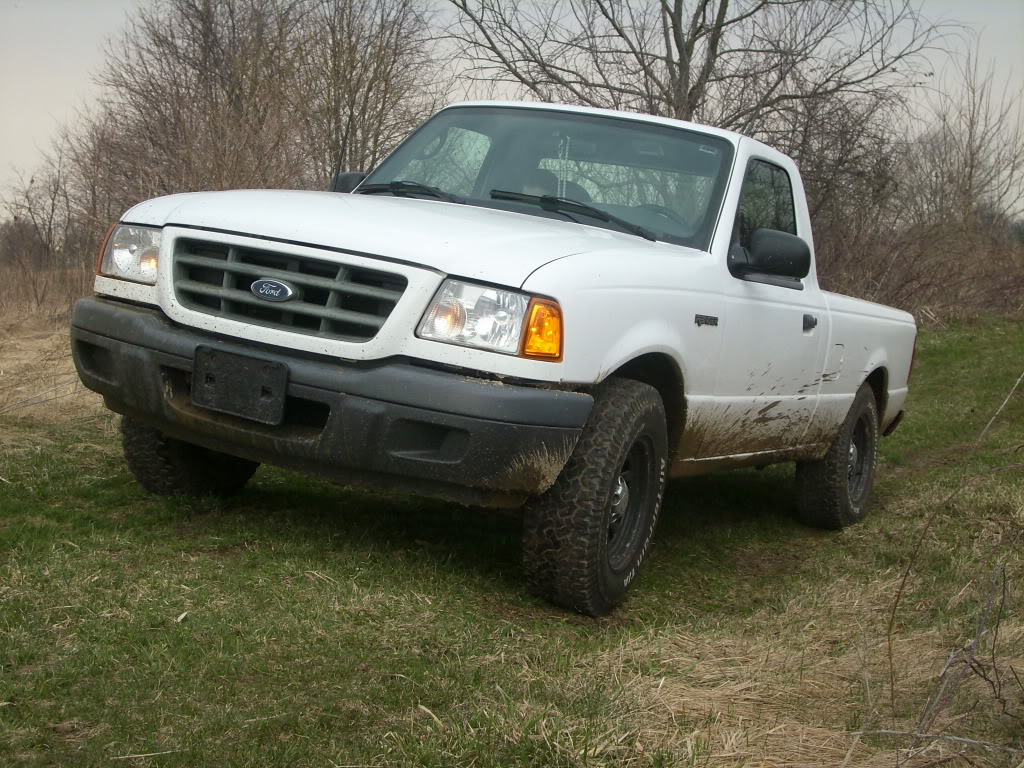

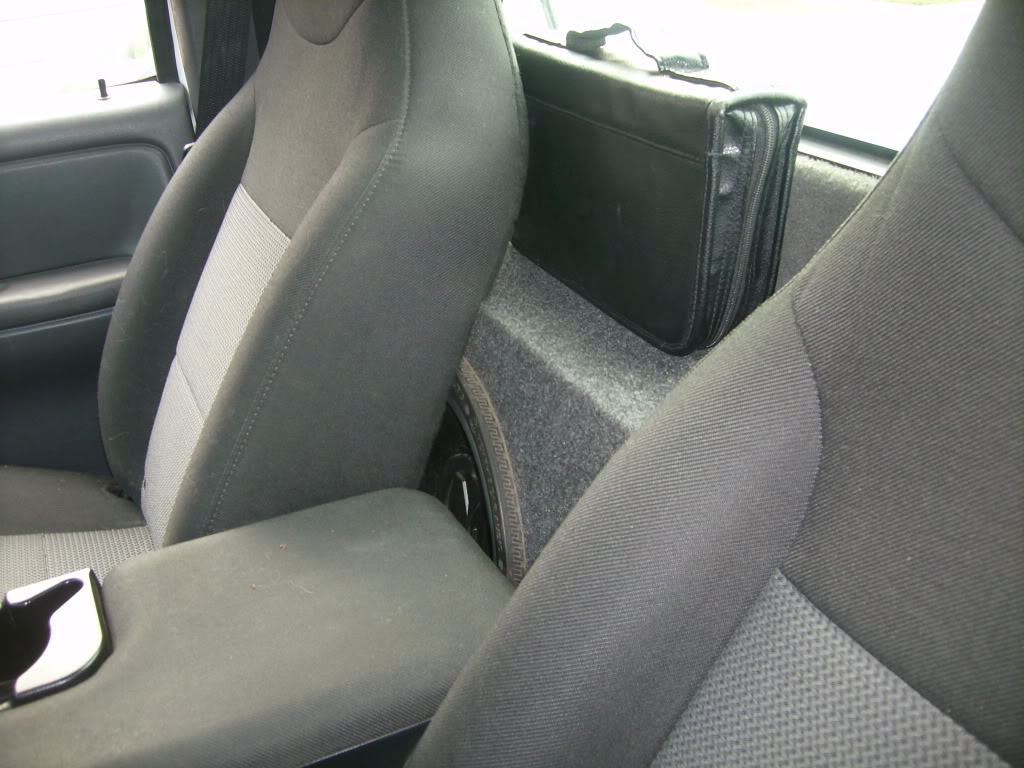

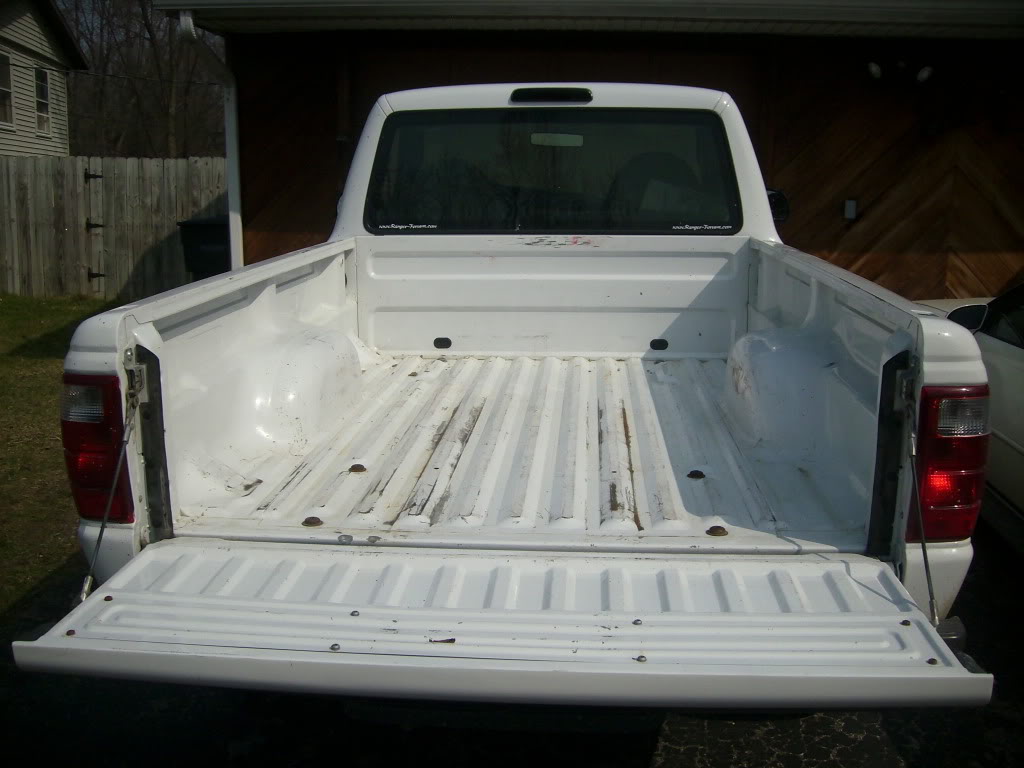

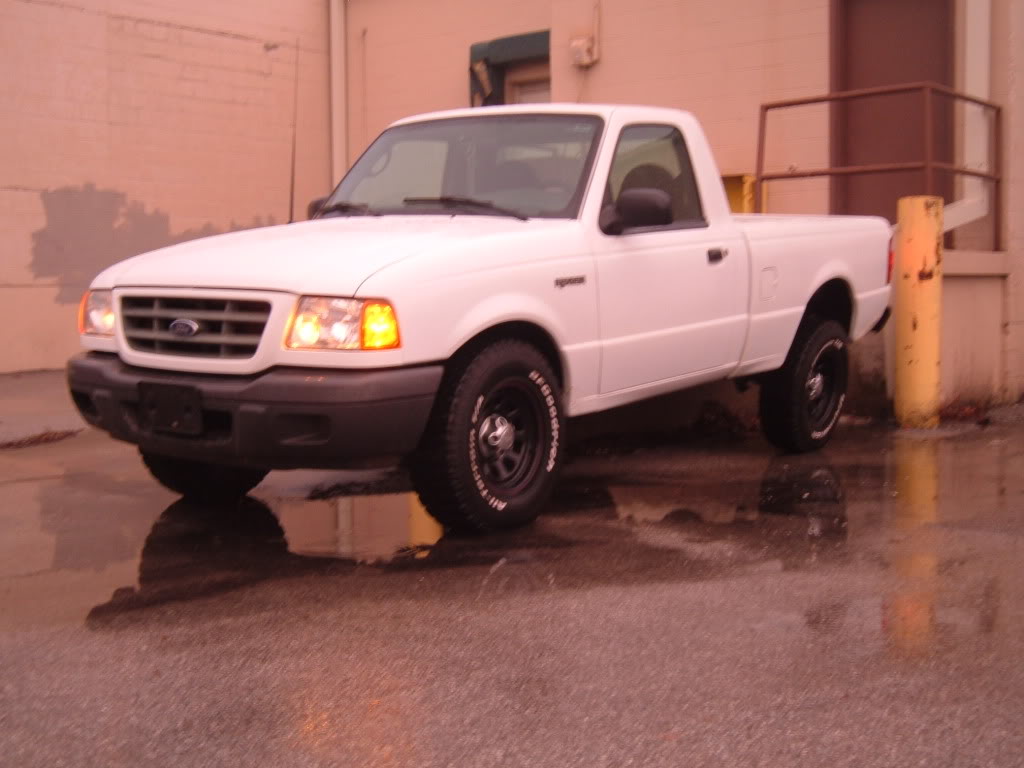

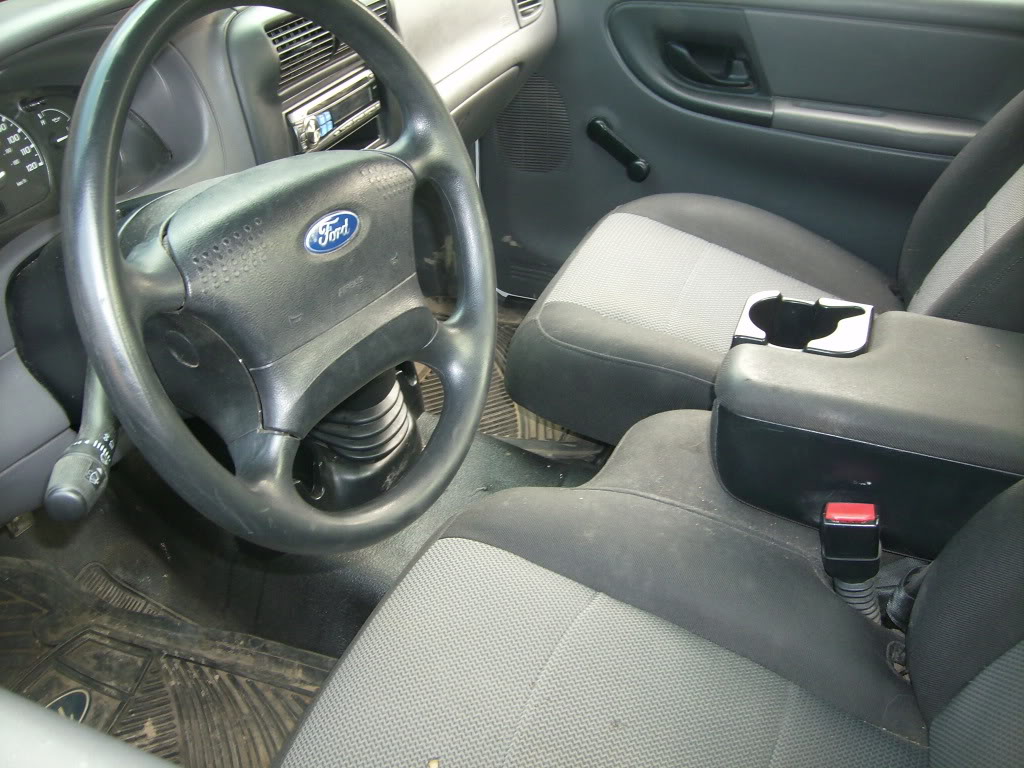

and a few pics of the truck while im at it!

Name:  DSCI0891.jpg
Views: 2
Size:  202.4 KB

Name:  DSCI0889.jpg
Views: 2
Size:  231.0 KB

Name:  DSCI0868.jpg
Views: 2
Size:  98.9 KB

Name:  DSCI0872.jpg
Views: 2
Size:  131.3 KB

Name:  DSCI0873.jpg
Views: 4
Size:  149.8 KB

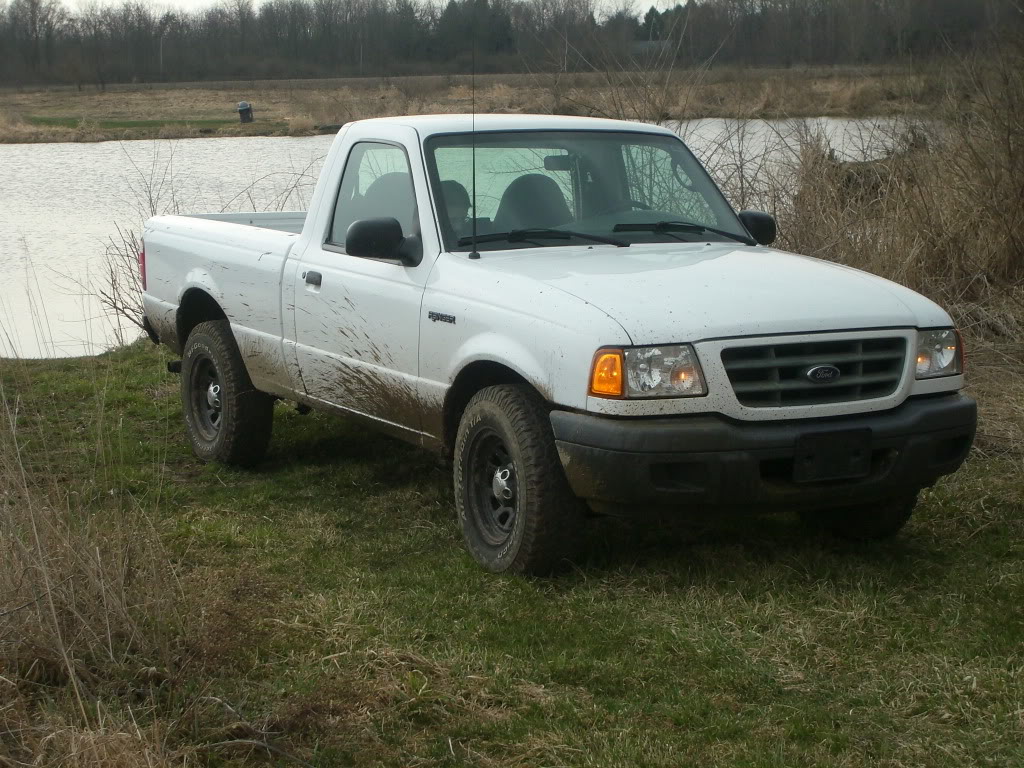

Name:  DSCI0884.jpg
Views: 1
Size:  201.2 KB

Name:  DSCF2859.jpg
Views: 2
Size:  82.3 KB

alright im done whoring for now lol! till I get some more mods on it
Reply With Quote
  #2
Old 03-22-2010
Casper98's Avatar
Member
iTrader: (1)

Join Date: Jun 2007
Location: Gresham OR
Posts: 1,789
looks like the charcoal canister
Reply With Quote
  #3
Old 03-22-2010
Dumpedmk3's Avatar
Member

Join Date: Jan 2009
Location: Coral springs florida
Posts: 208
Quote:
Originally Posted by Casper98 View Post
looks like the charcoal canister
Yupp. It's for emissions/evap system. Don't worry about it. Yes, you should have two open hoses under there, one for the charcoal canister, one for the axle breather.
Reply With Quote
  #4
Old 03-22-2010
Rolldogg's Avatar
Member

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424
Quote:
Originally Posted by Dumpedmk3 View Post
Yupp. It's for emissions/evap system. Don't worry about it. Yes, you should have two open hoses under there, one for the charcoal canister, one for the axle breather.
LOL, not to be confused with the muffler bearing fluid tank, common newb mistake.
Reply With Quote
  #5
Old 03-22-2010
StrangerRanger's Avatar
Member

Join Date: Jan 2009
Location: The 253
Posts: 756
Not to be mean about your old truck or anything, but that sure is a nice improvement over what you had man. I really dig it with the black wheels, chrome centers, and AT's.
Reply With Quote
  #6
Old 03-22-2010
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
ive always wondered what that is too lol i haz one too
Reply With Quote
  #7
Old 03-22-2010
scott5640's Avatar
Member
iTrader: (-1)

Join Date: Mar 2009
Location: Davenport FL
Posts: 901
i thought that was for the spare tire wire...
Reply With Quote
  #8
Old 03-24-2010
Billy4x4's Avatar
Member

Join Date: Mar 2008
Location: Kawartha Lakes
Posts: 626
off topic but bedliner asap
