Got a 94 Ranger for free!

Hey all. Just signed up to this site seeing as i just received a ranger. lol

Well it hasn't been started since 09, Hooked some jumper cables to it and it started up for a few seconds and died cause it ran outta gas. So we trailered it home. Got it started again and it sounded it it has jumped a tooth in timing, pulled off the cover and sure enough it did. So timed it all back up and it ran alright still a lil rough. Put a new timing belt on it, new plugs, new oil, and gas. Added some fuel treatment too just to make sure if anything was in there.

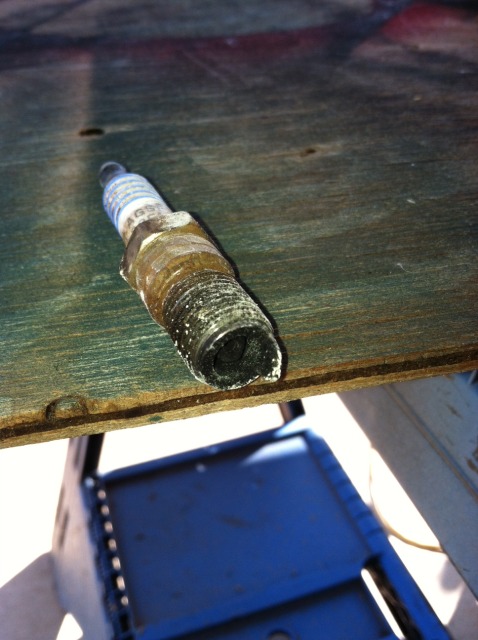

Well pulled the number 3 plug out on the intake side and it looked like this.


Looks like the piston came up and ate it??

But anyways put all that new stuff on it ad it ran good above idle and sittin at idle it runs like it has a big cam.. Not sure if its a vacuum leak or what??
Attached Thumbnails
Got a 94 Ranger for free!-photo1-2.jpg   Got a 94 Ranger for free!-photo2.jpg
Reply With Quote
  #2
Old 02-27-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
or if is still mis-firing.
Reply With Quote
  #3
Old 02-27-2012
Member

Join Date: Feb 2012
Location: Windsor, WI
Posts: 93
Which engine?

Have you removed the spark plug wires on each clyinder while idling to see which clyinder is miss firing?? Have you done a compression test???
Reply With Quote
  #4
Old 02-27-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Saginaw, tx
Posts: 41
IT the 2.3 With 2 coil packs. So 8 plugs
Reply With Quote
  #5
Old 02-27-2012
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
fun! im sure you'll get her going good.

check the coils for sure
Reply With Quote
  #6
Old 02-27-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Saginaw, tx
Posts: 41
But Either its got a dead cylinder on number three. Or the rocker arm is off or busted valve. Ill have to pull the valve cover tomorrow.
Reply With Quote
  #7
Old 02-28-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Saginaw, tx
Posts: 41
Well no busted rocker arm. or spring they look good. So Its either a bent valve or dead cylinder.. I sprayed some wd-40 down Cylinder number 3 seeing as the motor sat since 09. Maybe the rings are stuck??
Reply With Quote
  #8
Old 02-28-2012
Member

Join Date: Feb 2012
Location: Windsor, WI
Posts: 93
Quote:
Originally Posted by Ranger2.394 View Post
Well no busted rocker arm. or spring they look good. So Its either a bent valve or dead cylinder.. I sprayed some wd-40 down Cylinder number 3 seeing as the motor sat since 09. Maybe the rings are stuck??
Do a compression test. IF low compression squirt some oil into clyinder and retest to see if there is a difference. If difference between dry and wet test it is a good indication that rings are bad or stuck. I would put Mystery Oil in clyinder to try loosen stuck rings, WD-40 will evaporate. Years ago used Mystery Oil on a frozen tractor engine and it loosened the clyinder after soaking a while

IF no difference issue from head gasket to valve train.

I believe these are non-interence engines.
Reply With Quote
  #9
Old 02-29-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Saginaw, tx
Posts: 41
Just did a compression test on Number 3 and gauge barely moved. Before we added some oil additive to it cause it sat so long, along with new oil.
Reply With Quote
  #10
Old 02-29-2012
Member

Join Date: Feb 2012
Location: Windsor, WI
Posts: 93
Quote:
Originally Posted by Ranger2.394 View Post
Just did a compression test on Number 3 and gauge barely moved. Before we added some oil additive to it cause it sat so long, along with new oil.


Did you do a wet test also?? Squirt some oil in the clyinder and test.
Reply With Quote
  #11
Old 03-01-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Saginaw, tx
Posts: 41
Well seeing as I already pulled the head almost off. Cant do that. lol. Head isn't off because i don't have the fuel line disconnects.
Reply With Quote
  #12
Old 03-01-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
They don't disconnect with a wrench?
or does it need that crows feet plier deal.
Reply With Quote
  #13
Old 03-01-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Saginaw, tx
Posts: 41

Theres the problem!!! lol
Attached Thumbnails
Got a 94 Ranger for free!-photo3.jpg
Reply With Quote
  #14
Old 03-01-2012
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Nice. looks like you need some new parts.
Reply With Quote
  #15
Old 03-01-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Saginaw, tx
Posts: 41
Yeah, its only 1 valve. Ill just replace it and put it all back together..
Reply With Quote
  #16
Old 03-02-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Saginaw, tx
Posts: 41
One thing that pissing me off is that i cant get one of the fuel lines off. Ive got the tool but it looks like its not releasing the spring inside. Any other way of getting it off? Trying to get the intake plenum off so i can clean it.
Reply With Quote
  #17
Old 03-04-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Saginaw, tx
Posts: 41
Oh well damn! Anyways we put it all back together and turns out theres still a miss in it. Did a compression test on 2 and its at like 45% and number 3 was at like 70%. IT also sounds like it has a tad bit of bottom end noise. But can barely hear. So Im in search of possibly a motor of just head..
Reply With Quote
  #18
Old 03-05-2012
pcollins's Avatar
Member

Join Date: Apr 2010
Location: Walworth, NY
Posts: 493
Wonder how this happened to this truck. like stated above pretty sure these are N.I. engines. Wonder if they just beat the **** out of it?
Reply With Quote
  #19
Old 03-05-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Saginaw, tx
Posts: 41
That's what I'm thinking. Lol. Or overheated it and put a hairline crack in the head.
