Just got some work done today... Wont get to work on it until next weekend unfortunately. Here's what I got done today though:



I have 2 options here, either relocate the runner or reposition the steering shaft:

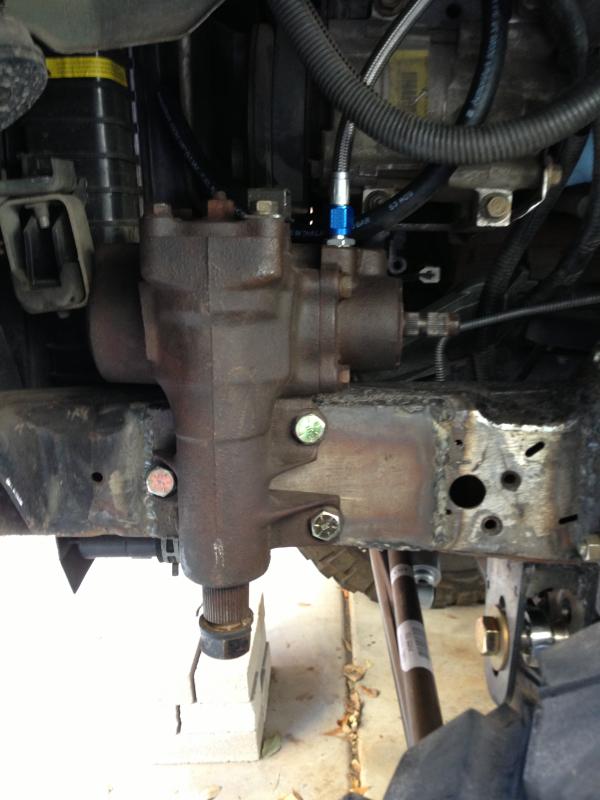

Finally was able to get the frame sleeved and plated for the yota box:


Attached Thumbnails
My Dana 30 Build Thread-bb20e86e-e627-478f-87d2-096d1e18e1a0-7928-000004405c890a35_zps69d87216.jpg   My Dana 30 Build Thread-b442354c-c889-4bbb-9b6d-82e71c8e15ee-7928-0000044055a4cc6c_zps9f9c497e.jpg   My Dana 30 Build Thread-5546b11b-c89b-4ff0-8294-eea7ffd09fd6-7928-00000440594f9543_zps8c81ae9e.jpg   My Dana 30 Build Thread-8ab85d52-650a-4821-a7f8-026ae81d5bbc-7928-00000440621378a1_zps9aafedbf.jpg   My Dana 30 Build Thread-3693397f-059e-4d8b-8cfd-92cb1bd8dd97-7928-000004405f174ff5_zps32fc844d.jpg

Reply With Quote
  #78
Old 03-21-2013
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462

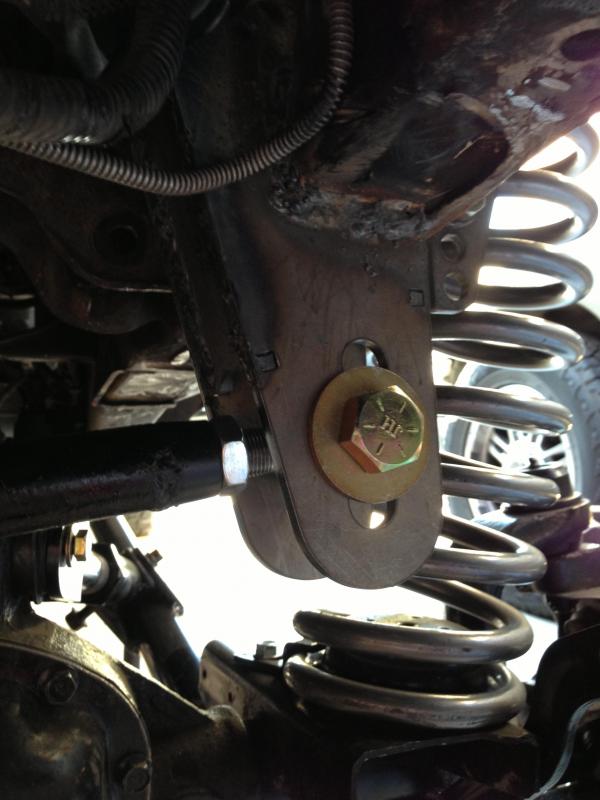

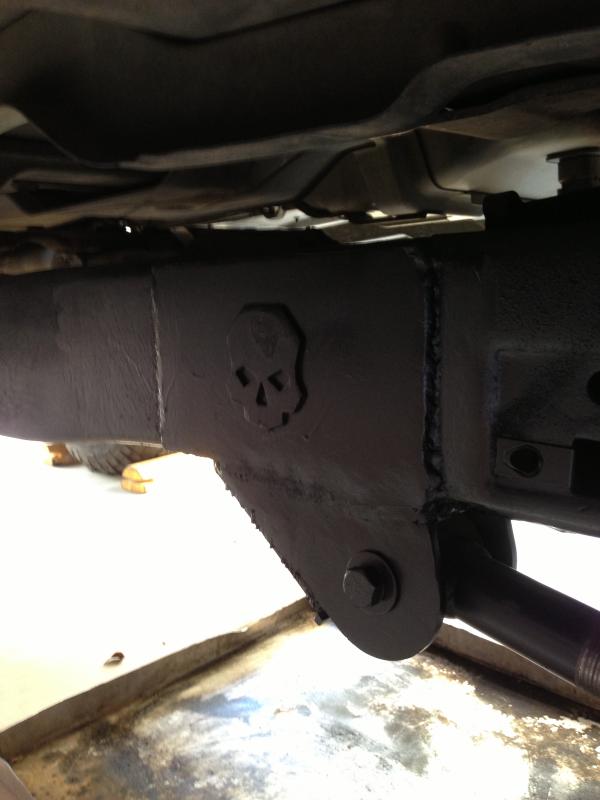

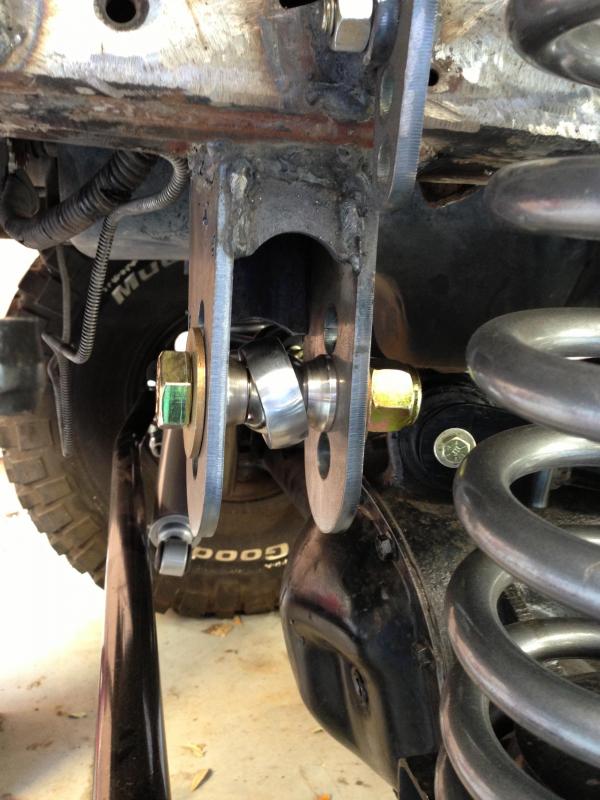

The track bar mount I used was wider than the bushing that was used for the track bar. In order to fix this, I bought a tube adapter, drilled out the threads in the track bar, placed the tube adapter in, welded it and now im running a heim joint instead a bushing:

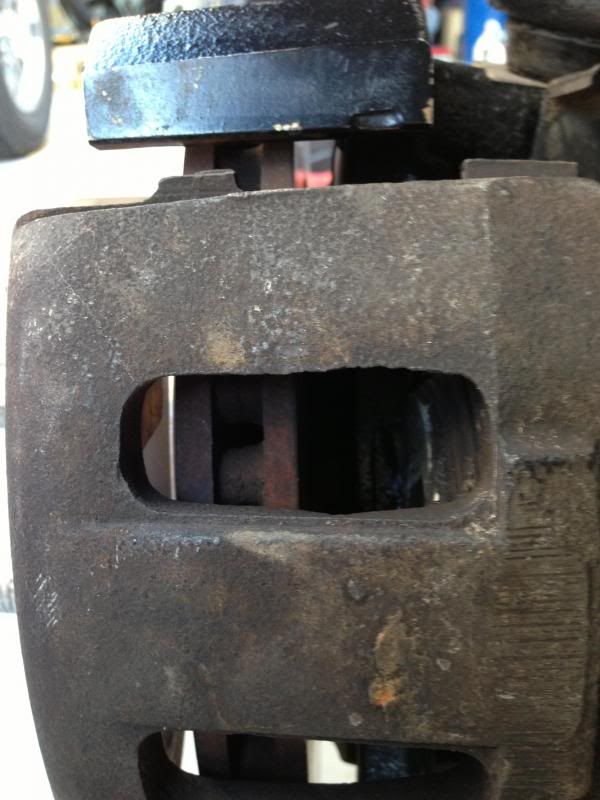

I also installed the brakes, brake pads(not pictured) and brake lines:

Name:  IMG_1224_zps1139983b.jpg
Views: 201
Size:  42.0 KB

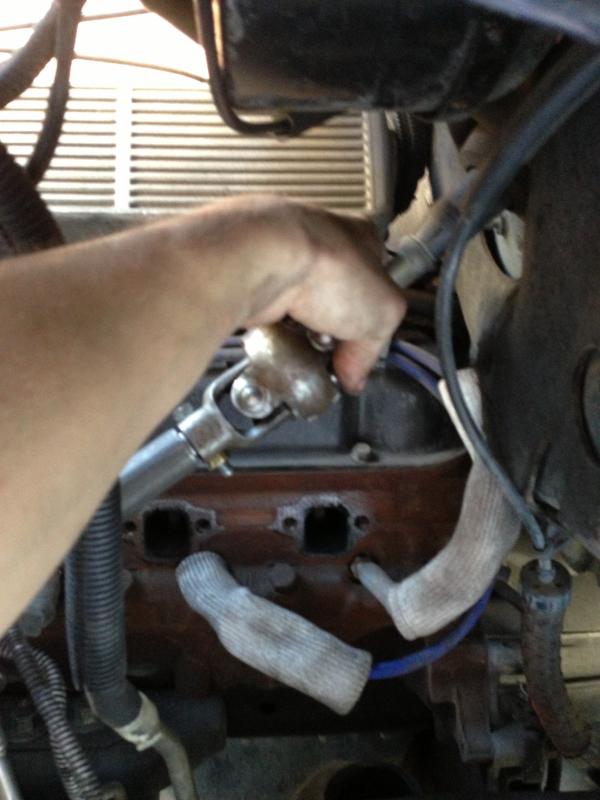

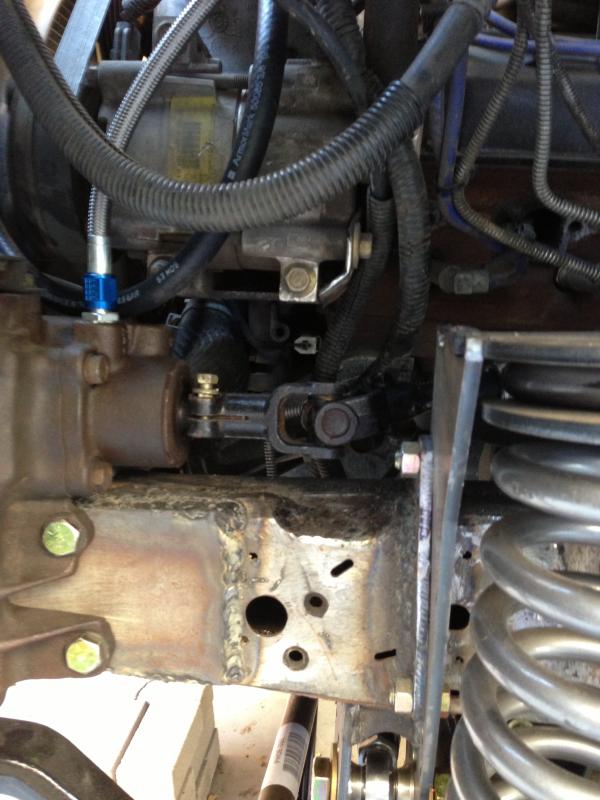

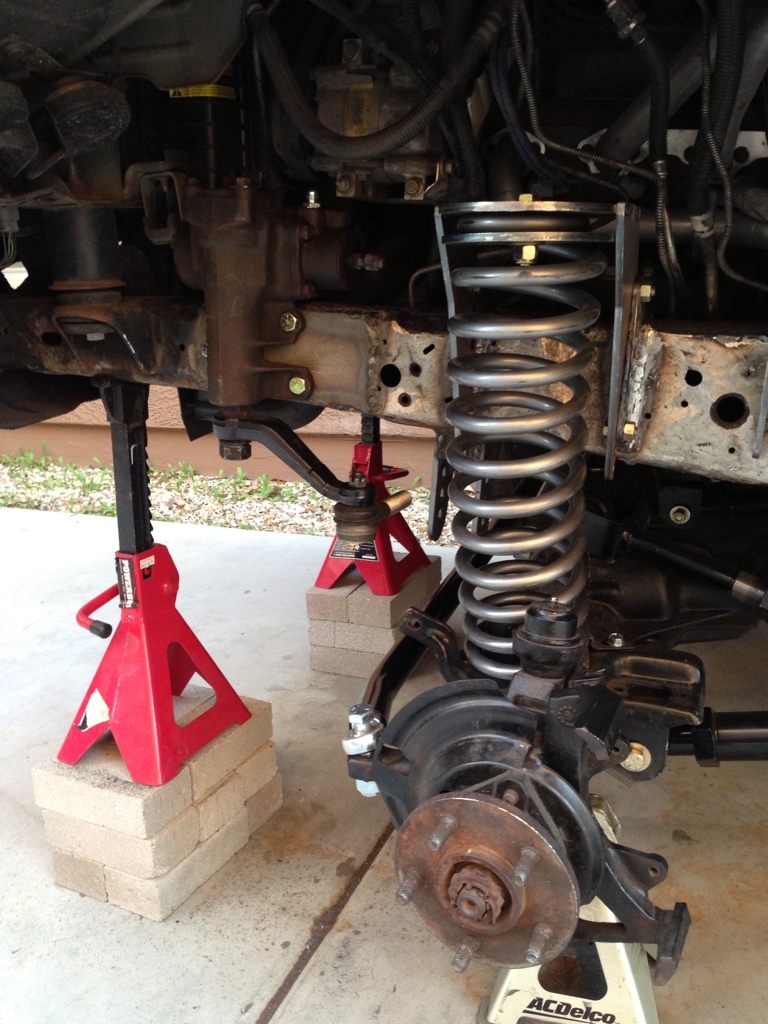

Test fitting the steering shaft(thanks to Zach Beard):

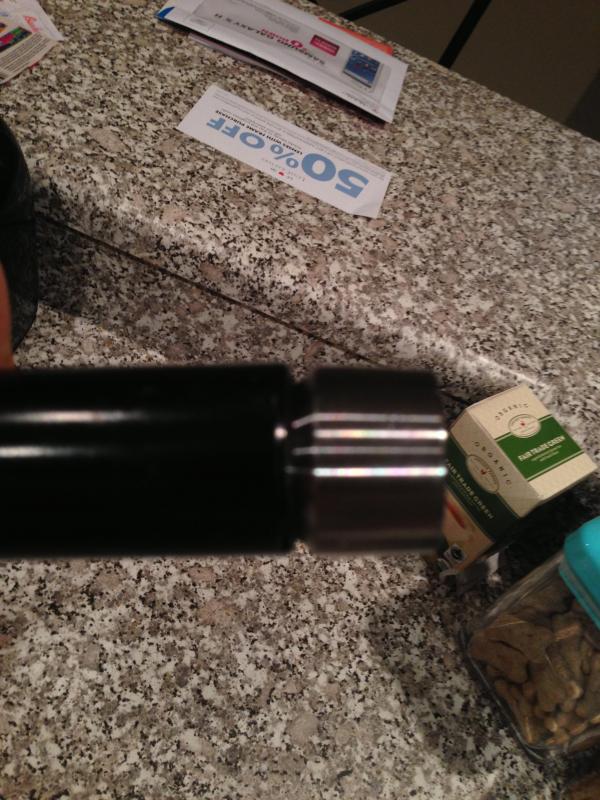

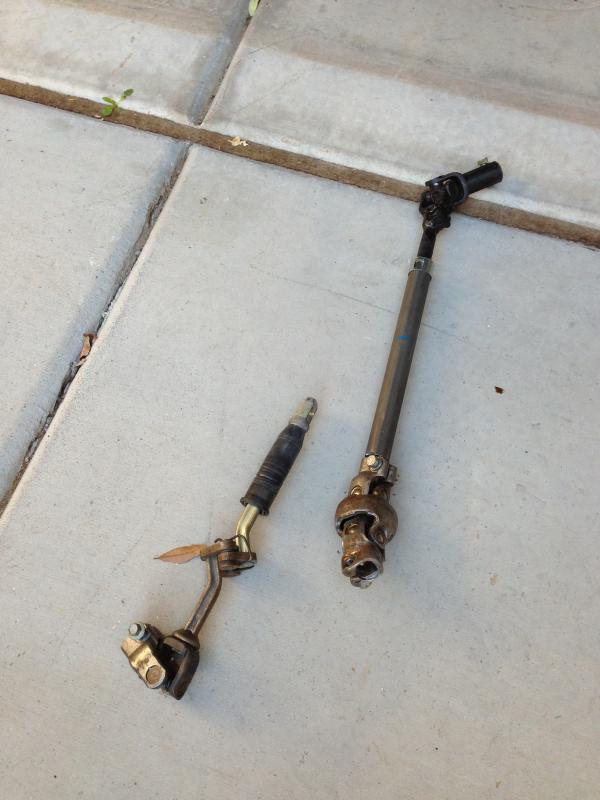

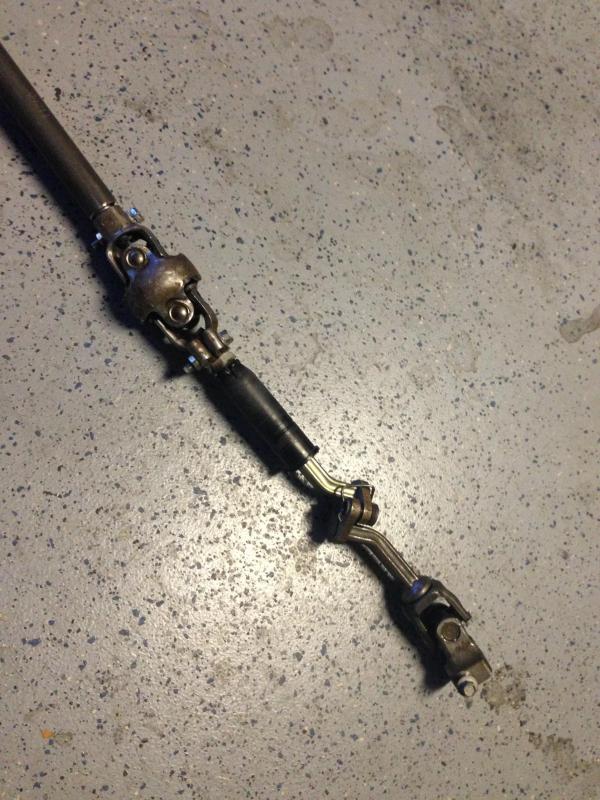

Ranger shaft taken out ready for modification:

Done and ready for install:

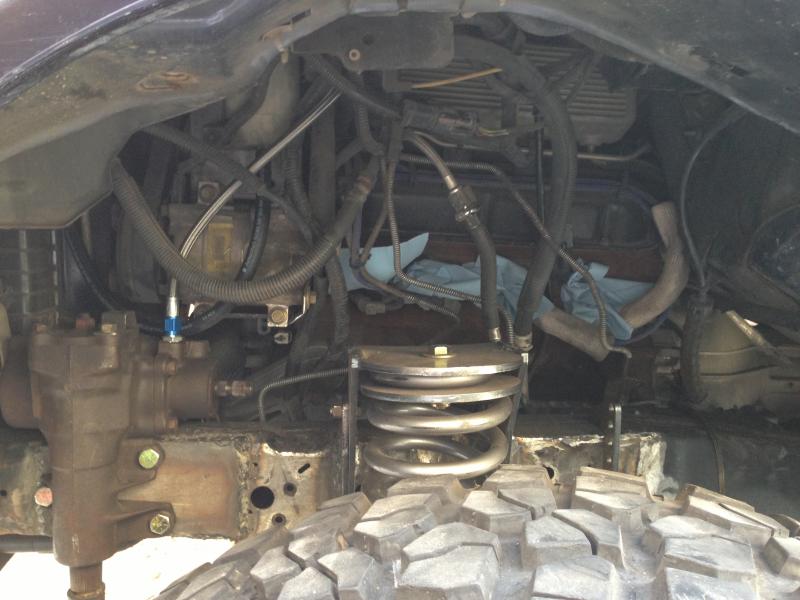

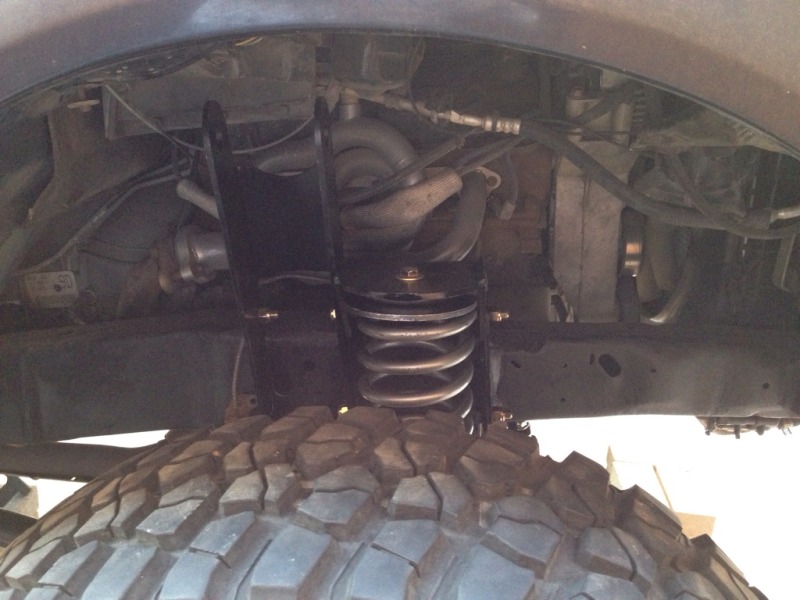

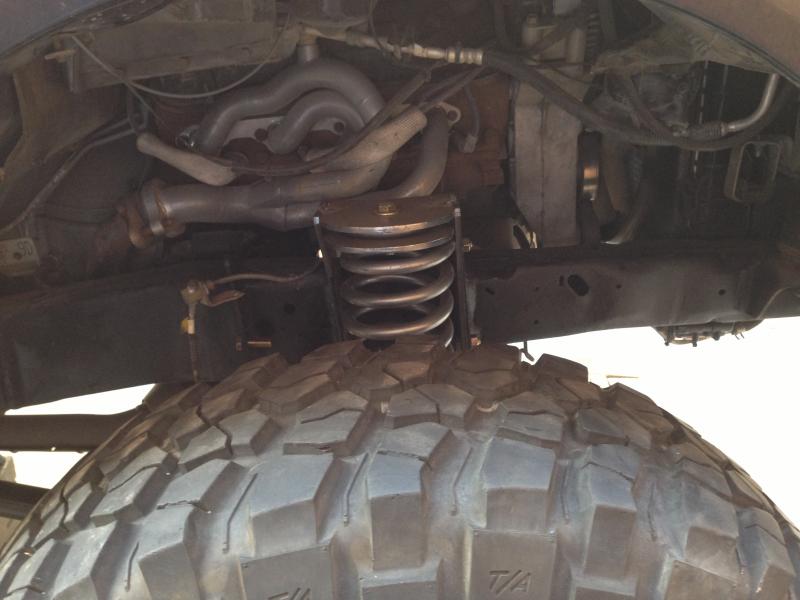

As you can see on the driver side, I need to adjust the coil in the coil bucket to straighten out the spring:

Pass side wheel well:

Driver side wheel well:


BallisticFab:

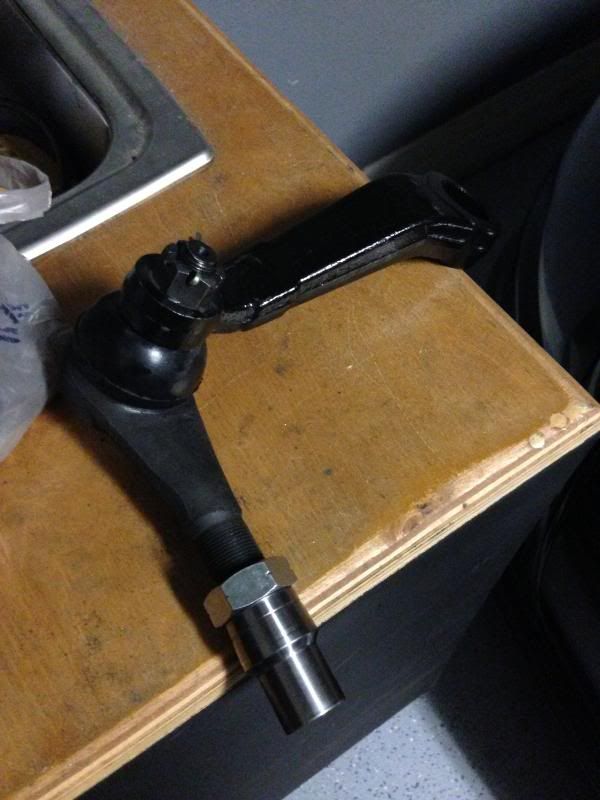

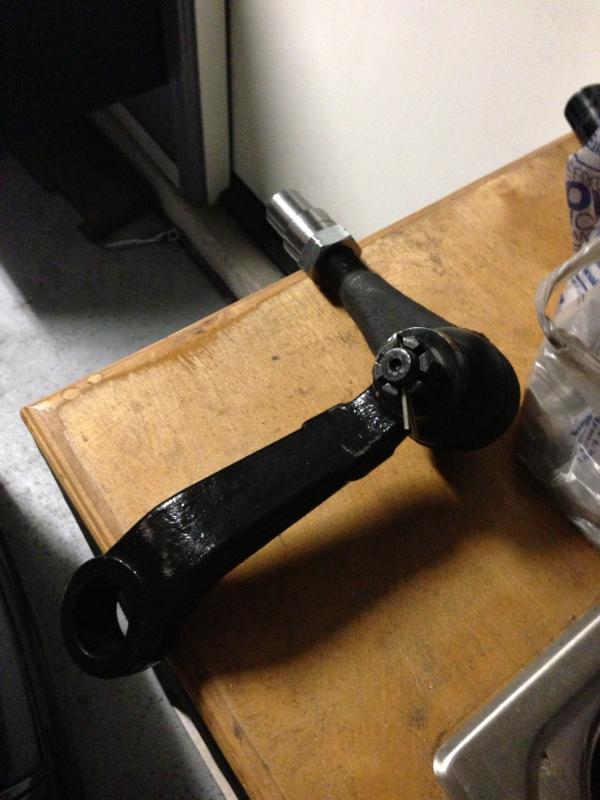

Here I had to ream out the pitman arm to fit my chevy tie rod end for the drag link:

Attached Thumbnails
My Dana 30 Build Thread-img_1232_zps40dbf0c4.jpg   My Dana 30 Build Thread-img_1233_zpsd5083584.jpg   My Dana 30 Build Thread-img_1234_zps6d57d82a.jpg   My Dana 30 Build Thread-img_1235_zps35a65ba5.jpg   My Dana 30 Build Thread-img_1236_zps9248192d.jpg

My Dana 30 Build Thread-img_1270_zpsa7f33c5a.jpg   My Dana 30 Build Thread-img_1237_zps2352e43a.jpg   My Dana 30 Build Thread-img_1239_zpsc2350708.jpg   My Dana 30 Build Thread-img_1240_zps2b802e7c.jpg   My Dana 30 Build Thread-img_1241_zps031392c9.jpg

My Dana 30 Build Thread-img_1242_zpsdb0fde06.jpg   My Dana 30 Build Thread-img_1287_zps545595ef.jpg   My Dana 30 Build Thread-img_1216_zps0f36f1c3.jpg   My Dana 30 Build Thread-img_1217_zpsb9fefee2.jpg   My Dana 30 Build Thread-img_1218_zps7d3503b9.jpg

My Dana 30 Build Thread-img_1221_zpscd94ff88.jpg   My Dana 30 Build Thread-img_1222_zps3ea5fec7.jpg

Last edited by MudSlanger; 03-21-2013 at 02:38 AM.
Reply With Quote
  #79
Old 03-21-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Nice progress
Reply With Quote
  #80
Old 03-23-2013
brinker88's Avatar
Member

Join Date: Apr 2012
Location: Williamsport, Pa
Posts: 175
Build looks good, but those welds are absolutely horrible. You should really consider grinding that ALL out and re-doing it. The welds are too cold and they look like bubblegum. I'm not trying to be a dick, just concerned for your and those around you's safety.
Reply With Quote
  #81
Old 03-24-2013
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462

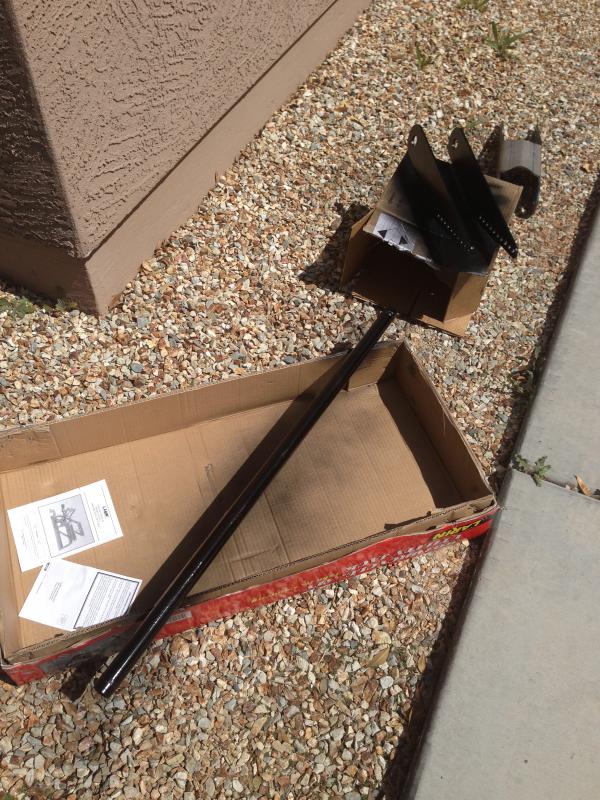

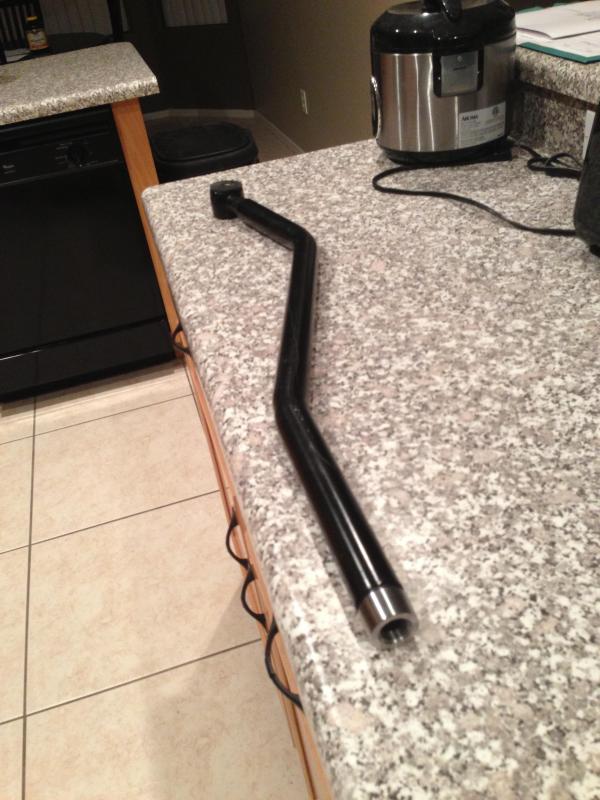

Got done making the drag link and painting it:

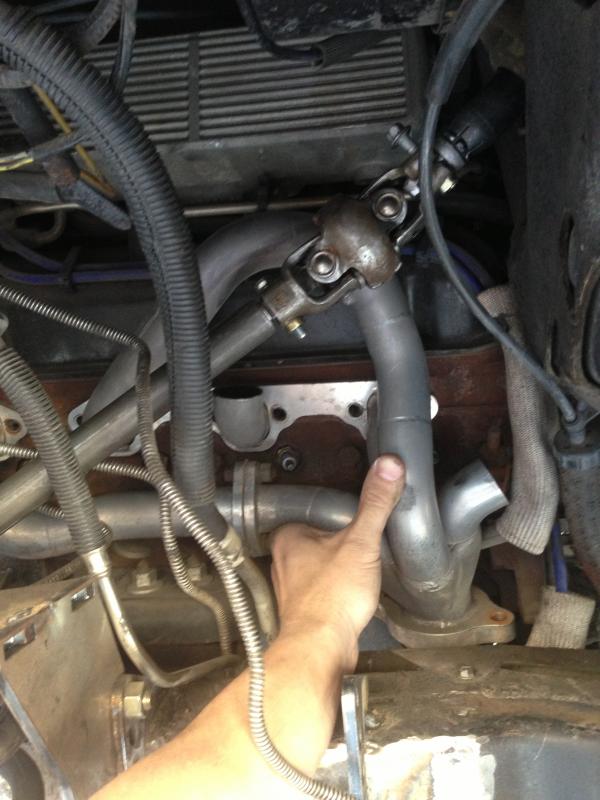

I also had to modify the header to fit my new steering shaft:


Attached Thumbnails
My Dana 30 Build Thread-img_1302_zpsb865f024.jpg   My Dana 30 Build Thread-img_1303_zpse56c86a7.jpg   My Dana 30 Build Thread-img_1304_zps91796935.jpg   My Dana 30 Build Thread-img_1305_zpsfe2c3918.jpg
Reply With Quote
  #82
Old 03-24-2013
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Damn. Nice job on the header. Can't wait to start on mine. Nice to see you doin All the nice details and not cuttin corners.
Reply With Quote
  #83
Old 03-25-2013
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462

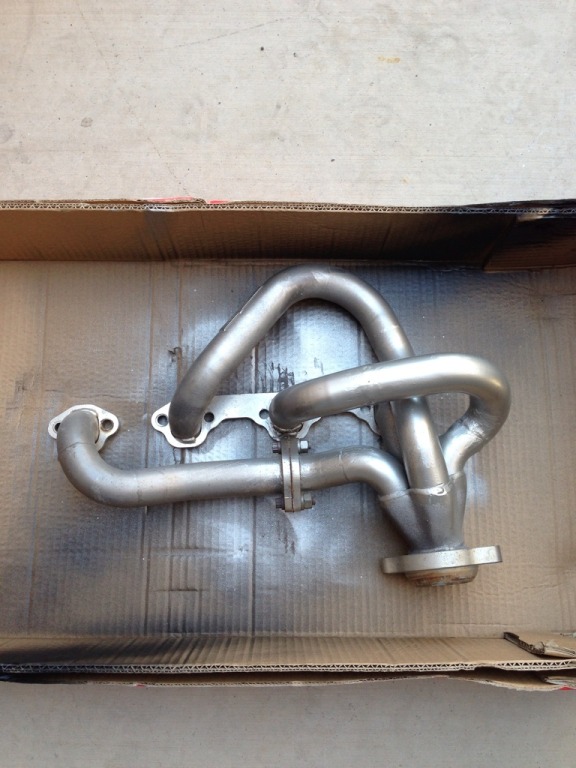

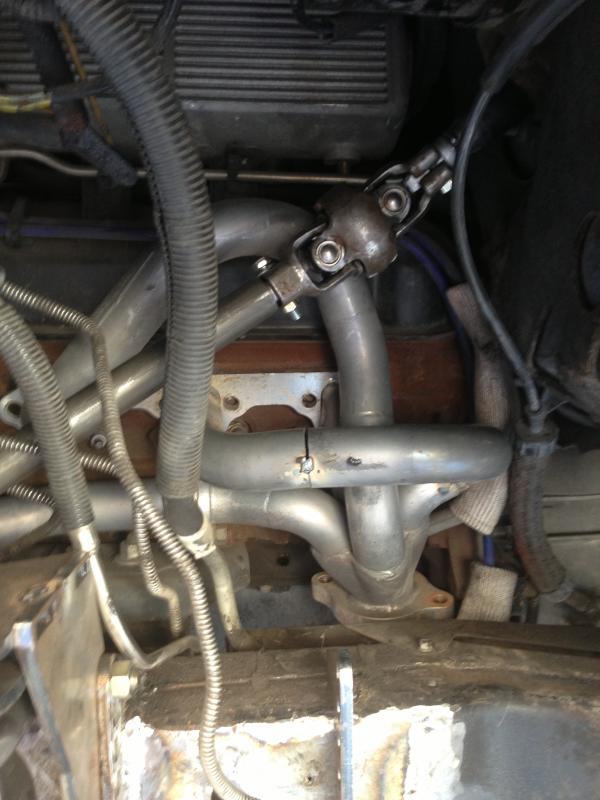

Header all finished:



Attached Thumbnails
My Dana 30 Build Thread-269d6603-583d-43ed-809d-9eb6c613cd6b-10077-0000064db9c447e6_zps3af32d42.jpg   My Dana 30 Build Thread-b920b5ab-9201-43ee-a06b-e8e2748d5b0c-10077-0000064dc77579e4_zpsfe4e3d6e.jpg   My Dana 30 Build Thread-53e8bb63-bc25-48f1-9d24-906bf8e953ae-10077-0000064dc28462dc_zpsdda196f2.jpg   My Dana 30 Build Thread-9250661f-28b3-47f2-becb-7bf74ba9f631-10077-0000064dd6205f63_zpsa5237e3e.jpg
Reply With Quote
  #84
Old 03-31-2013
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462

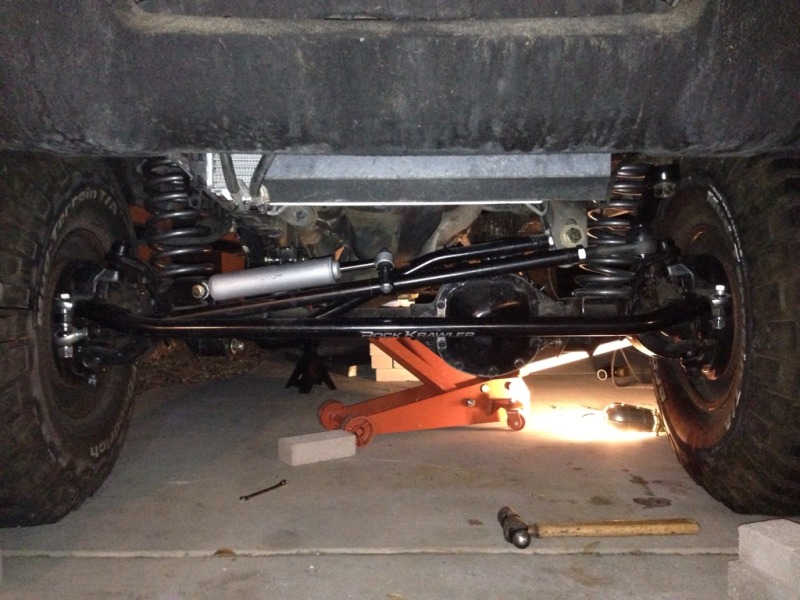

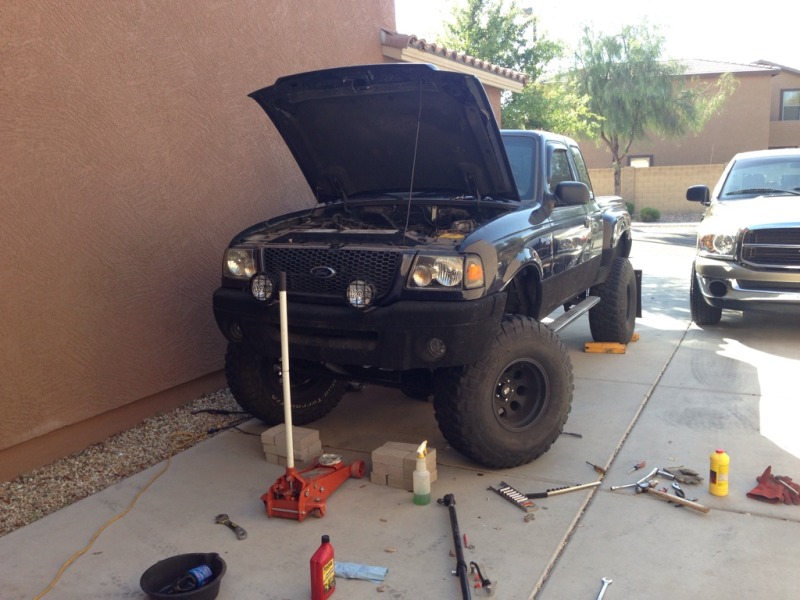

The final stretch:



All I have left is to finish making my transmission crossmember, tighten all the nuts and bolts, and align the front end the best I can so I can get it professionally aligned.
Attached Thumbnails
My Dana 30 Build Thread-148f2229-d5f4-4030-b18b-add5bc17a8d7-570-0000002a755f15ed_zpsd7a480cd.jpg   My Dana 30 Build Thread-76bb8871-5b02-43cc-ad14-50a3a85229b9-570-0000002a72753230_zps4f1e7263.jpg
Reply With Quote
  #85
Old 04-02-2013
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462

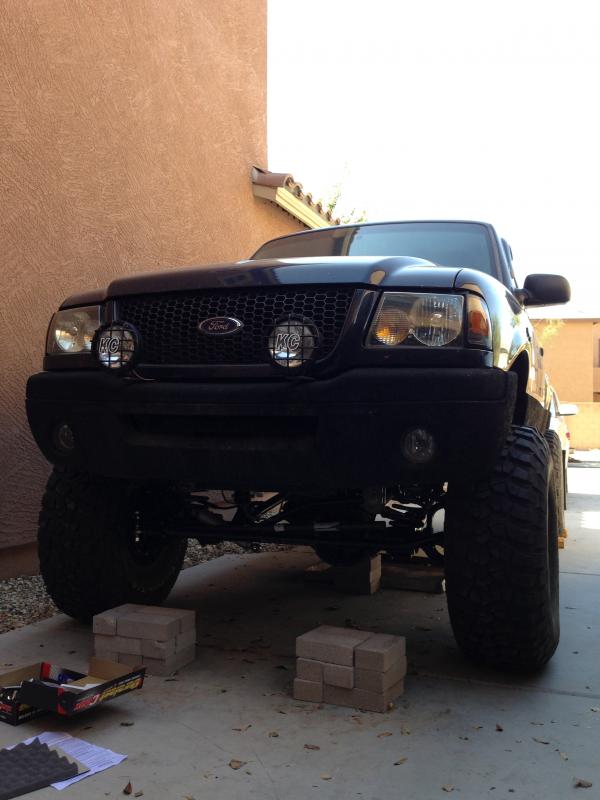

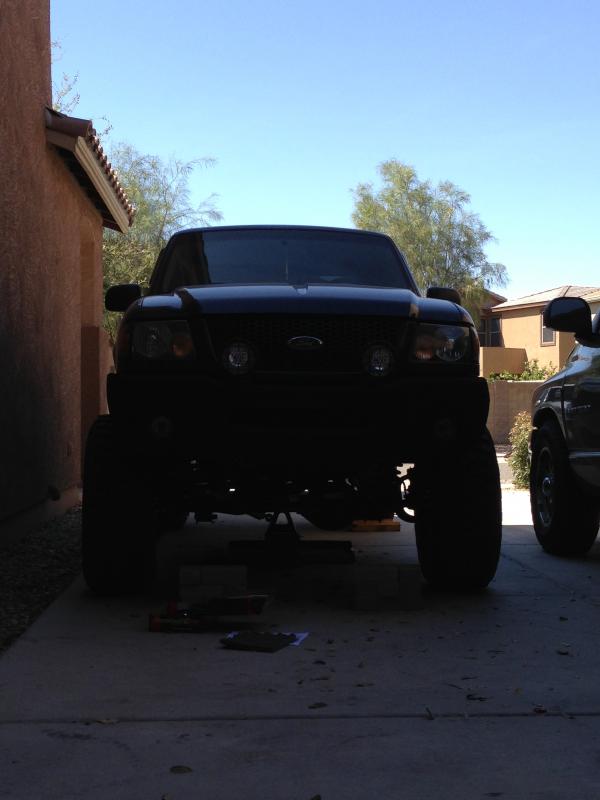

Drove the truck to work today. Shocks on order and should be dialing in the suspension and working out all the kinks within the next few weeks. With no shocks, it drives like an old caddy with blown struts lol

Attached Thumbnails
My Dana 30 Build Thread-dbd7f30d-5dc6-48c1-9098-52ab115961c3-5764-000002d24f6098ae_zpsb60b9fa4.jpg
Reply With Quote
  #86
Old 04-02-2013
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
love it.
Reply With Quote
  #87
Old 04-02-2013
Ford78's Avatar
Member

Join Date: Dec 2010
Location: Iowa
Posts: 124
Looking good!!!
Reply With Quote
  #88
Old 04-03-2013
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
Quote:
Originally Posted by Ford78 View Post
Looking good!!!
Dude, your truck is awesome.
Reply With Quote
  #89
Old 04-03-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
i like it! im also a bit concerned with the welding, I probably would have done alot more plating and support work, especially around the steering box and spring mounts. im sure it will be fine for your needs though. good work!
Reply With Quote
  #90
Old 04-03-2013
cdawall's Avatar
Member

Join Date: Dec 2010
Location: EAFB, Sd
Posts: 209
Quote:
Originally Posted by 06RangerXLT View Post
i like it! im also a bit concerned with the welding, I probably would have done alot more plating and support work, especially around the steering box and spring mounts. im sure it will be fine for your needs though. good work!
Why there is zero plating done to my steering box? All I have is sleeved bolt holes and even running substantially larger tires on a D60 on trails I have had zero problems with it. Front section is boxed that is not were the issues arise from.
Reply With Quote
  #91
Old 04-04-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
ive just seen boxes rip from ranger frames, thats all.
Reply With Quote
  #92
Old 04-17-2013
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
Hey what are you running as far the lines for the steering and fittings??? I love the braided lines
Reply With Quote
  #93
Old 04-17-2013
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
Quote:
Originally Posted by mlw20lu View Post
Hey what are you running as far the lines for the steering and fittings??? I love the braided lines
I used an assembled -6 hose Fragola P.T.F.E Hose. 1 side is 90 degree and the other side is a straight. See if this link works. Just pick the length you need.

http://www.summitracing.com/search/s...gola%20P.T.F.E
Reply With Quote
  #94
Old 04-17-2013
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
goes right into high pressure side direct from steering pump to yota box? no adapters or anything?
Reply With Quote
  #95
Old 04-17-2013
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
Quote:
Originally Posted by mlw20lu View Post
goes right into high pressure side direct from steering pump to yota box? no adapters or anything?
Ok, if you are using the Toyota steering box then you want one of these for the PRESSURE side: #6 JIC x 16mm-1.5 I.F. Pressure Adapter for Toyota-SF06 : Steering Hose and Fittings, Fittings Only | PSC Motorsports - performance steering components, power steering

If you are running the same 5.0L engine as me then you will need another one of those fittings for the power steering pump in the engine bay. So you want 2 of those fittings in the link above. 1 for the pump and another for the box.

Ok here is the problem I ran into with my box and my AC. On the 5.0 the AC compressor is in the way so I couldn't use this fitting that was meant for the RETURN side: #6 JIC x 17mm-1.5 I.F. Return Adapter for Toyota-SF07 : Steering Hose and Fittings, Fittings Only | PSC Motorsports - performance steering components, power steering

Now to fix this problem, you will probably want to cut the frame and mount it lower on the frame. OR do what I did. Trim the **** out of your AC compressor and use this fitting and bend the barbed fitting to clear the AC compressor: Toyota Steering Box Low Pressure Return Tube Fitting

It fits the same size hose that goes in to the PS reservoir on the 5.0 engine. I just bought the right size fuel hose and some clamps and no leaks.
Reply With Quote
  #96
Old 04-17-2013
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
Just got caught up on the build. Truck is looking really good Chris! ...Now gimme yer headers!
Reply With Quote
  #97
Old 04-18-2013
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
awesome thanks!!
Reply With Quote
  #98
Old 04-19-2013
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
Quote:
Originally Posted by INT3RC3PTOR View Post
Just got caught up on the build. Truck is looking really good Chris! ...Now gimme yer headers!
Thanks buddy.. The headers are sweet huh

Quote:
Originally Posted by mlw20lu View Post
awesome thanks!!
No problem. Any more questions, just ask.
Reply With Quote
  #99
Old 05-19-2013
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462

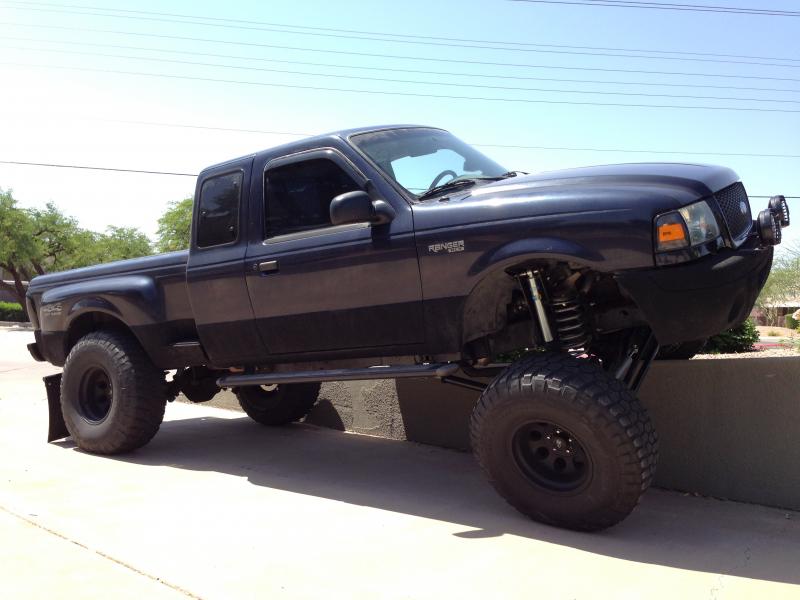

Getting some alignment done and cutting some more frame for more clearance:

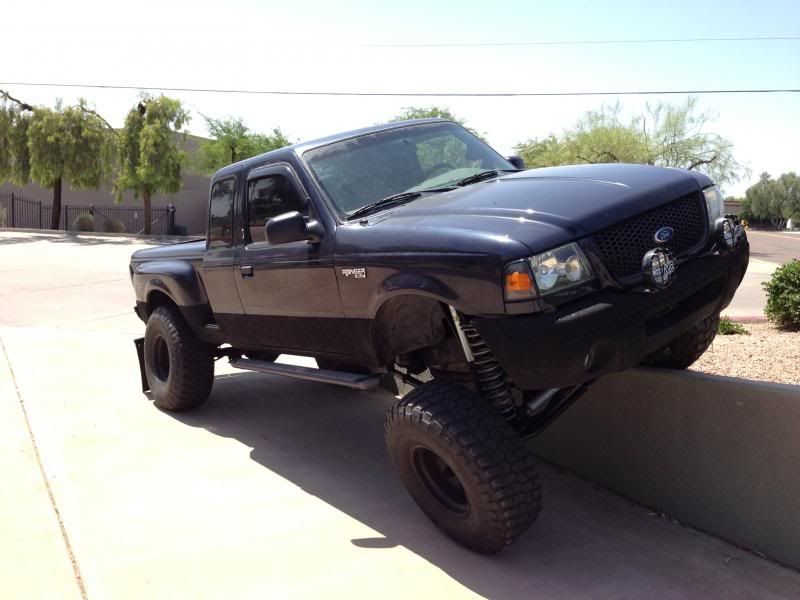

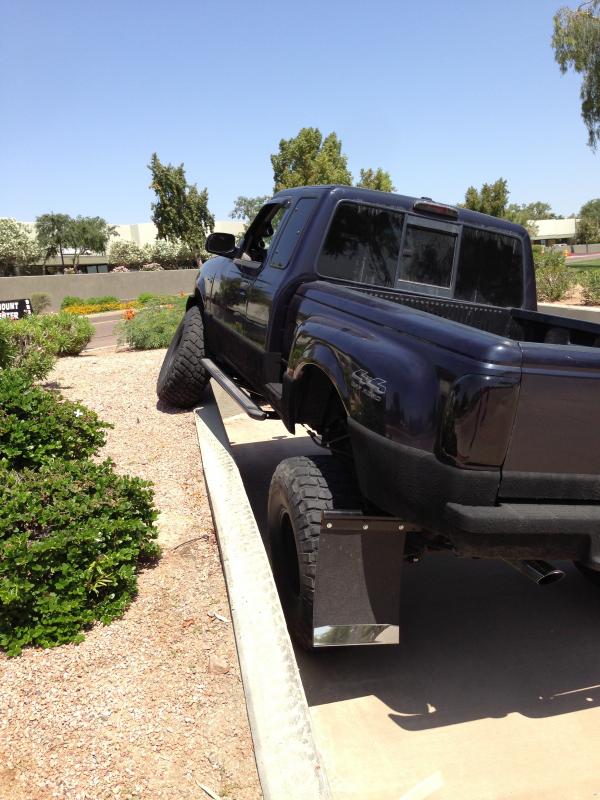

First Flex pics since the swap:


Attached Thumbnails
My Dana 30 Build Thread-img_1777_zpsf56b9ae1.jpg   My Dana 30 Build Thread-img_1778_zps76f446b9.jpg   My Dana 30 Build Thread-img_1781_zps82885462.jpg   My Dana 30 Build Thread-img_1774_zps168663e1.jpg
Reply With Quote
  #100
Old 05-20-2013
Ford78's Avatar
Member

Join Date: Dec 2010
Location: Iowa
Posts: 124
Looks real good!!! Did a very good job on her!!
Reply With Quote
