01-03 Stock 4X4 Tow Hooks

Does anyone have any closeup pictures of the way these are installed? I have a 2wd Edge and want to make sure they will fit before i order them.
Reply With Quote
  #2
Old 11-18-2008
Alon's Avatar
Member
iTrader: (13)

Join Date: Jun 2004
Location: Long Beach, CA
Posts: 2,555
i have an extra set, so let me know before you go and order them.

If you have a crossmember inbetween the frame rails up front, there will be 1 hole forward and two underneath where they would mount.
Reply With Quote
  #3
Old 11-18-2008
herm59's Avatar
Member

Join Date: Jun 2008
Location: Toms River, NJ
Posts: 1,694
Taking forever to upload these pics.
Reply With Quote
  #4
Old 11-18-2008
herm59's Avatar
Member

Join Date: Jun 2008
Location: Toms River, NJ
Posts: 1,694
Ok, here they are. Let me know if you need anymore or want better/bigger ones.







Reply With Quote
  #5
Old 11-18-2008
rideabikenick's Avatar
Member
iTrader: (4)

Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486

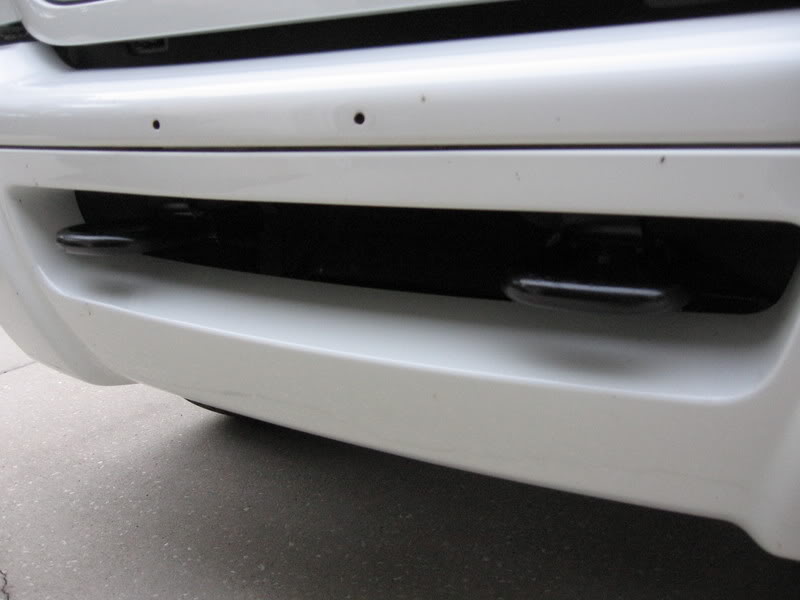

Name:  july2007007.jpg
Views: 3
Size:  39.4 KB

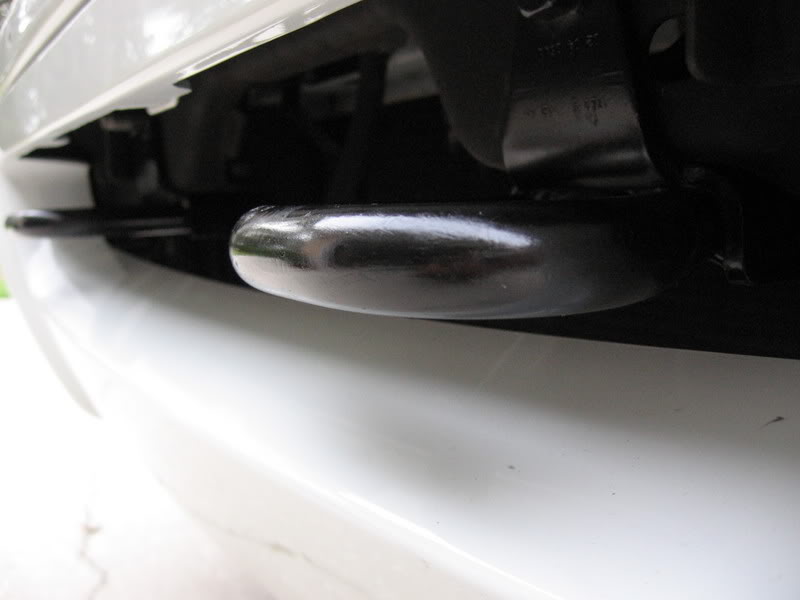

Name:  july2007008.jpg
Views: 5
Size:  33.1 KB
Reply With Quote
  #6
Old 11-18-2008
TexasRanger's Avatar
Member

Join Date: Jun 2008
Location: austin, TX
Posts: 1,252
i have a 2002 2wd edge and i have tow hooks. wouldnt think you would have a problem. ash the picures show if you look in the slot there should be 2 sets of 3 holes. on each side one of them facing towards you and the other two down.
Reply With Quote
  #7
Old 11-18-2008
tx03edge's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: Dallas, Tx
Posts: 73
Quote:
Originally Posted by Alon View Post
i have an extra set, so let me know before you go and order them.

If you have a crossmember inbetween the frame rails up front, there will be 1 hole forward and two underneath where they would mount.

pm sent
Reply With Quote
  #8
Old 11-18-2008
tx03edge's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: Dallas, Tx
Posts: 73
[QUOTE=herm59;1118725]Ok, here they are. Let me know if you need anymore or want better/bigger ones.

QUOTE]

those work, but can you take some from the under side, showing how they are bolted on bottom
Reply With Quote
  #9
Old 11-20-2008
tx03edge's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: Dallas, Tx
Posts: 73
Quote:
Originally Posted by Alon View Post
i have an extra set, so let me know before you go and order them.

If you have a crossmember inbetween the frame rails up front, there will be 1 hole forward and two underneath where they would mount.
delete some of your pm's, i keep getting a message you exceeded your limit.
Reply With Quote
  #10
Old 11-20-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
On my 04 2wd Edge, I don't have the holes for the tow hooks. Thats pretty common on the 04+ edges, you might be lucky though.
Reply With Quote
  #11
Old 11-20-2008
tx03edge's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: Dallas, Tx
Posts: 73
Quote:
Originally Posted by 04blackedge View Post
On my 04 2wd Edge, I don't have the holes for the tow hooks. Thats pretty common on the 04+ edges, you might be lucky though.

mine is an '03, i believe i have holes for tow hooks.
Reply With Quote
  #12
Old 11-20-2008
Alon's Avatar
Member
iTrader: (13)

Join Date: Jun 2004
Location: Long Beach, CA
Posts: 2,555
Quote:
Originally Posted by tx03edge View Post
delete some of your pm's, i keep getting a message you exceeded your limit.
done
Reply With Quote
  #13
Old 11-20-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
i have some of the tow hooks that are beefier than that style and have the same bolt pattern as far as i know.
Reply With Quote
  #14
Old 11-21-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
this might help....no bumper....(01-current hooks)

Name:  P4190032.jpg
Views: 7
Size:  67.1 KB

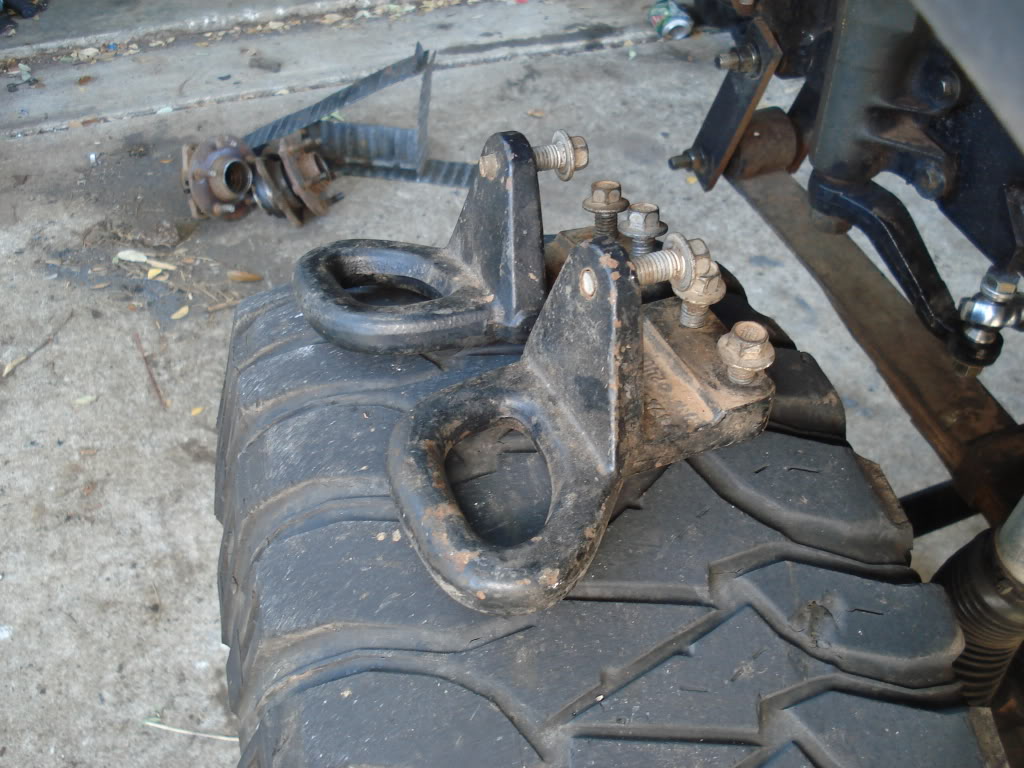

Here's a pic of the hooks that bolt into those holes......there's one bolt that threads in from the back horizontally, then two more that thread in from the top vertically...(bump for matt! 98-00 front hooks)
Name:  DSC05291.jpg
Views: 4
Size:  127.6 KB
Reply With Quote
  #15
Old 02-17-2009
tx03edge's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: Dallas, Tx
Posts: 73
Post

I just got my tow hooks from ebay today, and was wondering if anyone has used has anyone used locktite on the bolt for the tow hooks? Or do we even need to use them? The bolts i bought are M12X1.75.40 They arent the hex flanged type that the dealership has.They are just the zinc plated with a 8.8 stamped on the top of themand then i just boughtsome simple washers, and i assume the nut welded on the tow hooks is all you need.
Reply With Quote
  #16
Old 02-17-2009
Alon's Avatar
Member
iTrader: (13)

Join Date: Jun 2004
Location: Long Beach, CA
Posts: 2,555
yes lock tite them
Reply With Quote
  #17
Old 02-17-2009
tx03edge's Avatar
Member
Thread Starter

Join Date: Apr 2007
Location: Dallas, Tx
Posts: 73
Post

is it better to use the permanent (red) or the Removable (blue)
Reply With Quote
