2" t-bar crank and Shackels

I just did a 2" t-bar crank and put in shackels and I thought I would post some pics for people thinking about doin the same.

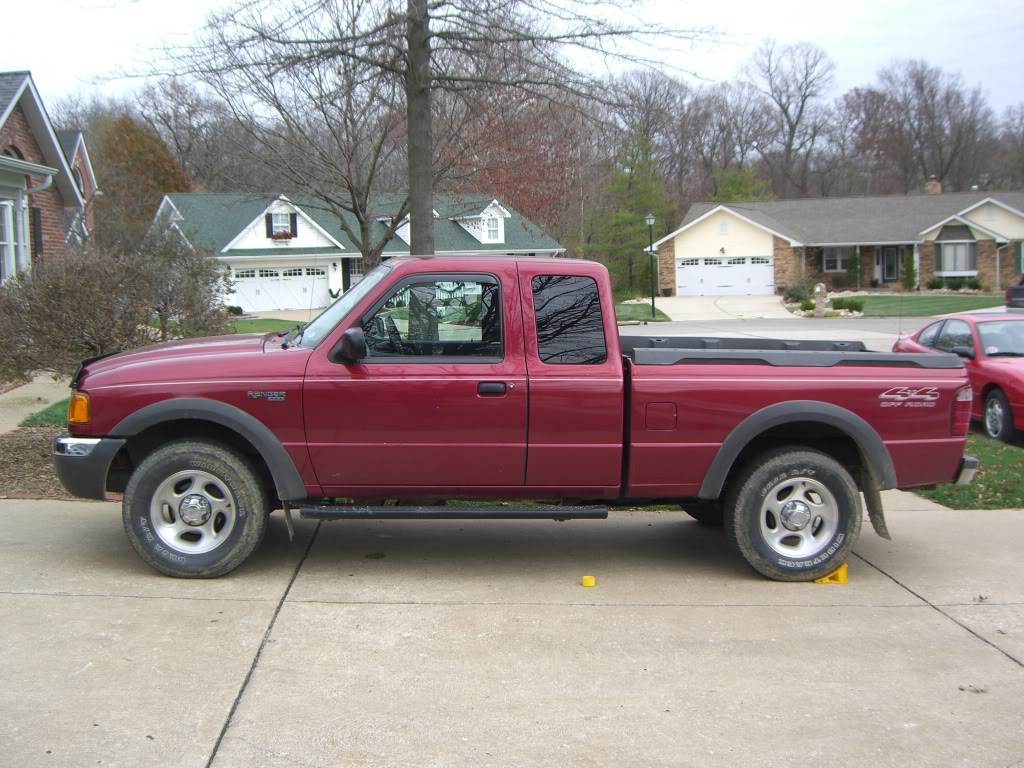

before:
Name:  CIMG1894.jpg
Views: 19
Size:  186.8 KB

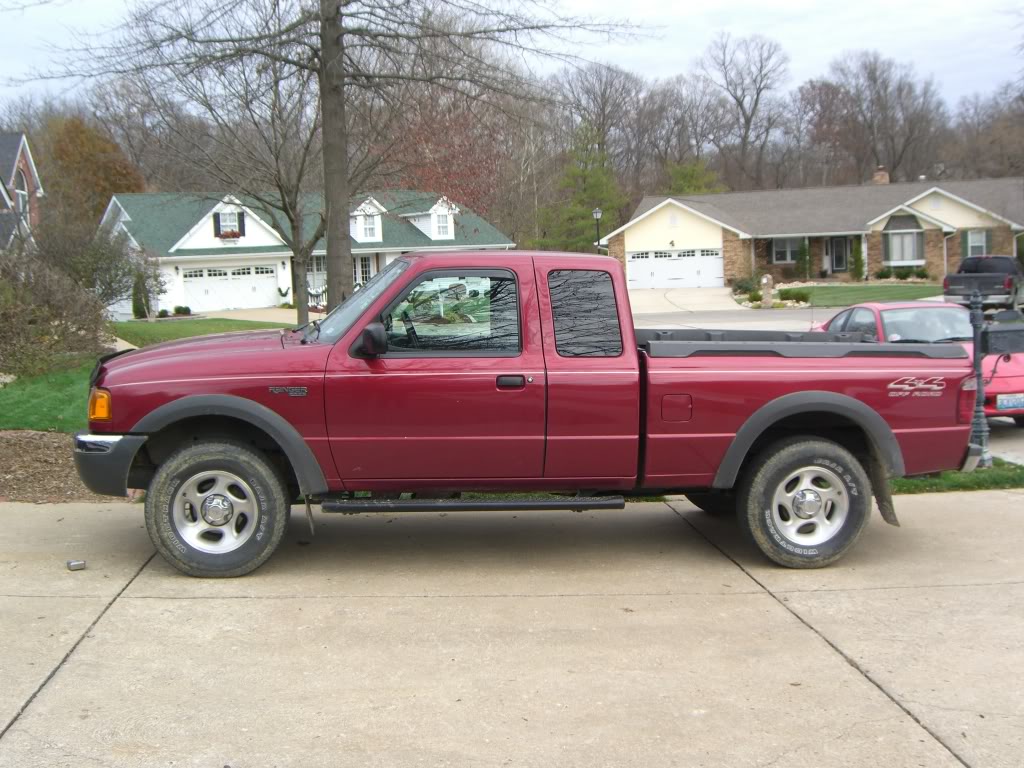

After 1" t-bar crank
Name:  CIMG1895.jpg
Views: 12
Size:  177.7 KB

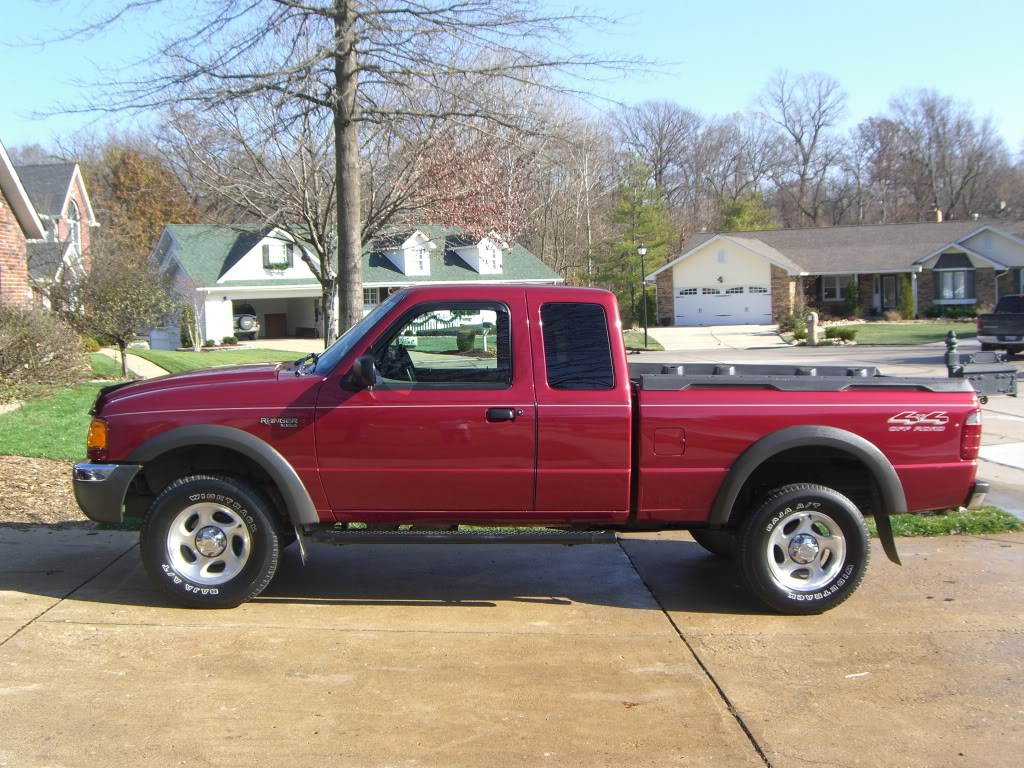

After 2" t-bar crank and 2" shackles (and washed)
Name:  CIMG1899.jpg
Views: 40
Size:  219.9 KB
Reply With Quote
  #2
Old 11-24-2008
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
looks good. now you just need some bigger meats.
Reply With Quote
  #3
Old 11-24-2008
4LO 4.0's Avatar
Member
iTrader: (5)

Join Date: Jun 2007
Location: Grovetown, Ga
Posts: 650
Looks good, I thought it would have a more raked look with the shackles.
Is your driveway on an incline? Also I would ditch those mudflaps
Reply With Quote
  #4
Old 11-24-2008
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
tires look tiny now lol. did the same to my ranger. you can fit 33's but the rub in the rear when your fully flexed out, like bad lol
Reply With Quote
  #5
Old 11-24-2008
edgeman4.0's Avatar
Member
iTrader: (2)

Join Date: Oct 2008
Location: All Over
Posts: 1,475
mud flaps must go now! and bigger tires.. otherwise, good lookin truck dude.
Reply With Quote
  #6
Old 11-24-2008
t3ob's Avatar
Member

Join Date: Apr 2008
Location: Olive Branch, MS
Posts: 1,762
lookin good
Reply With Quote
  #7
Old 11-24-2008
cchsbuzz19's Avatar
Member
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
looks good! I need to get mine redone
Reply With Quote
  #8
Old 11-24-2008
Rangerguy's Avatar
Member

Join Date: Feb 2008
Location: California
Posts: 1,120
Looks really nice!
Reply With Quote
  #9
Old 11-24-2008
Brian's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: Saint Louis, MO
Posts: 148
thanks for the compliments, and yea I am getting bigger tires in about a month... I think that I am gonna go with some 265-75-16 firestone desination a/t's they seem to get pretty good reviews, I was looking at the 285-75-16 but I have kinda heard mixed reviews about them on the stock wheel. Someone said that they dont wear very well since they are soo much wider than the wheel and they will rub.
.... yea my driveway has a small incline, it still looks the same on flat ground
Reply With Quote
  #10
Old 11-24-2008
hozII's Avatar
Member
iTrader: (5)

Join Date: Sep 2008
Location: athens, Al
Posts: 2,245
WOW!! I never realized how much differencw that would make. Thanks for the post because i was looking at doing this with a 3" BL. front still looks just a smidgin lower than the rear but who cares!!! does your front still have any rebound?
Reply With Quote
  #11
Old 11-24-2008
hozII's Avatar
Member
iTrader: (5)

Join Date: Sep 2008
Location: athens, Al
Posts: 2,245
Quote:
Originally Posted by Brian View Post
thanks for the compliments, and yea I am getting bigger tires in about a month... I think that I am gonna go with some 265-75-16 firestone desination a/t's they seem to get pretty good reviews, I was looking at the 285-75-16 but I have kinda heard mixed reviews about them on the stock wheel. Someone said that they dont wear very well since they are soo much wider than the wheel and they will rub.
.... yea my driveway has a small incline, it still looks the same on flat ground

Yeah don't go with the firestones. we run those on our work trucks which they are thouroghly but to the test everyday. They aren't all that great offroad and after about 2 mths they aren't all that great on road. They seem to wear pretty even but that with constant rotate and balance.
Reply With Quote
  #12
Old 11-24-2008
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
Looks good. I cranked my torsions a bit,but now I want/need to do shackles.

What's the part number? I just want a very mild lift like yours,as I am just going to be running 31x10.5x15 tires.
Reply With Quote
  #13
Old 11-24-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Looks good, now go get ya a set of 32's asap!
Reply With Quote
  #14
Old 11-24-2008
hozII's Avatar
Member
iTrader: (5)

Join Date: Sep 2008
Location: athens, Al
Posts: 2,245
You BUNGHOLE!!! J/K.....You inspired me and i just NOW bought shackles from trent......so there ya go!!!! HAHAHAHA!!!!
Reply With Quote
  #15
Old 11-25-2008
Brian's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: Saint Louis, MO
Posts: 148
Quote:
Originally Posted by hozII View Post
WOW!! I never realized how much differencw that would make. Thanks for the post because i was looking at doing this with a 3" BL. front still looks just a smidgin lower than the rear but who cares!!! does your front still have any rebound?
Yea it rides fine, its a little rougher and a little bouncier but it's definitely worth it. Before when I would bottom out a lot on the bump stops in the front and now its not a problem.
Reply With Quote
  #16
Old 11-25-2008
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615

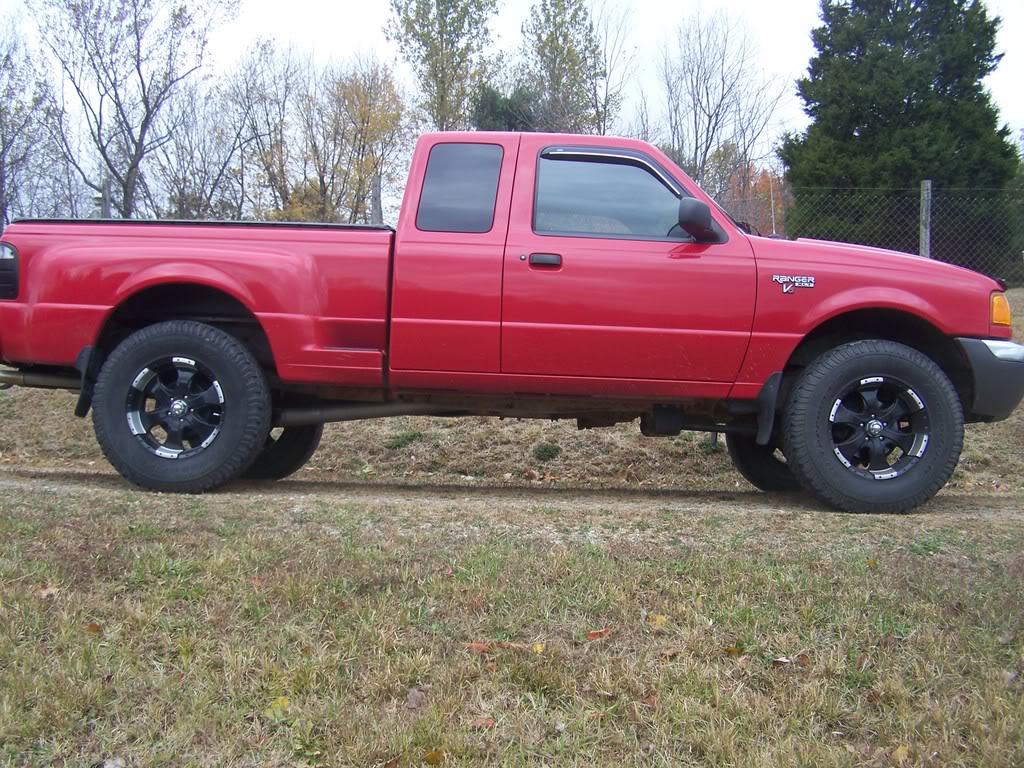

Looks good, go with 285's, Im runnin them with my t-bars maxxed out and a 2" aal. Heres a pic:
Name:  100_0808.jpg
Views: 16
Size:  249.0 KB
Reply With Quote
  #17
Old 11-25-2008
Brian's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: Saint Louis, MO
Posts: 148
Quote:
Originally Posted by hozII View Post
Yeah don't go with the firestones. we run those on our work trucks which they are thouroghly but to the test everyday. They aren't all that great offroad and after about 2 mths they aren't all that great on road. They seem to wear pretty even but that with constant rotate and balance.
hmm I wonder why they get such amazing reviews on tirerack.com
http://www.tirerack.com/tires/survey...ireSearch=true

Hoz, do u have any suggestions, I need a tire that is decently cheap, and I do about 90% on road and 10% off road- so basically I am looking for a capable a/t tire, thanks
Reply With Quote
  #18
Old 11-25-2008
Brian's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: Saint Louis, MO
Posts: 148
Quote:
Originally Posted by crazymikey View Post
Looks good. I cranked my torsions a bit,but now I want/need to do shackles.

What's the part number? I just want a very mild lift like yours,as I am just going to be running 31x10.5x15 tires.
they are belltech 6400 2" lowering shackles for full size American trucks, I got mine from summit it was about $63 by the time they threw in handling charges
they are some what adjustable there are 3 different holes you can choose from and I used the last one to give the most lift. Which ended up being about 1-3/4"
http://store.summitracing.com/partde...5&autoview=sku
Reply With Quote
  #19
Old 11-25-2008
Brian's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: Saint Louis, MO
Posts: 148
Quote:
Originally Posted by sullys_ranger View Post
Looks good, go with 285's, Im runnin them with my t-bars maxxed out and a 2" aal. Heres a pic:
Sully do you have any rubbing issues? The only problem for me is that I am keeping the stock wheels (poor college student) and they are only 7" wide and I have read that they have problems wearing evenly since the tire is so much wider than the rim. I know it will fit but I am worried about longevity. Oh and those tires look great they look huge compare to the stockers.
Reply With Quote
  #20
Old 11-25-2008
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
Thanx man. Nope, I dont have any rubbing at all, not even offroading. Mine are wearing just fine too even tho I have an 8 inch wheel. lol heres a pic comparing my stock 245/75-16s to now...
Name:  100_0731.jpg
Views: 15
Size:  148.7 KB
Reply With Quote
  #21
Old 11-25-2008
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
I will eventually get a set of 285s. i have my tbars maxed with 265s kyb monomax rear shocks. ready for bigger tires but i may through in a aal in the rear. you dont rub at all in the front? mine do when i have the wheel maxed out to either side but i rarely turn all the way......
Reply With Quote
  #22
Old 11-25-2008
ColdNapalm's Avatar
Member

Join Date: Sep 2008
Location: Jacksonville, Florida
Posts: 499
when u crank the t bars does it make it ride super rough?
Reply With Quote
  #23
Old 11-25-2008
rideac1's Avatar
Member
iTrader: (1)

Join Date: May 2005
Location: New Kensington, PA
Posts: 1,087
Quote:
Originally Posted by ColdNapalm View Post
when u crank the t bars does it make it ride super rough?
Cranking the bars made mine ride smoother. There's more stress being put on the bars to keep the truck up higher, which results in it being easier to make them travel. It also puts more stress on the bars than they were meant for being at stock height, so over time, even a year, will make them permanently weaker thus they will be softer in the long run. Mine are so soft now that I can almost make the truck cycle through the entire suspension travel just by me and another person pushing on my prerunner bumper...i'll post a link to my video of this soon. haha
Reply With Quote
  #24
Old 11-25-2008
Brian's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: Saint Louis, MO
Posts: 148
Quote:
Originally Posted by ColdNapalm View Post
when u crank the t bars does it make it ride super rough?
for me, it made it a little rougher but not really a big deal. Its definately worth it. The only thing is you should make sure that you have the #1 torsion bars. (you can look in your door jamb). The #1 bars will hold up best to the t-bar crank
Reply With Quote
  #25
Old 11-25-2008
Roddy's Avatar
Member

Join Date: Mar 2008
Location: Canada
Posts: 1,332
Looks awesome. Some 265/75/16's would look great in there now
