33's with as little possible lift.

Hi all,

Right now im trying to get my truck from its stock height and 29's (245/75/R16) to a little bit of a taller and widerstance. I would do a bodylift at the drop of a hat but really dont want to have to cut and reweld my hitch and have just an eiere feeling about BLs. Is there any other lift out there for the front? Yes, just the front, I can do AAL and shackles in the back to get plenty of lift but only have torison bars in the front! Thanks guys!

Spence

Attached Thumbnails
33's with as little possible lift.-img_5028-1.jpg
Reply With Quote
  #2
Old 08-25-2012
kanuck15's Avatar
Member

Join Date: Mar 2011
Location: Pennsylvania
Posts: 844
A friend of mine did 33s stock without doing a shackle or torsion bar crank.

Ford Ranger Forums - The Ultimate Ford Ranger Resource - BB2's Album: FX5 - Picture

its a tight fit but from what I remember it didnt rub unless it was full lock. I would just do a shackle in the back and then use the bars to match it. Dont forget to get an alignment done after you crank them
Reply With Quote
  #3
Old 08-25-2012
rangerrunner11's Avatar
Member

Join Date: Feb 2011
Location: .
Posts: 1,018
spindles
Reply With Quote
  #4
Old 08-25-2012
cakebread's Avatar
Member

Join Date: Jun 2012
Location: Argentina
Posts: 17
I maxed out the Tbars this week and put 32"s on with no problem at all. There is more room to spare so 33"s will fit I think. I would like to get 35"s but there would be some rubbing somewhere.

Has anyone put 35"s on with just a Tbar lift?
Reply With Quote
  #5
Old 08-25-2012
99DangerRanger's Avatar
Level III Supporter

Join Date: Mar 2011
Location: New Creek, WV
Posts: 441
Quote:
Originally Posted by cakebread View Post
I maxed out the Tbars this week and put 32"s on with no problem at all. There is more room to spare so 33"s will fit I think. I would like to get 35"s but there would be some rubbing somewhere.

Has anyone put 35"s on with just a Tbar lift?
Search Bwymike. He has 35s and just keys with a 3 inch block. But he also has a plate bumper so he has a little extra room up front.
Reply With Quote
  #6
Old 08-25-2012
cakebread's Avatar
Member

Join Date: Jun 2012
Location: Argentina
Posts: 17
Great. That gives me hope for mine. It's a lot of cash to spend if they don't fit. But I think 35"s will be OK with a little work!
Reply With Quote
  #7
Old 08-25-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Quote:
Originally Posted by rangerrunner11 View Post
spindles
He has a 4x4.

Tbar crank would get you enough room for 33's but a 1" body lift would be perfect.
Reply With Quote
  #8
Old 08-25-2012
04ranger4x4's Avatar
Member

Join Date: Jul 2011
Location: Fort worth Tx
Posts: 175
I have maxed t-bars and shackles in the back and 1" body lift with 33s and I can flex the front suspension ok but at times the front rub a little. Ill get some pictures after while
Reply With Quote
  #9
Old 08-25-2012
cakebread's Avatar
Member

Join Date: Jun 2012
Location: Argentina
Posts: 17
Ah..ok. Wishfull thinking on my part. i really want 35"s........
Reply With Quote
  #10
Old 08-25-2012
Romaswake's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: DC
Posts: 130
Thanks for all the responses, I really don't want to do a BL of anysort, just the hassle of it of what ive heard... So there are no options for me to lift the front??? Nothing at all? I have a 4x4 if that plays into it at all!
Reply With Quote
  #11
Old 08-25-2012
Romaswake's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: DC
Posts: 130
Would this work for me!? http://www.truxxx.com/product/ford Part number 101050... It says in the title it is compatible with a 4x4, but then in the description it says 4x2 vehicles?
Reply With Quote
  #12
Old 08-25-2012
kanuck15's Avatar
Member

Join Date: Mar 2011
Location: Pennsylvania
Posts: 844
prekeys are dumb. Just crank your bars. Those keys put way to much torque on the bars when cranked hard and wear things out. If you dont get what you want out of cranking yours bars as is then maybe look into lower mileage bars or just new ones
Reply With Quote
  #13
Old 08-25-2012
Romaswake's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: DC
Posts: 130
Okay, so no to prekeys... Nothing else out there aside from cranking tbars to get lift JUST in the front?
Reply With Quote
  #14
Old 08-25-2012
99DangerRanger's Avatar
Level III Supporter

Join Date: Mar 2011
Location: New Creek, WV
Posts: 441
You could convert to coil overs and set the preload higher. But no matter what you are limited by cv angle. And also the added wear and tear on suspension components.
Reply With Quote
  #15
Old 08-25-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
are you a female? People weary of doing a body lift are vaginas. its not hard, i did mine myself and i have probably pulled more weight with my front hitch than you have with your rear.
Reply With Quote
  #16
Old 08-25-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by 99DangerRanger View Post
You could convert to coil overs and set the preload higher. But no matter what you are limited by cv angle. And also the added wear and tear on suspension components.
yeah he will destroy his front end components doing that.
Reply With Quote
  #17
Old 08-27-2012
Romaswake's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: DC
Posts: 130
hahah, alright big guy. I have no problem doing it, what i am weary about is my hitch hanging down...It's going to look horrible especially since i have a factory hitch. I was looking for a way around it but doesnt look like it will be happening. and really don't want to have to go the route of cuting and re welding it.
Reply With Quote
  #18
Old 08-27-2012
kanuck15's Avatar
Member

Join Date: Mar 2011
Location: Pennsylvania
Posts: 844
I get what you are saying. I dont like the look of body lifts on most trucks. Some of them pull it off but most looked hacked and that just turns me away. The hitch problem isnt a huge deal but I guess if you didnt have the means to cut and reweld it then it would be an issue
Reply With Quote
  #19
Old 08-27-2012
wyldechild's Avatar
Member

Join Date: Jun 2007
Location: Denver, Colorado
Posts: 1,952
Max your bars, shackle, aal or block in the rear, and the 33's should fit fine...might have to trim a bit.

If you want 35's you'll have to BL. I don't like the look of body lifts on most trucks, but for some reason the Rangers pull it off. Keep some step sides on there with gap guards and most people wouldn't notice its a BL. I've never cut and re-welded a hitch before, but from what i've read it isn't a big deal.
Reply With Quote
  #20
Old 08-27-2012
04ranger4x4's Avatar
Member

Join Date: Jul 2011
Location: Fort worth Tx
Posts: 175

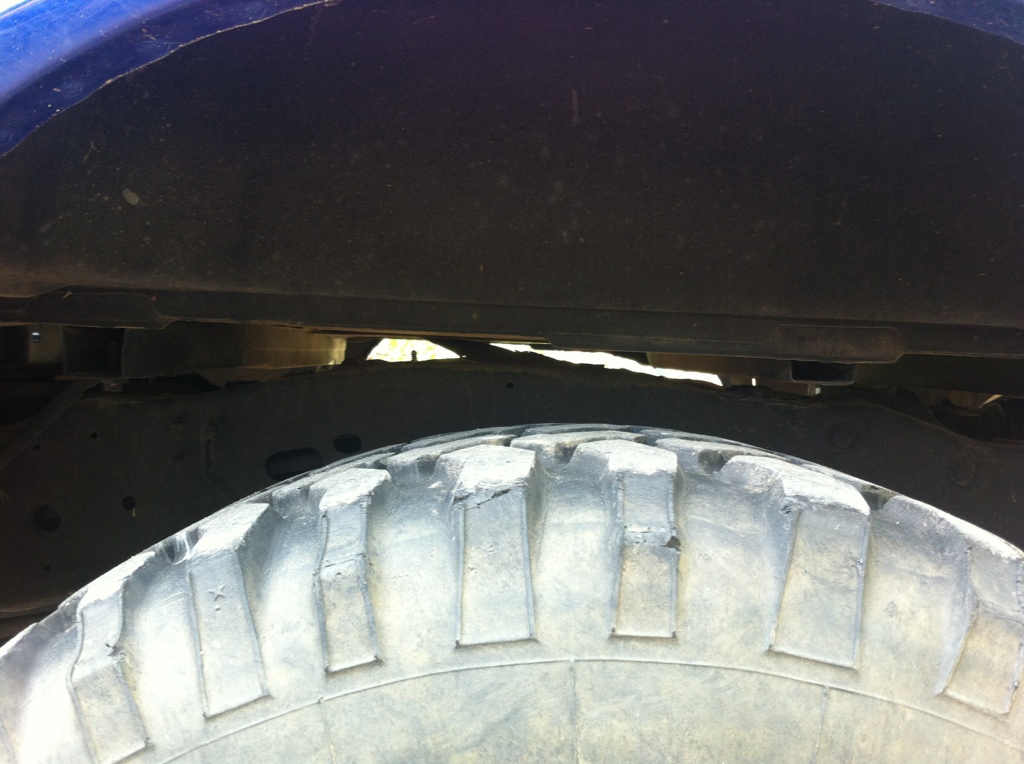

This is the gap between the frame and bed with one inch body lift
Attached Thumbnails
33's with as little possible lift.-4363c95d-a76d-4b4f-8627-c6730e56dc6a-2211-0000017831987e40.jpg   33's with as little possible lift.-d7fe2638-5cb9-4492-98b2-83d36d63da22-2211-00000178388e1749.jpg   33's with as little possible lift.-436388b2-af4a-444a-a930-2cb0f1e582ad-2211-000001783e643395.jpg   33's with as little possible lift.-45b2c7b4-9ad0-4750-a2e7-84937394b656-2211-000001784453c101.jpg   33's with as little possible lift.-cb57620d-8edf-4607-8455-741129adba40-1863-0000015971343068.jpg

33's with as little possible lift.-b2d21f3c-f43d-4b8b-87be-e11cf7724228-2211-000001784999a026.jpg
Reply With Quote
  #21
Old 08-27-2012
04ranger4x4's Avatar
Member

Join Date: Jul 2011
Location: Fort worth Tx
Posts: 175
Also after I did the one inch body lift I wished i would have went ahead and did the three inch. The one inch is just enough lift for 33s but every now and then when flexing the front tires rub.

I have the three inch body lift to install just need to find time to put it on between school and working full time.
Reply With Quote
  #22
Old 08-27-2012
Romaswake's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: DC
Posts: 130
Could I go to a shop and have it cut and welded? Also, if that is done... how is the structural integrity of the hitch? Could i tow up to 5600 LBS again like it was rated for? Or have a tongue weight of 3000LBS like it was rated for?
Reply With Quote
  #23
Old 08-27-2012
Romaswake's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: DC
Posts: 130
Quote:
Originally Posted by 04ranger4x4 View Post
Also after I did the one inch body lift I wished i would have went ahead and did the three inch. The one inch is just enough lift for 33s but every now and then when flexing the front tires rub.

I have the three inch body lift to install just need to find time to put it on between school and working full time.
Wait, so your saying all those pictures above are just with a 1" BL???? What else you have under there? I'm assuming maxxed t-bars and shackles? It looks great!
Reply With Quote
  #24
Old 08-27-2012
04ranger4x4's Avatar
Member

Join Date: Jul 2011
Location: Fort worth Tx
Posts: 175
Quote:
Originally Posted by Romaswake View Post
Wait, so your saying all those pictures above are just with a 1" BL???? What else you have under there? I'm assuming maxxed t-bars and shackles? It looks great!
It's maxed t-bars and shackles in the rear with one inch body lift. Thanks
Reply With Quote
  #25
Old 08-27-2012
Romaswake's Avatar
Member
Thread Starter

Join Date: Oct 2011
Location: DC
Posts: 130
Quote:
Originally Posted by 04ranger4x4 View Post
It's maxed t-bars and shackles in the rear with one inch body lift. Thanks
Is there any reason concerning having 33's with small amount of lift why you dont have a front bumper? or is that some other reason?
