Alignment/Camber Kit question

Ok so i went to a mechanic yesterday to get my truck aligned because my truck was pushing to the left. After about an hour and a half they came back to me and said they fixed my caster but the camber could not be adjusted anymore and i need a camber kit to get a proper alignment. I was wondering if this is the camber kit that they are talking about More Information for MOOG K80065. Is this what i need?
Reply With Quote
  #2
Old 02-26-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
can we have some info on your ride? please create a signature.






Those moog's would work, yeah. What they do is allow for more adjustability of the upper control arm to set camber. Alot of them are + or - 3 degrees of newfound adjustment.



Here's the ones I've used and many others have used: Ingalls #29000 cambolts.

Ingalls Engineering 29000 - Ingalls Engineering Adjustable Camber Kits - Overview - SummitRacing.com


NOTE: Order a quantity of 2 to recieve a total of 4 bolts. They are sold in pairs, NOT individually like the ad says. I know this because my little brother ordered 4 because the description said "sold individually". We recieved 8 total bolts. This goes for the Summit link above...I don't know about other brands or other parts houses.
Reply With Quote
  #3
Old 02-26-2010
blegit's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Las Vegas, NV
Posts: 219
Thanks. ps i updated the signature too
Reply With Quote
  #4
Old 02-26-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
thanks.

torsion keys are your reason for being way out of camber(tons of negative camber right?). it still may not be fixable using cambolts.
Reply With Quote
  #5
Old 02-26-2010
squrll's Avatar
Member

Join Date: Nov 2009
Location: fairfax va
Posts: 191

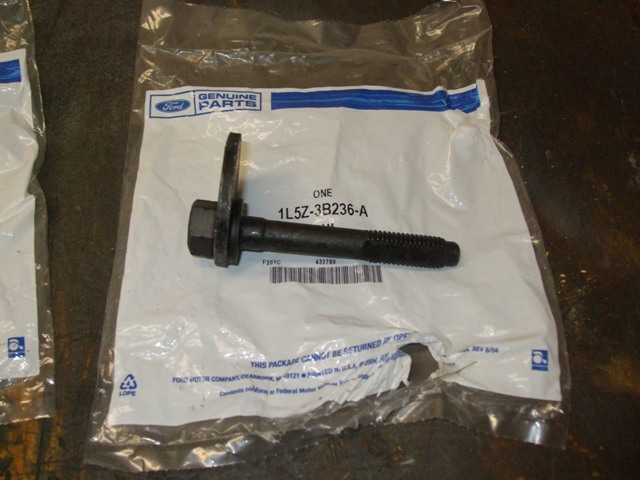

Pick these up

You can pick these up at ford for about 6 dollers a pc
but still might not fix the problem but cheaper way to
find out
Attached Thumbnails
Alignment/Camber Kit question-dscf1293.jpg
Reply With Quote
  #6
Old 02-26-2010
blegit's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Las Vegas, NV
Posts: 219
Quote:
Originally Posted by Fx4wannabe01 View Post
thanks.

torsion keys are your reason for being way out of camber(tons of negative camber right?). it still may not be fixable using cambolts.
Is there any other option other than cambolts to fix the problem?
Reply With Quote
  #7
Old 02-26-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by blegit View Post
Is there any other option other than cambolts to fix the problem?
Relocating the upper control arm frame mounts outward. But even then, those balljoint angles are still effed up(thanks to the keys) and the bars are gonna go poopy way faster(thanks to the keys) and the CV's are virtually binding on the street(thanks to the keys) and the ride is gonna be fairly harsh because you've got no downtravel at all(thanks to the keys).
Reply With Quote
  #8
Old 02-26-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
I used the Ingalls kit too. Works great!
Reply With Quote
  #9
Old 03-06-2010
Member

Join Date: Jan 2010
Location: southern cal
Posts: 4
So what is suggested when you have this problem
Reply With Quote
  #10
Old 03-06-2010
dangelj316's Avatar
Member
iTrader: (1)

Join Date: Feb 2006
Location: Yuma, AZ
Posts: 813
I'm using the Ingalls kit too. Works fine. Sometime if i romp it hard enough i have to take it back in to get an alignment. The bolt on that Ingalls kit is always coming loose.
Reply With Quote
  #11
Old 03-07-2010
Member

Join Date: Jan 2010
Location: southern cal
Posts: 4
why are the keys in fault?
Reply With Quote
  #12
Old 03-07-2010
Woods-Rider's Avatar
Member
iTrader: (2)

Join Date: Apr 2008
Location: Hillsboro, OR
Posts: 1,108
I had to use the camber kit bolts and cut off the uca mounts and move them out about an inch. Now alignment is spot on.
