almost done with sas.

im almost done just waiting on the steering to get here.i finished it late last night.here are some pics.

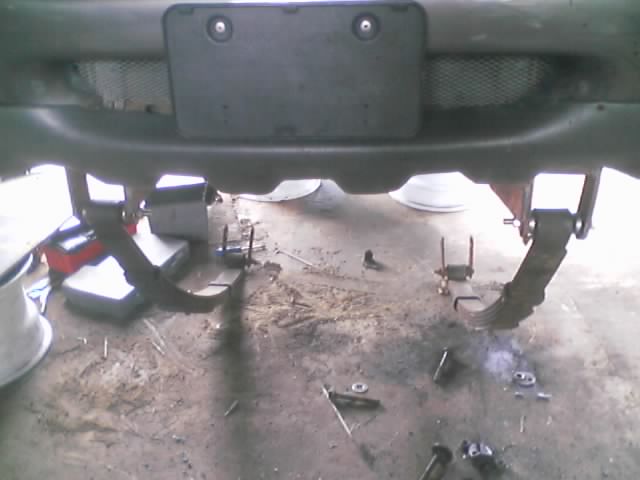

Name:  oct05_002.jpg
Views: 3
Size:  32.2 KB

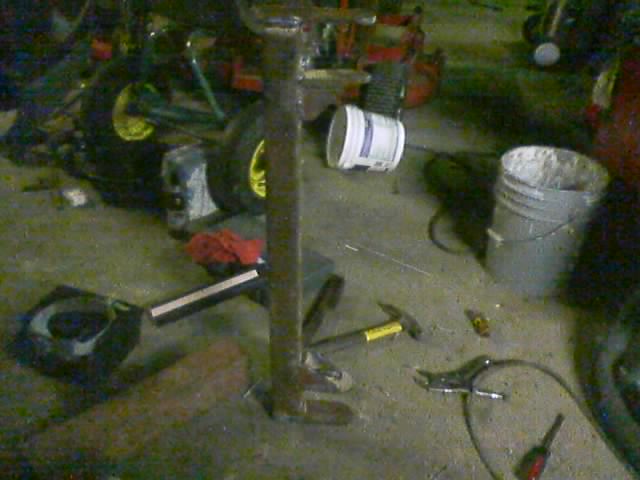

Name:  oct04_012.jpg
Views: 3
Size:  40.1 KB

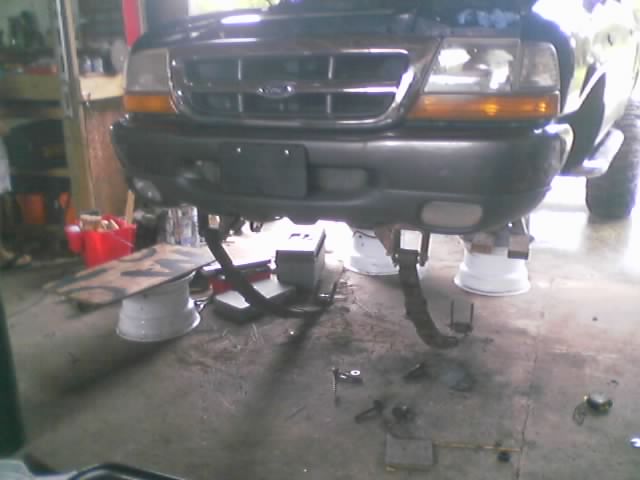

Name:  oct05_001.jpg
Views: 3
Size:  32.2 KB

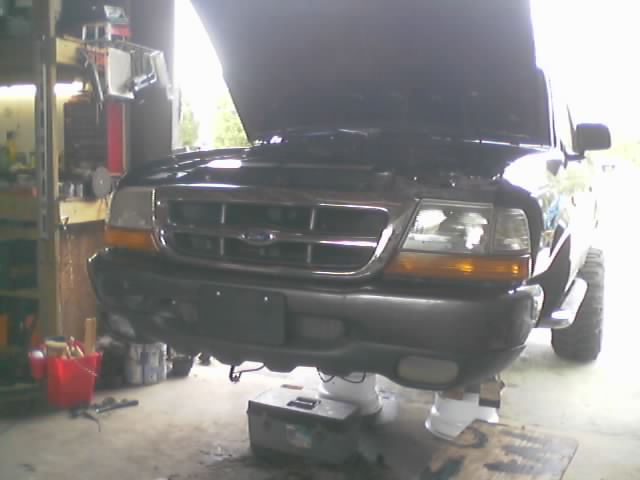

Name:  oct04_008.jpg
Views: 3
Size:  29.7 KB

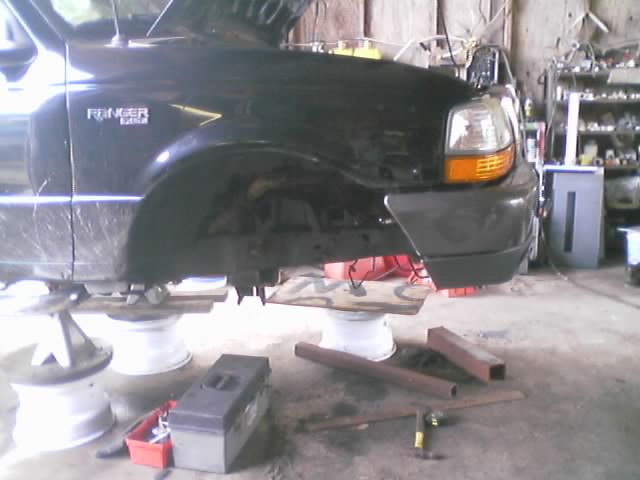

Name:  oct04_007.jpg
Views: 3
Size:  36.4 KB
should be finished with the steering some time next week.more pics up in a couple days.
Reply With Quote
  #2
Old 10-11-2005
92 Ranger's Avatar
Member

Join Date: Aug 2004
Location: Raleigh NC
Posts: 1,229
what kinda axle is that? it looks a little small lol.. dude thats bad ***..
Reply With Quote
  #3
Old 10-11-2005
Member

Join Date: Aug 2005
Location: Haverhill, MA
Posts: 1,907
that thing is crazy looks awesom and i like the height wish i could get mine that high good work keep going!!
Reply With Quote
  #4
Old 10-11-2005
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
man that looks sweet, really good job...

i thought those rims were 5 gallon buckets at first and i thought you were outa your mind
Reply With Quote
  #5
Old 10-11-2005
a311fanam's Avatar
Member

Join Date: Dec 2004
Location: Westerly, RI
Posts: 2,006
awesome looks good so far!
Reply With Quote
  #6
Old 10-11-2005
meemooer's Avatar
Member

Join Date: Mar 2005
Location: Brunswick, Ohio
Posts: 336
that thing is just wicked.
How tall are you, assuming thats you in the pic, for comparision?
and i know it might hurt, but much much $$ did it take?

once again looks great
Reply With Quote
  #7
Old 10-11-2005
04lvl2's Avatar
RF Veteran

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
That looks awesome, nice work.
Reply With Quote
  #8
Old 10-11-2005
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
JEALOUS! Jealous much! Very awesome. What are the specs on that sucker?
Reply With Quote
  #9
Old 10-11-2005
Bigwill41's Avatar
Member

Join Date: Jun 2004
Location: Navasota, Texas
Posts: 4,659
looks nice....


Must be nice'
Reply With Quote
  #10
Old 10-11-2005
Member
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Sweet man, glad to see it go up so quick.

Specs on the axles/springs/steering?

My **** is all custom and built to the hilt so its taking alot more $$ and time than yours.
Reply With Quote
  #11
Old 10-11-2005
2003Ranger's Avatar
Member

Join Date: Feb 2005
Location: South Lyon, Michigan
Posts: 657
Truck Looks Awesome! The bigger the better. Can't wait to see the finished product. If I had the welding skills or knew somebody who did I'd be doing the same!
Reply With Quote
  #12
Old 10-11-2005
Trevelyn1015's Avatar
Still El Presidente...

Join Date: May 2004
Location: Texas
Posts: 4,900
do you have an fx4 lvl II sticker?

what size is the axle? looks a little tiny..
Reply With Quote
  #13
Old 10-11-2005
lilbass's Avatar
Member

Join Date: Apr 2005
Location: Sumter County, FL
Posts: 462
I soooooo happy for you, bout time!!!!
Reply With Quote
  #14
Old 10-11-2005
04 EDGE
Unregistered User

Posts: n/a
looks like a dana 44
Reply With Quote
  #15
Old 10-11-2005
Member
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Naw it looks like a dana 30...This is a dana 44

Reply With Quote
  #16
Old 10-11-2005
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks sweet. ya we want some specs
Reply With Quote
  #17
Old 10-11-2005
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Good deal. I like it!

Why don't you reclock the shock mounts so they don't stick down? With as much lift as you've already got it's not going to give you much more flex, and it's one less thing hanging down to snag or break? Make them parallel to the ground.
Reply With Quote
  #18
Old 10-11-2005
Member
Thread Starter

Join Date: May 2005
Location: crystal river,fl
Posts: 1,778
Quote:
How tall are you, assuming thats you in the pic, for comparision?
im like 5ft 8in
Reply With Quote
  #19
Old 10-11-2005
Member
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
Ryan wtf c'mon, what kind of axle, gear ratio etc.
Reply With Quote
  #20
Old 10-11-2005
Member
Thread Starter

Join Date: May 2005
Location: crystal river,fl
Posts: 1,778
Quote:
do you have an fx4 lvl II sticker?
yes some one backed into my truck and it looks stupid because the fiber glass cracked and i tryed covering it up. didnt work to well but just waiting on my regular bed to get painted.
Reply With Quote
  #21
Old 10-11-2005
Member
Thread Starter

Join Date: May 2005
Location: crystal river,fl
Posts: 1,778
and for the axle its a dana 30.with 4:10 in it.im ordering 4:88 and im ordering this actuator http://cgi.ebay.com/ebaymotors/ws/eB...3AMEWA%3AIT.im gonna sell the 5:13 i have and 4:88 in the rear.i no the axle is a little small but i will upgrade in the furture to a nice dana 44 and a 9" rear out of a bronco.
Reply With Quote
  #22
Old 10-11-2005
Member
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
I hope you don't lock it with the 38.5's on there!!! d30 go boom.
Reply With Quote
  #23
Old 10-11-2005
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
very nice man
Reply With Quote
  #24
Old 10-11-2005
Member
Thread Starter

Join Date: May 2005
Location: crystal river,fl
Posts: 1,778
Quote:
Why don't you reclock the shock mounts so they don't stick down? With as much lift as you've already got it's not going to give you much more flex, and it's one less thing hanging down to snag or break? Make them parallel to the ground.
they will i still have about a week or so before the steering gets here.
Reply With Quote
  #25
Old 10-11-2005
Member
Thread Starter

Join Date: May 2005
Location: crystal river,fl
Posts: 1,778
Quote:
I hope you don't lock it with the 38.5's on there!!! d30 go boom.
and YES i will lock it in 4x4. ive seen a lot of jeeps around where i live and they do just fine.my buddys got 38s on his jeep and he hasnt broke his dana 30 and we play all the time.
