Anti-wrap bar

I know there are threads upon threads about this topic.. but i have a new question i dont think i've seen before.

I've seen people make a solid mount anti wrap bar, i thought one i saw was from spidertrax? i know its not ideal but how well do they work? I cant afford 12' of DOM right now and i really need to do something about the horrendous amounts of axle wrap i have.

Its one link from the bottom of the axle up to where ever.
Reply With Quote
  #2
Old 05-28-2009
shadow905's Avatar
Member
iTrader: (10)

Join Date: May 2006
Location: Boerne, TX
Posts: 1,997
link man link!
Reply With Quote
  #3
Old 05-28-2009
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
if i dont want to spend money on 12' of tubing how am i gonna link it? haha
Reply With Quote
  #4
Old 05-28-2009
TheStig88's Avatar
Member
iTrader: (4)

Join Date: Aug 2008
Location: Columbia, Missouri
Posts: 2,120
send a link to some photos.....
Reply With Quote
  #5
Old 05-28-2009
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198

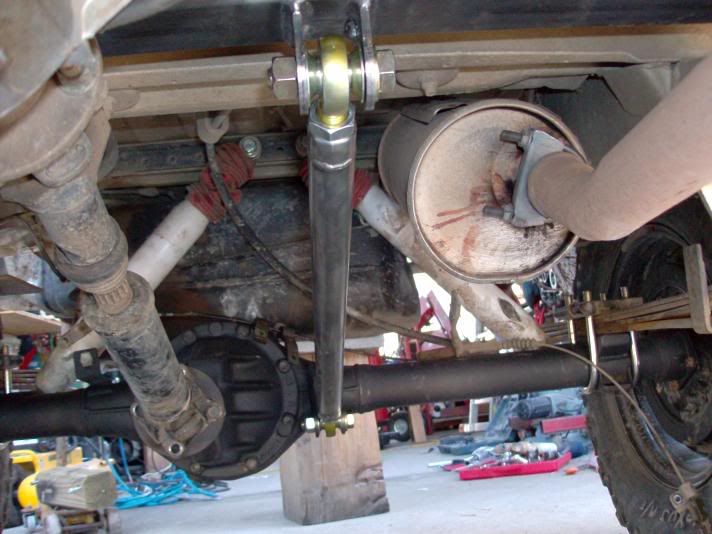

Name:  HPIM0336.jpg
Views: 82
Size:  56.9 KB
Reply With Quote
  #6
Old 05-28-2009
shadow905's Avatar
Member
iTrader: (10)

Join Date: May 2006
Location: Boerne, TX
Posts: 1,997
yea by link i meant link to a photo. and like i said earlier. theres not way thats gonna limit axle wrap. unless it go to the top of the axle too. if it did and had a slip joint or a shackle on the frame side, that would be a good antiwrap bar.
Reply With Quote
  #7
Old 05-28-2009
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
I'm getting that bracket from Ruff Stuff for the anti wrap bar, I'll build it with just the single link and go drive around, if i really needs it i'll order more **** and put the upper one on.

I'm gonna end up with 1.25x.120 if the steel yard has that.. ruff stuff couldnt get any adapters for 1.25 ID for a 3/4" heim in time, and they were sold clean out of 7/8 heims.. Ballistic was almost $90 for 3 heims (at 8.50 each) and the rest of the junk i needed
Reply With Quote
  #8
Old 05-28-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
When you are mounting it, I have heard of people mounting it as close to the D-shaft as possible, and just a C-hair lower if you can. It will act as almost a skid plate for the D shaft.
Reply With Quote
  #9
Old 05-28-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Matt I sell the same brackets.... In case your wondering, and mine aren't as bulky.

PM me if you're interested. I actually have 4 31pline brackets cut and 4 28 spline brackets cut.

The solid link seems like it's not going to serve the purpose you want, the 2 point system holds the axle stationary on one axis yet allowing it to move up and down when flexing as long as a shackle is put in.
Reply With Quote
  #10
Old 05-28-2009
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by TrePaul86 View Post
Matt I sell the same brackets.... In case your wondering, and mine aren't as bulky.

PM me if you're interested. I actually have 4 31pline brackets cut and 4 28 spline brackets cut.

The solid link seems like it's not going to serve the purpose you want, the 2 point system holds the axle stationary on one axis yet allowing it to move up and down when flexing as long as a shackle is put in.
i already ordered them. for some reason i want to think it will work better with more seperation.. i can make the tube that isn't the main one longer before they come together.

i know i need a top one, i have what i think is a 5/8" heim at home i can stuff up top if need be.. but i still need a weld in bung/spacers for it.. so i might as well get another 3/4" heim. stupid katemcy
Reply With Quote
  #11
Old 05-28-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
I re made my brackets to have the top and bottom holes 7in on center, rather than 6in like mine.

Either way they work. I can guarantee that!
Reply With Quote
  #12
Old 05-28-2009
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
his are $29
Reply With Quote
  #13
Old 05-28-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
******. lol
Reply With Quote
  #14
Old 05-28-2009
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
well it turns out I dont work next saturday either.. soooooo no need to rush, i'm still going to use 1.25x.120 DOM cause thats all i can get my hands on locally.. but I'll be trying the shackle design out. Once i get back from katemcy i'll buy some of Ballistics over priced tube adapters and tube for some 1.5x.250 DOM
Reply With Quote
  #15
Old 06-07-2009
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
so i have it made, installed.. i can kinda feel a difference.

is the back of the truck supposed to pick up more when you mash on it?


and who can explain why the shackle has to go up from the mount to the bar.. and why the bar cant hang below the mount.
Reply With Quote
  #16
Old 06-07-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Yeah, my back end picks up big time when I mash on mine. Putting it in reverse makes the back end squat big time. So you have it right. I could tell just normal driving how much axle wrap I had. That's what blocks will do to leaf spring suspension lol


Not sure on the shackle mount though... Seems like it won't serve the same purpose if it's on the bottom end of the mount rather than the top. To me it seems like it would bind more.
Reply With Quote
  #17
Old 06-07-2009
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by TrePaul86 View Post
Yeah, my back end picks up big time when I mash on mine. Putting it in reverse makes the back end squat big time. So you have it right. I could tell just normal driving how much axle wrap I had. That's what blocks will do to leaf spring suspension lol


Not sure on the shackle mount though... Seems like it won't serve the same purpose if it's on the bottom end of the mount rather than the top. To me it seems like it would bind more.
the *** end kinda bounces a little.. but its not bad.

the truck seems to stop better now, i can really tell the difference when i lay into it in reverse.

I had to move the pass. shock to the back of the axle, but i probably should have still put the axle mount for the bar more towards teh middle.
Reply With Quote
  #18
Old 06-07-2009
shadow905's Avatar
Member
iTrader: (10)

Join Date: May 2006
Location: Boerne, TX
Posts: 1,997
pics or its not made!


or send me a pic to my phone. i want to see
Reply With Quote
  #19
Old 06-07-2009
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
stuck in 3+ feet of mud and not having the *** end hopping all over the place...priceless.

edit.. pics, happy?
Attached Thumbnails

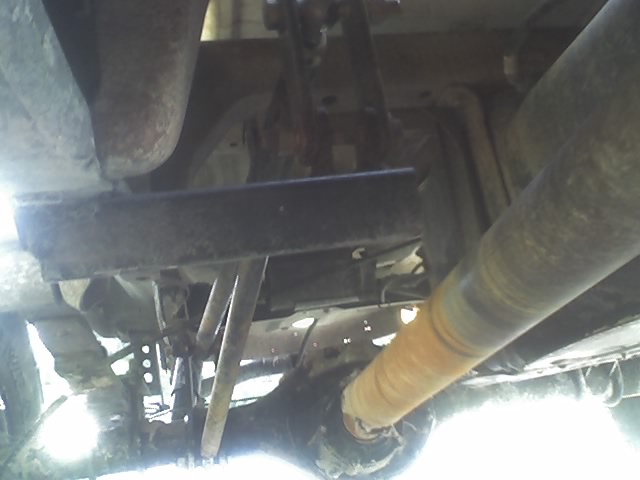

Anti-wrap bar-media1.jpeg

Last edited by 99ranger4x4; 06-07-2009 at 07:08 PM.
Reply With Quote
  #20
Old 06-07-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
1.5" DOM.... weak.

I expected something stronger from ya!

btw my truck does not raise or lower, just goes..
Reply With Quote
  #21
Old 06-07-2009
shadow905's Avatar
Member
iTrader: (10)

Join Date: May 2006
Location: Boerne, TX
Posts: 1,997
Quote:
Originally Posted by zabeard View Post
1.5" DOM.... weak.

I expected something stronger from ya!

btw my truck does not raise or lower, just goes..
if you had 1.5" .25 wall it would be pretty beefy. now .120 wall i agree
Reply With Quote
  #22
Old 06-08-2009
Member

Join Date: Jan 2005
Location: North GA
Posts: 590
Quote:
Originally Posted by 99ranger4x4 View Post


Is it just me, or does this look like it would limit flex a LOT?? It has the misalignment spacers on it but I can't see how it can flex out much.. Always something I've wondered about with traction bars....

I know this isn't on your truck... any input?
Reply With Quote
  #23
Old 06-08-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
its not going to allow the axle to become closer or farther away. which i would think it will need so it will likely bind.
Reply With Quote
  #24
Old 06-08-2009
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by zabeard View Post
1.5" DOM.... weak.

I expected something stronger from ya!

btw my truck does not raise or lower, just goes..
hahahaah 1.5 bwaha

1.25x.120

Quote:
Originally Posted by stRanger View Post
Is it just me, or does this look like it would limit flex a LOT?? It has the misalignment spacers on it but I can't see how it can flex out much.. Always something I've wondered about with traction bars....

I know this isn't on your truck... any input?
its apparently made by spidertrax so i would like to think it will work.
Reply With Quote
  #25
Old 06-08-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by 99ranger4x4 View Post
hahahaah 1.5 bwaha

1.25x.120
lol let me know how that works out for ya.
Reply With Quote
