Check this rear shock hoop out

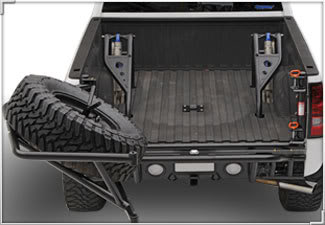

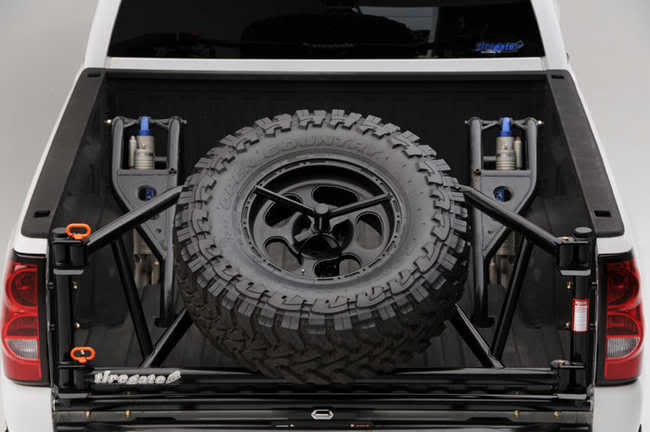

I was on tiregate.com checking out some ideas on how to make one when I came across the shock hoops in the bed. I love the clean look they have but is it just me or does it seem like there isn't enough support? It looks like the best design support wise. Tell me what you guys think.

Name:  animation_pr.jpg
Views: 96
Size:  14.5 KB
Name:  pr1.jpg
Views: 43
Size:  15.0 KB
Name:  PR-Inboard-Rear-Viewpg.jpg
Views: 62
Size:  30.3 KB
Reply With Quote
  #2
Old 01-18-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
uhm, it looks like there's 3 pieces of tube that would contact the frame..

looks pretty sturdy to me. but i'm not an expert
Reply With Quote
  #3
Old 01-18-2009
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
shocks dampen the suspension movement, in this case they arent also holding up the truck like they would sometimes be in a link suspension so those mounts are sufficient.
Reply With Quote
  #4
Old 01-18-2009
CamburgRanger714's Avatar
Member
Thread Starter

Join Date: Mar 2008
Location: Yorba Linda,CA
Posts: 184
Thanks for the input guys. I am trying to get ideas on different ways i could mount 16" shocks in the rear without having a big *** bed cage.
Reply With Quote
  #5
Old 01-18-2009
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
if you look closely those are fox bypass shocks. those mounts are way heavier duty that you think because i bet there is some custom rear suspension work under that bed. sick tire carrier tho
Reply With Quote
  #6
Old 01-18-2009
jtslmn720's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Location: Kent State, Kent Ohio
Posts: 7,367
Quote:
Originally Posted by redranger4.0 View Post
shocks dampen the suspension movement, in this case they arent also holding up the truck like they would sometimes be in a link suspension so those mounts are sufficient.
plus if you do it right youll hit the bump stops before you compress the shocks the whole way so you would almost never have to worry about that
Reply With Quote
  #7
Old 01-18-2009
Member

Join Date: Jul 2007
Location: alberta
Posts: 457
Quote:
Originally Posted by CamburgRanger714 View Post
Thanks for the input guys. I am trying to get ideas on different ways i could mount 16" shocks in the rear without having a big *** bed cage.
in that case would it be possible to mount a cantalever setup and run your shocks horizontally?
Reply With Quote
  #8
Old 01-18-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by big-blue-oval View Post
in that case would it be possible to mount a cantalever setup and run your shocks horizontally?
$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
cha-ching!
Reply With Quote
  #9
Old 01-18-2009
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Yeah I would say lots of $$$ and it is sturdy as hell!!
Reply With Quote
  #10
Old 01-19-2009
swickwake's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: porterville, ca
Posts: 373
this is a taco on dezert ranger that has the cleanest bed cage that i have ever seen. this is what i am going to base my design off of when i get to that point on my ranger.

shane

http://www.dezertrangers.com/vb/showthread.php?t=80740
Reply With Quote
