Energy Suspen Poly, Belltech 6400, raised hitch Pics Review

I would like to Thank my Father for being bored enough to want to help me yesterday wasnt expecting that and Justin for stopping over after class to help button it up needed the extra hand for the hitch! always makes things easier with more hands lol!


Installed Belltech 6400 shackle



Belltech Sport Trucks 6400 - Belltech Sport Trucks Rear Shackle Kits - Overview - SummitRacing.com



and


Energy Suspension Poly bushings/sleeves



Energy Suspension 4-2134G - Energy Suspension Leaf Spring Bushing Sets - Overview - SummitRacing.com



started with removing the bed and getting to work if any of you have ever played with the shackles/hangers with the bed on you will know how horrible it is to work on. so off it came.




Name:  cellphone002.jpg
Views: 22
Size:  126.6 KB


Out the Hot Knife came and torched off the old hangers in a matter of min's. if you have ever replace stock riveted on hangers and did the drill and grind method you will know you wont be done in 5 min. LOL got to love a torch.

some my ask why replace the hangers!?! well there around $50 new from the dealer. AND if you have ever owned a ranger in the north you will know they like to corrode and brake every ranger i have owned I have replaced them this truck wasnt broken yet but it was a might as well thing! just remember to replace with good grade bolts/nuts.


Name:  cellphone004.jpg
Views: 17
Size:  156.0 KB


there is the end result. I was just going for around 1" lift so just went with the first hole not the farthest out. my rear springs are tall as it is but wanted to crank the bars up just some and that would level the truck and I would like to keep it slight rake. with my tool box and tire in the back it lowers the truck a good 1.5" easy so up she came.

the end ride is amazing with the poly bushings I would recommend it to any one and if you are pulling it apart anyways for $35 WHY NOT!


























last part not so much suspension but throw it in anyways. cut metal worked welded and installed the new raised hitch... not bad I think.. same design has been running on Justins truck for a little while now with no issues and even hauled a trailer if i want I might plate more this summer but dont seen a problem yet.

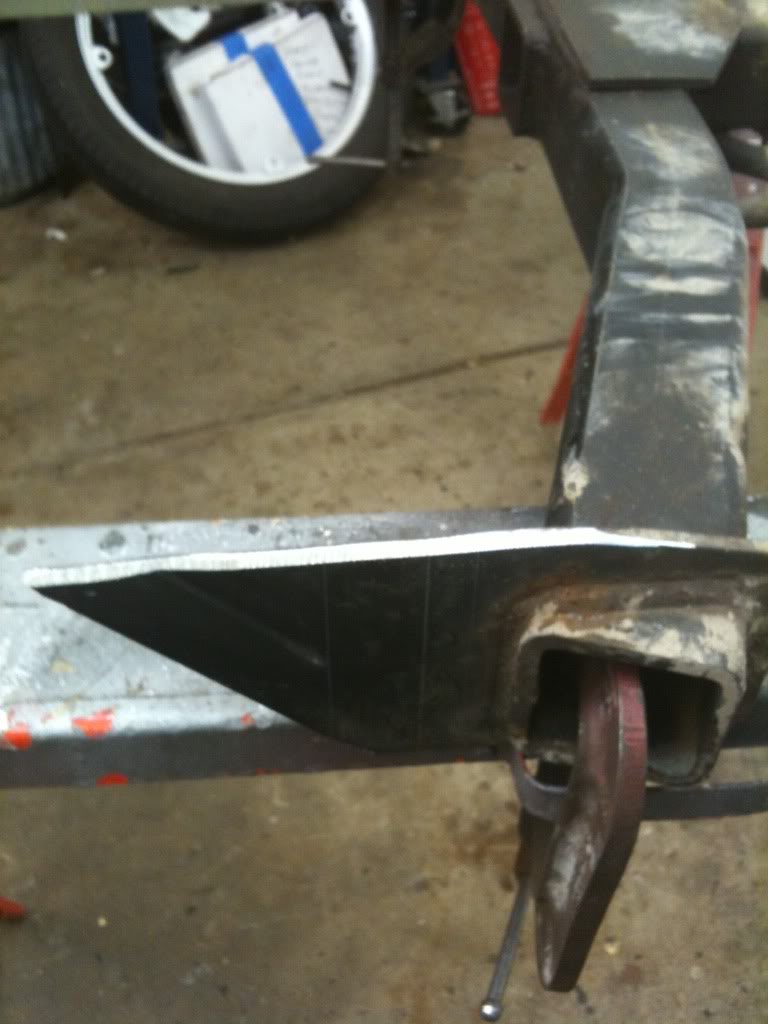

Name:  cellphone001.jpg
Views: 16
Size:  79.3 KB
Name:  cellphone008.jpg
Views: 18
Size:  100.1 KB

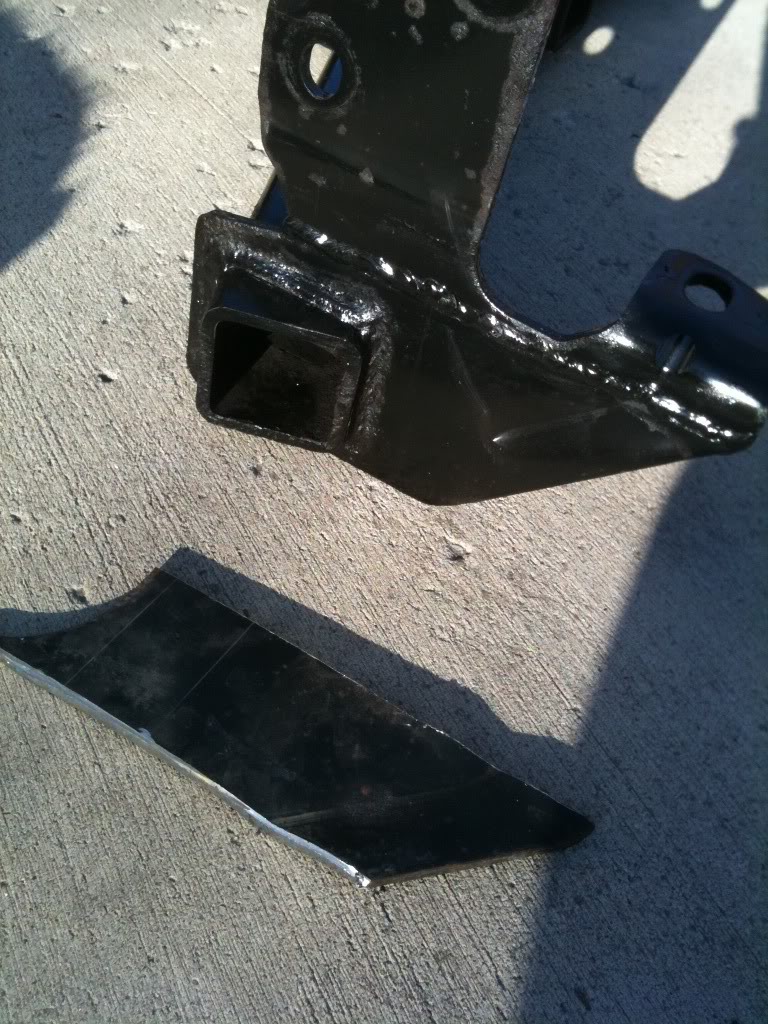

Name:  cellphone003.jpg
Views: 18
Size:  201.6 KB
Name:  cellphone007.jpg
Views: 17
Size:  158.0 KB
Name:  cellphone006.jpg
Views: 19
Size:  99.4 KB




ya i know all iPhone pics but eh oh well get some good pics later when the new tires go on next week
Reply With Quote
  #2
Old 02-20-2010
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Looking good. What new tired you getting? Yours look like they still have life left in them.
Reply With Quote
  #3
Old 02-20-2010
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by robert99ranger View Post
Looking good. What new tired you getting? Yours look like they still have life left in them.
your right thats why there forsale
Reply With Quote
  #4
Old 02-20-2010
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Haha, my bad. Didnt see that. What ya gonna get instead?
Reply With Quote
  #5
Old 02-20-2010
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
toyo's
Reply With Quote
  #6
Old 02-20-2010
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Good deal

I think I need to get the Belltech shackle. My dang truck squats alot with that camper shell on and also have a tool box in the back. You like the new bushings? My stock ones squeak something terrible.
Reply With Quote
  #7
Old 02-20-2010
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
there great. went in good. being one bushing from ford is $35 and you can get a whole set for $35 why not
Reply With Quote
  #8
Old 02-20-2010
leadfoot's Avatar
Member

Join Date: Oct 2007
Location: MA
Posts: 894
Is the bushing kit just for the rear shackles or for the rear shackles and front hangers?
Reply With Quote
  #9
Old 02-20-2010
RangOH's Avatar
Member

Join Date: Feb 2009
Location: Madison, Ohio
Posts: 854
Quote:
there great. went in good. being one bushing from ford is $35 and you can get a whole set for
I would imagine having stiff poly bushings is probably ideal for the lift shackles. Less sway, that's what i need.
are you suppose to lube them with a different lubricant than the rubber ones?
Reply With Quote
  #10
Old 02-20-2010
Redrocket's Avatar
Member
iTrader: (6)

Join Date: Jan 2007
Location: Waynesville n.c
Posts: 1,993
looks good
Reply With Quote
  #11
Old 02-20-2010
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
looks good Zach, I just did both front hangers on my 95, and the grind and chisel method definitely takes some time
Reply With Quote
  #12
Old 02-20-2010
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by leadfoot View Post
Is the bushing kit just for the rear shackles or for the rear shackles and front hangers?
Bushing kit includes both ends of the leaf spring and if you where to replace the shackle itself bushing also so 3 pairs of bushings.


Quote:
Originally Posted by RangOH View Post
I would imagine having stiff poly bushings is probably ideal for the lift shackles. Less sway, that's what i need.
are you suppose to lube them with a different lubricant than the rubber ones?
it comes with some silicone lube 2, 1oz tubes of it actually. I didnt use any to install just a little simple green to wet it and they slid in perfect and easy unlike the rubber kind i have installed in the past



Quote:
Originally Posted by Redrocket View Post
looks good

Thanks

Quote:
Originally Posted by ScottG View Post
looks good Zach, I just did both front hangers on my 95, and the grind and chisel method definitely takes some time

you and the guy that owned my green ranger replaced the front hangers thats one thing i have not had to do yet thank god. ya I did one side on the splash with the grind and drill method. then the other side with the torch i think the one side took me over and hour the other took about 2 min lol.. such a difference
Reply With Quote
  #13
Old 02-20-2010
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
did i miss pics of this 96? i keep hearing you mention it
Reply With Quote
  #14
Old 02-20-2010
cchsbuzz19's Avatar
Member
iTrader: (5)

Join Date: Jul 2007
Location: North Canton, Ohio
Posts: 2,417
Looks good Zach! Ya When I replaced my shackles and Hangers we did the grind and drill method and yes it took FOREVER! lol. So ya I will def. have to try it with the torch on my next ranger in the future.
Reply With Quote
  #15
Old 02-20-2010
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by cchsbuzz19 View Post
Looks good Zach! Ya When I replaced my shackles and Hangers we did the grind and drill method and yes it took FOREVER! lol. So ya I will def. have to try it with the torch on my next ranger in the future.
dont do it if you never cutting torched anything oxy acetylene is a wonderful thing lol
