Icon6 Expo diff install. 56K No Way!

Ok, so I didn't post teaser pics. I know, I suck. But today I installed the axle out of a '96 Exploder in my '05. Almost bolt in, but I did have a couple of problems. On to the pics!
I don't know what was up with my camera today, but some of them came out kinda blurry.

First, Off with his bed!!



92extcab from RPS drove up to help me out.


old axle out, new one ready to go in.


the price must be paid!


Getting there


In!




The driver side e-brake cable comes a little close to the tire.

I had to tie it back with some bailing wire.

It's not the best pic, but here you can kinda see how the shock is pulled a bit to the side by using 2 driver side expo spring plates for shock mounts. It kinda works, but kinda doesn't.


Trying out the TracLoc.


It works!


This pic makes my truck look tiny, but I like it


Hopefully 92extcab will get me his pics when he gets home. He has moar!.

Any questions about doing this on a dropped Ranger, I think I can answer them now. All I have left to do is figure out the sway bar link mounting.
Reply With Quote
  #2
Old 04-22-2009
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Looks good dude. So, did you use the expo leafs?
Reply With Quote
  #3
Old 04-22-2009
Ranger_Boi's Avatar
Member

Join Date: Jun 2008
Location: Yakima Wa
Posts: 548
lol you should leave the bed off
Reply With Quote
  #4
Old 04-22-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by robert99ranger View Post
Looks good dude. So, did you use the expo leafs?
X2.

It looks like you did to me. i like it!
Reply With Quote
  #5
Old 04-22-2009
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
So, if you used the expo leafs with the expo rear end, will it be at the same height as stock?
Reply With Quote
  #6
Old 04-22-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Looks good
Reply With Quote
  #7
Old 04-22-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
NICE!!!


Gotta love flipkits!


What rotors are those??? Got a link?
Reply With Quote
  #8
Old 04-22-2009
Johnbaum13's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
Quote:
Originally Posted by robert99ranger View Post
So, if you used the expo leafs with the expo rear end, will it be at the same height as stock?
The easy answer is no, you'll still be about 3" lower.
I didn't use the Expo leafs, and once the bed went back on, is sat back down to normal (for me) height.

The rotors are Centric Power Slot rotors. The are Cryo treated and cadmium plated for corrosion resistance. I got them through my local ABC Auto Parts. List price is about $136 each. clicky!

Oddly enough, they don't list the Ranger or Explorer applications on the web site, but you can order them from a distributor.
Reply With Quote
  #9
Old 04-22-2009
chevyslayer925's Avatar
Member
iTrader: (4)

Join Date: Jan 2008
Location: Trexlertown,Pennslyvania
Posts: 1,293
look like powerslot rotors to me, same as stoptech.
Reply With Quote
  #10
Old 04-22-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by Johnbaum13 View Post
The rotors are Centric Power Slot rotors. The are Cryo treated and cadmium plated for corrosion resistance. I got them through my local ABC Auto Parts. List price is about $136 each. clicky!

Oddly enough, they don't list the Ranger or Explorer applications on the web site, but you can order them from a distributor.
Thanks man. It's not that I need new rotors, its that I want new rotors for my expo brakes that'll go on my L2 axle.
Reply With Quote
  #11
Old 04-22-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Dam nice. How is teh clearance between the wheels and the fenders? That is my only concern really. and get more pics!
Reply With Quote
  #12
Old 04-22-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by Fx4wannabe01 View Post
Thanks man. It's not that I need new rotors, its that I want new rotors for my expo brakes that'll go on my L2 axle.

and no Shane, you want to do mustang brakes on the rear, no wimpy expos...
Reply With Quote
  #13
Old 04-22-2009
Casper98's Avatar
Member
iTrader: (1)

Join Date: Jun 2007
Location: Gresham OR
Posts: 1,789
Looks good man! I 'm a little Jealous lol
Reply With Quote
  #14
Old 04-22-2009
Johnbaum13's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
Quote:
Originally Posted by Dangerranger01 View Post
Dam nice. How is teh clearance between the wheels and the fenders? That is my only concern really. and get more pics!
Clearance is great. I must have done my math right, 'cause with the stock 17X8 Cobra rims, the offset is just right with no spacer. When Zack gets his pictures uploaded, I'll have some with the bed back on.

Oh, and I give a negative on using 2 driver side Expo spring plates instead of adding shock mounts. You can bolt it up, but it puts a bind on the shock bushings.
Reply With Quote
  #15
Old 04-22-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Cool. i'll be looking forward to new pics.
I have 99 cobra rims, not sure on offset, but i am pretty sure i'm too close for my liking.
No worries about the shocks, if i go expo, i can weld. But with the looks of it, i'm getting Shane's old 8.8 and work on that.
Reply With Quote
  #16
Old 04-22-2009
Member

Join Date: Jul 2005
Location: College Station
Posts: 2,781
Moar PICS!
Reply With Quote
  #17
Old 04-22-2009
Johnbaum13's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
I'll get moar pics when the sun comes back up.
Reply With Quote
  #18
Old 04-23-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
This was completed with no Shiner... i am shocked... looks good tho John
Reply With Quote
  #19
Old 04-23-2009
94Ranger355's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: Athens, TN
Posts: 616
Icon14 Fire up the welder!

If you can weld, it's easiest to make mounts & mount the shocks straight up from the front to the original Ranger crossmember..........

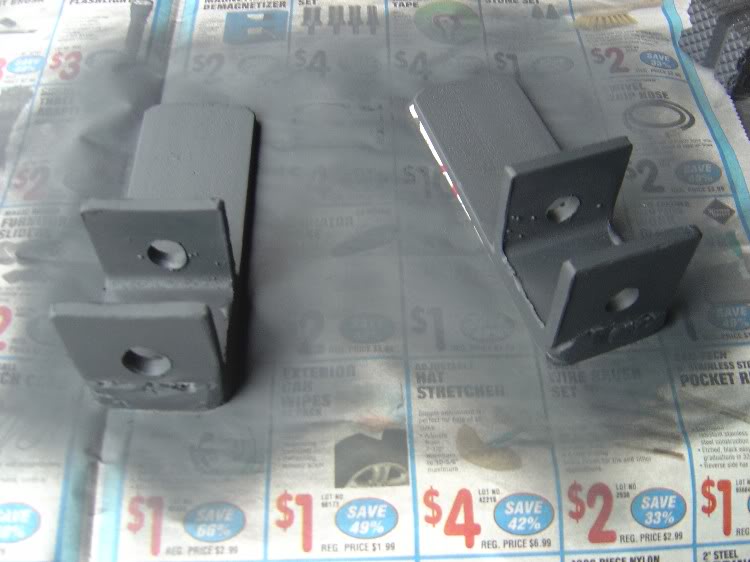

Mounts made from flat stock & 2X4 rectangular tubin cut in half:
Name:  Rearshockmounts750pix.jpg
Views: 5
Size:  50.5 KB

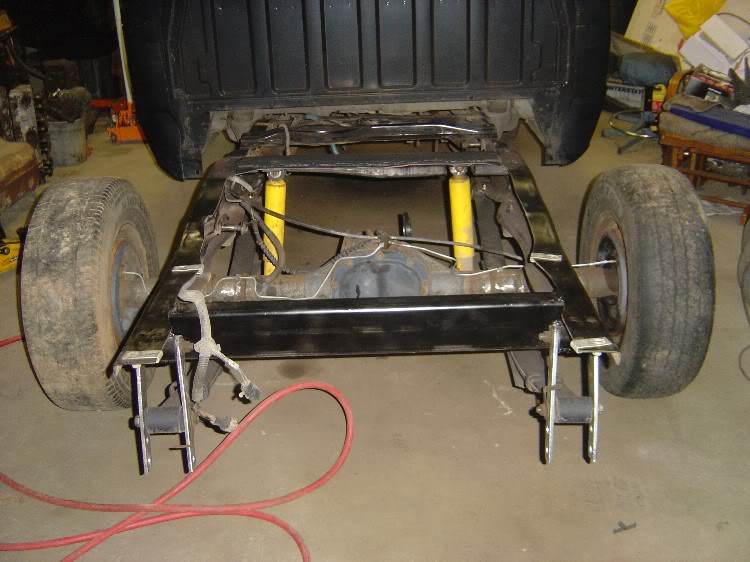

Installed:
Name:  RatRangerrearsuspensionmod750pix010.jpg
Views: 3
Size:  76.3 KB

I ground out the rivets, welded the mounts to it, and used grade 8 bolts to reinstall it.............OR in hindsight, I could of used a piece of 1/4 X 6" flat stock and totally replaced the crossmember after weldin the mounts to it, as with the mounts I made, I had to reinforce the original crossmember with 1/4 X 4" flat stock.

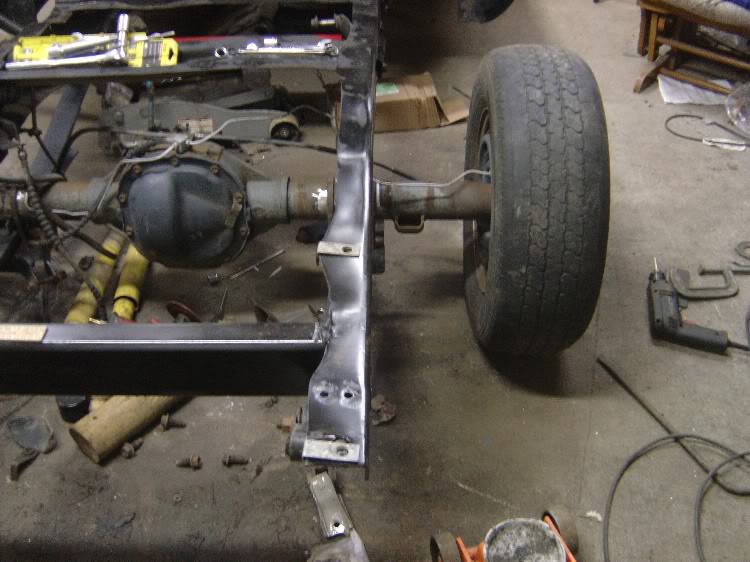

And if you haven't noticed, this is my Rat Ranger Project that I put an Explorer type rear suspension under, and I don't have any tire clearance issues!
Name:  RearSuspensionmod4-11-09750pix04.jpg
Views: 3
Size:  80.1 KB

Last edited by 94Ranger355; 04-23-2009 at 07:06 AM. Reason: info
Reply With Quote
  #20
Old 04-23-2009
Johnbaum13's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
Part of my problem is a lack of a welder, but I'll prolly just run it up to a shop and get it welded. That, and somebody said it would work, but I hadn't seen anybody try it, so I was the guinea pig.
And no, No Shiner was consumed in the making of this thread.
Well thats not entirely true, I did drink a pint of Shiner with lunch.
Reply With Quote
  #21
Old 04-23-2009
t3ob's Avatar
Member

Join Date: Apr 2008
Location: Olive Branch, MS
Posts: 1,762
looks good, nice job
Reply With Quote
  #22
Old 04-23-2009
Johnbaum13's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
Got the sway bar hooked up, and got the parking brake issue resolved.
The parking brake line on the driver side was hitting the tire. Note to self, use Expo cables and the Ranger equalizer next time.

On the sway bar, I used the Expo endlinks by pressing out the stud and turning it around, then mounting the links upside down to clear the frame, using a pre-existing hole. That rear sway bar makes a world of difference!

Now pics!
