Fabtech 5.5 help??

Ok so i just put on fabtech coils and uppers and the top of the spindle and upper ball joint are hitting the frame over the smallest little bump. they're almost touching the frame at ride height. the passenger side ones closer then the driver. is this just how its suppose to be? i didnt put the bumbstops that came with it on. have limit straps that i'm gonna use i'm just wondering if i did something wrong or if its just suppose to be like that. oh and both upper control arms are all the way forward in the slots on the mounts.

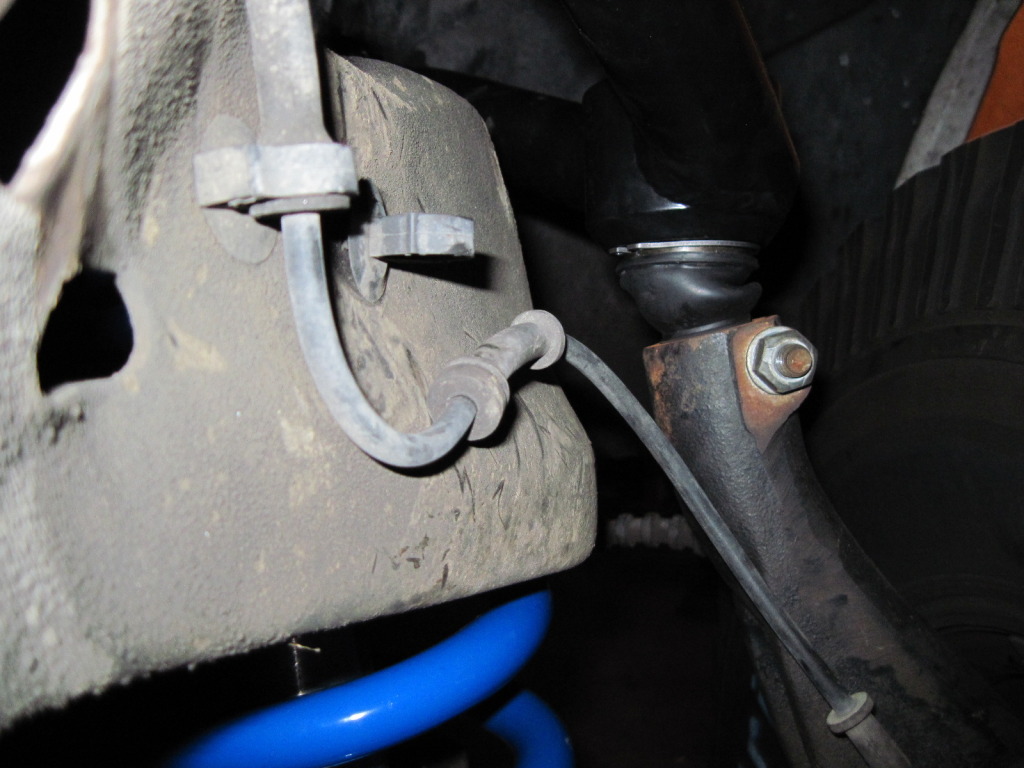

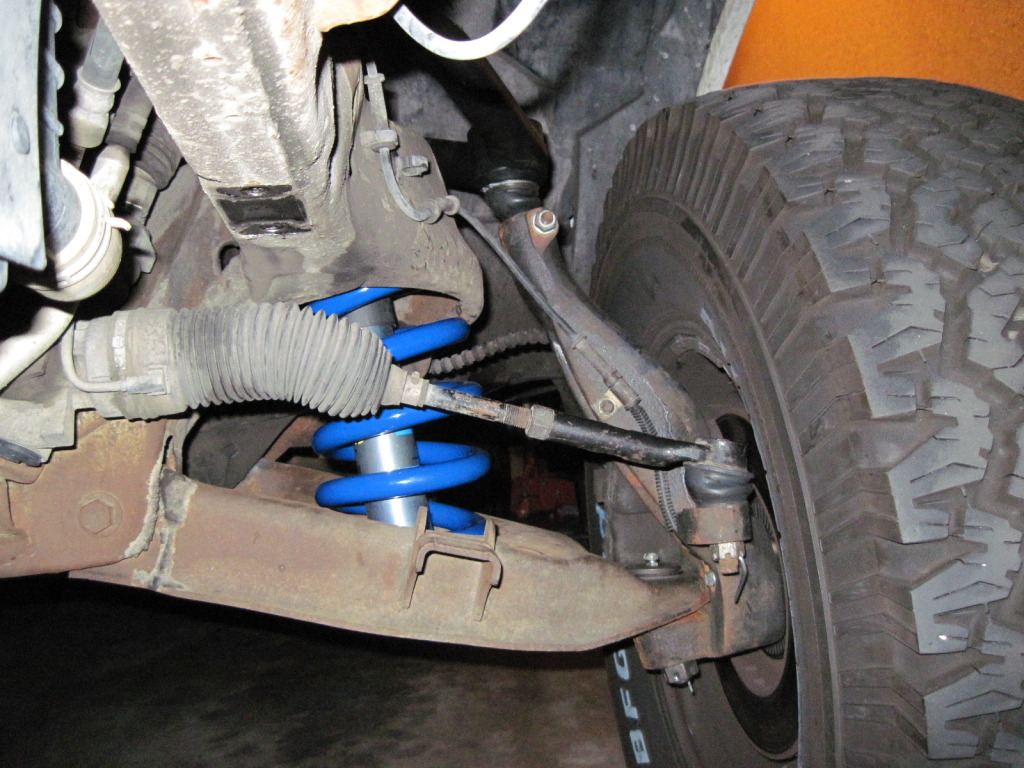

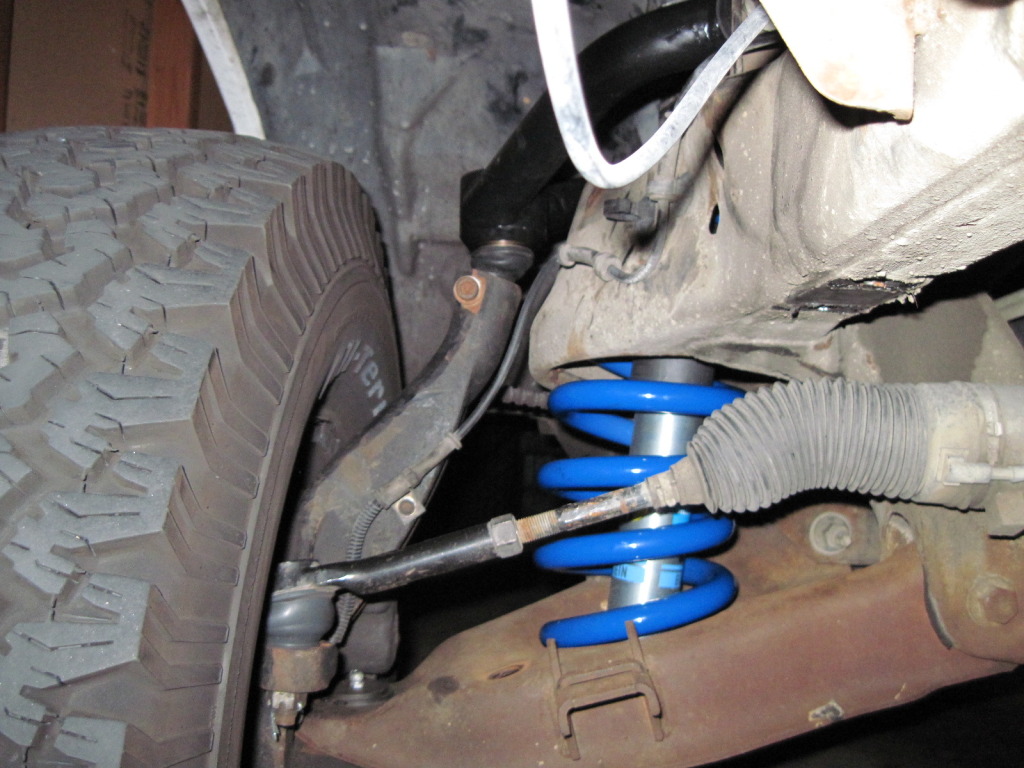

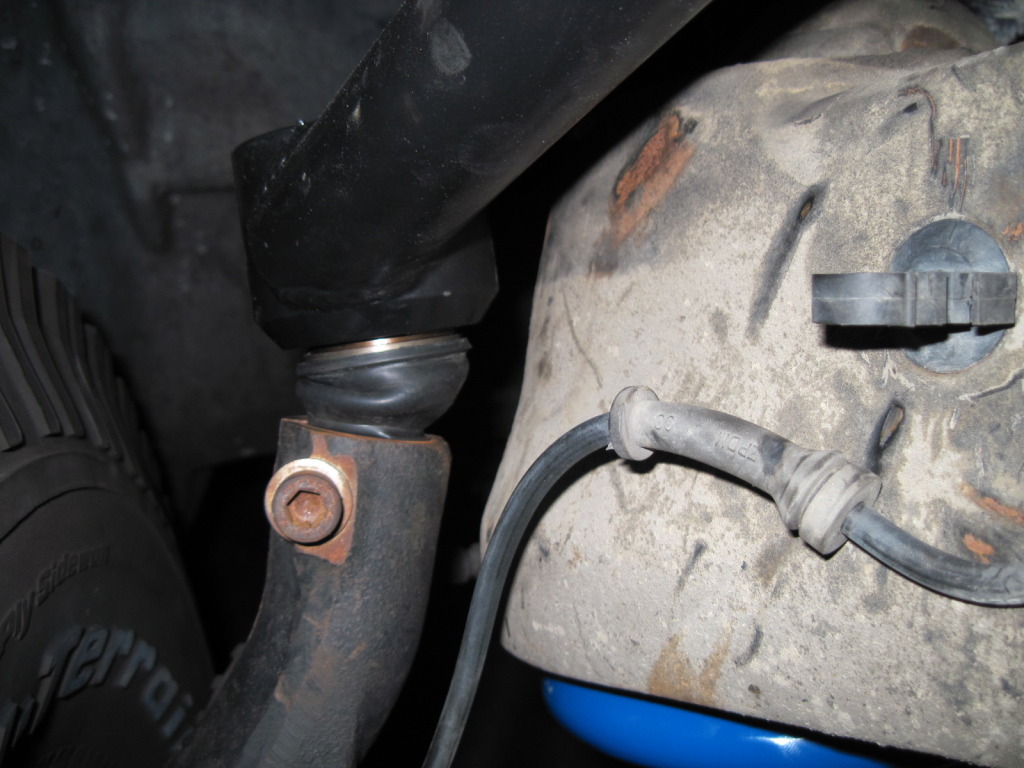

pics:











any help appreciated
Attached Thumbnails
Fabtech 5.5 help??-img_0226.jpg   Fabtech 5.5 help??-img_0224.jpg   Fabtech 5.5 help??-img_0222.jpg   Fabtech 5.5 help??-img_0220.jpg
Reply With Quote
  #2
Old 03-08-2012
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
yea thats not right... boy im glad i didnt buy fabtech. id call them and inquire, thats a serious issue.
Reply With Quote
  #3
Old 03-08-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
It does touch or is just close? Is your coil in properly?
Reply With Quote
  #4
Old 03-09-2012
2004xlmiller's Avatar
Member
iTrader: (5)

Join Date: Sep 2010
Location: Sac, CA
Posts: 1,601
thats just how it ends up with increased springs and stock spindles. mine does the same cause i have spacers. get spindles.
Reply With Quote
  #5
Old 03-09-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
If he has the 5.5" kit then he already has coils.
Reply With Quote
  #6
Old 03-09-2012
J.C.23's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: HB, CA
Posts: 45
ya i have the spindles already. it definitely touches if it moves at all. i'm pretty sure the coils are in right. one of my neighbors said i might have gotten the wrong coils. but they have the right part # on them for my truck. i might just try and pull it apart and put it back together just to make sure they're seated properly.
Reply With Quote
  #7
Old 03-10-2012
J.C.23's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: HB, CA
Posts: 45
Haven't had a chance to pull it apart yet with work and all but i'm thinking the pass side spring isn't in right. But I've been lookin around the internet and it seems this is a common problem and basically this kit just leaves you with no down travel. Alot of pics I'm seein look like the drivers side is sittin about right. Can i cut like a quarter of a coil off the bottom of the spring just to drop it a little bit just to try and squeeze a little more down travel out of it or will that screw it up?
Reply With Quote
  #8
Old 03-11-2012
J.C.23's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: HB, CA
Posts: 45
any body ever trim just a little bit off a fabtech coil?? or wanna trade 2 inch coils for 2.5?
Reply With Quote
  #9
Old 03-11-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
You mean like cut out one of the coils? I would get ahold of the company if you are sure that everything is correct. If its hitting the frame then it would be there fault. But I think you have something wrong going on there. Mine never did that.
Reply With Quote
  #10
Old 03-11-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538

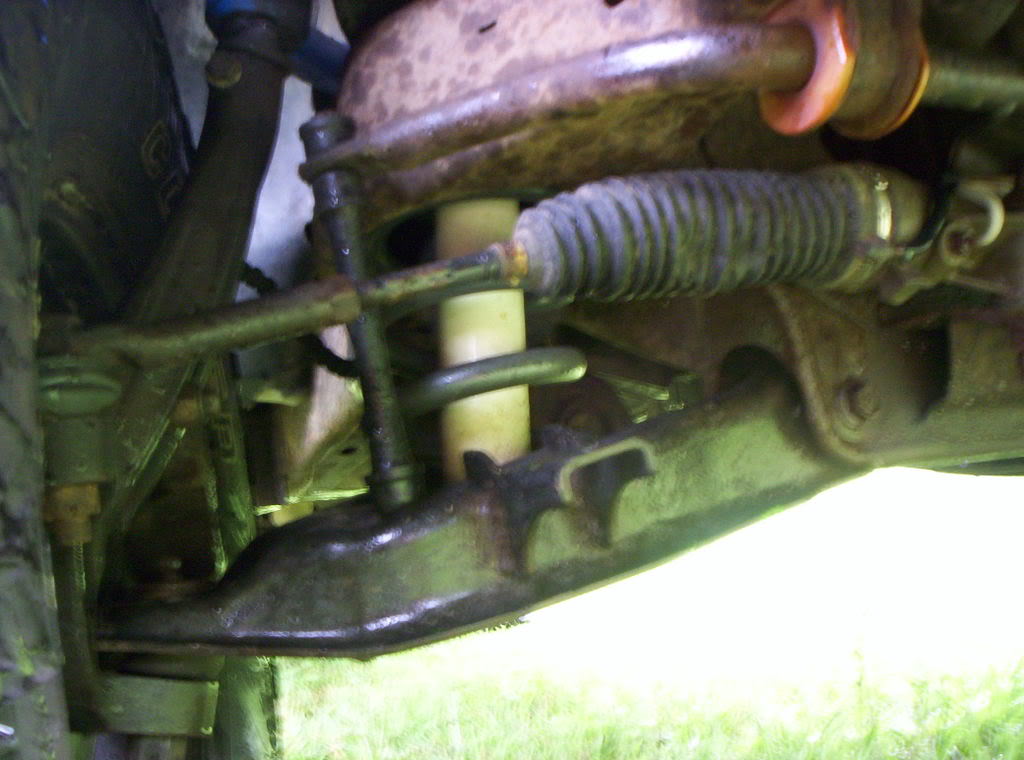

Here you can see my kit and how far away it was from the frame.

Attached Thumbnails
Fabtech 5.5 help??-100_1520.jpg
Reply With Quote
  #11
Old 03-11-2012
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
dont cut it period. definitely dont cut until you talk to fabtech.
Reply With Quote
  #12
Old 03-11-2012
J.C.23's Avatar
Member
Thread Starter

Join Date: Sep 2008
Location: HB, CA
Posts: 45
dang ok. i'm gonna try and pull it apart and make sure everythings right and its not me then. If its still all jacked then i'll make some phone calls. Thanks for the advise and pic!
