Icon6 FX4 Level II -- wrong kunckle!!??

Hey all, this is my first post but I have been reading for some time.

I have a 2005 FX4 Level II that was wrecked, repaired (kind of), and sold to me for too cheap! But as I sink plenty of time and money into this thing, I continue to find some really odd fixes done by the previous owner. For example, putting the chromed FX4 grille on the Level II, or scrapping the Alcoa's in favor of XLT wheels...

Anyway, I was changing the front brakes since I didn't know what was on the truck, and to my surprise the rotors on the left and right were different sizes. The one on the right was a 12" rotor like what is supposed to be on there, and the one on the left a 10.25" rotor. The hubs appear to be the same (lugs attached to hub and not rotor, like on 2wd), as do the upper and lower control arms. I bought two 12 inch rotors thinking I could just slap the new one on there and all would be well, but then the caliper wouldn't fit on the front left. Blaming the caliper, I bought a rebuilt one (to the tune of $56), only to discover the new one doesn't fit either. Of course the old one was traded in on the core, so I guess I just get to eat that cost.

Long story long, it appears that the knuckle that he put on this truck after it was wrecked is wrong. I have no idea what it came from, but the correct caliper, hubs, and control arms fit it, but the bolt hole locations for the caliper are too close to support a 12" rotor. So my question is, can I just replace the knuckle with the correct one and be okay? And if so, where can I find the correct one? There are several on ebay, but I don't want to get the wrong one again.

Thanks in advance. Oh, as a side note, my brand new caliper 'clunks' when I first hit the brake pedal. Everything is tight, new clips installed, no play in the pads. I cannot figure out why it clunks. Any help would be appreciated.
Reply With Quote
  #2
Old 02-19-2012
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
It sounds like he put on a pre '01 knuckle on it, someone please correct me if I am wrong but any 2001+ 4x4 knuckle should work
Reply With Quote
  #3
Old 02-19-2012
Member
Thread Starter

Join Date: Feb 2012
Location: VA
Posts: 23
Thanks. Do I need to worry about any of the other hardware not fitting? Hub, control arms, etc...?
Reply With Quote
  #4
Old 02-19-2012
bfd's_ranger's Avatar
Level I Supporter

Join Date: Feb 2010
Location: Vancouver island B.C.
Posts: 225
Don't think so. I've heard the knuckles are interchangeable.
Reply With Quote
  #5
Old 02-19-2012
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
Not positive on what year it happened, but there are two different knuckles out there due to the brake size increase.

I know my 01 used the smaller brakes than my current 04, but not sure what year they went bigger...maybe 03 or 04 IIRC?.......
Reply With Quote
  #6
Old 02-19-2012
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
Well I'm sure these parts are dime a dozen, just buy an 04'+ 4x4 knuckle and you are safe
Reply With Quote
  #7
Old 02-19-2012
-spilly's Avatar
Member

Join Date: Sep 2009
Location: langley, BC
Posts: 408
Pretty sure the 2002 models still used the smaller rotors. 2003-present use the larger size rotors.
Reply With Quote
  #8
Old 02-19-2012
mikerider's Avatar
Member
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
The change over happened around feb 2003 some 03 trucks have the smaller brakes and some have the bigger brakes depending on build date.

like others have said, find a new knuckle swap it in get an alignment and you will be golden!
Reply With Quote
  #9
Old 02-20-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Quote:
Originally Posted by mikerider View Post
like others have said, find a new knuckle swap it in get an alignment and you will be golden!
Agreed... that'll fix it!
Reply With Quote
  #10
Old 02-22-2012
Member
Thread Starter

Join Date: Feb 2012
Location: VA
Posts: 23
Thanks! There is no better resource than the forums. Just a ridiculous amount of knowledge on this truck floating around
Reply With Quote
  #11
Old 02-22-2012
Member
Thread Starter

Join Date: Feb 2012
Location: VA
Posts: 23
Maybe somebody can help me out with a noob question. Do level 2's come with live front axles? As I understand it, a live axle just means all the shafts and components spin, but they are disengaged in the transfer case. I'm just trying to understand what all is missing from my frankenstein truck, and I'm pretty sure the axle's on mine are live.
Reply With Quote
  #12
Old 02-22-2012
bfd's_ranger's Avatar
Level I Supporter

Join Date: Feb 2010
Location: Vancouver island B.C.
Posts: 225
Anything 2001+ is live.
Reply With Quote
  #13
Old 03-01-2012
Member
Thread Starter

Join Date: Feb 2012
Location: VA
Posts: 23
So I hate to 'reopen' a thread that hasn't seen commentary in a week, but I was finally able to locate a new knuckle locally for $75, which is as good as I could find on ebay too. Anyway, I'm going to try and tackle it this weekend, and while I'm in there I thought I'd go ahead and replace the ball joints and the tie rods (tie rods failed state inspection). I've found a few threads and youtube videos on how to change out the tie rods and the lower ball joints, but I'm left with a couple of noob questions on the knuckle and upper ball joint.

For one, when I have the knuckle off, I will be removing the entire hub assembly from the old one and placing it on the new one, correct? By that I mean I won't have to deal with wheel bearings or anything as they are in that assembly. Anything I should know about getting the hub assembly off?

Also, for the upper ball joint, are they not replaceable? It seems all I can find in parts stores is a new upper control arm with ball joint installed.

Thanks for any help
Reply With Quote
  #14
Old 03-01-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
The bearing comes out as a hub assembly. One big nut on the CV axle and three bolts from the back.

The upper arm comes just as a whole arm, two bolts on the frame side and one pinch bolt at the knuckle. Simple swap!
Reply With Quote
  #15
Old 03-01-2012
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
Nvm fullscale beat me to it :p
Reply With Quote
  #16
Old 03-01-2012
Member
Thread Starter

Join Date: Feb 2012
Location: VA
Posts: 23
Wow, I might have to have the hub assembly pressed out? Or do you mean the bearings? I wasn't intending to replace the bearings.

Thanks for the quick replies
Reply With Quote
  #17
Old 03-01-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
It can be in there pretty snug but you won't need to press it out. A few good whacks with a dead blow hammer might be necessary though!
Reply With Quote
  #18
Old 03-01-2012
Member
Thread Starter

Join Date: Feb 2012
Location: VA
Posts: 23
I'm down with that. No better way to vent your maintenance frustrations
Reply With Quote
  #19
Old 03-01-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
If it's in there tight the best way I found while doing mine is to thread the bolts back in most of the way on the back of the hub assembly and hit them... working around them in a circle so it doesn't try to bind when coming out.
Reply With Quote
  #20
Old 03-02-2012
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
Mine was insanely stuck, had to use a hydro press (probably just becuase I had one) I didn't feel like hammering rusty crap anymore haha
Reply With Quote
  #21
Old 03-02-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
lol rust in BC? Wouldn't have expected that!
Reply With Quote
  #22
Old 03-03-2012
Member
Thread Starter

Join Date: Feb 2012
Location: VA
Posts: 23
Thanks again everyone for the tips. I was able to get the tie rods, both inner and outer, and the knuckle replaced along with a new lower ball joint. It came apart just as suggested, and I was fortunate enough that with a few taps of the hammer the hub came right out. Overall the job was pretty easy, but I did have to buy a 32 mm socket for the axle to the tune of ~$13. O'well, its a good thing to have around.

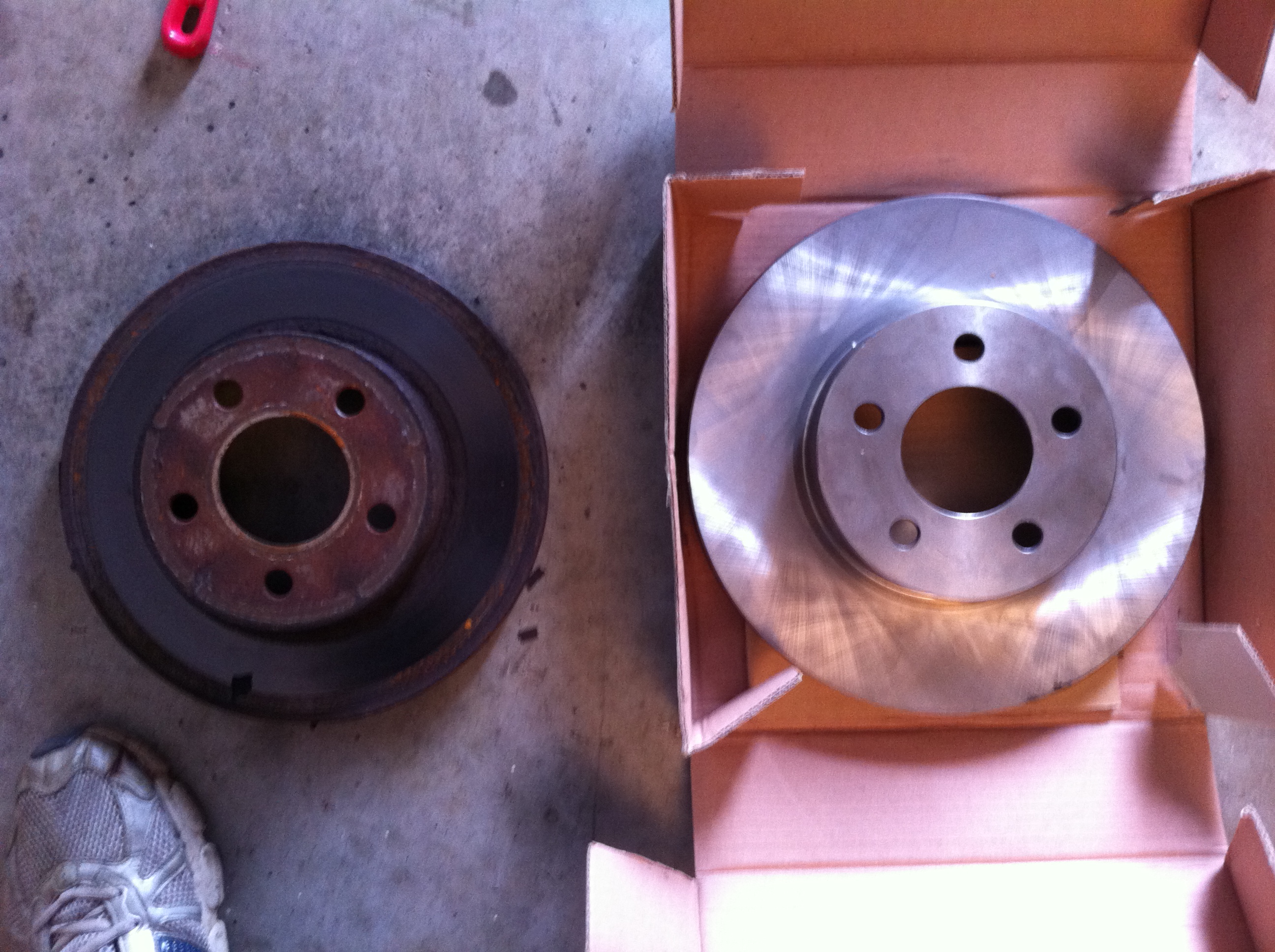

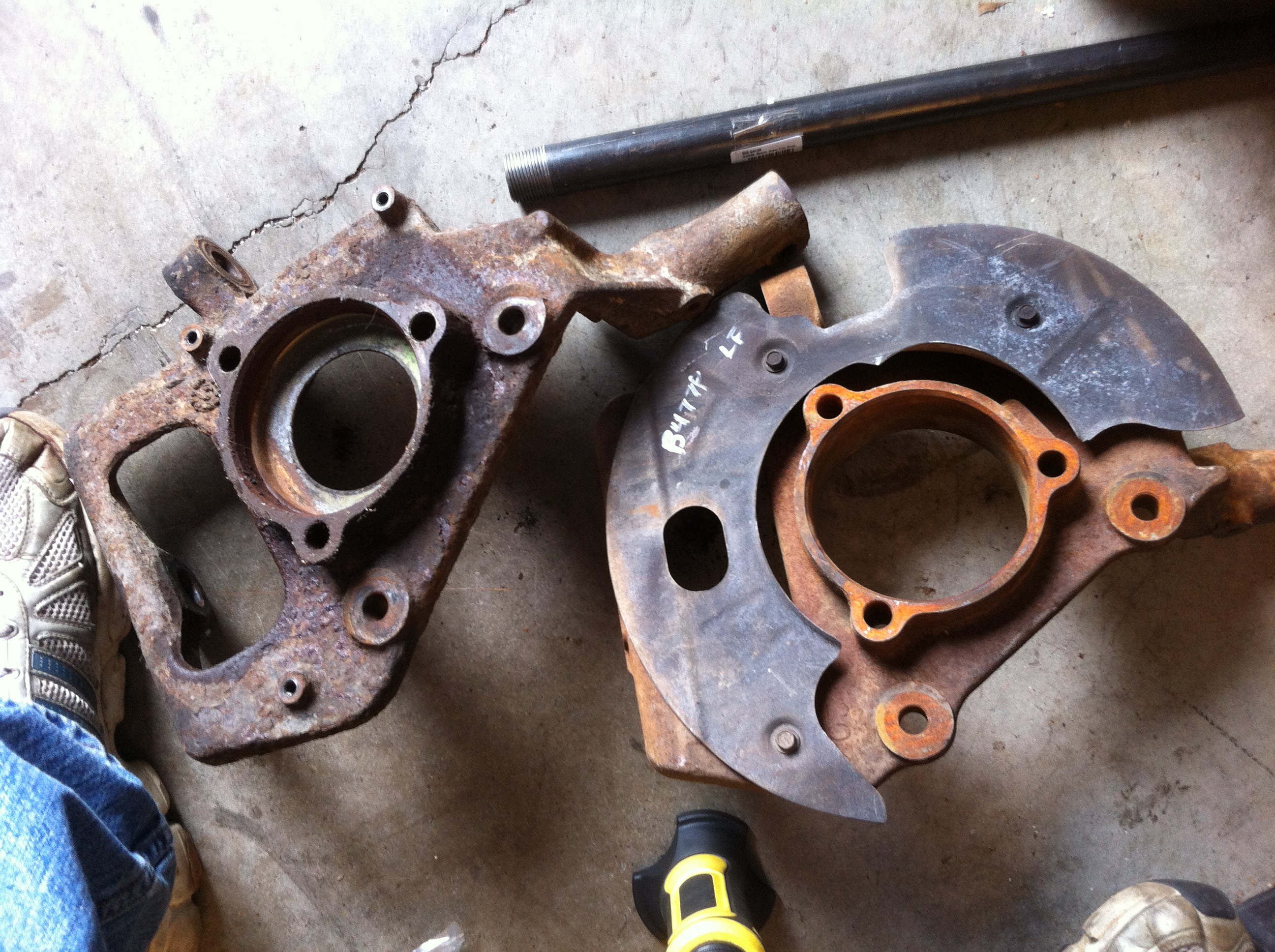

I have attached a picture below of the old and new rotors and the knuckle. Its pretty obvious which rotor is new, and you'll also notice its a bit bigger. I didn't measure it, but I think the bigger one is 12 inches and the small one 10.25. Also, the knuckle with the dust shield on it is the new one. If you look at the brake caliper holes in it you will see that they are each about 3/4" further away from the hub circle than the one on the left. Everything else fit identically--tie rods, hubs, caliper.

Good luck to those looking to accomplish this for themselves. Let me know if anyone needs the smaller one. If people demonstrate any interest, I'll put it in the classifieds.
Attached Thumbnails
FX4 Level II -- wrong kunckle!!??-img_0900.jpg   FX4 Level II -- wrong kunckle!!??-img_0901.jpg
Reply With Quote
  #23
Old 03-03-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Good to hear that everything went as planned. Nice work!
Reply With Quote
  #24
Old 03-04-2012
Member
Thread Starter

Join Date: Feb 2012
Location: VA
Posts: 23
As I was working on the other tie rod end inner today, I realized I have no idea what that little hydraulic line that goes into the boot is. Does this thing serve a purpose? Is it just a breather tube or something?
Reply With Quote
  #25
Old 03-04-2012
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
Quote:
Originally Posted by shimee619 View Post
As I was working on the other tie rod end inner today, I realized I have no idea what that little hydraulic line that goes into the boot is. Does this thing serve a purpose? Is it just a breather tube or something?


Breather tube that connects to the other side.
