James Duff Traction bar question:

I received 2 different rear mounting brackets (the one thats bolted on top of the axle & leaf springs with the U-bolts)

One of them has 3 holes to mount the stabilizer bar, the other has only 2 holes.

I have the 8.8" rear end if that helps. i think My axle is 28 spline, but im not sure...Which bracket do i use? the one with 2 holes or the one with 3 holes???
Reply With Quote
  #2
Old 07-08-2008
08XLT4x4's Avatar
Member
Thread Starter
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257

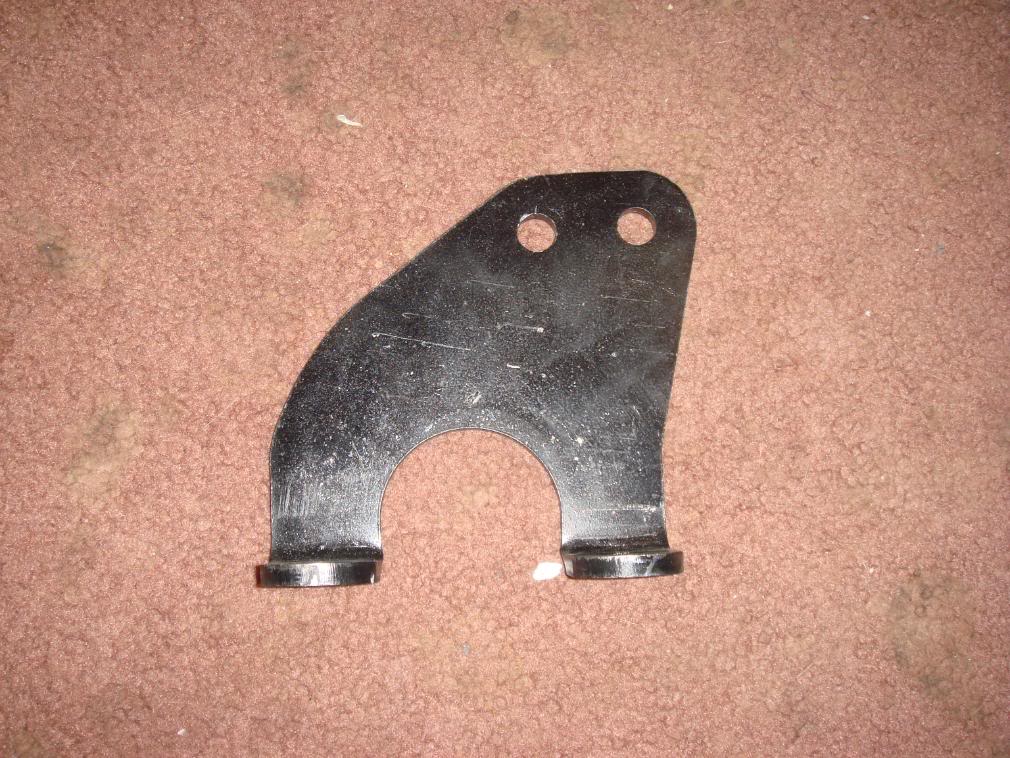

This one:

Name:  DSC00481.jpg
Views: 5
Size:  160.5 KB

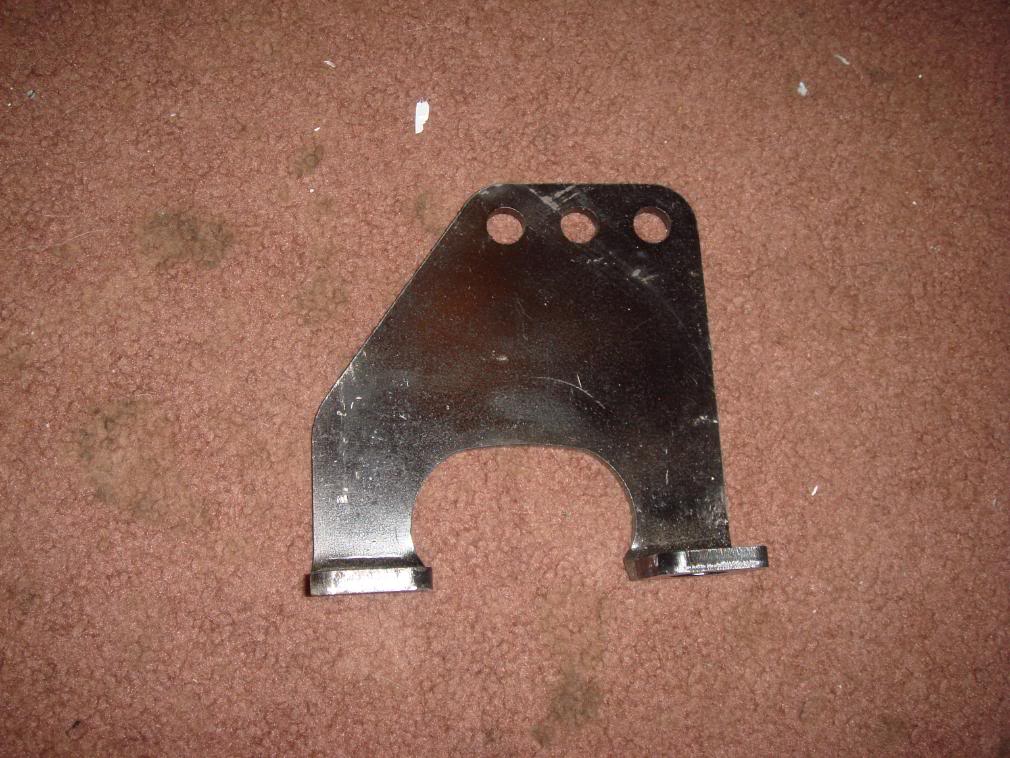

OR this one:

Name:  DSC00482.jpg
Views: 6
Size:  131.8 KB

?????????
Reply With Quote
  #3
Old 07-08-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
I'm thinking its the first one. The 31 spline has a bigger axle tube, thus why I would think the first one. Which one fits on better?
Reply With Quote
  #4
Old 07-08-2008
08XLT4x4's Avatar
Member
Thread Starter
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
OK, yeah the first one is a little bit narrower. I think thats the one, Ill now for sure when I can line it up tomorrow when I install this bad boy
Reply With Quote
  #5
Old 07-08-2008
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
So you recieved 2 sets? If they both fit then it shouldnt matter but looks like the first one is smaller. I know mine came with 2 sets one set for 28 spline and the other for 31 spline
Reply With Quote
  #6
Old 07-08-2008
08XLT4x4's Avatar
Member
Thread Starter
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by Roach2004 View Post
So you recieved 2 sets? If they both fit then it shouldnt matter but looks like the first one is smaller. I know mine came with 2 sets one set for 28 spline and the other for 31 spline
OK, thanks
Reply With Quote
  #7
Old 07-08-2008
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
The bracket with two holes is for the 28 spline. The other is for the 31 spline.
Reply With Quote
  #8
Old 07-08-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Ah ha I was right
Reply With Quote
  #9
Old 07-09-2008
Prerunner-Ranger's Avatar
Level I Supporter

Join Date: Feb 2008
Location: Lancaster, CA.
Posts: 2,280
Word, duffs are sick.

I love the traction around corners now... I took a corner @ 55MPH the other day and it ate it up. Tires stayed planted the whole time and no wheel hop or anything.

You'll love them.
Reply With Quote
  #10
Old 07-09-2008
08XLT4x4's Avatar
Member
Thread Starter
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
yeah! i cant wait to get em on tomorrow! Im putting in new leafsprings so I can get rid of the ****ty lift blocks too, its gonna handle so much better.
Reply With Quote
  #11
Old 07-09-2008
Prerunner-Ranger's Avatar
Level I Supporter

Join Date: Feb 2008
Location: Lancaster, CA.
Posts: 2,280
Quote:
Originally Posted by 08XLT4x4 View Post
yeah! i cant wait to get em on tomorrow! Im putting in new leafsprings so I can get rid of the ****ty lift blocks too, its gonna handle so much better.
Deavers?
Reply With Quote
  #12
Old 07-09-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
He's going with Skyjacker springs if I remember correctly
Reply With Quote
  #13
Old 07-09-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Yea.....the spacing in th ubolt holes are different.....bigger = 3 holem 31spline. smaller = 2 hole 28spline. Of course....you'll know which one is correct when you do the install......only one will work.
Reply With Quote
  #14
Old 07-09-2008
Prerunner-Ranger's Avatar
Level I Supporter

Join Date: Feb 2008
Location: Lancaster, CA.
Posts: 2,280
Duff FTW!
Reply With Quote
  #15
Old 07-09-2008
Member

Join Date: Oct 2004
Location: ***
Posts: 2,099
I need to get me a set of these, everyone always praises them
Reply With Quote
  #16
Old 07-09-2008
Prerunner-Ranger's Avatar
Level I Supporter

Join Date: Feb 2008
Location: Lancaster, CA.
Posts: 2,280
Quote:
Originally Posted by Lone Ranger 93 View Post
I need to get me a set of these, everyone always praises them
What are you waiting for?
Reply With Quote
  #17
Old 07-09-2008
Rangerguy's Avatar
Member

Join Date: Feb 2008
Location: California
Posts: 1,120
Nice! Post up some pics when you get 'em done!!!
Reply With Quote
  #18
Old 07-09-2008
gatorblue92's Avatar
RF Veteran

Join Date: Jun 2004
Location: Delaware
Posts: 8,238
Quote:
Originally Posted by fddriver02 View Post
The bracket with two holes is for the 28 spline. The other is for the 31 spline.
exactly... although both of the ones i got came with two holes
Reply With Quote
  #19
Old 07-10-2008
08XLT4x4's Avatar
Member
Thread Starter
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by gatorblue92 View Post
exactly... although both of the ones i got came with two holes
Just a wider base to fit the wider U bolts i guess.

I got em in today and with the new leafsprings... feels so much better! i highly recommend the traction bars and skyjacker leafsprings!
