Length of Limit Straps for Superlift Kit?

As title states, does anyone know the length of the limit straps that come with the 4" Superlift suspension lift kit? Most people do not use them with the Superlift, but I will be installing coilovers so I will need them.

Thanks!
Reply With Quote
  #2
Old 10-06-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
I think the superlift straps are 20 or 24 inches, which is way long IMO. My straps are 10" with an adjustable clevis on one end, of course I had to weld mounting tabs to my frame for these. I'm not sure the superlift straps would bolt in the same with coilovers in there since they are intended to bolt between the sway bar and the LCA and the other end bolts in above the shock in the shock tower.
Reply With Quote
  #3
Old 10-06-2009
KLC's Avatar
KLC KLC is offline
RF Veteran
Thread Starter
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Yeah, I was thinking the Superlift limit straps were 20".

Thanks for the help, PM sent.
Reply With Quote
  #4
Old 10-06-2009
Off-roadranger04's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: Newark, Delaware
Posts: 1,751
i think they are 20... i broke one when i was out wheeling on the weekend, so i need better ones or to double them up
Reply With Quote
  #5
Old 10-06-2009
Woods-Rider's Avatar
Member
iTrader: (2)

Join Date: Apr 2008
Location: Hillsboro, OR
Posts: 1,108
What? my superlift did not come with any limit straps!
Reply With Quote
  #6
Old 10-06-2009
Off-roadranger04's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: Newark, Delaware
Posts: 1,751
Quote:
Originally Posted by Woods-Rider View Post
What? my superlift did not come with any limit straps!
newer kits include them
Reply With Quote
  #7
Old 10-06-2009
elementsenjoi's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
Quote:
Originally Posted by Woods-Rider View Post
What? my superlift did not come with any limit straps!
Mine either, and I am destroying the bushings and washers on the front shocks from hyper extension.
Reply With Quote
  #8
Old 10-06-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
they added them because the shock was contacting the CV at full droop
Reply With Quote
  #9
Old 10-07-2009
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,835
Quote:
Originally Posted by Off-roadranger04 View Post
i think they are 20... i broke one when i was out wheeling on the weekend, so i need better ones or to double them up
Standard limit straps are usually double (2-ply). Companies like Redart/Beard make those but they also make quads (4-ply).

Quad
Reply With Quote
  #10
Old 10-11-2009
-spilly's Avatar
Member

Join Date: Sep 2009
Location: langley, BC
Posts: 408
i just got a new strap made because the metal bracket from my old one snapped but i had a new one made exactly to the specs of my superlift one.

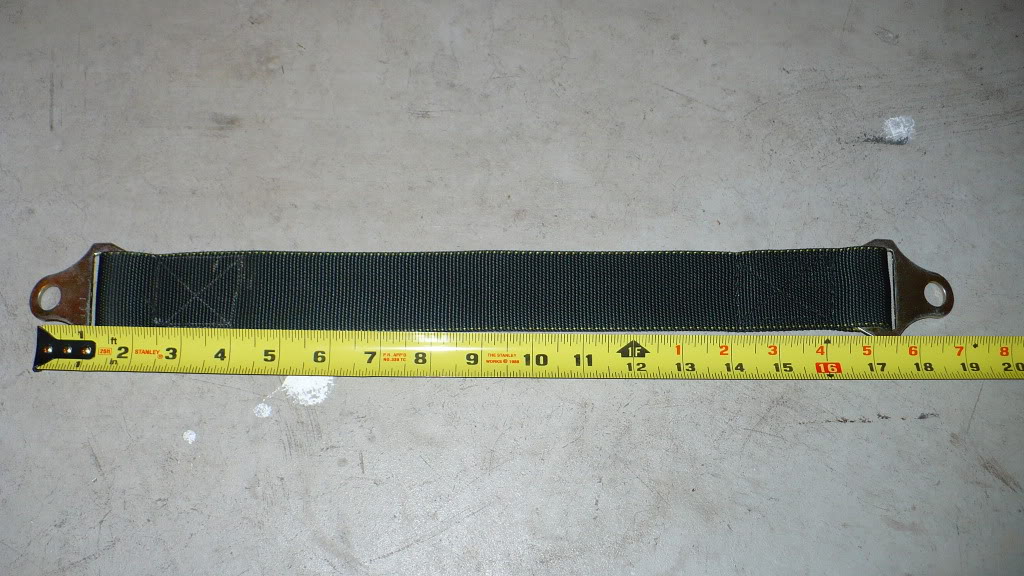

Name:  P1020629.jpg
Views: 49
Size:  154.4 KB

the center to center of the bolt holes on brackets is exactly 18.5" and the strap itself is exactly 16.5"

hope this helps.
Reply With Quote
  #11
Old 10-11-2009
jtsmith's Avatar
Member
iTrader: (1)

Join Date: Jun 2008
Location: Humboldt, KS
Posts: 53
pssst
you call superlift and tell them you have an older kit, and wonder what to do about excessive droop, because you broke a cv axle. You guys might get together on this and take turns so they don;t think something is up---

They will take your addy and send you a free set. Great customer service!!!

Now, that being said, it isn't the length that is important, rather where you drill the top mounting hole is the main factor. Just let the lower arm droop all the way, and jack it back up an inch and a half with a jack, and secure the limit strap tightly to this position. This is how to determine where to drill your top mounting hole, depending on which strap design you choose.


The superlift instructions have you drill a hole 3/4" above an existing one, which, you will fill again with the weld bead once you install the coilover conversion shock tower support gussets. You will then need to drill a new hole.

You can make a set yourself, using tailgate support cables-or even lift straps can be used it you can find them short enough.

The lower link of the strap uses the lower mount of the sway bar link to secure it also. So, unless you use a quick connect the end link must stay bolted in.

Another member, dkchrist , has solved this issue, by making these super sweet disconnects, both for 4" suspension lift, and for stock height guys using a body lift. Maybe he will make em for you guys, I am not sure. Pm him and ask.

Here is a set of stock height links, along with a set of home made limit straps --tailgate cables

Name:  oldandnewendlinks.jpg
Views: 39
Size:  131.3 KB

here they are installed

Name:  passsidediscos1.jpg
Views: 91
Size:  167.2 KB

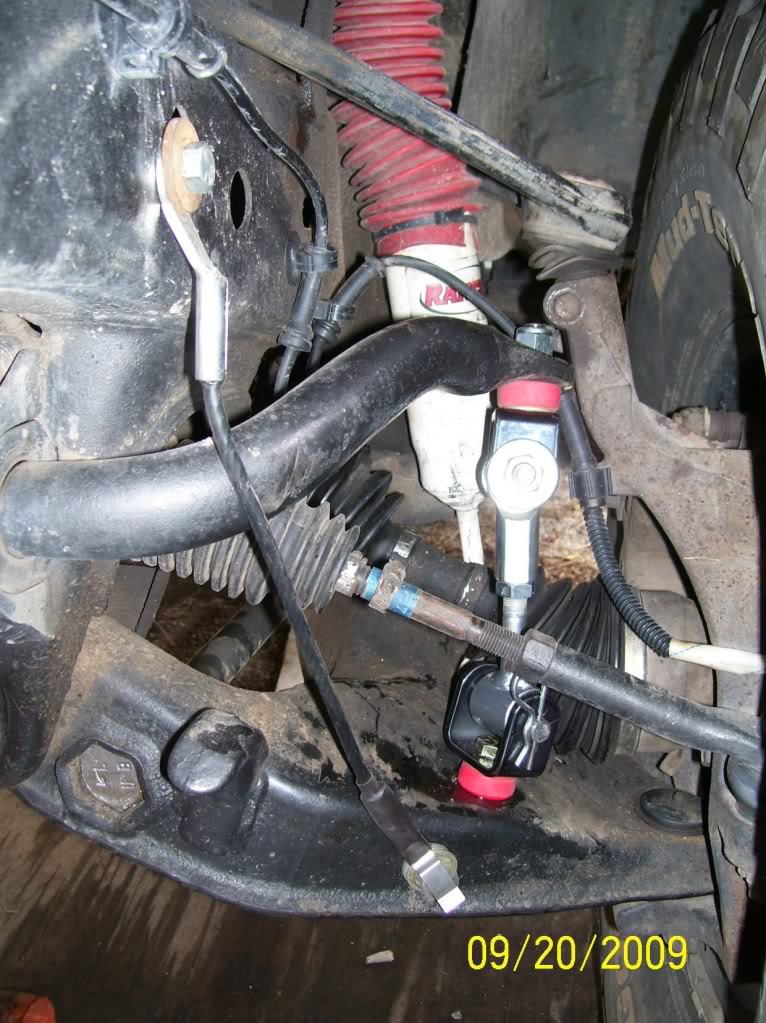

here is quick disconnect and home made limit strap joy

Name:  drsidelimitcable.jpg
Views: 93
Size:  176.7 KB

Here is the lifted version of end link disconnect goodness! Dig the hot candy blue powdercoat!

Name:  endlink005.jpg
Views: 47
Size:  106.3 KB

Name:  endlink006.jpg
Views: 107
Size:  112.2 KB

Note how the bottom bracket will remain bolted tight, for a good limit strap location.
Reply With Quote
