Might be doing my first SAS. But looking for help.

Ok, first off... I've never done one personally, but helped with a lot on mine. I'm not 'scared' of my welds, I can lay a nice, well penetrating weld in all of your basic (flat, vertical, horizontal, and over head) positions. So don't say don't do it, because of welding...

Any who, my brothers friend just bought a 1999 Silverado ext cab with the 4.8 I think (might be 5.3). They bought the truck from a repo man and only paid $700 for it and it's actually a decent looking truck.

The truck already has a solid axle in the front, but looks as if to be a pretty nasty hack job. My brothers friend wants the front and rear axles redone so that it can be driven with no safety issues. The pictures below are of the axles, but what I REALLY need help on is parts. With what you see below, what needs to be done to correct all of the redneck hack job? They are willing to pay me almost what ever for my labor for it. :)

Look!









A piece of wood in the leafs, how much more redneck can you get?





There's no way to make it 4WD because of that bulky-*** x-member they put under there.





More pics to come in a few min...

Brenton
Reply With Quote
  #2
Old 06-11-2008
xp1ik99's Avatar
Member
iTrader: (5)

Join Date: Feb 2006
Location: Lexington Park, MD
Posts: 3,230
omg.......thats a 99????? looks like its been sitting in a river
Reply With Quote
  #3
Old 06-11-2008
JoshK's Avatar
Member

Join Date: Sep 2006
Location: CC, Indiana
Posts: 3,832
lets see some of the entire thing.

BTW they find it in a creek?
Reply With Quote
  #4
Old 06-11-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Step one: New rear leafs, flip the Ubolts and get rid of the blocks.


Step 2: extend the radius arms.



This will allow you to have the mounts on the frame itsself instead of that dumb tube dropdown/ crossmember setup.
Reply With Quote
  #5
Old 06-11-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Step 3: make a new panhard bar mount on the axle and make a new panhard bar. (you didnt put up pictures of the frame end so I cant comment on that yet.)

Step 4: ream the knuckles for knuckle over steering. This will help to get your steering angles better with out having to fork over the money for cross over or highsteer. like below.

Reply With Quote
  #6
Old 06-11-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by EdGe_wannabe View Post
A piece of wood in the leafs, how much more redneck can you get?
I can one up you on that one. This kid went with us one time. had welded together leafs with a sledge hammer head in the leaf pack.

Reply With Quote
  #7
Old 06-12-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Here are some more pics, I actually didn't take any pics of the truck... Are the coils supposed to have a bow like this? He also has 1 shock mounted in front of the coils on one side and one behind the coil on the other side.











Brenton
Reply With Quote
  #8
Old 06-12-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
And a few more...







Brenton
Reply With Quote
  #9
Old 06-12-2008
Sonic04Edge's Avatar
RF Veteran

iTrader: (6)

Join Date: Jun 2004
Location: Madison. AL
Posts: 5,715
Yikes that think looks pretty rough on the underside for a 99. Got any pics of the whole truck?
Reply With Quote
  #10
Old 06-12-2008
quicksilver2001's Avatar
Member

Join Date: Dec 2004
Location: Opelousas, Louisiana
Posts: 704
that spring looks like its about to pop out and hurt someone
Reply With Quote
  #11
Old 06-12-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
No, but I'll be seeing it a lot since they want me to do it. I'll snap a pic of the truck next time.

On the top of the windshield it said, "Hillbilly Delux." I do have to agree with that. lmao

Brenton
Reply With Quote
  #12
Old 06-12-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
i would do what Andrew has mentioned.
Reply With Quote
  #13
Old 06-12-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Is the panhard bar the same thing as a track bar? EDIT, it is.

To extend the radius arms, what would be a good size DOM to use? And are those jonny joints at the end?

Also, what does the axle look like it's out of? They have no idea, nor do I. But it does look like a HP d44, that's about all I know.

Brenton
Reply With Quote
  #14
Old 06-12-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by EdGe_wannabe View Post
Is the panhard bar the same thing as a track bar? EDIT, it is.

To extend the radius arms, what would be a good size DOM to use? And are those jonny joints at the end?

Also, what does the axle look like it's out of? They have no idea, nor do I. But it does look like a HP d44, that's about all I know.

Brenton
it appears to be out of a 77-79 Bronco or F150

Yes HP

Use 2.5" .25" Wall DOM to extend the radius arms.
Use a Johnny Joint or a Heim, Ballistic sells a 3" JJ that is pretty beefy.
Reply With Quote
  #15
Old 06-12-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
that frame side panhard mount has to go.
Reply With Quote
  #16
Old 06-12-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Would you suggest the universal panhard mount from Poly Performance.



Or would you suggest making one?

Brenton

Last edited by EdGe_wannabe; 06-12-2008 at 11:54 AM.
Reply With Quote
  #17
Old 06-12-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Is there a certin reason why the panhard bar mount on the axle is so much higher on top of the axle?

What kind of gemeotry do you have to use to get the correct lenght for the panhard bar?

Like Zach's



Brenton

Last edited by EdGe_wannabe; 06-12-2008 at 11:57 AM.
Reply With Quote
  #18
Old 06-12-2008
EdGe_wannabe's Avatar
Member
Thread Starter

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Quote:
Originally Posted by redranger4.0 View Post
Step one: New rear leafs, flip the Ubolts and get rid of the blocks.


Step 2: extend the radius arms.



This will allow you to have the mounts on the frame itsself instead of that dumb tube dropdown/ crossmember setup.
Would you want the top of the johnny joint butted up right against the frame or down a hair or so?

Brenton
Reply With Quote
  #19
Old 06-12-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
The panhard bar is the one thats the highest right beside the coil, correct?
Reply With Quote
  #20
Old 06-12-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
you want the panhard parallel to the drag link
Reply With Quote
  #21
Old 06-12-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by EdGe_wannabe View Post
Would you want the top of the johnny joint butted up right against the frame or down a hair or so?

Brenton
Just run chassis bracket like this from ruffstuff.

Reply With Quote
  #22
Old 06-12-2008
kevinsranger's Avatar
Member

Join Date: Feb 2008
Location: jersey
Posts: 388
Quote:
Originally Posted by redranger4.0 View Post
Just run chassis bracket like this from ruffstuff.

will those work on a ranger too? i am thinking about putting heims on the back of my radius arms.
Reply With Quote
  #23
Old 06-12-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by redranger4.0 View Post
Just run chassis bracket like this from ruffstuff.

Yep that is what I am using.
Reply With Quote
  #24
Old 06-12-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15

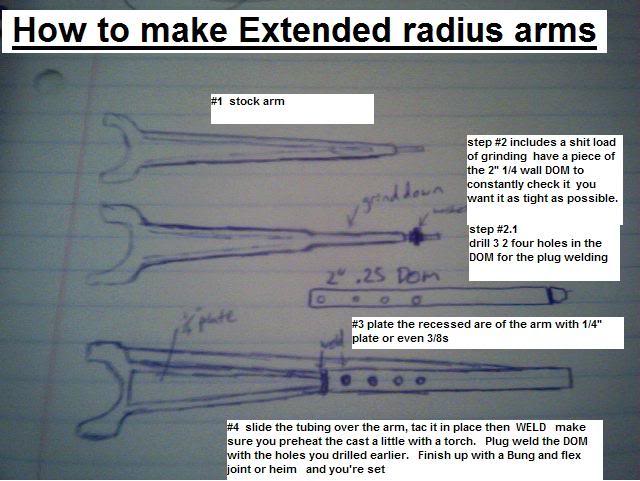

Heres a quick drawing of the extended arms

Name:  Image061b.jpg
Views: 5
Size:  54.1 KB
Reply With Quote
  #25
Old 06-12-2008
kevinsranger's Avatar
Member

Join Date: Feb 2008
Location: jersey
Posts: 388
Quote:
Originally Posted by redranger4.0 View Post
Heres a quick drawing of the extended arms

thats a ranger radius arm or eb dana 44 style?
