overload springs?

Have there ever been any factory or aftermarket overload springs sold for Rangers? My dad's old F150 has them as a factory option and they are great. I was planning to put some Explorer leafs on but this would make for a better ride if available.

For those not familiar, these are not the same as helper springs or add-a-leafs. These sit on top of the spring pack and engage their own bump stops when the suspension is compressed about half way. When the back is empty they have no effect on spring rates.

Last edited by Ranger Smith; 03-23-2012 at 10:52 PM.
Reply With Quote
  #2
Old 03-23-2012
Ranger Smith's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Phoenix
Posts: 366

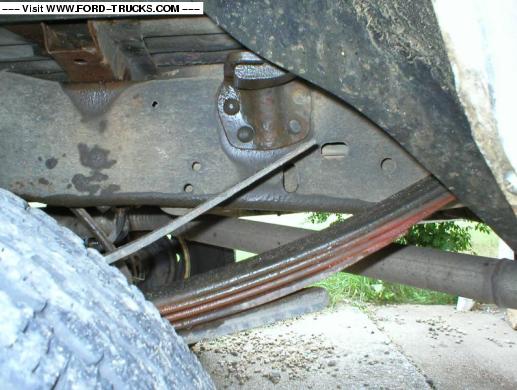

Found a pic of what I'm asking about:
Reply With Quote
  #3
Old 03-23-2012
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Pic didn't work.

Attached Thumbnails
overload springs?-skyfox10-albums-garage-first-love-picture16075-85578-520-390.jpg
Reply With Quote
  #4
Old 03-24-2012
Member

Join Date: Mar 2011
Location: Toronto, Ontario
Posts: 7
I have the Timbren rubber springs installed: http://timbren.com/timbren-applicati...fs/FRR050A.pdf
Reply With Quote
  #5
Old 03-25-2012
Ranger Smith's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Phoenix
Posts: 366
Quote:
Originally Posted by ricochet View Post
I have the Timbren rubber springs installed: http://timbren.com/timbren-applicati...fs/FRR050A.pdf
Thanks, I've never even heard of that. How do you like them, and how much gap is there between the rubber and the axle?

Now if I do go with the explorer springs and remove my blocks, that should solve the problem of the factory bump stops being to short.
Reply With Quote
  #6
Old 03-25-2012
littlered's Avatar
Member
iTrader: (2)

Join Date: Sep 2008
Location: Lewistown, Mo
Posts: 1,542
Quote:
Originally Posted by Ranger Smith View Post
Thanks, I've never even heard of that. How do you like them, and how much gap is there between the rubber and the axle?

Now if I do go with the explorer springs and remove my blocks, that should solve the problem of the factory bump stops being to short.
What do you mean by being to short? If you remove the block the bump stops will go untill they rest on the axle tube. So if by too short you mean you dont think you get enough suspension travel now then yes.
Reply With Quote
  #7
Old 03-25-2012
Member

Join Date: Mar 2011
Location: Toronto, Ontario
Posts: 7
I have about one inch between the Timbren rubber aprings and the axle when unloaded. The heaviest load I've hauled is 1200lbs of landscape bricks - only a short distance. The suspension was compressed but not bottomed out and driving was normal. I also haul an atv and other gear a few times a year so the springs will be engaged then.
Reply With Quote
  #8
Old 03-25-2012
Ranger Smith's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Phoenix
Posts: 366
Quote:
Originally Posted by littlered View Post
What do you mean by being to short? If you remove the block the bump stops will go untill they rest on the axle tube. So if by too short you mean you dont think you get enough suspension travel now then yes.
Well, my factory lift blocks have a tab that engages the bump stop that is about 2 inches above the axle. So if I remove them the axle will travel up 2 more inches before hitting the bump stop. I'm assuming thats bad or Ford wouldn't have bothered. Is that not right?
Reply With Quote
  #9
Old 03-25-2012
littlered's Avatar
Member
iTrader: (2)

Join Date: Sep 2008
Location: Lewistown, Mo
Posts: 1,542
I think its bad because it allows the leaf spring to bend to far, somebody correct me if im wrong.
