Put my lift on last night!

Well yesterday was the day I installed my superlift. I went to work at 7am, got off at 11am, went to UPS to pick up my JD traction bars and then started the lift at 1pm, Cleaned up at 2am. I didnt have time to put on the rear lift yet but I got the front finished. WOW what a pain in the ****, i had no idea what i was getting myself into lol. It was interesting and a lot of cussing :) Torsion bars are gay to remove and install. The only real problem i had was getting those damn 4x4 differential bracket bolts off, I dropped the whole diff/axle assy just so i could even attempt to get them off. The best tool ever so far was the BOLT OUT kit craftsman makes, saved me from numerous stripped bolts. ugh. The SL driveshaft was easy to install for the most part, just hard to get a decent allen wrench in there to torque those down.

The LCA drop brackets can pretty much only go on one way, if its flipped or anything, it wont bolt up right. There is a 50/50 chance of getting them installed wrong and of course i installed them wrong the first time. Go figure!

I really wish i would have gotten new UCA's but i guess ill have to do those later when i decide to do the Coil over swap so i can get rid of those horrid torrsion bars.

Everything else was pretty much a breeze, Just swapping out parts was pretty much it and no other bolts caused me problems. Air tools was a must for this job, i dont know how some of you attempted this without them?

Ill have pics up soon as im taking a day off from working on the rear lift for my truck cuz my hands hurt and im tired! So tomorrow im hoping to be completely finished :)
Reply With Quote
  #2
Old 04-12-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Sounds like fun! I have to do this: :
Reply With Quote
  #3
Old 04-12-2008
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
:)
Reply With Quote
  #4
Old 04-12-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Picssss x2
Reply With Quote
  #5
Old 04-12-2008
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462

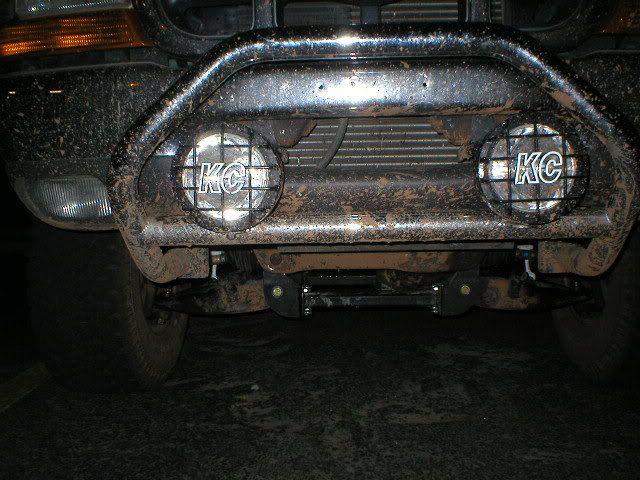

Sorry for the ****ty pics, Ill take some more tomorrow when i install the rear add-a-leaf and shackles... But for now, here you go! :)
Name:  P1010041.jpg
Views: 1
Size:  79.0 KB
Name:  P1010044-3.jpg
Views: 1
Size:  60.5 KB
Name:  P1010042-1.jpg
Views: 1
Size:  75.1 KB

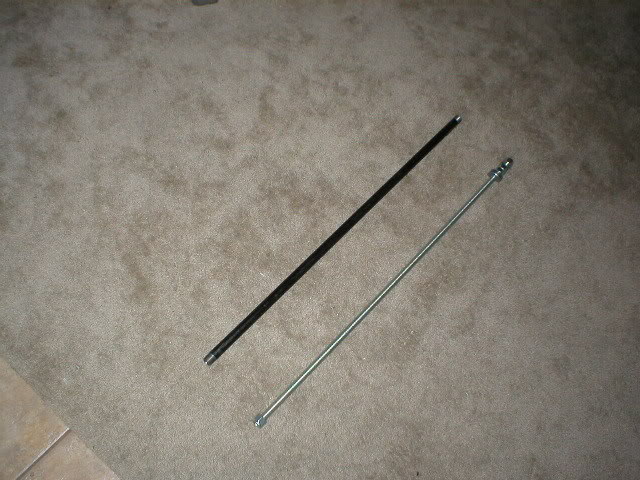

This is what im currently making so i can reconnect my sway bar. This is a 5/8in threaded bar from top to bottom and the black bar is going to be used as a mid section between the LCA and swaybar. Bushings not shown.
Name:  P1010051-2.jpg
Views: 1
Size:  73.5 KB
Name:  P1010052-1.jpg
Views: 1
Size:  98.0 KB
Reply With Quote
  #6
Old 04-12-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Looks good man, but I wanted pics of the truck lol
Reply With Quote
  #7
Old 04-12-2008
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
Its way too dark for that right now!! Tomorrow i promise haha
Reply With Quote
  #8
Old 04-12-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
:(
Reply With Quote
  #9
Old 04-12-2008
MattN03's Avatar
Member

Join Date: Apr 2008
Location: Harrodsburg, KY
Posts: 199
Quote:
Originally Posted by 99ranger4x4 View Post
:(
x2
Reply With Quote
  #10
Old 04-12-2008
RangerNVS's Avatar
Member
iTrader: (1)

Join Date: Mar 2005
Location: Temple, TX
Posts: 1,341
hahah trust me guys I've beat him up enough about pictures....cause he's been calling me during the install... " UH eric...I got a question....How does this go in? What angle is this supposed to be at? First words out of his mouth on the phone was "***** this truck....;***** this lift...I'm tired of **** chit....LMAO....."Oh so I guess the install isn't going that good huh?" LOL....anyway Glad to hear you got it on Chris....can't wait to see the finished product.....and there better be pics of the jd bars too....LOL get some sleep young padawon......LOL
Reply With Quote
  #11
Old 04-13-2008
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
shut your mouth eric :)
Reply With Quote
  #12
Old 04-13-2008
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823
Did you do the install by yourself? I had to cut one of my allen wrenches to install the SL driveshaft. Wheres the pics??
Reply With Quote
  #13
Old 04-13-2008
Rangerguy's Avatar
Member

Join Date: Feb 2008
Location: California
Posts: 1,120
Wheres the pics - J/K!

Nice going man!
Reply With Quote
  #14
Old 04-13-2008
blegit's Avatar
Member

Join Date: Jan 2008
Location: Las Vegas, NV
Posts: 219
Pics!!!!
Reply With Quote
  #15
Old 04-13-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
He's probably still working on it, I don't see him on AIM yet
Reply With Quote
  #16
Old 04-13-2008
RangerNVS's Avatar
Member
iTrader: (1)

Join Date: Mar 2005
Location: Temple, TX
Posts: 1,341
hahahahah yes sir....he's still workin on it.....he's havin issue's with the shackles and his exhaust....LOL I took a nap for 2 hours I woke up and had 6 missed alerts....LMAO all which included "You suck dude" COME ON CHRIS....where's the PICS :D
Reply With Quote
  #17
Old 04-13-2008
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823
the rear lift was by far the easiest.....took mabey a hour
Reply With Quote
  #18
Old 04-13-2008
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
an hour my *** hahahah... dude my rear sucked so much *****, you have no idea the trouble i went through. The bolts for the shackles werent no picnic to take out. I had to cut my exhaust tip off on the drivers side cuz i couldnt add the shackle or bolt it up with the add a leaf... once i cut it i had enough clearance to bolt everything back up. But pics are on my next post, Give me a second! :)

PS: I ran out of time so i could only do one side in the rear, I have a lop sided rear end..... Ill finish the other side later this week ugh.. what a day
Reply With Quote
  #19
Old 04-13-2008
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
Name:  P1010053.jpg
Views: 1
Size:  69.2 KB
Name:  P1010055-1.jpg
Views: 1
Size:  62.7 KB

Im missing an exhaust tip, how ghetto :(
Name:  P1010056.jpg
Views: 1
Size:  65.2 KB

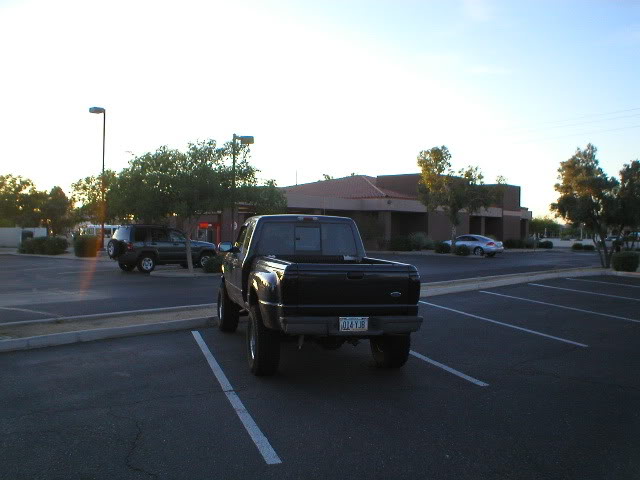

Lop-sided :(
Name:  P1010058-1.jpg
Views: 0
Size:  45.2 KB

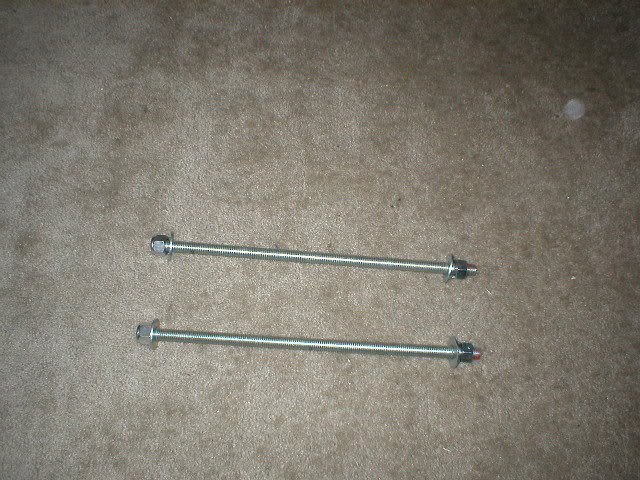

and here is my custom end links cut to size!
Name:  P1010059.jpg
Views: 0
Size:  81.4 KB
Reply With Quote
  #20
Old 04-13-2008
RangerNVS's Avatar
Member
iTrader: (1)

Join Date: Mar 2005
Location: Temple, TX
Posts: 1,341
Lookin good man...
Reply With Quote
  #21
Old 04-13-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
For your rear, you have an AAL, shackle, and stock block? how long of a shackle?
Reply With Quote
  #22
Old 04-13-2008
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
just the regular 1/2 to 2 1/2in chevy drop shackle and Pro-Comp LONG aal. Stock block too!
Reply With Quote
  #23
Old 04-13-2008
country346's Avatar
Member

Join Date: Apr 2007
Location: East , Texas
Posts: 459
Awesome
Reply With Quote
  #24
Old 04-13-2008
vansnxtweek's Avatar
Member

Join Date: Feb 2005
Location: USA
Posts: 2,666
Lookin great so far!!! Where did you get the lift?
Reply With Quote
  #25
Old 04-13-2008
MudSlanger's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
I could probably get about an inch more out of this lift if i drop my leafs down one more on the shackle and I crank my torsion bars, but ill wait to do that when i do my body lift and get 35's. I dont want my 32's to look tooo tooo small as it sits!
