RCD shackles and 6" skyjacker leafs

Has anyone run this combination, RCD shackles and 6" leafs?

I plan on doing this and removing the stock blocks. Was just kinda wondering how much this will lift the back? I'm guessing around 6"-7". Any pics would be appreciated.
Reply With Quote
  #2
Old 10-02-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
yeah, that would end up with about 6" of lift. the only question that i have is how are you planning to lift the front end of your truck 6" to match the rear?
Reply With Quote
  #3
Old 10-02-2008
JRacer's Avatar
Member
iTrader: (2)

Join Date: May 2008
Location: Watson, Louisiana
Posts: 1,085
can't he do coil spacers?
Reply With Quote
  #4
Old 10-02-2008
taknotes's Avatar
Member
iTrader: (4)

Join Date: Aug 2006
Location: nc
Posts: 2,104
he has a body lift?
Reply With Quote
  #5
Old 10-02-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by JRacer View Post
can't he do coil spacers?
no. he has an edge which is torsion bar sprung
Reply With Quote
  #6
Old 10-02-2008
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
Coil spacers are crap just like torsion keys.
Reply With Quote
  #7
Old 10-02-2008
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by 08XLT4x4 View Post
yeah, that would end up with about 6" of lift. the only question that i have is how are you planning to lift the front end of your truck 6" to match the rear?
My RCD is sitting at the house, that's were I'm getting the shackles. I just purchased the leafs off of ebay today.

I'll probably end up with a little rake, but that's what I'm kinda going for.

Can't wait to get this stuff installed!!!
Reply With Quote
  #8
Old 10-02-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by seed60 View Post

I'll probably end up with a little rake, but that's what I'm kinda going for.
OK, but I am sure you will change your mind once its installed. Unless you can get the front end lifted 6" to match, its really not going to look right. If I were you I would leave out the shackles and just use the springs to get the 4" lift.
Reply With Quote
  #9
Old 10-02-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
Quote:
Originally Posted by 08XLT4x4 View Post
OK, but I am sure you will change your mind once its installed. Unless you can get the front end lifted 6" to match, its really not going to look right. If I were you I would leave out the shackles and just use the springs to get the 4" lift.
Not everyone wants a level truck.....
Reply With Quote
  #10
Old 10-02-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
yeah, i guess not, but even if you want rake having 2"+ is a little bit much. To each his own though.

Post some pics once this stuff is installed!
Reply With Quote
  #11
Old 10-02-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
the RCD shackles will raise it a bit too far. but it shouldnt be bad.
Reply With Quote
  #12
Old 10-02-2008
rsw2159's Avatar
Member

Join Date: Jun 2008
Location: Stanley, NC
Posts: 473
u wanna sell your body lift?
Reply With Quote
  #13
Old 10-02-2008
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
From what I've read the RCD will give me around 5"-5.5" inches of lift in the front. So hopefully 1"-2" higher in the back won't look too bad. I guess we'll see when everything gets installed.

Quote:
Post some pics once this stuff is installed!
You know it!

Quote:
u wanna sell your body lift?
Nah, I'm gonna be rockin the double lift!!!
Reply With Quote
  #14
Old 10-02-2008
ranger_1999's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: spindale, NC
Posts: 1,444
you lucky rascal!!! Its gonna look awsome, i just cant force myself to spend that kinda money in something thatll be on the street most of the time
Reply With Quote
  #15
Old 10-02-2008
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by ranger_1999 View Post
you lucky rascal!!! Its gonna look awsome, i just cant force myself to spend that kinda money in something thatll be on the street most of the time
But when it's off the street.....WATCH OUT NOW!!!!
Reply With Quote
  #16
Old 10-02-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Instead of using the RCD shackle you could use the chevy drop shackle. It should be perfect. I bet you could sell the RCD shackle for the same price as the chevy shackle
Reply With Quote
  #17
Old 10-02-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Hey Matt.


How dare you out bid me. lol.





Anyway....i've got some experience with the rcd stuff. My truck w/ 2.5" stock block, stock leaf, short AAL, and chevy drop shackles.....i sit about 1.75" LOWER than trevor does in the rear with his stock leaf, stock block, RCD AAL and RCD Shackle. The RCD shackle is like 9" eye to eye...the chevy drop is like 7" eye to eye....stock is like 5" eye to eye. I had exact measurements when i installed mine.

You'll still have a pretty good rake if that's what your after....even with no shackle in the rear. My front end(superlift) and trevor's front end(rcd w/ 750lb hypercoils) is about a 1/2 - 9/16" difference. Him maxed out on adjustment of the spring...me only about a 75% crank job.


hope all that might help ya.


oh...imo.....run a chevy drop for about 1.5" additional lift....with the RCD you'd be about a true 7" of total rear lift w/ 6" leafs, no blocks, and rcd shackle.
Reply With Quote
  #18
Old 10-03-2008
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Thanks, that does help.

That's was I was thinking, about 7" or so in the back. I've only got the 600 lb coils for now. So I guess depending on how much they sag will determine what I end up doing with the back.


What's the word on the chevy shackle? I haven't done any research on it yet. But if anyone wants to enlighten me, be my guest.
Reply With Quote
  #19
Old 10-03-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
They'll sag quite a bit. Within 10k miles, Trevors bump stops were about 1/8" from rubbing the lower control arm...he was bumping off the bump stops sometimes. He's a 4.0L xcab too.

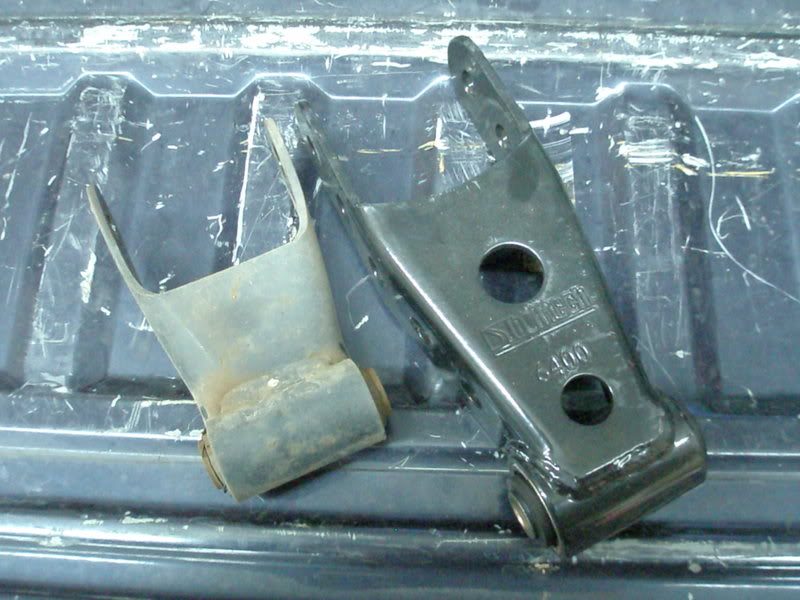

Belltech 6400 shackle is the one most used on our trucks for lift. Heck, the 2/3 lowering kits come with one! I have one, and bunch of others do as well. I got 1.5" lift out of them. 6400's are the 2" chevy drop shackles. They also make a 1" chevy drop shackle which I assume would give you 3/4" lift. The 6400's have holes in the side...and i've got the leafs in the bottom hole. i'm sure you can put the leaf into the second to the last hole if you wanted for less lift.

Name:  P5300196.jpg
Views: 2
Size:  85.7 KB

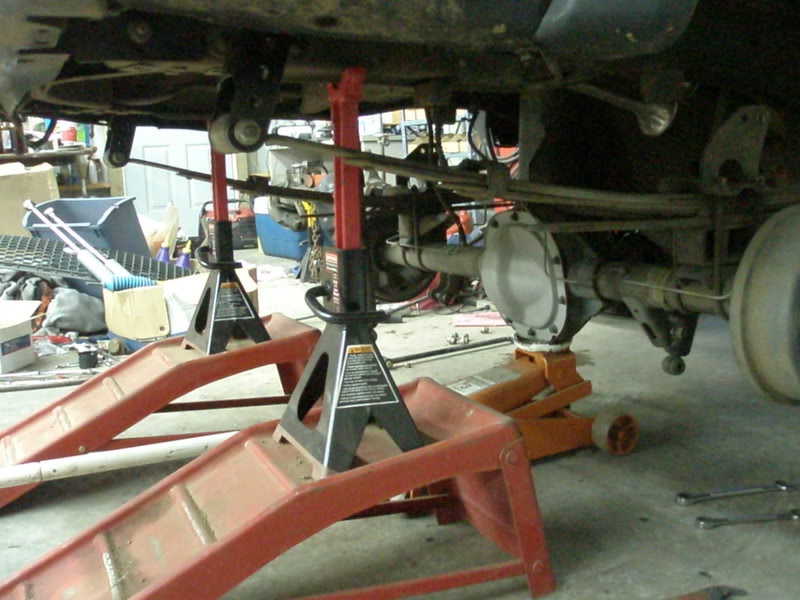

Name:  P5300197.jpg
Views: 3
Size:  86.3 KB
Reply With Quote
  #20
Old 10-03-2008
seed60's Avatar
RF Veteran
Thread Starter
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
You're the man Shane. Thanks for the info.
Reply With Quote
  #21
Old 10-04-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Yup...any more info needed, don't hesitate to ask.
Reply With Quote
  #22
Old 10-04-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
dont forget, if you play rough the coils are going to sag, take it from the one who went through 2 sets of coils in a year lol


idk about the rake, to each his own but i would prefer it to sit level.. but if one end had to be higher i would want it to be the front
