Icon8 Shackle install, Bolt Stuck!!??

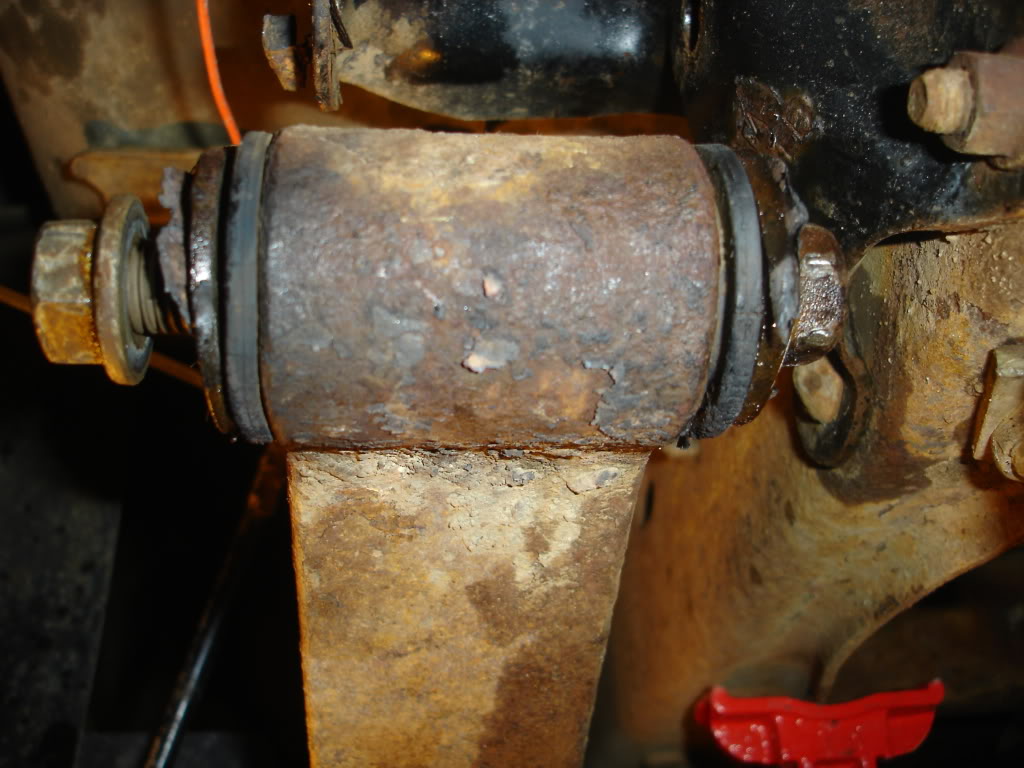

Im trying to put on my shackles tonight, I got them unbolted from the top on both sides, But the bottom bolt wont budge, I got the nut off, (its loose) but the bolts just stuck in there.

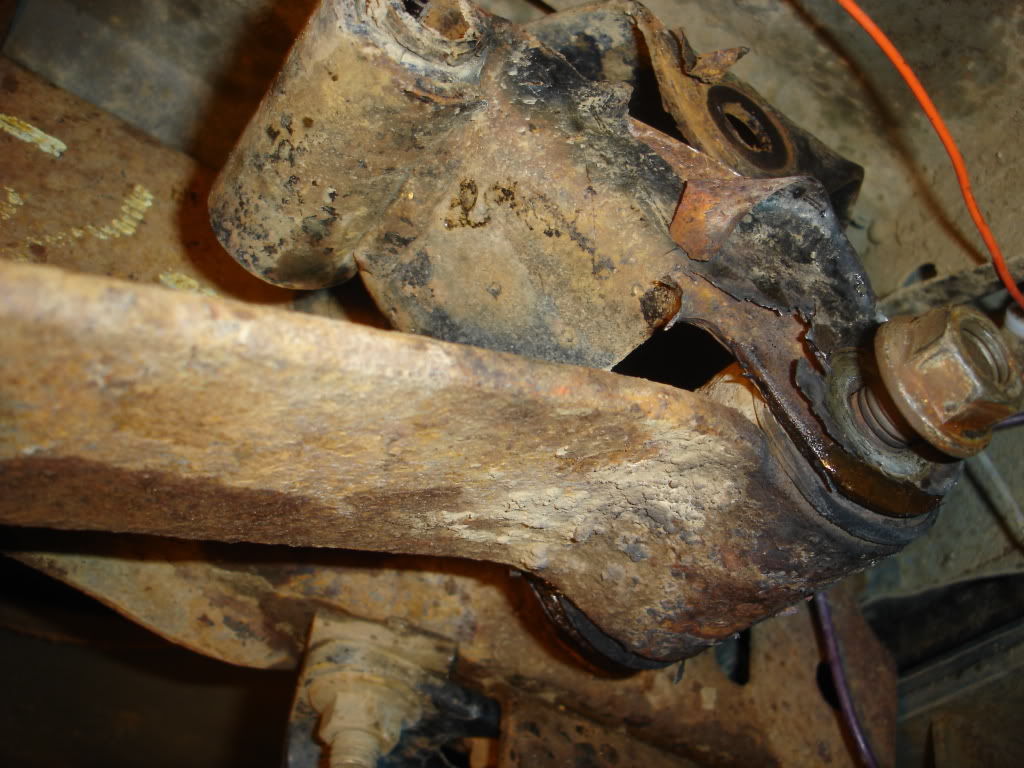

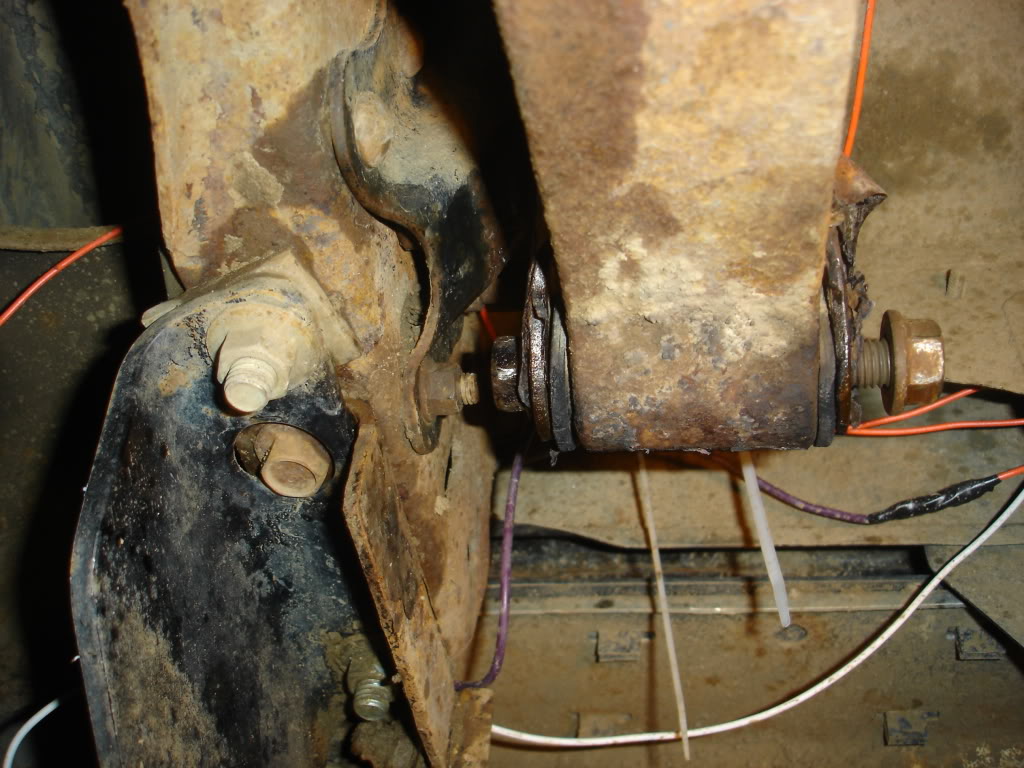

Here's where Im at. A friend sugested to pull the hitch off, and put a jack on the leafs to frame to lower them, and put impact on the bolt??


Name:  DSC04393.jpg
Views: 11
Size:  133.0 KB

Name:  DSC04395.jpg
Views: 10
Size:  135.2 KB

Name:  DSC04397.jpg
Views: 11
Size:  112.5 KB

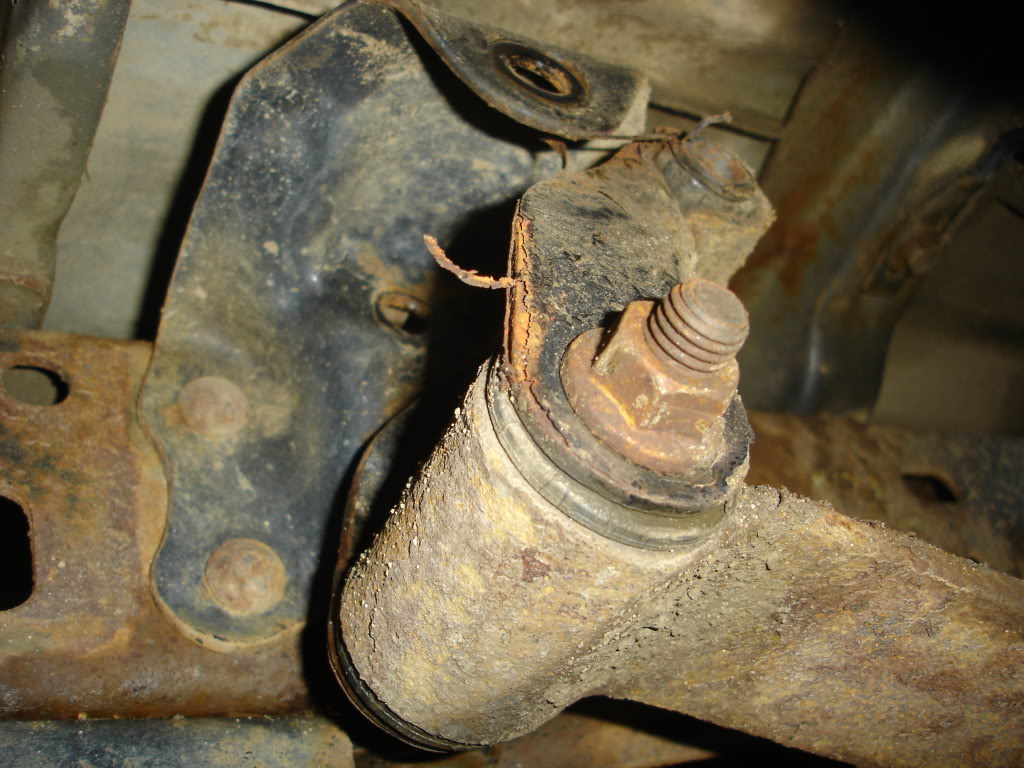

This is the other side, never started tackling the bottom yet on it

Name:  DSC04399.jpg
Views: 14
Size:  133.2 KB
Reply With Quote
  #2
Old 04-07-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
welcome to the wonderful world of suspension work..

living in the rust belt doesn't help either.

good luck.
Reply With Quote
  #3
Old 04-07-2009
edgeman4.0's Avatar
Member
iTrader: (2)

Join Date: Oct 2008
Location: All Over
Posts: 1,475
hit it with a hammer. lower the jack holding the axle so you can get a good swing. then crank the bolt out with a ratchet.
Reply With Quote
  #4
Old 04-07-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
that is nasty, glad i didn't run into any thing like that when i did my shackle swap.


Def hit it wiht a hammer and a punch or something. Heating it might melt the rubber bushings in the leaf. Maybe an impact to turn it a bunch to clear out the rust holding it in...
Reply With Quote
  #5
Old 04-07-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
it is probably siezed into the sleeve int he bushing. spray inbetween the bolt and the sleeve with pb blaster and heat THE END OF THE BOLT ONLY so heat transfers into the sleeve, pb, heat, pb, heat keep repeating. if this doesnt work youll have to replace the bushing
Reply With Quote
  #6
Old 04-07-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Quote:
Originally Posted by Toreador4x4 View Post
it is probably siezed into the sleeve int he bushing. spray inbetween the bolt and the sleeve with pb blaster and heat THE END OF THE BOLT ONLY so heat transfers into the sleeve, pb, heat, pb, heat keep repeating. if this doesnt work youll have to replace the bushing
WD-40 work the same?
Reply With Quote
  #7
Old 04-07-2009
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Quote:
Originally Posted by Blackonblackfx4 View Post
WD-40 work the same?
no, not really. pb blaster works very well, but like he said, not too much heat at a time. those bushings can be a pain sometimes
Reply With Quote
  #8
Old 04-07-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Oh and We heated( till the bushing started to melt) and pounded the crap out of it, wouldnt budge. and Cant get a socket on the end unless I Put a jack between the top of the leafs and frame and lower them.
Reply With Quote
  #9
Old 04-07-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Is the problem that the bolt is hitting the frame? or is it stuck in the bushing?

I think you just need to get some clearance and pound it out.
Reply With Quote
  #10
Old 04-07-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
jack the truck up on the frame rails get all the weight off the rear axle so you can move it down to clear the frame
Reply With Quote
  #11
Old 04-07-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Where can I find a new bushing and stuff for the bottom if i wreak this one?
Reply With Quote
  #12
Old 04-07-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
The Axle's All the way down. Jacked by the frame, with the wheels off.

Bushing is stuck, I can get a rench on the bolt, just not enough room for an impact.

If I a jack on the leafs I could prob get them down enough to fit an impact, Maybe?
Reply With Quote
  #13
Old 04-07-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
dealership sells em
Reply With Quote
  #14
Old 04-07-2009
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
jack the truck up by the frame more and let the suspension droop, that will allow that leaf to pivot down below the hitch so you can get an impact on it like you said.
Reply With Quote
  #15
Old 04-07-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Quote:
Originally Posted by 01_ranger_4x4 View Post
jack the truck up by the frame more and let the suspension droop, that will allow that leaf to pivot down below the hitch so you can get an impact on it like you said.
The frame 's on jack stands and the axle's all the way down with the tires off. Still wont come down far enough to get the impact on it.
Reply With Quote
  #16
Old 04-07-2009
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Quote:
Originally Posted by Blackonblackfx4 View Post
The frame 's on jack stands and the axle's all the way down with the tires off. Still wont come down far enough to get the impact on it.
can you get the frame up higher? if the frame goes up higher the leaf will drop down. do you know what i mean?
Reply With Quote
  #17
Old 04-07-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Quote:
Originally Posted by 01_ranger_4x4 View Post
can you get the frame up higher? if the frame goes up higher the leaf will drop down. do you know what i mean?

Not really? becuase with the axle fully exstended its not on the ground yet, Tried to remove the shocks to get more drop but after about 10mm with the impact the nut wouldnt go anymore. Everything is seased up!
Reply With Quote
  #18
Old 04-07-2009
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
yeah for the south and no rust
Reply With Quote
  #19
Old 04-07-2009
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Quote:
Originally Posted by Blackonblackfx4 View Post
Not really? becuase with the axle fully exstended its not on the ground yet, Tried to remove the shocks to get more drop but after about 10mm with the impact the nut wouldnt go anymore. Everything is seased up!
o ic what you mean, the shocks are holding it up? i got it. if you can get those loose and get the frame up higher the axle should drop down some more
Reply With Quote
  #20
Old 04-07-2009
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Yep, I would pull the shocks and drop the axle further, heat it again and hit it with the impact.
Reply With Quote
  #21
Old 04-07-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I dont know if it's been said already....

BUT....unbolt the top bolt from the hanger. On the backside is a captive nut. Do both sides of the truck, let the axle completely droop down, then do the lower shackle to leaf bolt, put on your new shackles, then bolt everything back up.
Reply With Quote
  #22
Old 04-07-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
unbolt the leaf spring from the axle and front hanger to get more room slash get it completely out of the truck for an impact....or get a really long lever/breaker bar.
Reply With Quote
  #23
Old 04-07-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Whats the next smaller size under 3/4 sorry more of a mm guy lol. Or the MM equvilent just under 3/4 so I dont wreak that bolt more than wally did!

My friend helping remove the shock put the impact on one end of that bolt, and a little wrench on the other and goes hold on like a man. You shouldve seen my hand lol.
Reply With Quote
  #24
Old 04-07-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
lol, try 11/16 inches
.75inches = 19.05mm

but those bolts should be 21mm
Reply With Quote
  #25
Old 04-07-2009
Blackonblackfx4's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jan 2009
Location: Edmonton, Alberta
Posts: 914
Quote:
Originally Posted by Dangerranger01 View Post
lol, try 11/16 inches
.75inches = 19.05mm

but those bolts should be 21mm

Yeah this is just for where the shock connects to axle. The shackle ones are 21
Reply With Quote
