Uneven

Well I was cleaning my truck the other day and I noticed that my driverís side sits about 2 inches lower than my passengerís side. Is this normal or is my driverís side suspension worn out or is the t bar just need to be tightened?
Reply With Quote
  #2
Old 01-18-2010
Woods-Rider's Avatar
Member
iTrader: (2)

Join Date: Apr 2008
Location: Hillsboro, OR
Posts: 1,108
Normal. If you think about it there is a lot more weight on the drivers side with the driver and gas tank. Try evening it out with a t-bar crank on the drivers side, but you may need to replace some worn out springs.
Reply With Quote
  #3
Old 01-18-2010
Mr. Special's Avatar
Member

Join Date: May 2005
Location: Irvine, CA
Posts: 3,411
Gas tank

It's the classic Ranger Lean due to the weight of the gas tank being primaraly on the drivers side.
Reply With Quote
  #4
Old 01-18-2010
Ace's Avatar
Ace Ace is offline
Member
iTrader: (4)

Join Date: Aug 2007
Location: Central, Illinois
Posts: 3,448
ranger lean due to fuel tank, steering column and driver all sitting on the left side.
Reply With Quote
  #5
Old 01-18-2010
Ace's Avatar
Ace Ace is offline
Member
iTrader: (4)

Join Date: Aug 2007
Location: Central, Illinois
Posts: 3,448
Lol 3 answers with in 1 min
Reply With Quote
  #6
Old 01-18-2010
4x4RangerOffroad's Avatar
Member
iTrader: (1)

Join Date: Jan 2009
Location: Barrington, NH
Posts: 434
adjust the tbars
Reply With Quote
  #7
Old 01-18-2010
Jon's Avatar
Jon Jon is offline
Member
Thread Starter

Join Date: Oct 2009
Location: Polk County, FL
Posts: 97
well i can understand the gas tank making a difference but when i looked i didnt have any gas and i wasnt sitting in my truck when i was looking at it
Reply With Quote
  #8
Old 01-18-2010
RangOH's Avatar
Member

Join Date: Feb 2009
Location: Madison, Ohio
Posts: 854
from all those times when you did have gas in it .. it wore out on that side.
Reply With Quote
  #9
Old 01-18-2010
Jon's Avatar
Jon Jon is offline
Member
Thread Starter

Join Date: Oct 2009
Location: Polk County, FL
Posts: 97
okay i never thought about that. so should i think about replacing some parts or should i just tighten the t bars up some. i was also thinking about lifting the front of the truck so should i just do it all at the same time and get one adjustment>
Reply With Quote
  #10
Old 01-18-2010
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
who ever designed that placement should be punched. Is the F-150 the same way?
Reply With Quote
  #11
Old 01-18-2010
Jon's Avatar
Jon Jon is offline
Member
Thread Starter

Join Date: Oct 2009
Location: Polk County, FL
Posts: 97
yeah i think it looks retarded or broken when your truck is sitting lopsided like that
Reply With Quote
  #12
Old 01-18-2010
RangOH's Avatar
Member

Join Date: Feb 2009
Location: Madison, Ohio
Posts: 854
not only the gas thing but, it always has a driver sitting there too. ..
i would just adjust your torsion bars to where you want the truck to sit...thats what the adjusting bolts are for anyways.
Reply With Quote
  #13
Old 01-18-2010
Corkey's Avatar
Member
iTrader: (1)

Join Date: Oct 2009
Location: sioux narrows,ontario
Posts: 83
there is an easier way to make the lean go away, just take off the rear leafs and exchange them from 1 side to the other, lean gone,
or get another passenger side leaf pack from the Junkyard, and put it in,
but it will only last so long,
Reply With Quote
  #14
Old 01-18-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by Corkey View Post
there is an easier way to make the lean go away, just take off the rear leafs and exchange them from 1 side to the other, lean gone,
or get another passenger side leaf pack from the Junkyard, and put it in,
but it will only last so long,
Get a fatter gf to sit in the passenger seat all the time. it'll even out....lol. 2inches sounds too much, but i suppose it true. Its cheaper to just deal with it. been fine the whole life of the truck....spend your money on moar mods!!!
Reply With Quote
  #15
Old 01-18-2010
RangOH's Avatar
Member

Join Date: Feb 2009
Location: Madison, Ohio
Posts: 854
Quote:
Originally Posted by Dangerranger01 View Post
Get a fatter gf to sit in the passenger seat all the time. it'll even out.....spend your money on moar mods!!!
hehe
Reply With Quote
  #16
Old 01-18-2010
Jon's Avatar
Jon Jon is offline
Member
Thread Starter

Join Date: Oct 2009
Location: Polk County, FL
Posts: 97
Quote:
Originally Posted by Dangerranger01 View Post
2inches sounds too much
yeah thats what i said when i noticed it to thats the reason i posted this thread and my truck only has 70000 miles on it
Reply With Quote
  #17
Old 01-18-2010
RangOH's Avatar
Member

Join Date: Feb 2009
Location: Madison, Ohio
Posts: 854
does it lean more in the back or in the front? if its in the back maybe you broke a spring hanger..
Reply With Quote
  #18
Old 01-18-2010
Jon's Avatar
Jon Jon is offline
Member
Thread Starter

Join Date: Oct 2009
Location: Polk County, FL
Posts: 97
just in the front. the back is pretty level
Reply With Quote
  #19
Old 01-18-2010
rangercrazy07's Avatar
Member
iTrader: (2)

Join Date: Oct 2005
Location: Marietta, GA
Posts: 758
plus you got the battery on the same side i think you should crank the drivers side t-bar more than the passengers see what ya get and go from there also a shock could possibly be bad...
Reply With Quote
  #20
Old 01-18-2010
RangOH's Avatar
Member

Join Date: Feb 2009
Location: Madison, Ohio
Posts: 854
yep, Just check out your torsion bar and see if you have some turns in it.. you can definitely always upgrade to #1 t-bars. that will help with the lift that you want too.
Reply With Quote
  #21
Old 01-21-2010
Reddog99's Avatar
Member

Join Date: Sep 2007
Location: Jamul, CA
Posts: 109
Ford specs call for level within .64" in the front, .8" in the rear.
Reply With Quote
  #22
Old 07-14-2010
Member
iTrader: (3)

Join Date: Mar 2009
Location: 559, CA
Posts: 1,174
bump. I'm thinking of putting a shim under my drivers side leafpack where a block would normally go. All i can hope for is to correct it alittle bit, I will never eliminate it. I just put explorer leafsprings in and the lean is still there

Quote:
Originally Posted by GrafixGuy View Post
who ever designed that placement should be punched
i agree, I used to have a 50lb sandbag in the right rear corner and that helped a little, but i cant justify the decreased mileage anymore. Besides now that I have exploder springs with more payload, that same 50lb bag won't sink it as much now .
Quote:
Originally Posted by GrafixGuy View Post
Is the F-150 the same way?
Ive never noticed it on any fullsize truck but I have seen the gangsta lean on s10's/sonomas and tacomas.

Last edited by gts007; 07-14-2010 at 11:45 PM.
Reply With Quote
  #23
Old 07-14-2010
Reddog99's Avatar
Member

Join Date: Sep 2007
Location: Jamul, CA
Posts: 109
Try measuring to see exactly where the problem is, then adjust as required. A lift will affect the actual readings, but not the measurement methods or side to side differences. These shots are from my 2004 shop manual:

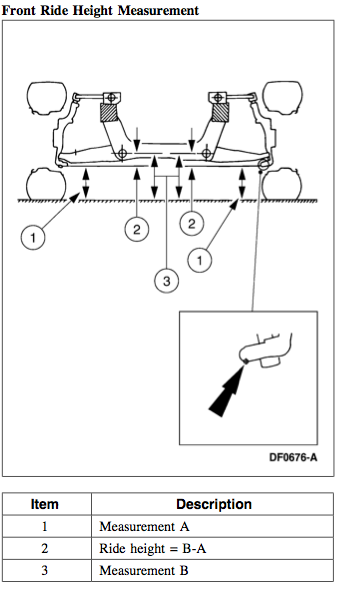

Name:  frontrideheight.png
Views: 8
Size:  55.3 KB

Name:  rearrideheight.png
Views: 4
Size:  31.5 KB

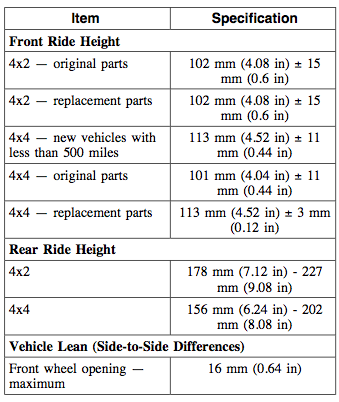

Name:  heightspecs.png
Views: 6
Size:  56.5 KB
Reply With Quote
  #24
Old 07-15-2010
lrwfxr's Avatar
Member

Join Date: Dec 2008
Location: westland mi.
Posts: 149
I cranked my driver side 1/2 turn more and mine sit's level
Reply With Quote
  #25
Old 07-15-2010
Member
iTrader: (3)

Join Date: Mar 2009
Location: 559, CA
Posts: 1,174
man i wish i had a tbar truck.
