Yes or No To T-Bar Crank? - Ranger-Forums - The Ultimate Ford Ranger Resource


Suspension Tech General discussion of suspension for the Ford Ranger.

View Poll Results: Would you recommend doing it?
Yes 22 78.57%
No 6 21.43%
Voters: 28. You may not vote on this poll

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 07-30-2006
THREEnineONE's Avatar
Member
Thread Starter

Join Date: Jul 2006
Location: San Diego, CA
Posts: 77
Yes or No To T-Bar Crank?

Help me decide! I already know what to do and how to do it. But I have heard mixed reviews about the torsion bar crank..im only going to crank it 2" (4 turns) and probally not get an alignment if no pulls to the right/ and or uneven tire wear.
Reply With Quote
  #2
Old 07-30-2006
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
no if the truck doesnt need it yes if the truck isnt level....
Reply With Quote
  #3
Old 07-30-2006
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Na, you don't need it. If you later decide yopu want it, do it right before you take it in for an alignment.
Reply With Quote
  #4
Old 07-30-2006
THREEnineONE's Avatar
Member
Thread Starter

Join Date: Jul 2006
Location: San Diego, CA
Posts: 77
yeah...i just called my local ramona tire and its $140 for the lifetime alignment...so i might do it! haha...plus after seeing this ranger...i def. want to do it!! haha!


Credits from Lumadar..http://www.cardomain.com/id/Lumadar
Reply With Quote
  #5
Old 07-30-2006
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
I have a friend that owns a place that does alignments and when I did it I took it in there and it did not change it at all.
Reply With Quote
  #6
Old 07-30-2006
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
yes do it, but 4 turns wont get 2" i dont think. none that i have ever done only took 4 turns anyhow.
Reply With Quote
  #7
Old 07-30-2006
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Quote:
Originally Posted by THREEnineONE
It looks like that dude removed his rear blocks after he cranked the bars lmao.
Reply With Quote
  #8
Old 07-30-2006
Mr. Special's Avatar
Member

Join Date: May 2005
Location: Irvine, CA
Posts: 3,411
just level it out. Noting worth worrying about is going to happen if u just crank them a bit; just dont max
Reply With Quote
  #9
Old 07-30-2006
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
^^^True, the 2wd's didn't come with the strongest of bars.
Reply With Quote
  #10
Old 07-30-2006
THREEnineONE's Avatar
Member
Thread Starter

Join Date: Jul 2006
Location: San Diego, CA
Posts: 77
alright...i finally did them! haha...it took 6 hours of worrying about it and surfung the internet and 15 min. of doing it...after i was done i was like "thats it?" haha...i measured from the ground to the fender well and it came out to: before lift: 33 1/4".....after lift: 34 1/2...so i just did a 1.25" of lift...and i took it offroading alittle to adjust it after settling and its perfect now! thanks for the help guys..goto my cardomain to check out pics of it lifted.
Reply With Quote
  #11
Old 07-30-2006
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Decent....
Reply With Quote
  #12
Old 07-30-2006
EdGe_wannabe's Avatar
Member

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
Good stuff man, glad you liked it.

Brenton
Reply With Quote
  #13
Old 07-30-2006
karrbass4life's Avatar
Member

Join Date: Nov 2004
Location: Cincinnati, Ohio
Posts: 3,072
I think I may level mine out this week, sounds fun.

How many turns should I take to level my 4x4 out?
Reply With Quote
  #14
Old 07-30-2006
anthony84_2004's Avatar
Member

Join Date: Apr 2006
Location: Jesup, Georgia
Posts: 760

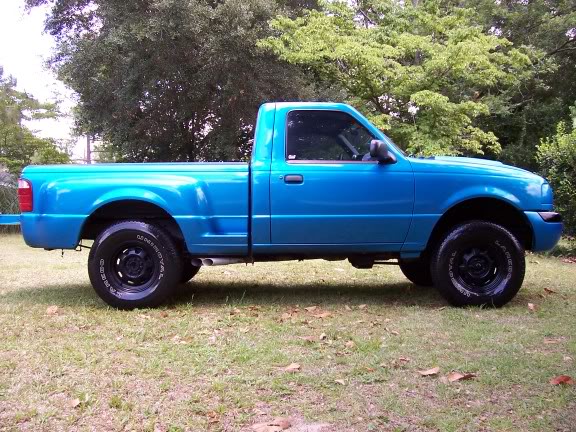

Name:  expotv017.jpg
Views: 1
Size:  93.4 KB
I had mine lifted for about a week it rode really good with cranked bars
Reply With Quote
  #15
Old 07-30-2006
gatorblue92's Avatar
RF Veteran

Join Date: Jun 2004
Location: Delaware
Posts: 8,238
i have cranked mine to level the truck out
Reply With Quote
  #16
Old 07-30-2006
Mr. Special's Avatar
Member

Join Date: May 2005
Location: Irvine, CA
Posts: 3,411

nice work... 31s and rims look nice

Last edited by Mr. Special; 07-30-2006 at 05:21 PM.
Reply With Quote
  #17
Old 07-30-2006
a townn's Avatar
Member

Join Date: Jul 2006
Location: San Diego, CA
Posts: 245
yo corey that looks sweet man.. i've been thinkin about crankin my bars. how'd you do it? did you jack your truck up or just leave it on the ground? btw, where in san diego do you live? it's nice to meet a fellow san diegan haha
Reply With Quote
  #18
Old 07-30-2006
Mr. Special's Avatar
Member

Join Date: May 2005
Location: Irvine, CA
Posts: 3,411
^leave it on the gorund (and for that matter make sure it is level ground). Measure from the ground to a point (usually the bottom of the fender flare) go under and crank each bar, go back and measure to make sure it is level, and ur done. Also when you get the chance go get an allignment
Reply With Quote
  #19
Old 07-30-2006
THREEnineONE's Avatar
Member
Thread Starter

Join Date: Jul 2006
Location: San Diego, CA
Posts: 77
what i did was left it on the ground...that way you can measure your fender from the ground without having to raise and lower it 5 times! haha...and i took it off road alittle to let the suspension settle and make necessary changes..i was going to take it to get aligned but i drives straight as it used to be so ima hold off on that till i see otherwise! thanks for the support...i live in temecula..5 min. north of san diego
Reply With Quote
  #20
Old 07-30-2006
THREEnineONE's Avatar
Member
Thread Starter

Join Date: Jul 2006
Location: San Diego, CA
Posts: 77
another thing...i measured from the bottom of my rim...it was easier cuase the rim lip kept it in place....just from the bottom/center of the rim to the bottom/center of the fender flair...when i measured it from the ground to the fender flair w/ 31s i came up with 34 1/2"
Reply With Quote
  #21
Old 07-30-2006
a townn's Avatar
Member

Join Date: Jul 2006
Location: San Diego, CA
Posts: 245
sweet dude! i thought you had to jack it up. i think i may go do it right now haha. thanks for your help man. i know exactly where temecula is. i live in north county.. san marcos to be exact. sort of near escondido, i think you'll probably know where it is
Reply With Quote
  #22
Old 07-30-2006
THREEnineONE's Avatar
Member
Thread Starter

Join Date: Jul 2006
Location: San Diego, CA
Posts: 77
only thing when you do it...use a 1/2" breaker bar and a 1/2" impact socket...that way it wont round the bolt...good luck!! take it for a test drive and come back and measure it again...then make necassary changes to it..all i did was turn it 4 revolutions then turned another 1/2" on each side...i came up with 34 1/2" from the ground with the 31s.
Reply With Quote
  #23
Old 07-30-2006
THREEnineONE's Avatar
Member
Thread Starter

Join Date: Jul 2006
Location: San Diego, CA
Posts: 77
ohh...yeah i know where san marcos is...def. we should go take our rangers through some trails...anyone else live in san diego?
Reply With Quote
  #24
Old 07-30-2006
a townn's Avatar
Member

Join Date: Jul 2006
Location: San Diego, CA
Posts: 245
sweet dude.. thanks for the advice. i'll let you know how it goes.

and we should DEFINITELY hit up some trails cause i don't really have anything here in north county. i'm sure you have a lot more areas up in temecula. we should get a meet together or something
Reply With Quote
  #25
Old 07-30-2006
a311fanam's Avatar
Member

Join Date: Dec 2004
Location: Westerly, RI
Posts: 2,006
mine are at 35.5"
