your lift kits

I'm looking into getting a lift for my 09 ranger it has been in an accident so there goes the warranty and here comes the BL and SL's so lets see what you got and if some people can give me a rough estimate on what they paid for there's that would be great too also post em pics.
Reply With Quote
  #2
Old 03-25-2010
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
I paid $80 for my body lift, $80 on my AAL and cranked my t-bars for free
Name:  100_1292.jpg
Views: 13
Size:  191.6 KB
Reply With Quote
  #3
Old 03-25-2010
t5cents's Avatar
Member
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521
here is the super lift i just put on

Name:  0323001638.jpg
Views: 12
Size:  158.3 KB
Reply With Quote
  #4
Old 03-25-2010
Member
Thread Starter

Join Date: Sep 2009
Location: Richmond Hill, Ontario
Posts: 222
i'm also wondering if it would be cheaper for me to cross over to the us to have my kit done here the guy wants $1000 for the 4 inch SL, and 1400 for the 3 inch BL
Reply With Quote
  #5
Old 03-25-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Another reason to post up some pics! :D

2007 FX4 Level II - Superlift/AAL/shackles/15X10" wheels/33" tires





$500 - Brand new Superlift off Craigslist
$300 - Shortened/balanced/rebuilt XJ driveshaft
$45 - Procomp Short AAL
$50 - Belltech shackles
$500 - Wheels
$800 - Tires

All said and done I was well under $2500 once you figure in some shipping, alignment, tire labor/balancing, buying all Grade 8 hardware instead of the junk Superlift sends...
Not bad for buying EVERYTHING in Canada!
Reply With Quote
  #6
Old 03-25-2010
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
You could do the pre-key mod and a t-bar crank and run 33's. You could also throw in a shackle in the back for a little more lift.
Reply With Quote
  #7
Old 03-25-2010
Member
Thread Starter

Join Date: Sep 2009
Location: Richmond Hill, Ontario
Posts: 222
okay my full intention is to get 33's under this truck it is a stock 09 i know i can do a pre-key mod and a full torsion crank to raise the front, and then i could do a pro comp short AAL with the belltech shackles but would that give me enough lift for 33's I'm on and off road so my concern is will i still have the full range of motion of the suspension or will it bottom out cause i have to jump a lot of curbs, sometimes when I'm fully loaded. and i'm also curious the belltech 6400 shackles were meant to lower trucks however are these the shackles that raise or lower the rangers. also I'll have to do a swap to a 4.10 or 4.73 i currently have a 3.73 gears.
Reply With Quote
  #8
Old 03-25-2010
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
With the pre-key torsion crank and AAL you can fit 33's no problem. I only have a torsion crank and I clear 33's no problems. My tires are 33x11.50 on factory 16x7" rims with 4.5" of backspacing and I only rub on the sway bar but that's not a problem what so ever. And the Belltech 6400's lower Chevy's but lift Ranger's about 2". Oh and with the 3.73's that you have now you'll have no troubles turning the 33's. Even when wheeling.
Reply With Quote
  #9
Old 03-25-2010
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
If you need/want I can post some pictures of my truck to give you an idea of what it would kind of look like.
Reply With Quote
  #10
Old 03-26-2010
Member
Thread Starter

Join Date: Sep 2009
Location: Richmond Hill, Ontario
Posts: 222
ok so it will rub on the sway bar which means more wear on the tires so what can i do to stop it from rubbing.
Reply With Quote
  #11
Old 03-26-2010
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
SuperLift / Tires / Oil Change.
Cost: Two Sets of Bucket Seats and two sticks of 1.5” Tubing + Tip



If you are close to the US might be worth the try to see how much.

US is not inexpensive...
Reply With Quote
  #12
Old 03-26-2010
Member
Thread Starter

Join Date: Sep 2009
Location: Richmond Hill, Ontario
Posts: 222
rangerboy101 ya if you could post some picks please do. also if a 33 rubs on the sway bar I'm wondering if i should either go down to a 32" or could i get an offset rim that would make a 33 fit. or is there an aftermarket sway bar i could get to fix this problem.
Reply With Quote
  #13
Old 03-26-2010
05edge's Avatar
Member

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
3" body lift- $380
20" suspension lift-$4000




haha sorry i havent whored it yet, and im bored.
Reply With Quote
  #14
Old 03-27-2010
Member
Thread Starter

Join Date: Sep 2009
Location: Richmond Hill, Ontario
Posts: 222
I'm also curious which add a leaf kit did you use cause I've seen 2 listed form pro comp the first is just 2 straight leaf springs the second is a bunch of leaf springs already tied together with 2 end bushings.

Procomp Rear Short Add A Leaf Set Ford Jeep Chevy Dodge : eBay Motors (item 290316736471 end time Apr-06-10 2246 PDT)

Amazon.com: Explorer Pro Comp 13120 Rear Short Add-a-Leaf Kit: Automotive
Reply With Quote
  #15
Old 03-27-2010
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Quote:
Originally Posted by dracowing14 View Post
rangerboy101 ya if you could post some picks please do. also if a 33 rubs on the sway bar I'm wondering if i should either go down to a 32" or could i get an offset rim that would make a 33 fit. or is there an aftermarket sway bar i could get to fix this problem.
I'll go and snap some good level pictures with the tires straight so you can get a better idea of how it sits. Don't worry about the tires rubbing on the sway bar. Mine barely rubs and it doesn't hurt the tires any. And I should add, the tires only rub when I have my wheels at full lock and I mean FULL lock.
Reply With Quote
  #16
Old 03-27-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
I used the 13120 short AAL. The second link you posted is the same one, the pic just isn't accurate.
Reply With Quote
  #17
Old 03-27-2010
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187

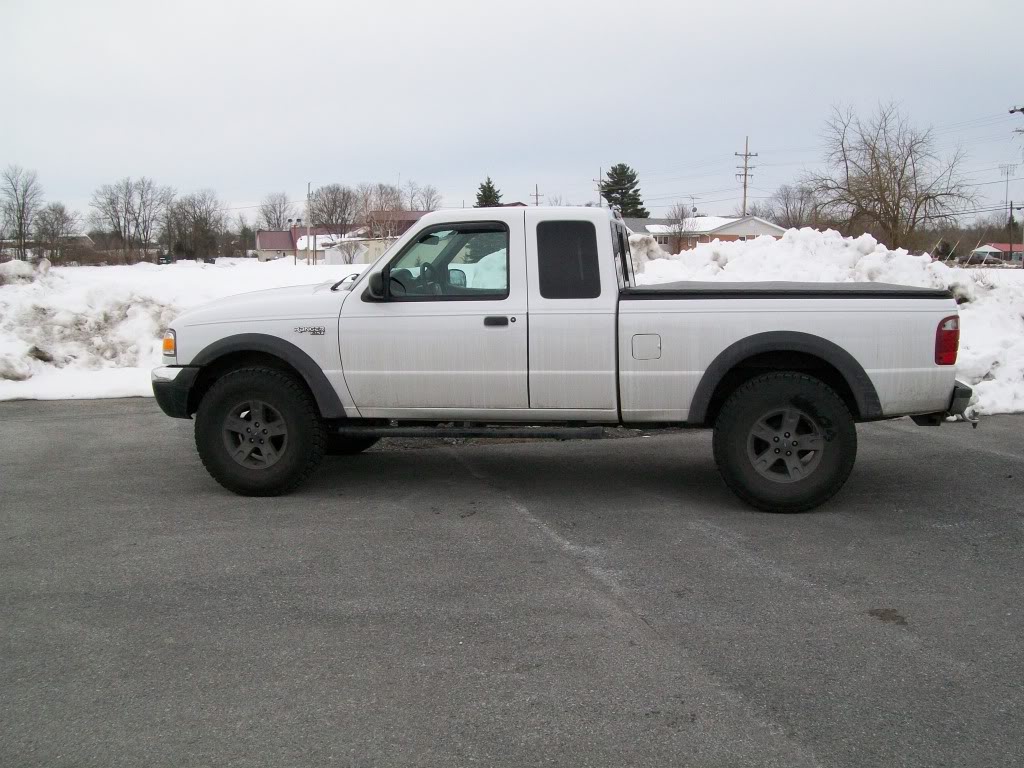

Here's some pics:
Name:  0013.jpg
Views: 27
Size:  150.7 KB
Name:  0023.jpg
Views: 13
Size:  165.8 KB

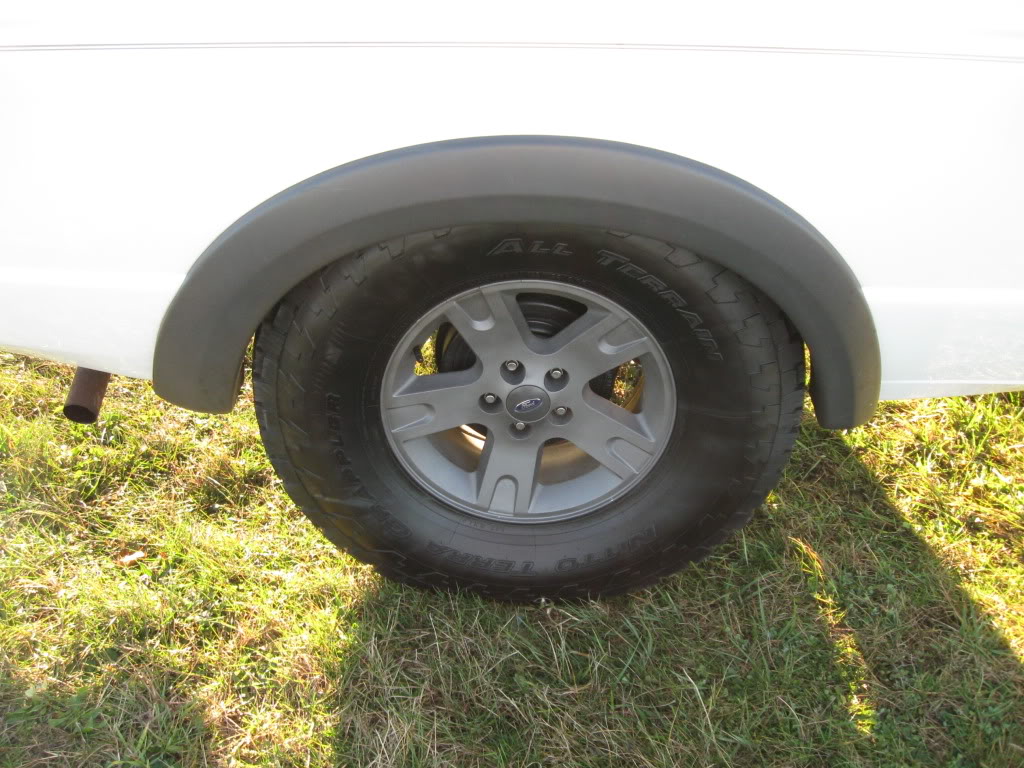

Old flexing pics:
Name:  SoftCover020.jpg
Views: 12
Size:  209.6 KB
Name:  SoftCover021.jpg
Views: 11
Size:  177.4 KB
Reply With Quote
  #18
Old 03-27-2010
magicballer2001's Avatar
Member
iTrader: (1)

Join Date: Aug 2009
Location: Indianapolis, IN
Posts: 186
Quote:
Originally Posted by dracowing14 View Post
rangerboy101 ya if you could post some picks please do. also if a 33 rubs on the sway bar I'm wondering if i should either go down to a 32" or could i get an offset rim that would make a 33 fit. or is there an aftermarket sway bar i could get to fix this problem.
Yeah, I just put some 33s on my truck with just a tbar crank...they fit fine, but it rubs when at full lock...If you plan on lifting it...just get some 33s, no need to downsize to a 32
Reply With Quote
  #19
Old 03-28-2010
Billy4x4's Avatar
Member

Join Date: Mar 2008
Location: Kawartha Lakes
Posts: 626

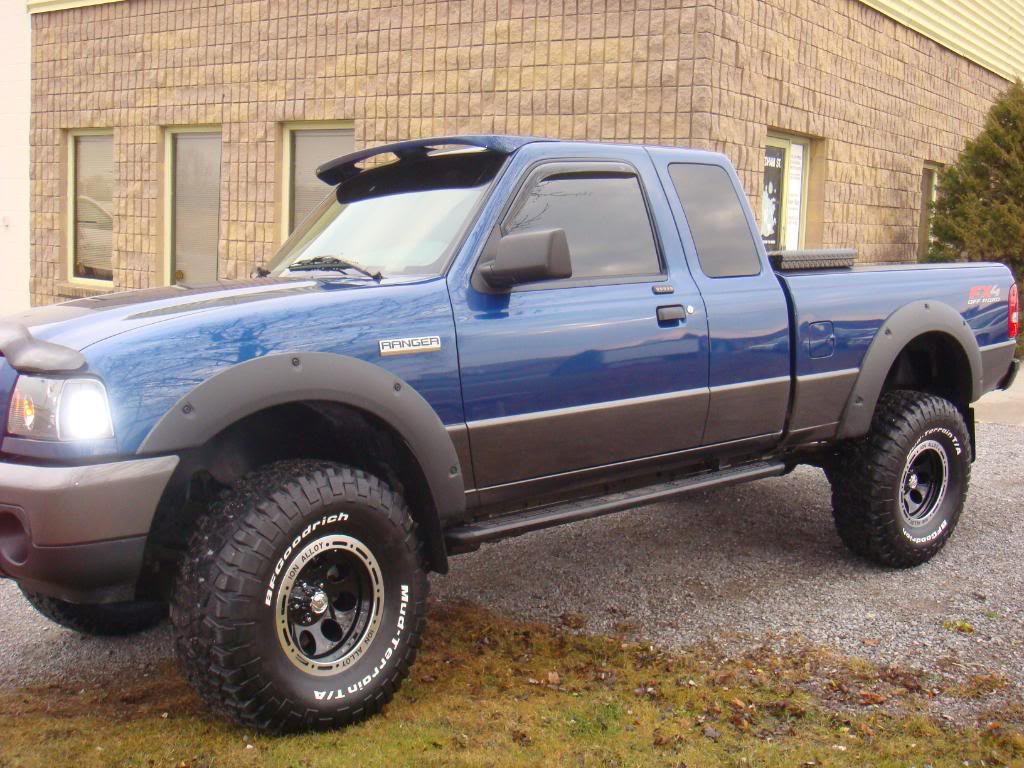

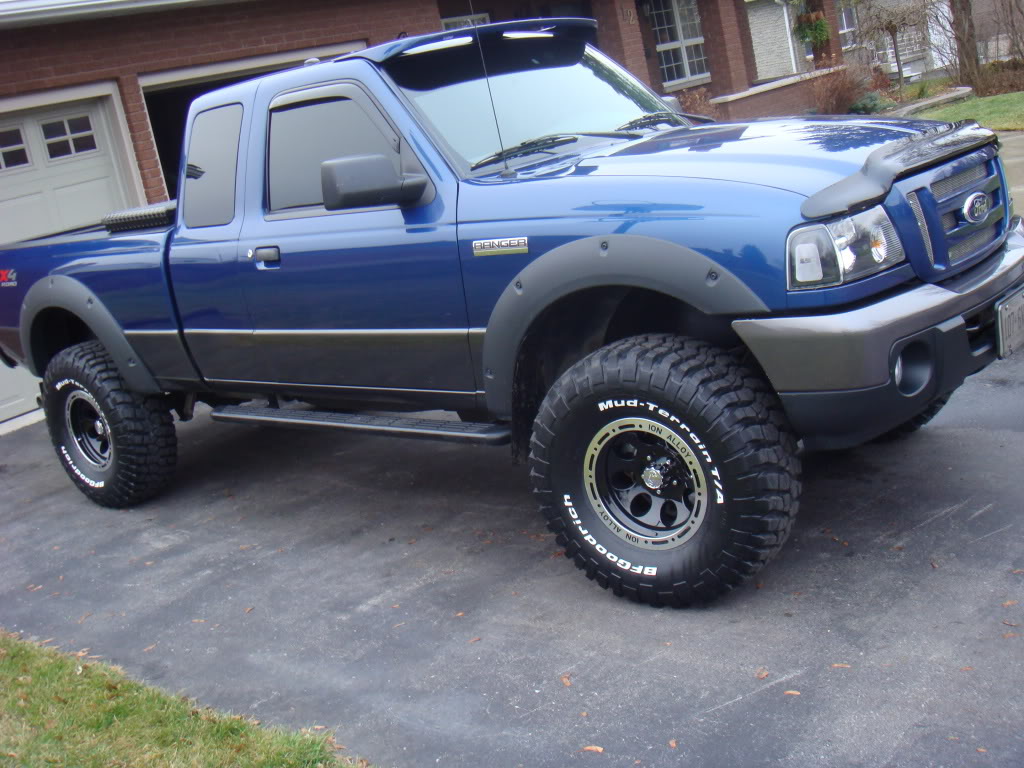

go for a body lift.. only a couple hundred bucks brand new..

its practical and it works.. then you can clear 33x12.5.. lots of guys on here run that setup.. cause it rocks!
Name:  DSC01708.jpg
Views: 22
Size:  153.1 KB
Name:  DSC01702.jpg
Views: 29
Size:  161.1 KB
Reply With Quote
  #20
Old 04-10-2010
Bac0nator's Avatar
Member

Join Date: Aug 2009
Location: Orillia, Ontario
Posts: 25
Hey Billy first off nice truck I really like the look of it. I have an 09 FX4 and was thinking of giving it a lift and was just wondering if you can give me the stats on that lift you did and where ya got the parts.
