PIC/INFO request! 285/75 r16, 265/75 r16

Hey guys, I'm thinking about putting 285/75 r16s or if those don't work out then 265/75 r16s on my 2002 ranger regular cab 4x4.
looking to see some pics and hear your experience on both. Plans are for a 1 to 1.5" torsion twist, and 1" body lift. Will the 285s rub with 8" rims and 4-4.5" BS ?
Please, if you have pics of either with a stock truck or minor mods, post and tell me about your experience.

Thanks!
Reply With Quote
  #2
Old 12-10-2014
bravetitan24's Avatar
Strokin'
iTrader: (3)

Join Date: Jun 2010
Location: Haughton, LA
Posts: 2,156
Check the albums on my profile. 3" body lift, 285/75-16 on 16x8 wheels.
Reply With Quote
  #3
Old 12-11-2014
mikerider's Avatar
Member
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Sam look at my build thread "project search and rescue truck" I ran 285/75r16a on 16x8 for several years with no lift. Great set up!
Reply With Quote
  #4
Old 12-11-2014
Member
Thread Starter

Join Date: Dec 2010
Location: montreal, quebec
Posts: 6
did the 285s rub at all at stock ride height mikerider?
Reply With Quote
  #5
Old 12-11-2014
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Search for my name as well. You will find a couple threads with what your looking for.
Reply With Quote
  #6
Old 12-11-2014
mikerider's Avatar
Member
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by livetoride21 View Post
did the 285s rub at all at stock ride height mikerider?
Just the sway bar at full lock but no issues other then that.

edit heres some pictures

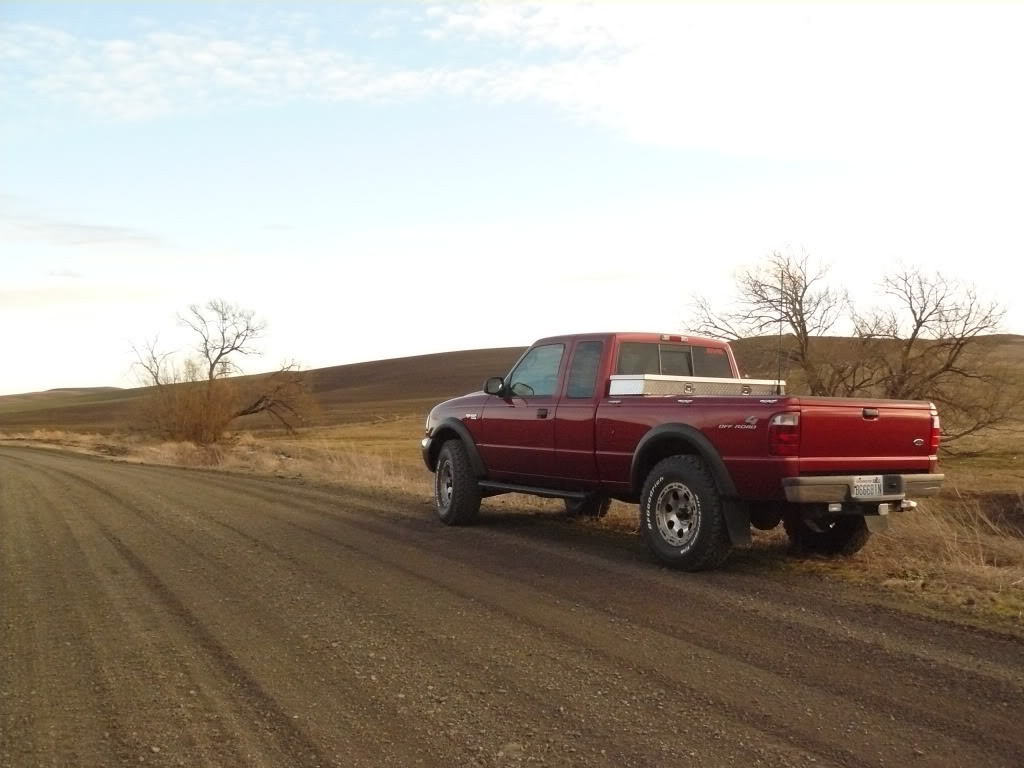

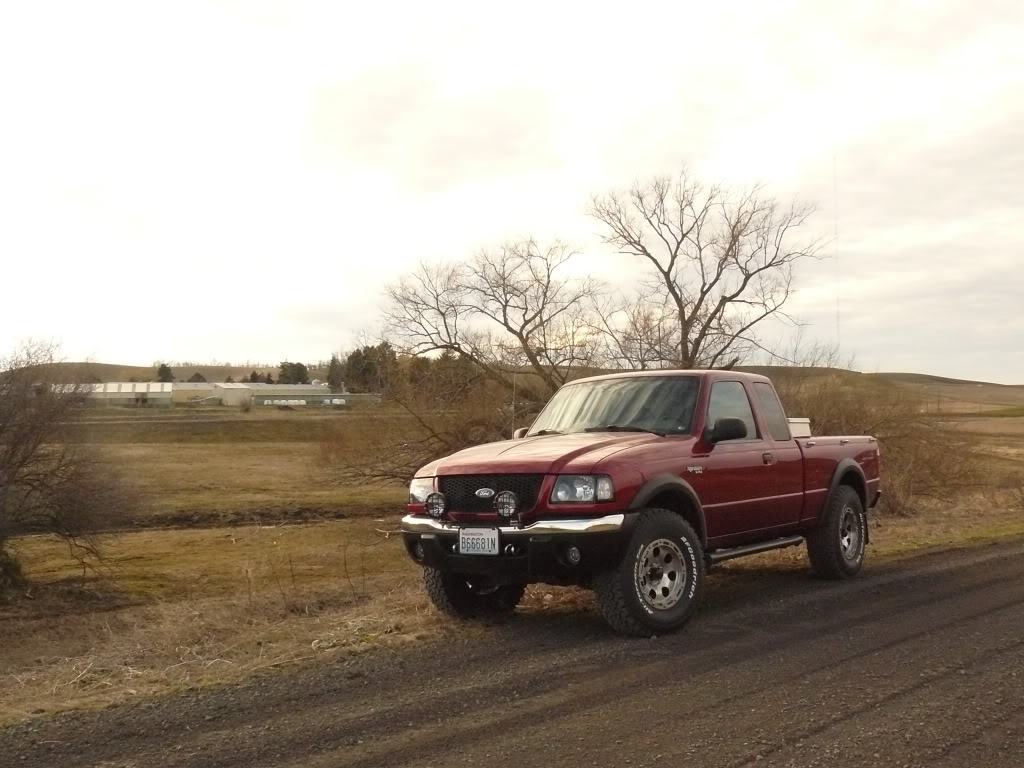

Name:  P1050643.jpg
Views: 946
Size:  215.4 KB

Name:  P1050634.jpg
Views: 558
Size:  153.1 KB

Name:  P1050635.jpg
Views: 568
Size:  108.7 KB



still plenty of room to move the suspension around

Name:  P1070798.jpg
Views: 566
Size:  204.2 KB

Last edited by mikerider; 12-11-2014 at 10:43 PM.
Reply With Quote
  #7
Old 12-11-2014
Member
Thread Starter

Join Date: Dec 2010
Location: montreal, quebec
Posts: 6
Quote:
Originally Posted by mikerider View Post
Just the sway bar at full lock but no issues other then that.

edit heres some pictures

still plenty of room to move the suspension around
What width rims were you running and with what backspacing?? I'm thinking of getting 16x8 with 4" or 4.25" backspacing.
Reply With Quote
  #8
Old 12-11-2014
mikerider's Avatar
Member
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by livetoride21 View Post
What width rims were you running and with what backspacing?? I'm thinking of getting 16x8 with 4" or 4.25" backspacing.
those were 16x8 with 4.65 BS Eagle alloys
Reply With Quote
  #9
Old 12-12-2014
Member
Thread Starter

Join Date: Dec 2010
Location: montreal, quebec
Posts: 6
wow You're running more backspacing than stock?? it doesn't look like your stance is that narrow.
Reply With Quote
  #10
Old 12-12-2014
mikerider's Avatar
Member
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by livetoride21 View Post
wow You're running more backspacing than stock?? it doesn't look like your stance is that narrow.
8" wheel vs 7 in wheel.... 4in bs on a 7in wheel would be 5 in on an 8. Thus less back spacing then stock.
Reply With Quote
  #11
Old 12-12-2014
Member
Thread Starter

Join Date: Dec 2010
Location: montreal, quebec
Posts: 6
Quote:
Originally Posted by mikerider View Post
8" wheel vs 7 in wheel.... 4in bs on a 7in wheel would be 5 in on an 8. Thus less back spacing then stock.

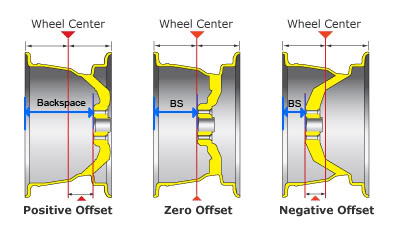

Actually that's not correct. Backspacing is relative to the mating surface of the hub flange, and the back flange of the wheel. What changes when you have say 4.5" backspacing on a 7" wheel vs an 8" wheel is the offset. your center line of the rim relative to the hub flange will be farther out, but the backspacing remains the same. Name:  backspace_offset.jpg
Views: 563
Size:  23.7 KB

But good to know a 4.65 backspacing works well with that size tire!
Reply With Quote
  #12
Old 12-12-2014
mikerider's Avatar
Member
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by livetoride21 View Post
Actually that's not correct. Backspacing is relative to the mating surface of the hub flange, and the back flange of the wheel. What changes when you have say 4.5" backspacing on a 7" wheel vs an 8" wheel is the offset. your center line of the rim relative to the hub flange will be farther out, but the backspacing remains the same.

But good to know a 4.65 backspacing works well with that size tire!
you are correct I was thinking in terms of offset,

Name:  wheels_zps1e793751.jpg
Views: 559
Size:  14.9 KB
Reply With Quote
  #13
Old 12-13-2014
Member
Thread Starter

Join Date: Dec 2010
Location: montreal, quebec
Posts: 6
Now I'm seriously thinking of a 32x11.5 r15, after looking around some more at pictures and pricing. (buying new rims anyways)
