Custom Winch Bumper

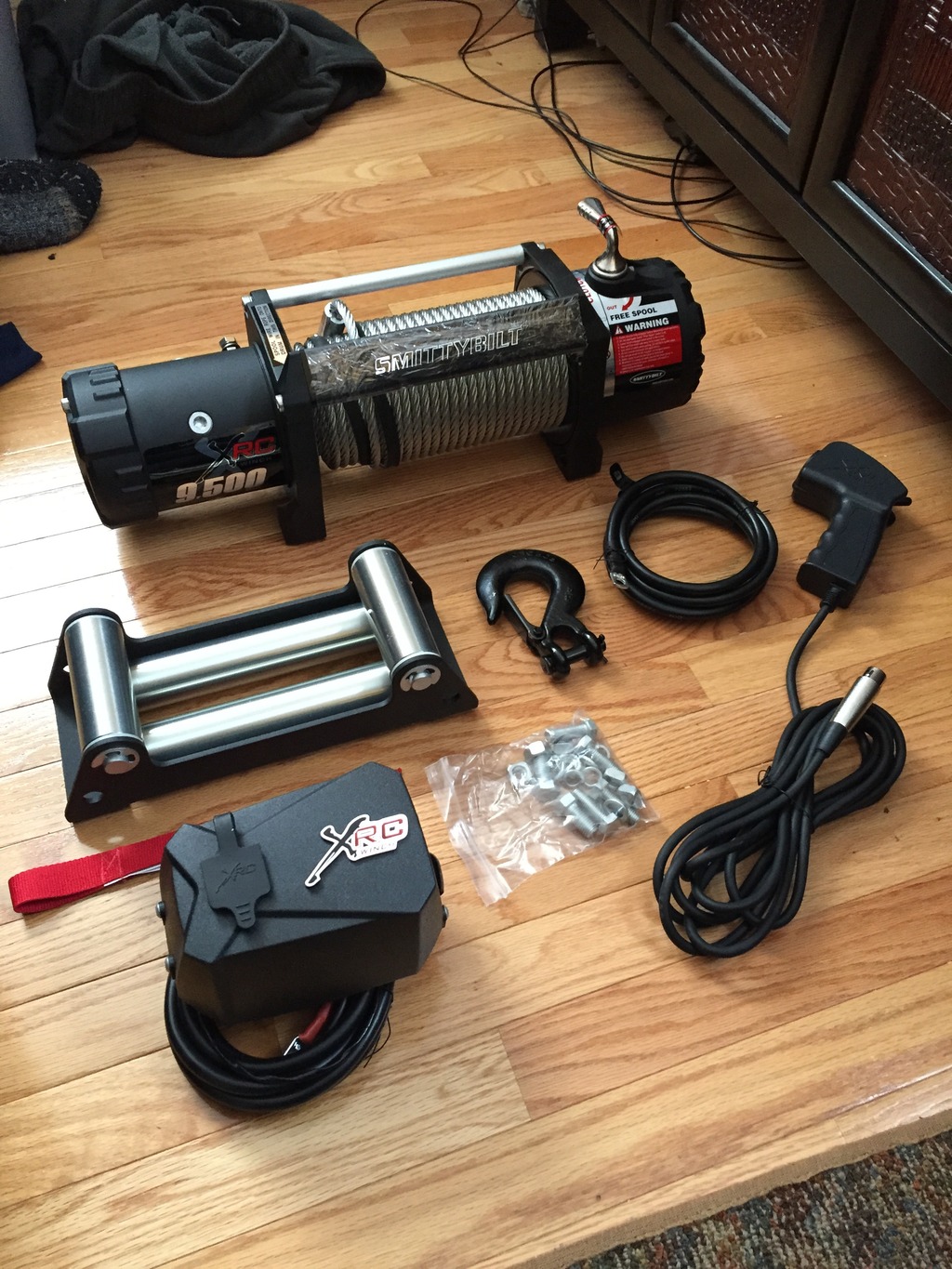

I love the look of my ranger but I was forced to install a stock XL bumper that I had found on craigslist because my XLT bumper rotted and fell apart. The look of the truck in my opinion wasn't as good as it was with my XLT bumper with fog lights so this year I thought I would make a change. Instead of instaling a new stock bumper though I decided to have a winch bumper built. I looked around on craigslist and even on some of the known sites that make winch bumpers but also in my findings I found a local off-road fabrication shop that said they would gladly take on my project. (I would've made it myself but I do not have the tools required to cut and weld this gauge of steel.) So I dropped my truck off and gave him a picture of how I wanted the bumper to look but I also gave him the ability to make some changes as he likes and I think it came out awesome! I will be running a Smitty Bilt 9500lb winch and I am also having LED pods installed in the bumper. The bumper is getting the rest of the welds finished and a fresh coat of paint this week.

OLD stock XL bumper. Cut-outs were for lvl 2 hooks and a small plow that wasn't on the truck long:

picture I gave him to go by only which he would have to modify it for a winch and better tire clearance:



2001 Ranger XLT 4x4 SuperCab
- 2009 4.0L V6 SOHC Swapped, Automatic Trans, 410 Gears, Rear Frame Swapped.
- 15x8 Ion 174 alloys on 33 BFG Mud KM2s l Custom Winch bumper l 3" body lift l Super 44 Dumped l Tailgate Light Bar l Blacked out. l
Reply With Quote
+ 0 -
Old 03-31-2015
mikerider's Avatar
iTrader: (8)
I am: Michael Smith
Join Date: Oct 2006
Location: Renton WA
Vehicle: 2001 Ford Ranger
Posts: 2,459
Total Props: 3
Nice build looks like it will work well.
Reply With Quote
+ 0 -
Old 03-31-2015
camodown's Avatar
Lost in Nowhere

iTrader: (3)
I am: Casey ?
Join Date: Feb 2007
Location: Midland, TX
Vehicle: 2003 Ranger
Drive Type: 4x4
Engine: 4.0
Posts: 5,015
Total Props: 6
Looks good
Reply With Quote
+ 0 -
Old 04-01-2015
seed60's Avatar
RF Veteran

iTrader: (15)
I am: Matt .
Join Date: Jun 2008
Location: Mooresville, NC
Vehicle: 2003
Posts: 5,561
Total Props: 6
Reply With Quote
+ 0 -
Old 04-01-2015
00GreenRanger's Avatar
Level III Supporter

I am: Sam W
Join Date: Nov 2011
Location: North Bend, WA
Vehicle: 2000 Ranger
Drive Type: 4x4
Engine: 4.0
Posts: 1,213
Total Props: 5
Cool looking bumper!
Reply With Quote
+ 0 -
Old 04-01-2015
green99's Avatar
I am: Brad
Join Date: Apr 2010
Location: OR
Vehicle: 1999 Ranger
Drive Type: 4x4
Engine: 4.0
Posts: 198
Total Props: 2
Looks like a good start. It sticks out really far. I would try to get that winch tucked back under the grill a little.
Reply With Quote
+ 0 -
Old 11-02-2015
I am: jason Magdos
Join Date: Nov 2015
Location: Pearland Tx
Vehicle: 1992 Ford Ranger
Drive Type: 4x4
Engine: 4.0
Posts: 2
Total Props: 0
y'all might know, I have a 1992 ranger and im looking for a bumper with a built in winch, everything iv been finding has been from 1993 and up, and 1993 is when they started doing the curved grills, would y'all know where I could get one for the straight grills for my 92?
