got some work done today. Got the inner fenders cut for tire stuffage. Also got the rear shocks out and on the bench for rebuild. still lots to do before next tuesday, but i think I can pull most of it off.

before: pulled the shock so I could get full bump
Name:  2011ranger001.jpg
Views: 57
Size:  119.1 KB
Name:  2011ranger002.jpg
Views: 71
Size:  135.2 KB

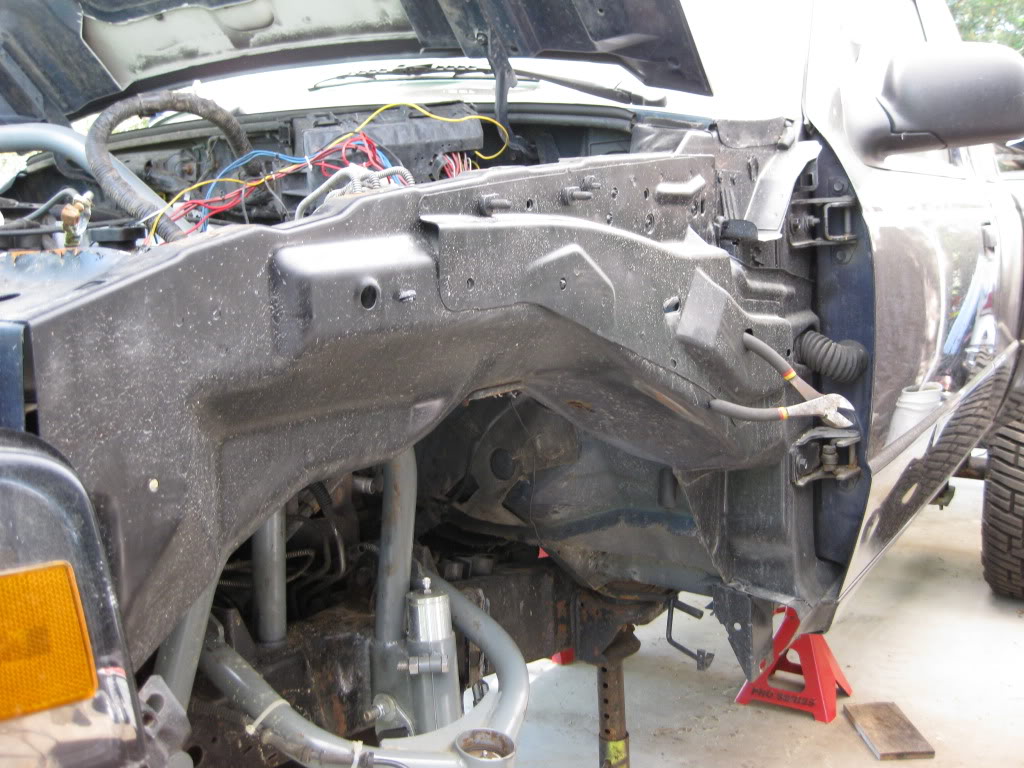

Name:  2011ranger005.jpg
Views: 78
Size:  147.4 KB
Name:  2011ranger004.jpg
Views: 71
Size:  169.4 KB

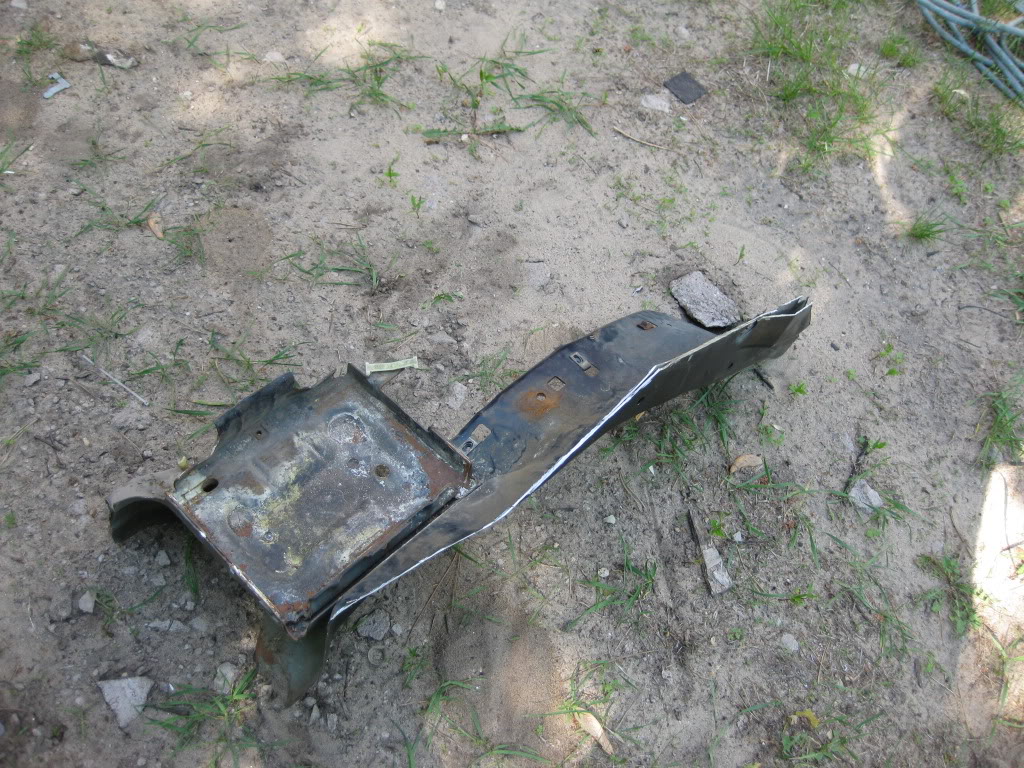

after: got plenty of room now,had to move and make a bracket for the abs module for now. ran out of gas in the welder so thats as far as I got with it.
Name:  2011ranger011.jpg
Views: 83
Size:  168.7 KB
Name:  2011ranger008.jpg
Views: 125
Size:  243.3 KB

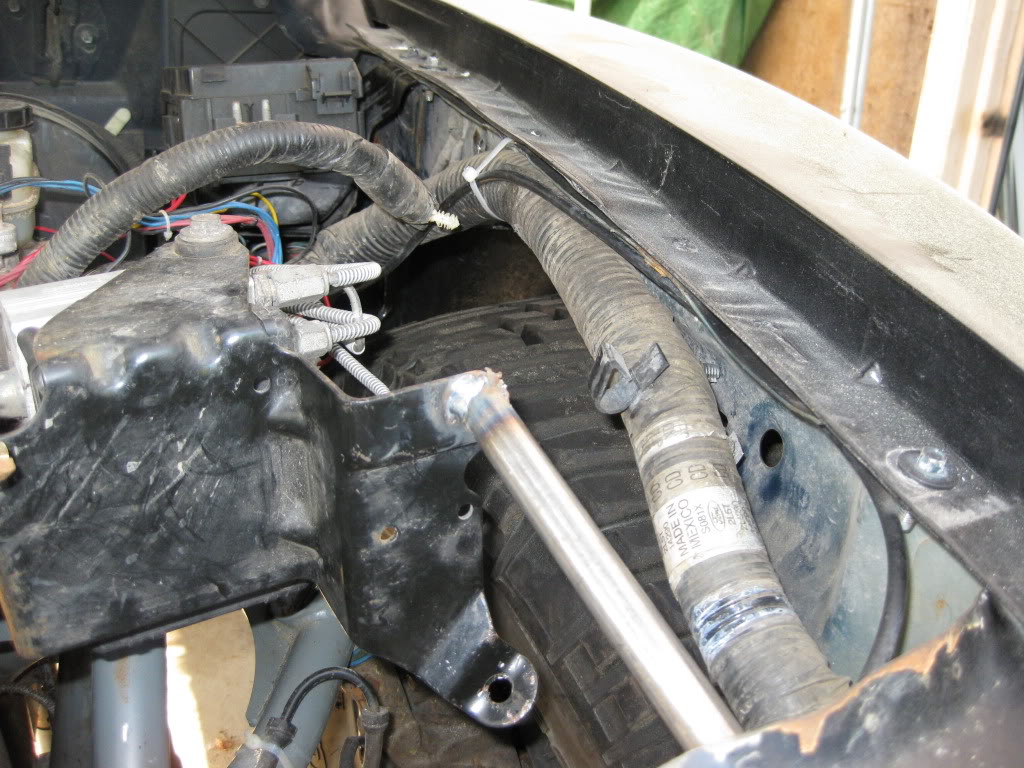

Name:  2011ranger022.jpg
Views: 101
Size:  158.2 KB
Name:  2011ranger019.jpg
Views: 65
Size:  121.5 KB
Name:  2011ranger021.jpg
Views: 68
Size:  117.5 KB
Name:  2011ranger018.jpg
Views: 68
Size:  163.7 KB

  #627
Old 06-05-2011
seed60's Avatar
RF Veteran
iTrader: (15)
Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Likes: 0
Received 0 Likes on 0 Posts
Hell yeah!

  #628
Old 06-05-2011
comunistico's Avatar
Member
Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
Likes: 0
Received 0 Likes on 0 Posts
wow looking great! cant wait for the vids!

  #629
Old 06-06-2011
morris's Avatar
RF Veteran
iTrader: (5)
Join Date: Feb 2008
Location: South Detroit.
Posts: 7,841
Likes: 0
Received 2 Likes on 2 Posts
that's some tuck baby!

  #630
Old 06-06-2011
zabeard's Avatar
who?
iTrader: (8)
Join Date: Nov 2004
Location: IN
Posts: 26,044
Likes: 0
Received 10 Likes on 10 Posts
dang son!

do work

  #631
Old 06-06-2011
JoshK's Avatar
Member
Join Date: Sep 2006
Location: CC, Indiana
Posts: 3,832
Likes: 0
Received 0 Likes on 0 Posts
hell ya andy

  #632
Old 06-06-2011
INT3RC3PTOR's Avatar
RF Veteran
Thread Starter
iTrader: (4)
Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,201
Likes: 0
Received 2 Likes on 2 Posts
Do work indeed. A full hard week of it left lol. Hoping to be done by mid day Monday, load the trailer, and relax some before sleeping

  #633
Old 06-07-2011
INT3RC3PTOR's Avatar
RF Veteran
Thread Starter
iTrader: (4)
Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,201
Likes: 0
Received 2 Likes on 2 Posts
time to sweat my ***** off and get **** did...


  #634
Old 06-07-2011
Vonhanson's Avatar
Member
iTrader: (5)
Join Date: Sep 2009
Location: Glencoe, Minnesota
Posts: 1,611
Likes: 0
Received 1 Like on 1 Post
good luck dude, i was about to go sit outside and drink some beers, but its so warm i'm still thinking bout it. ha

  #635
Old 06-07-2011
98liftedranger's Avatar
RF Veteran
iTrader: (5)
Join Date: Aug 2008
Location: California
Posts: 12,538
Likes: 0
Received 4 Likes on 4 Posts
LOL weren't you guys just complaining about the cold?

  #636
Old 06-07-2011
Masteratarms93's Avatar
Member
iTrader: (8)
Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
Likes: 0
Received 4 Likes on 4 Posts
HAHAHA the weather is sporadic as hell in the Midwest and East Coast. It's weird. 50-60 one day 80-90 the next.

  #637
Old 06-07-2011
98liftedranger's Avatar
RF Veteran
iTrader: (5)
Join Date: Aug 2008
Location: California
Posts: 12,538
Likes: 0
Received 4 Likes on 4 Posts
I know I lived on the east cost for 20 years lol

  #638
Old 06-07-2011
INT3RC3PTOR's Avatar
RF Veteran
Thread Starter
iTrader: (4)
Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,201
Likes: 0
Received 2 Likes on 2 Posts
well I lived, was pretty hot but I drank a lot of water. Got the rear shocks on the bench and swapped the shims and took out the bleed screws. should handle the slower speed bumps etc much better now. Just need to get them charged after work tomorrow. I'm also picking up a set of pretty much new 5-point belts, so hopefully I can get my *** in gear on throwing some seat mounts and belt hoop in.

off the truck
Name:  2011ranger031.jpg
Views: 73
Size:  108.5 KB

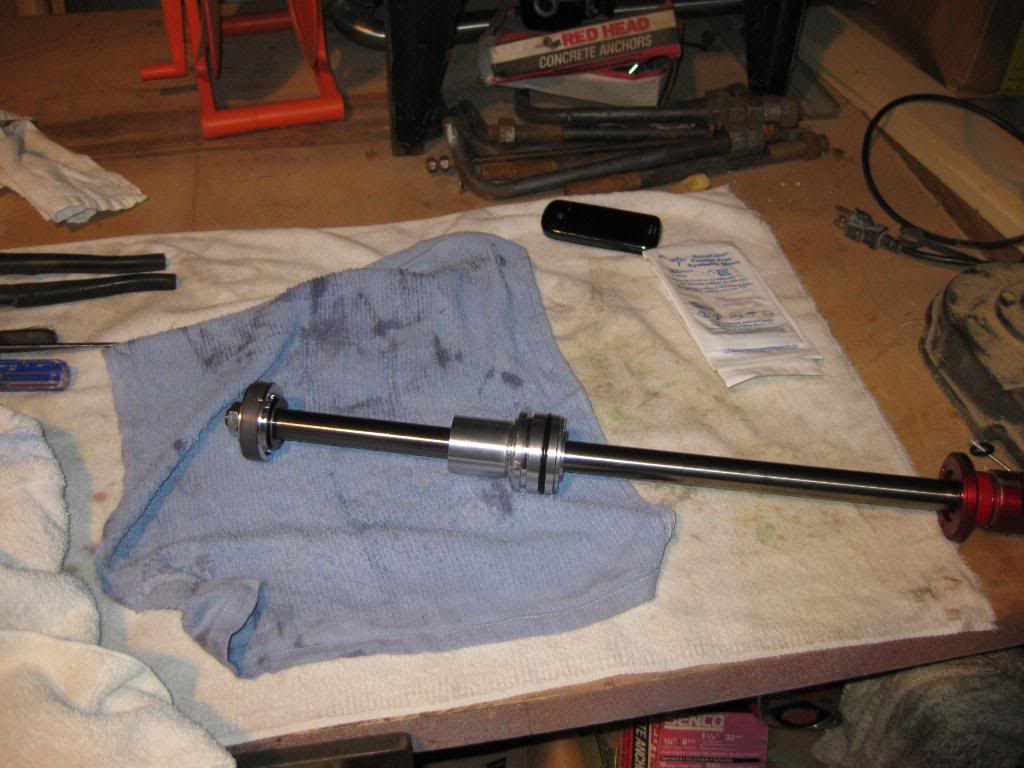

shaft out
Name:  2011ranger032.jpg
Views: 67
Size:  91.6 KB

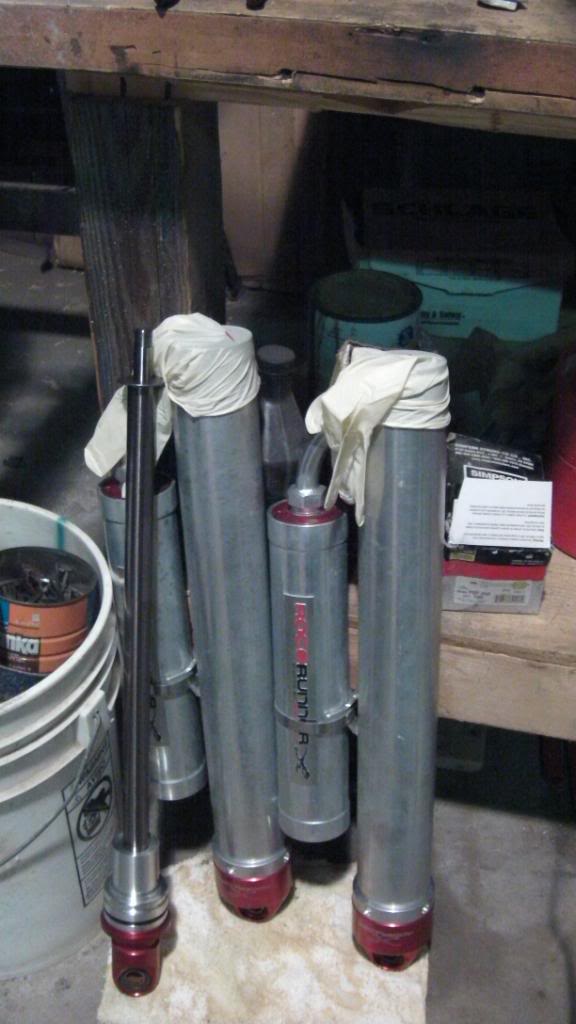

rubber gloves are always good for something
Name:  2011ranger024.jpg
Views: 52
Size:  63.7 KB

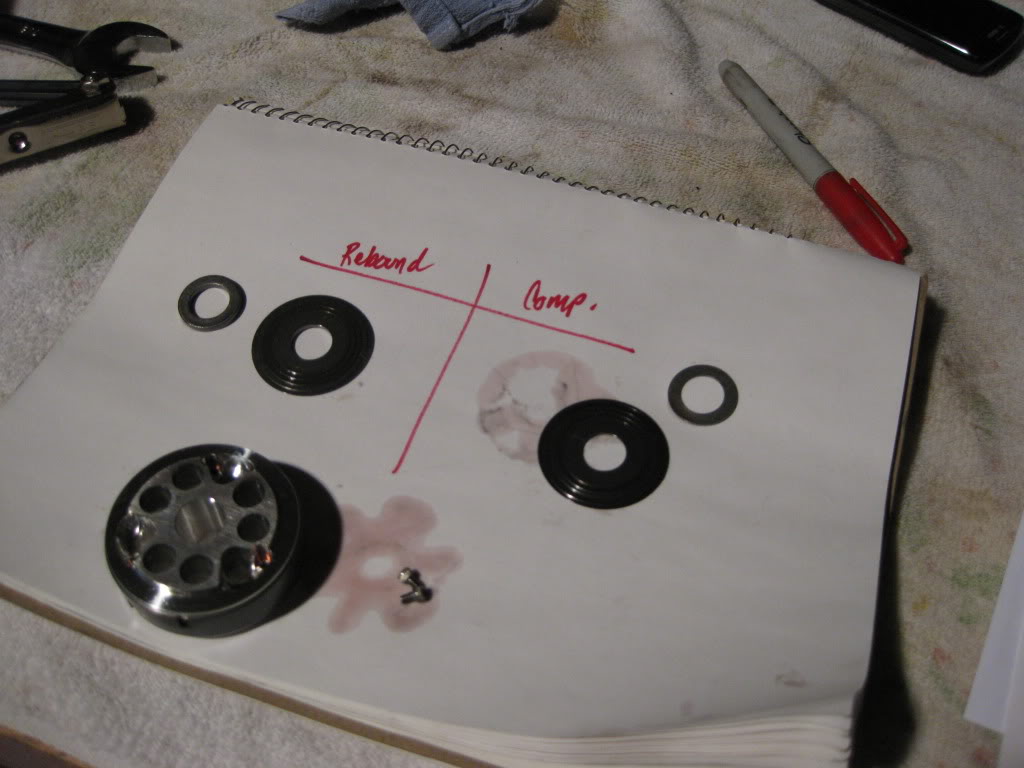

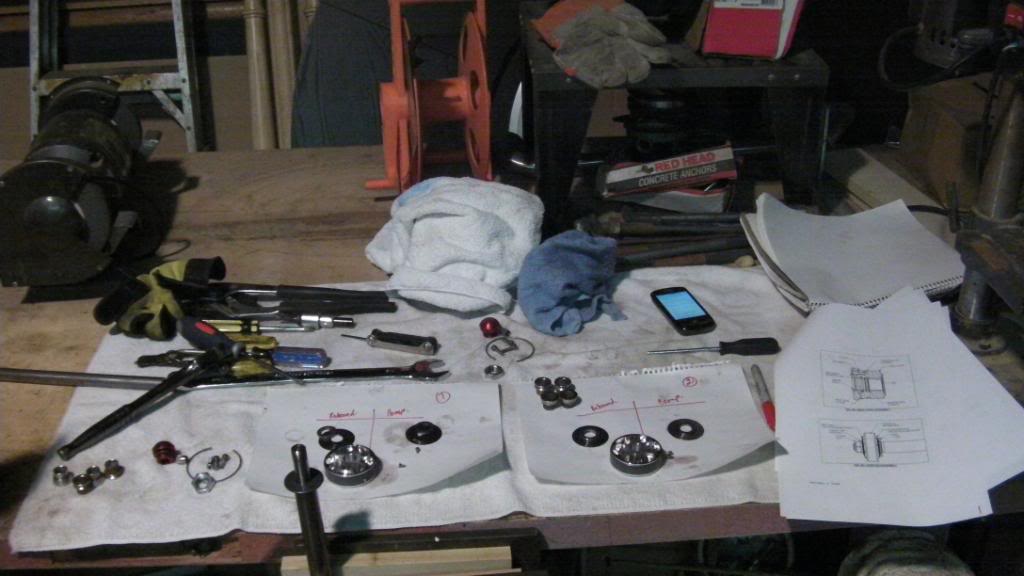

shafts stripped and ready to put back together
Name:  2011ranger023.jpg
Views: 47
Size:  66.2 KB
Name:  2011ranger.jpg
Views: 53
Size:  82.6 KB
ready for Nitro
Name:  2011ranger030.jpg
Views: 61
Size:  41.2 KB

Also worked on the Pass. side front inner fender clearance. Looks like I dont need to cut near as much, just some out of the front under where the stock air box would be. The Pass. side fender must be higher cause its doesnt even touch at full bump in the middle like the drivers side did. It clears by and inch But I like the smooth rolled fender that is there so I'm not touching it. which in turn means I can leave the coolant rez. pretty much where its at.
Name:  2011ranger026.jpg
Views: 60
Size:  73.5 KB
Name:  2011ranger025.jpg
Views: 57
Size:  72.0 KB
Name:  2011ranger029.jpg
Views: 70
Size:  76.1 KB

  #639
Old 06-20-2011
INT3RC3PTOR's Avatar
RF Veteran
Thread Starter
iTrader: (4)
Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,201
Likes: 0
Received 2 Likes on 2 Posts

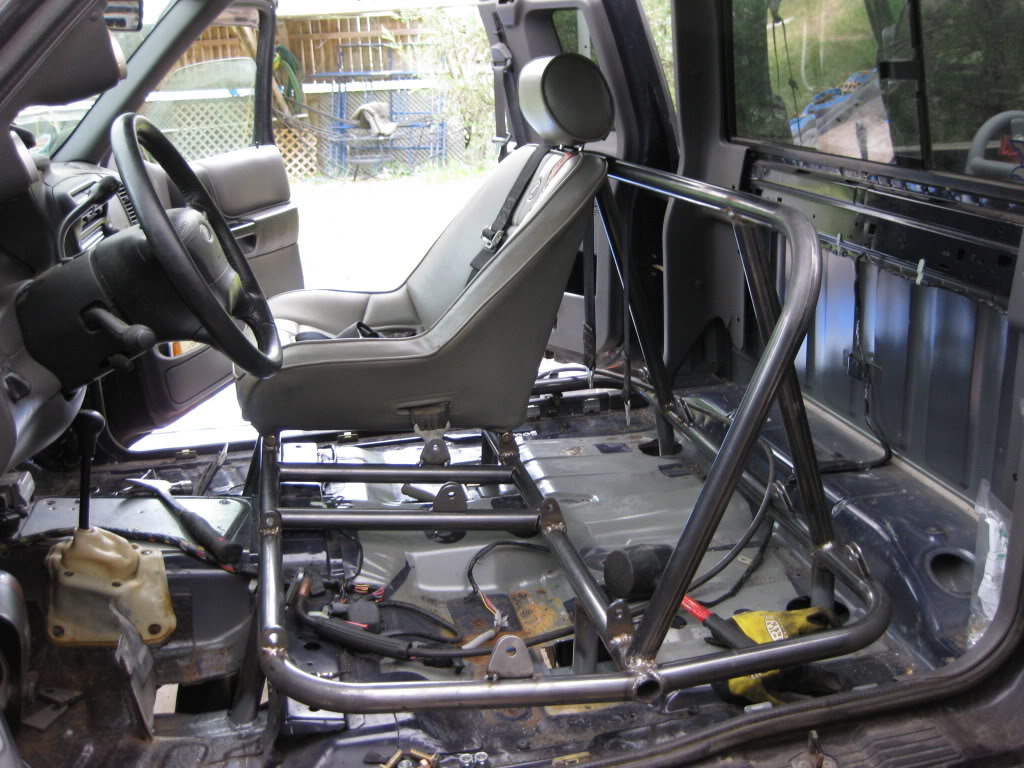

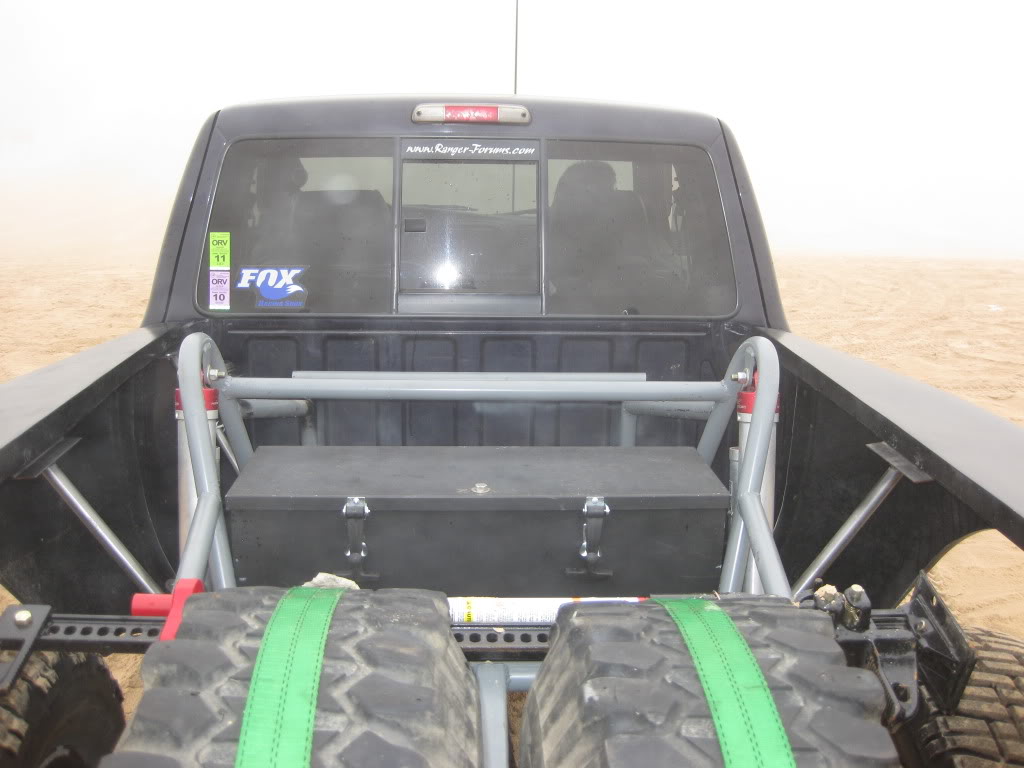

here are a few shots of some of the latest progress before the dunes trip

Name:  dunes2011005.jpg
Views: 68
Size:  150.5 KB
Name:  dunes2011004.jpg
Views: 66
Size:  160.7 KB
Name:  dunes2011012.jpg
Views: 77
Size:  88.3 KB

  #640
Old 06-20-2011
Dirty Ranger's Avatar
Member
Join Date: Jan 2011
Location: Ontario, Canada
Posts: 456
Likes: 0
Received 0 Likes on 0 Posts
Thats awesome , looking good

  #641
Old 06-20-2011
Ghostrunner's Avatar
Member
Join Date: Jan 2011
Location: Portland, OR
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
How do you like the DBR Kit? Im debating between ordering this kit and having it installed locally and driving down to cali and getting the new camburg kit but need an opinion on this one first

  #642
Old 06-20-2011
stephen.g.fiddes's Avatar
Member
iTrader: (2)
Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
Likes: 0
Received 0 Likes on 0 Posts
Name:  dunes2011004.jpg
Views: 72
Size:  160.7 KB

You should box the frame too. I know having the bed-cage gives it more stability, but boxing can't hurt at all!

BTW... Truk nao lewx gud!

  #643
Old 06-21-2011
INT3RC3PTOR's Avatar
RF Veteran
Thread Starter
iTrader: (4)
Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,201
Likes: 0
Received 2 Likes on 2 Posts
Love the kit, handles everything I've thrown at it.

Yeah I plan to box the frame and add more tube also. Would like to do fuel cell next as well.

  #644
Old 06-21-2011
Rooks's Avatar
Member
iTrader: (7)
Join Date: Sep 2006
Location: Minneapolis, MN
Posts: 1,867
Likes: 0
Received 0 Likes on 0 Posts
Bad *** dude. Love the truck more each time I see it.

  #645
Old 06-21-2011
BILTRITE BULLIES's Avatar
Member
iTrader: (4)
Join Date: Jun 2009
Location: NM
Posts: 555
Likes: 0
Received 1 Like on 1 Post
bad *** ride... keeps getting better

  #646
Old 06-22-2011
Masteratarms93's Avatar
Member
iTrader: (8)
Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
Likes: 0
Received 4 Likes on 4 Posts
Any dunes damage?

  #647
Old 06-22-2011
INT3RC3PTOR's Avatar
RF Veteran
Thread Starter
iTrader: (4)
Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,201
Likes: 0
Received 2 Likes on 2 Posts
still together. rear end cycles much better after the rebuild. the front I think needs some work. its a bit too soft. might need to bump up my comp. so It doesnt bottom out so easy off big hits

  #648
Old 06-23-2011
Vonhanson's Avatar
Member
iTrader: (5)
Join Date: Sep 2009
Location: Glencoe, Minnesota
Posts: 1,611
Likes: 0
Received 1 Like on 1 Post
let me know when you give up and i'll come pick it up and take it off your hands for you.

  #649
Old 06-27-2011
INT3RC3PTOR's Avatar
RF Veteran
Thread Starter
iTrader: (4)
Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,201
Likes: 0
Received 2 Likes on 2 Posts
just a little video mainly for checking out how my front and rear cycle. not any huge hucks or anything just enough to get an idea. I think my rear end is working good now, but I think my front end needs some more compression, pre-load or a heavier spring etc

http://www.youtube.com/watch?v=fsEu-aIx49U

  #650
Old 06-29-2011
Josh40601's Avatar
Member
Join Date: Jun 2011
Location: Kentucky
Posts: 376
Likes: 0
Received 0 Likes on 0 Posts
Such a bad *** truck bud. I really don't like the prerunners as there are so many fake ones out here, but your's is built right. I think i have seen it on another site too, (or maybe this one, hell i dunno) and just remember talking about you having race tires in MN. lol. Love it man. Keep up the good work.

(PS, I also PMed you about the taurus fans)
