Pic Request! Tow hook mount

Thread Tools

Search this Thread

  #1
Old 12-10-2008
Sonic04Edge's Avatar
RF Veteran
Thread Starter
iTrader: (6)
Join Date: Jun 2004
Location: Madison. AL
Posts: 5,718
Likes: 0
Received 1 Like on 1 Post
Icon5 Pic Request! Tow hook mount
Trying to see if anyone has a picture of where the tow hooks mount. I should have mine in the next couple of days. Wanted to get an idea of where I will be installing them.

Thanks!

Reply Like
  #2
Old 12-10-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)
Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Likes: 0
Received 6 Likes on 6 Posts
The 04 Edges don't come with the holes in the crossmembers for them...you'll have to drill new ones.

At least my truck and Roach's didn't have them.

Reply Like
  #3
Old 12-10-2008
0RangerEdge2's Avatar
Member
iTrader: (2)
Join Date: Jun 2005
Location: Ohio
Posts: 2,592
Likes: 0
Received 0 Likes on 0 Posts
It's possible it did if it was an early 04.

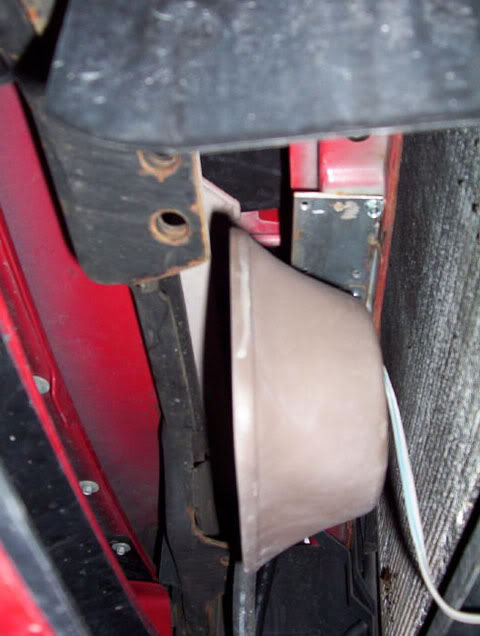

Name: Mount1.jpg Views: 66 Size: 44.1 KB


On this picture you can see part of the front mounting hole.

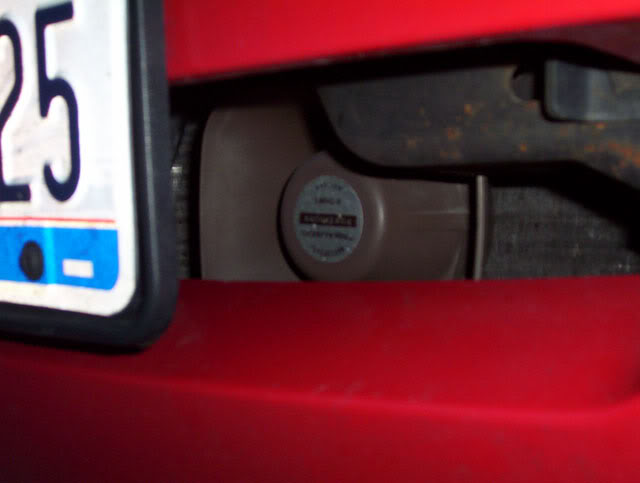

Name: Mount2.jpg Views: 91 Size: 27.3 KB

Reply Like
  #4
Old 12-10-2008
Sonic04Edge's Avatar
RF Veteran
Thread Starter
iTrader: (6)
Join Date: Jun 2004
Location: Madison. AL
Posts: 5,718
Likes: 0
Received 1 Like on 1 Post
I do have an early 04. It was built I believe late 03 or very early 04. I hope I dont have to drill holes that would be a pita.

Reply Like
  #5
Old 12-10-2008
0RangerEdge2's Avatar
Member
iTrader: (2)
Join Date: Jun 2005
Location: Ohio
Posts: 2,592
Likes: 0
Received 0 Likes on 0 Posts
It's hard saying. Ford was iffy on that sort of stuff. Just go check?

Reply Like
  #6
Old 12-10-2008
Robin Hood's Avatar
Member
iTrader: (2)
Join Date: Aug 2008
Location: AZ
Posts: 789
Likes: 0
Received 0 Likes on 0 Posts
what kind of hooks did you get FX4?

and i'll get some tomorrow.

Reply Like
  #7
Old 12-10-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)
Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Likes: 0
Received 3 Likes on 3 Posts
and you didn't buy mine?

Reply Like
  #8
Old 12-10-2008
Sonic04Edge's Avatar
RF Veteran
Thread Starter
iTrader: (6)
Join Date: Jun 2004
Location: Madison. AL
Posts: 5,718
Likes: 0
Received 1 Like on 1 Post
Originally Posted by 99ranger4x4
and you didn't buy mine?
didn't know you were selling some. Got mine from Mike(Trigger01)

Reply Like
  #9
Old 12-10-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)
Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
Likes: 0
Received 1 Like on 1 Post
I wish mine had the holes, I've got some stock black towhooks laying around but I'm too darn lazy and don't own a powerful enough drill to get through there... :-(

Reply Like
  #10
Old 12-10-2008
Mr. Special's Avatar
Member
Join Date: May 2005
Location: Irvine, CA
Posts: 3,411
Likes: 0
Received 0 Likes on 0 Posts
Took these quite some time ago, maybe they will help

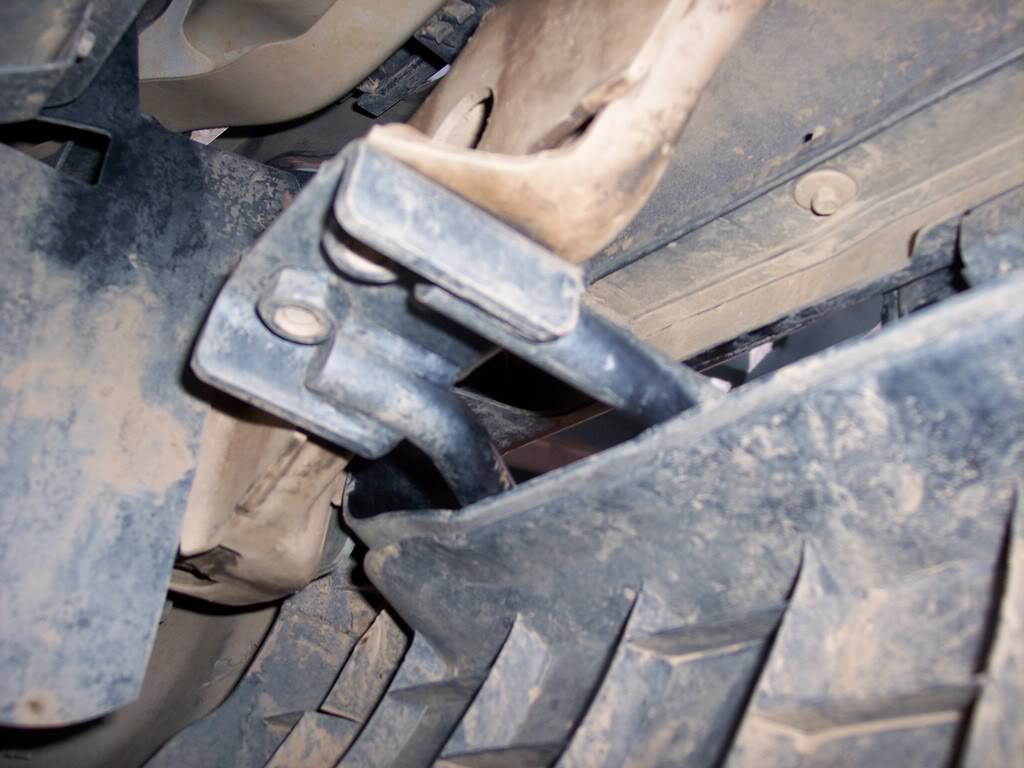

Name: Jan2007004.jpg Views: 89 Size: 85.7 KB

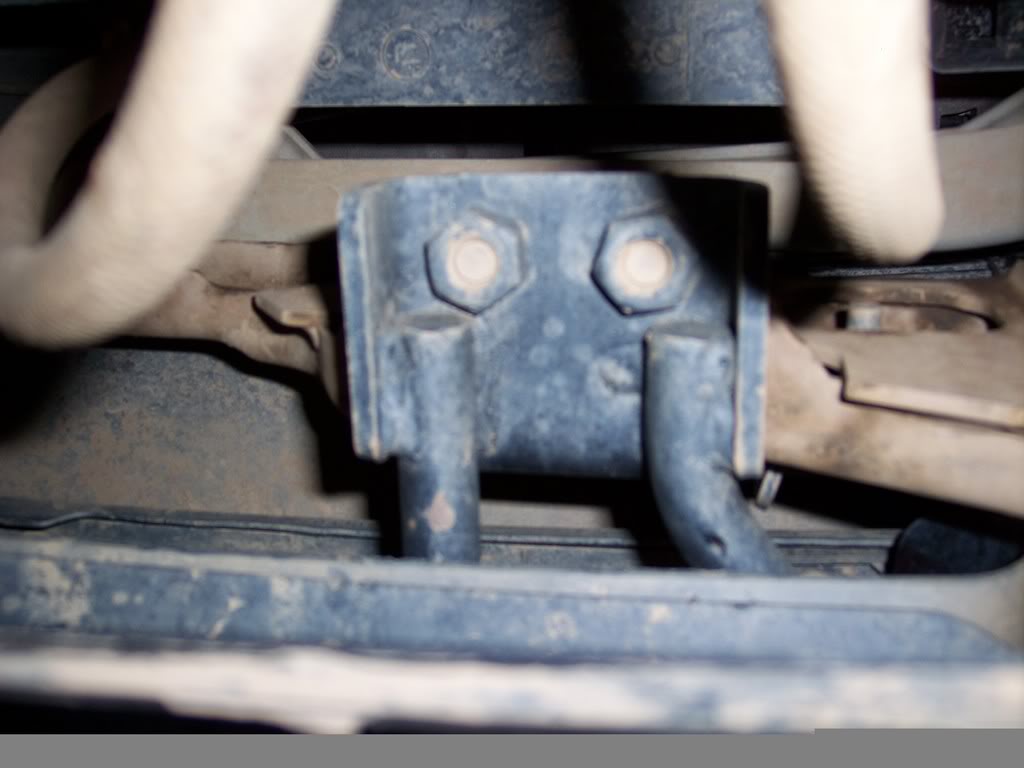

Name: Jan2007003.jpg Views: 76 Size: 62.2 KB

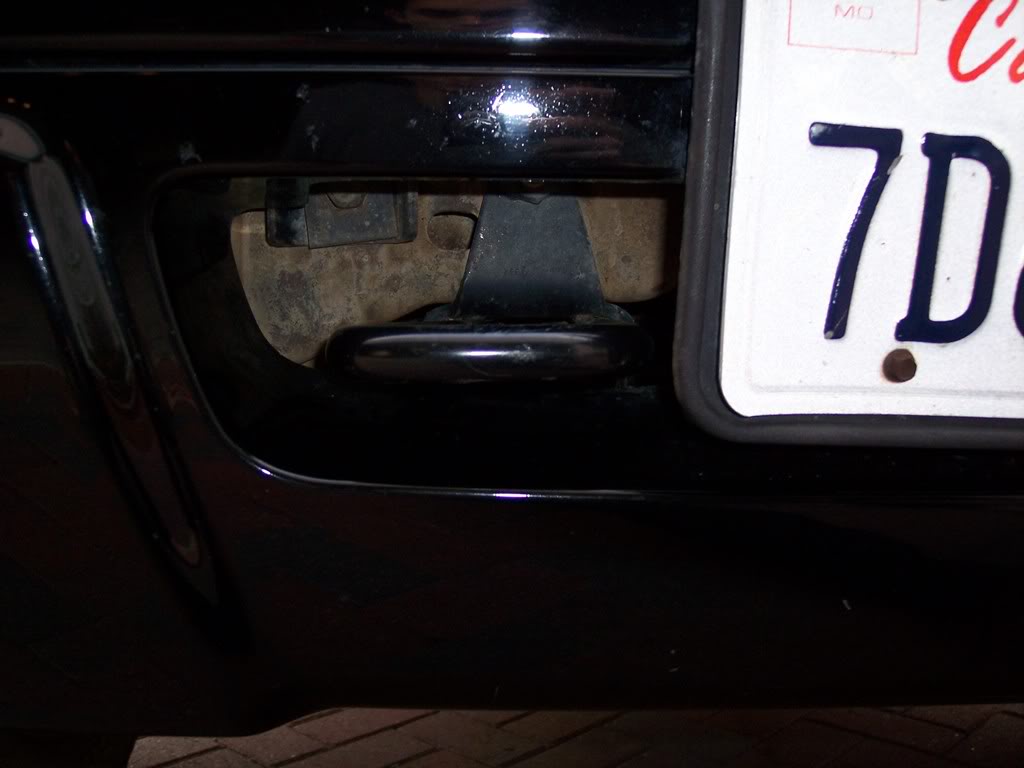

Name: Jan2007002.jpg Views: 77 Size: 58.1 KB

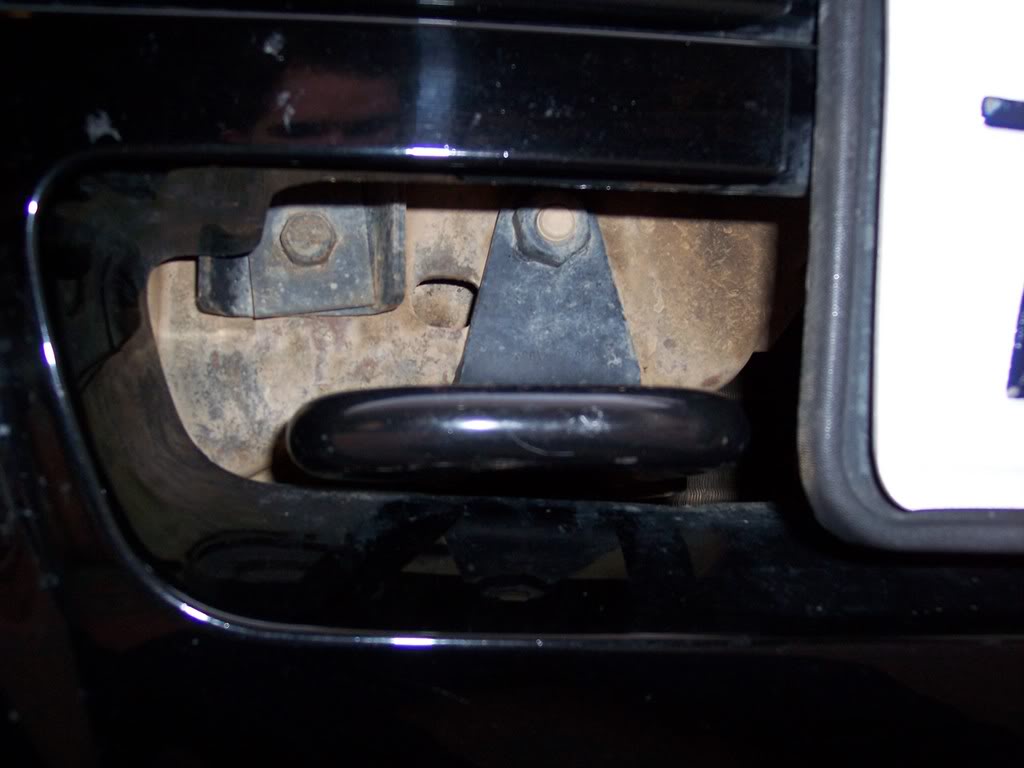

Name: Jan2007001.jpg Views: 147 Size: 60.8 KB

Reply Like
  #11
Old 12-11-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)
Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Likes: 0
Received 10 Likes on 10 Posts
Here you can see the holes...

i can't seem to find my closeup shots of mine though.



Reply Like
  #12
Old 12-11-2008
Goodysgotacuda's Avatar
Member
iTrader: (1)
Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
Likes: 0
Received 6 Likes on 3 Posts
you have to drill the holes, not a huge deal..bumper needs to come off too, to get to the top one.

Reply Like
  #13
Old 12-11-2008
rideabikenick's Avatar
Member
iTrader: (4)
Join Date: Dec 2006
Location: Deltona, Fl.
Posts: 3,486
Likes: 0
Received 0 Likes on 0 Posts

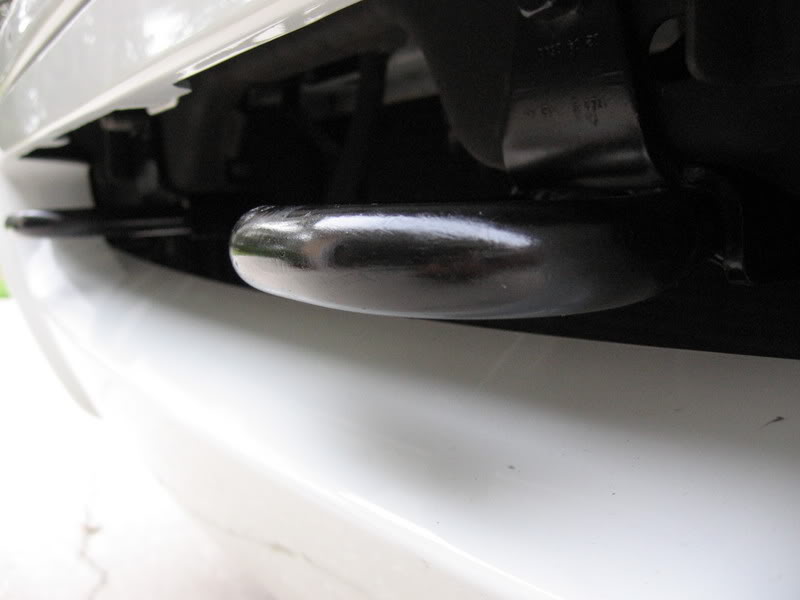

Name: july2007008.jpg Views: 47 Size: 33.1 KB

Reply Like
  #14
Old 12-11-2008
Robin Hood's Avatar
Member
iTrader: (2)
Join Date: Aug 2008
Location: AZ
Posts: 789
Likes: 0
Received 0 Likes on 0 Posts
Well I guess I don't need to take pictures anymore haha.

Reply Like
  #15
Old 12-11-2008
Sonic04Edge's Avatar
RF Veteran
Thread Starter
iTrader: (6)
Join Date: Jun 2004
Location: Madison. AL
Posts: 5,718
Likes: 0
Received 1 Like on 1 Post
Thanks for all the pictures guys!

Reply Like
  #16
Old 12-11-2008
Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Likes: 0
Received 2 Likes on 2 Posts
I tried taking mine off because I wanted to get Fx4 Level2 ones or put a billet grill there, any easy way of taking them off?

Reply Like
  #17
Old 12-11-2008
Redneckstone's Avatar
Level III Supporter
iTrader: (2)
Join Date: Jun 2004
Location: usa
Posts: 24,936
Likes: 0
Received 8 Likes on 8 Posts
Originally Posted by Ford04Ranger4.0
I tried taking mine off because I wanted to get Fx4 Level2 ones or put a billet grill there, any easy way of taking them off?
socket... ratchet...extention.. hands..

Reply Like
  #18
Old 12-11-2008
Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Likes: 0
Received 2 Likes on 2 Posts
Tried and no luck, know anywhere I can get Fx4 level2 hooks?

Reply Like
  #19
Old 12-12-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)
Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
Likes: 0
Received 1 Like on 1 Post
ebay,junkyards, and the worst place the dealership

Reply Like
  #20
Old 12-12-2008
Blackhawk's Avatar
Member
Join Date: Jun 2007
Location: WI
Posts: 586
Likes: 0
Received 1 Like on 1 Post
Originally Posted by 07SPORT
ebay,junkyards, and the worst place the dealership
Why? They aren't and cheaper than most ppl will let these coveted tow hooks go for.

Reply Like
  #21
Old 12-12-2008
Redneckstone's Avatar
Level III Supporter
iTrader: (2)
Join Date: Jun 2004
Location: usa
Posts: 24,936
Likes: 0
Received 8 Likes on 8 Posts
Originally Posted by Blackhawk
Why? They aren't and cheaper than most ppl will let these coveted tow hooks go for.
um lol i have never seen a set private go for $200 for a set.. being thats what the dealer wants...

i paid $60 shipped for mine..

Reply Like
  #22
Old 12-12-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)
Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Redneckstone
um lol i have never seen a set private go for $200 for a set.. being thats what the dealer wants...

i paid $60 shipped for mine..
thank you :-D

I was talking those plain black ones...wish I had level IIs

Reply Like
  #23
Old 12-13-2008
Blackhawk's Avatar
Member
Join Date: Jun 2007
Location: WI
Posts: 586
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Redneckstone
um lol i have never seen a set private go for $200 for a set.. being thats what the dealer wants...

i paid $60 shipped for mine..
Holy cow. last time i went to the dealer and asked how much they said 30 for XLT hooks and 110 for level II hooks. That must have been for one only though.

Reply Like
  #24
Old 12-13-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)
Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Likes: 0
Received 1 Like on 1 Post
Didn't I tell you Shane would chime in. Shane got it all.
