  #26
Old 10-14-2009
Patrickthenomad's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: Flint
Posts: 41
Quote:
Originally Posted by Bryan22 View Post
man that engine bay coulda used some paint while you had it open lol. lotta rust in there.
I'm riding my moped right now and it's getting pretty cold. Painting it would probably take me a week. I would like to expand upon this project at a later date though.

I'm having an issue right now though. The transmission crossover is rusted out and the bushings are toast. It's over $100 bucks for a new one at the dealer and I really don't want to pay that right now. I've included pictures of the crossover.

1. Does anyone think I could reuse this crossover as it is? Would it be cost effective to have a weld shop weld some metal on to it?

2. Does anyone know a good place to get bushings? I saw these..

No results found for ‘rs1869p performance’ - Auto Parts Warehouse)

but i'm not sure if they will be the right ones. As you can see I've measured the crossover so in theory I should be able to pick out the right bushings for the job. So unless someone bestows upon me the missing knowledge of the bushings fairy, I will probably do just that. Or I will fashion my own bushings with more hockey pucks and a hole saw.

























Regards

Patrick
Reply With Quote
  #27
Old 10-14-2009
Patrickthenomad's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: Flint
Posts: 41
I might just order this considering the bad shape of my crossmember.

https://www.trademotion.com/memberse...iteid%3D215005

I have the time though so it's hard to justify if its possible that I run around for a couple days but it only costs me $50 instead of $100.

Of course if the dang thing still does not work then I will have wasted time and money. Hmmm.
Reply With Quote
  #28
Old 10-14-2009
Patrickthenomad's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: Flint
Posts: 41
Quote:
Originally Posted by Bryan22 View Post
i had this exact same problem, with the oil pump letting go and also with the different EGR styles on the new and old motor. i just swapped all the wiring and the exhaust manifold and all of my know to be good sensors from my old motor the the one i found. everything went pretty smooth. one problem i ran into with re-installing the motor was the oil filter got in the way when trying to get the motor back onto the mounts. If i could do it over i'd leave the filter off until the motor was installed. also check the motor mounts while the motor is out of the truck. they are much easier to replace now then when the motor is back in. good luck.
Thanks for the tip on the oil filter. I went ahead and took it off. Good thing I did. I also replaced the motor mount BEFORE i put the engine in. I ended up only swapping the egr pipe.

I'm thinking that I need to replace the lifter chamber gasket though.
Reply With Quote
  #29
Old 10-14-2009
Patrickthenomad's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: Flint
Posts: 41
I did some more googling, (i've been doing a lot looking for this crossmember) and I found Mikestrucksalvage.com on another forum. I called him up and let him know exactly what I was looking for. He called me back promptly and let me know he had a "new looking" crossmember with the bolts! He gave me a very fair price and we did the transaction right there.

I'm excited!
Reply With Quote
  #30
Old 10-16-2009
Bryan22's Avatar
Member

Join Date: Nov 2008
Location: Lancaster, ca
Posts: 211
sweet. i was gonna say go have a look for one in better shape at a slavage yard. your old one is trashed. lol. thats good you found one.
Reply With Quote
  #31
Old 10-23-2009
Patrickthenomad's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: Flint
Posts: 41
Quote:
Originally Posted by Bryan22 View Post
sweet. i was gonna say go have a look for one in better shape at a slavage yard. your old one is trashed. lol. thats good you found one.
The part came very quickly and was exactly as described. Basically new. I bolted it on and it fits very nice. I will post pics soon. Promise.

Also, I started the truck today! It ran pretty good. I still need to bolt down the transmission to the crossmember, bolt back up the differential, secure the starter wires, bleed the clutch and fill the transmission.

Regards

Patrick
Reply With Quote
  #32
Old 10-28-2009
Patrickthenomad's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: Flint
Posts: 41

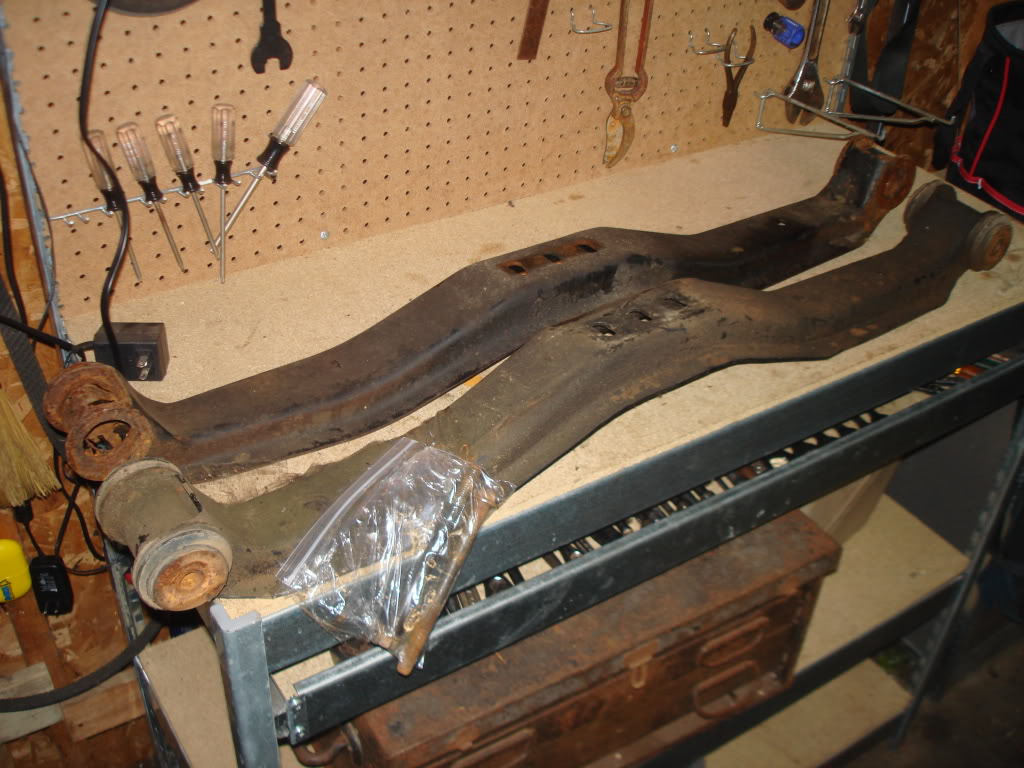

Here are the photos of the crossmember I bought from Mikes truck salvage.

I have everything all set for the truck. Everything is bolted down and the motor is running. But I'm having trouble bleeding the clutch right now. I searched the forums and saw someone mention a how to but I could not find it.

However I think I read enough to try again. I'm either going to gravity bleed from the bleeder valve while my GF keeps the master full or I'm going to get a vacuum bleeder. Any advice is always appreciated.

Name:  DSC04366.jpg
Views: 9
Size:  145.7 KB

Name:  DSC04367.jpg
Views: 10
Size:  106.2 KB

Name:  DSC04368.jpg
Views: 10
Size:  109.9 KB

Name:  DSC04370.jpg
Views: 10
Size:  148.4 KB

Regards,

Patrick
Reply With Quote
  #33
Old 10-29-2009
ace of texas's Avatar
Member

Join Date: Sep 2009
Location: saginaw, texas
Posts: 172
man that old one about had it didnt it?
Reply With Quote
  #34
Old 10-29-2009
87xlt's Avatar
Member

Join Date: Jun 2008
Location: In my truck!
Posts: 875
You should have a bleader valve on your slave crack that open after someone pumps the clutch peddle a couple of times have them hold pressure on the peddle and crack the bleader valve open untill fluid/air flows from it tighten the valve and have the person in the cab pump the peddle again. Repeate untill no more air flowes from the valve it's just like bleading your brakes.

Oh and your old crossmember was tost!
Reply With Quote
  #35
Old 10-29-2009
Patrickthenomad's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: Flint
Posts: 41
I found a video on youtube on bleeding my clutch! I cut the hose to my master cylinder (when pulling out the engine, and I used a barbed connector to make a union) so I'm pretty sure after 2 hours of bleeding that I have air that I cannot get out without bench bleeding. So I'm just going to get a new master cylinder. Here is the video

YouTube - Ford Ranger & Mazda B-Series Pickup Clutch Hydraulic Release System Bleeding Procedures
Reply With Quote
  #36
Old 10-29-2009
Patrickthenomad's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: Flint
Posts: 41
Finally! I had to pull my master cylinder off and stretch it out to bleed it. I had air deep in that was not coming out unless I did so. I also did not know that the master had to be completely stiff before hooking it up to the slave. The video on youtube taught me that.

I drove the truck today!! No power steering but I think I just need to add more fluid. I hope to have a clean truck picture soon!

Thanks everyone.
Reply With Quote
  #37
Old 11-02-2009
87xlt's Avatar
Member

Join Date: Jun 2008
Location: In my truck!
Posts: 875
Hell yea man nice aint it!
