2.3L & 2.5L I4 Tech General discussion of 2.3L and 2.5L I4 Ford Ranger engines.

How do you pull a distributor?

Thread Tools

Search this Thread

Old Aug 23, 2009
  #1
Trigger01's Avatar
Thread Starter
|
RF Veteran
iTrader: (2)
Joined: Oct 2005
Posts: 18,788
Likes: 4
From: Knoxville, TN
How do you pull a distributor?

How do you pull the distributor out of an engine? I have a Hayes Manual, but ti didn't help to much. Your help is greatly appreciated!

Mike

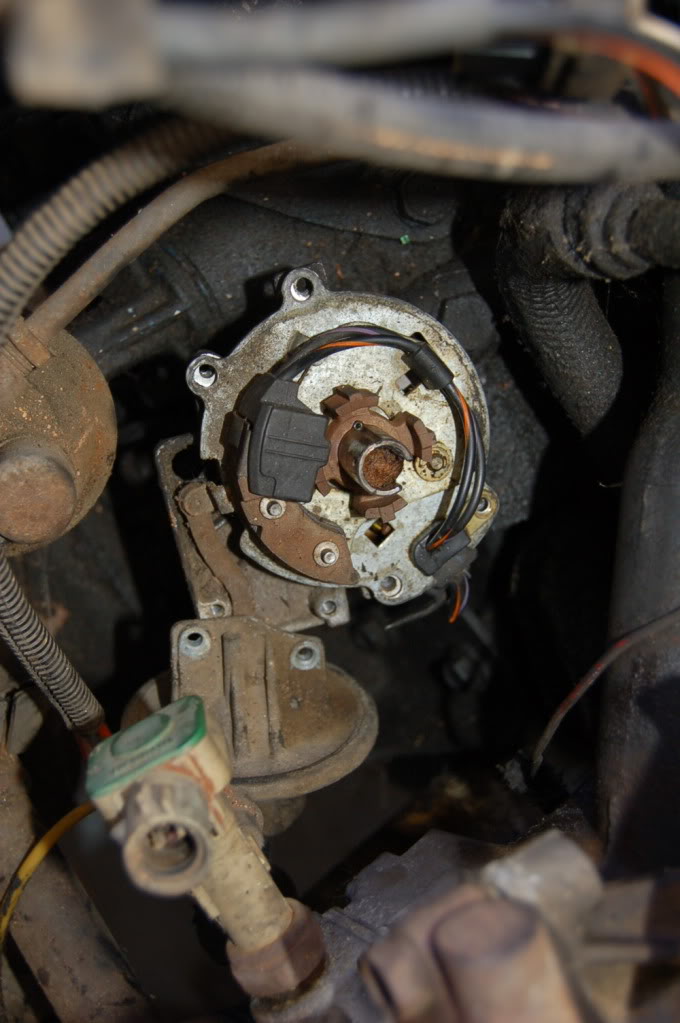

Old one to come out:
Name:  DSC_0004-7.jpg
Views: 3358
Size:  115.6 KB


New one to go in:
Name:  DSC_0005-4.jpg
Views: 1687
Size:  127.7 KB

Reply
Old Aug 23, 2009
  #2
Redneckstone's Avatar
Level III Supporter
iTrader: (2)
Joined: Jun 2004
Posts: 24,936
Likes: 11
From: usa
bolt and clamp holding it down should be that one on the upper right look and see if there is a flat piece of metal under that bolt over the dist... if so remove bolt metal and pull striaght out

Reply
Old Aug 23, 2009
  #3
Redneckstone's Avatar
Level III Supporter
iTrader: (2)
Joined: Jun 2004
Posts: 24,936
Likes: 11
From: usa
kinda like this... every vehicle little different






Reply
Old Aug 23, 2009
  #4
Trigger01's Avatar
Thread Starter
|
RF Veteran
iTrader: (2)
Joined: Oct 2005
Posts: 18,788
Likes: 4
From: Knoxville, TN
There is no bolt or screw visible to take off right now.

Reply
Old Aug 23, 2009
  #5
Redrocket's Avatar
Member
iTrader: (6)
Joined: Jan 2007
Posts: 1,993
Likes: 0
From: Waynesville n.c

Reply
Old Aug 23, 2009
  #6
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)
Joined: May 2005
Posts: 21,721
Likes: 17
From: Boring, Oregon
^^Yup....bolt circled above should be it. Take that puppy out, and slide the distrib straight out it's hole. But before you slide it out, take note to where the rotor is pointing, when you install the new one, you'll want it in the same location as it was before.

Reply
Old Aug 24, 2009
  #7
Trigger01's Avatar
Thread Starter
|
RF Veteran
iTrader: (2)
Joined: Oct 2005
Posts: 18,788
Likes: 4
From: Knoxville, TN
I see it now. I don't know how I missed that. Thanks for helping the blind.

Reply
Old Aug 24, 2009
  #8
Redneckstone's Avatar
Level III Supporter
iTrader: (2)
Joined: Jun 2004
Posts: 24,936
Likes: 11
From: usa
lol

Reply
Old Aug 24, 2009
  #9
Redrocket's Avatar
Member
iTrader: (6)
Joined: Jan 2007
Posts: 1,993
Likes: 0
From: Waynesville n.c
lol

Reply
Old Aug 24, 2009
  #10
Trigger01's Avatar
Thread Starter
|
RF Veteran
iTrader: (2)
Joined: Oct 2005
Posts: 18,788
Likes: 4
From: Knoxville, TN
I'm so glad I could be here for entertainment purposes. I got it out though, took me less than a minute. I'll put the new one in tomorrow. I was really itching to see how hard it was going to be to get out.

Reply
