Injectors?

Hi guys, I have a problem. I think my fuel injectors are shot. When I am in 1st 2nd or 3rd gear and I let off of the gas the truck starts to buck lightly then it gets worse if I do not hit the gas or clutch. Also when its idling it struggles to stay alive even after it warms up. Does this sound like the injectors? If so should I stick with stock or go aftermarket? Also how much should I pay for aftermarket? And will I get any performance boost from aftermarket? Thanks guys.
Reply With Quote
  #2
Old 06-27-2011
Timberwolf's Avatar
Member

Join Date: Oct 2010
Location: East coast Canada
Posts: 706
Wirelessly posted (Timberwolf)

Could be.....give your vac line, plugs a gander.

Last edited by Timberwolf; 06-27-2011 at 07:35 AM.
Reply With Quote
  #3
Old 06-27-2011
hurley's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
Where are the located and what do they look like? Also what am I looking for?
Reply With Quote
  #4
Old 06-27-2011
Timberwolf's Avatar
Member

Join Date: Oct 2010
Location: East coast Canada
Posts: 706
Wirelessly posted (Timberwolf)

I would have to check my Haynes book, but I do know to gain access to the injectors you would have to remove the upper intake manifold. But, if you were to work on this system, you must relieve fuel pressure. There are critcal steps for removing injectors. Personally, I dont have the guts to work on injectors, seeming you must know what your doing. Im sure some gearheads will chime in on injector removal help. Sorry buds and good luck.

Last edited by Timberwolf; 06-27-2011 at 07:59 AM.
Reply With Quote
  #5
Old 06-27-2011
hurley's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
If its really that tricky then I don't think I can trust myself to do it. I'm gonna look through my haynes book and check it out.
Reply With Quote
  #6
Old 06-27-2011
Clinton's Avatar
Member
iTrader: (19)

Join Date: Dec 2010
Location: PA.
Posts: 1,417
I dont think its your injectors. When was the last time you checked the coil pack, plugs and wires?
Reply With Quote
  #7
Old 06-27-2011
hurley's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
not since i bought the truck. i have only put like 5*** on the plugs and wires, but the coil pack wasnt changed.
Reply With Quote
  #8
Old 06-27-2011
Timberwolf's Avatar
Member

Join Date: Oct 2010
Location: East coast Canada
Posts: 706
Wirelessly posted (Timberwolf)

Do you have a code reader? Sounds like one of your chambers are mis firing by your discription.
Reply With Quote
  #9
Old 06-27-2011
hurley's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
My CEL is on but I havnt gotten it checked yet.
Reply With Quote
  #10
Old 06-27-2011
Timberwolf's Avatar
Member

Join Date: Oct 2010
Location: East coast Canada
Posts: 706
Wirelessly posted (Timberwolf)

I wouldn't want you to frig up your rig man. You should park it until you find out what code your throwing. IMHO
Reply With Quote
  #11
Old 06-27-2011
hurley's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
yeah im only driving it if i absolutly have to
Reply With Quote
  #12
Old 07-07-2011
hurley's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
So I'm stumped. I just replaced my wires and it still runs like crap. My CEL turned off for a little while but its back. It doesn't want to start. It will be cracking for fifteen seconds three or four times before it starts. The idle is really rough like vroom...vroom...vroom. could this be my coil pack? My plugs and wires are new. WTF!!!! I havnt gotten the codes read yet, just wonderin if anyone can give me an idea whats wrong.
Reply With Quote
  #13
Old 07-08-2011
hurley's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
Bump I need to fix this
Reply With Quote
  #14
Old 07-08-2011
Vonhanson's Avatar
Member
iTrader: (5)

Join Date: Sep 2009
Location: Glencoe, Minnesota
Posts: 1,609
go get your codes read, then we can help you out a lot easier.
Reply With Quote
  #15
Old 07-08-2011
hurley's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
im gonna try today but im scared to drive it
Reply With Quote
  #16
Old 07-08-2011
Vonhanson's Avatar
Member
iTrader: (5)

Join Date: Sep 2009
Location: Glencoe, Minnesota
Posts: 1,609
then go buy a reader, you'll have it for the future then and will help save money by not replacing parts that don't fix the problem.

my 70 some dollar UltraGauge reads codes. you should just pick one of those up, plus you can monitor different readings all at once.
Reply With Quote
  #17
Old 07-08-2011
hurley's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
got my codes read. the guy at the auto parts store said its my EGR valve or a vacuum leak. i bought a new EGR valve and will be putting that in today.
Reply With Quote
  #18
Old 07-08-2011
hurley's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
so it was the EGR valve. there was something jammed in it holding it open.

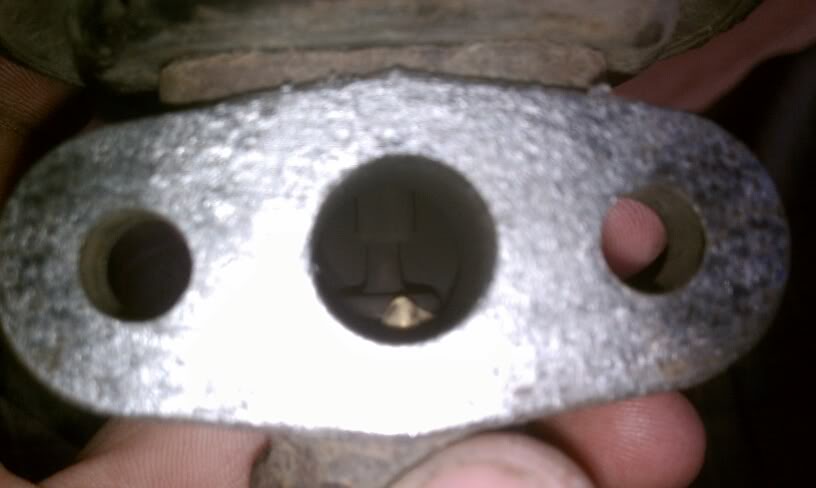

side hole
Name:  439edab5-orig.jpg
Views: 1
Size:  32.3 KB

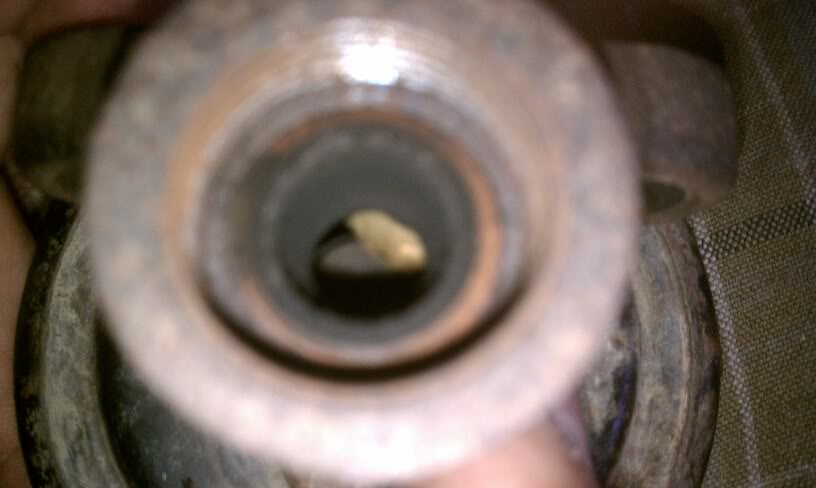

bottom hole
Name:  8ce8c09f-orig.jpg
Views: 1
Size:  37.3 KB
Reply With Quote
  #19
Old 07-08-2011
Timberwolf's Avatar
Member

Join Date: Oct 2010
Location: East coast Canada
Posts: 706
Wirelessly posted (Timberwolf)

Hell yeah bro.....so is she alive and running? Long way from injector problems huh. Good to here you found the culprit.

Last edited by Timberwolf; 07-08-2011 at 05:51 PM.
Reply With Quote
  #20
Old 07-08-2011
hurley's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
she is running great! i didnt know the EGR valve could f up the truck that bad. its the first time the truck has been running correcty since i got it (long story).
Reply With Quote
  #21
Old 07-11-2011
Kris03's Avatar
Member

Join Date: Jun 2011
Location: glastonbury, ct
Posts: 1,236
newbie here but whats a EGR Valve?
Reply With Quote
  #22
Old 07-11-2011
hurley's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
Give me two minutes and ill go take a pic
Reply With Quote
  #23
Old 07-11-2011
hurley's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
Name:  bcd92d9c-orig.jpg
Views: 0
Size:  55.7 KB
Name:  af94a0ea-orig.jpg
Views: 1
Size:  55.5 KB
Reply With Quote
  #24
Old 07-11-2011
Kris03's Avatar
Member

Join Date: Jun 2011
Location: glastonbury, ct
Posts: 1,236
oh i seen that before ha..any idea what it does? or how that happened to you?
Reply With Quote
  #25
Old 07-12-2011
hurley's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488

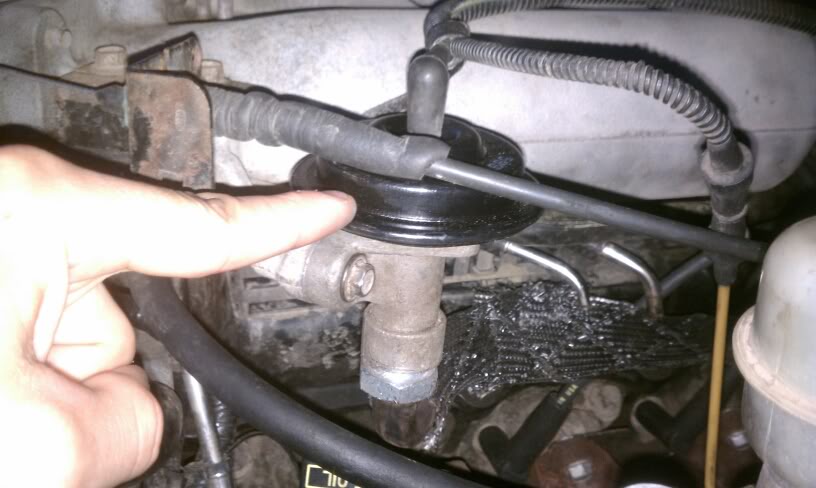

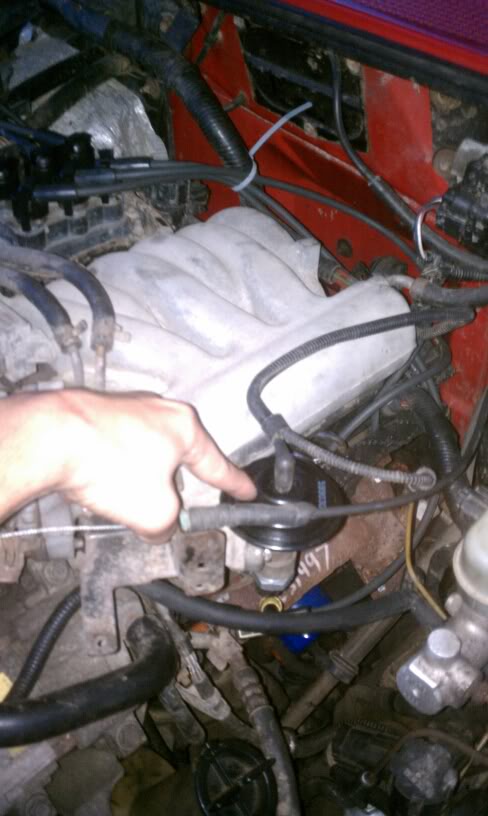

in the first pic you can see the "EGR Tube" (pipe which runs from the valve to the block). the guy who owned the truck before me had a hole in it which is not good. he decided to try to weld it closed (which didnt work), a piece of the weld broke off and got jammed in the valve holdoing it open. im no 100% on what its function is, something to do with your fuel to air ratio or exhaust or something along those lines.
