Oil Cooler.... - Page 2 - Ranger-Forums - The Ultimate Ford Ranger Resource


2.9L & 3.0L V6 Tech General discussion of 2.9L and 3.0L V6 Ford Ranger engines.

Reply

LinkBack Thread Tools Search this Thread
  #26
Old 10-21-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by knightmare1015 View Post
well lets go haul off some crap. and see about some parts. I'll see you guys later. Nothing personal Trent, but it just takes alot of money for these things to happen dude. I just hope that you understand man.
I understand completely but you've done this like 4 times and we have yet to see anything done to your truck.
Reply With Quote
  #27
Old 10-21-2008
04 EDGE
Unregistered User

Posts: n/a
^useless comment

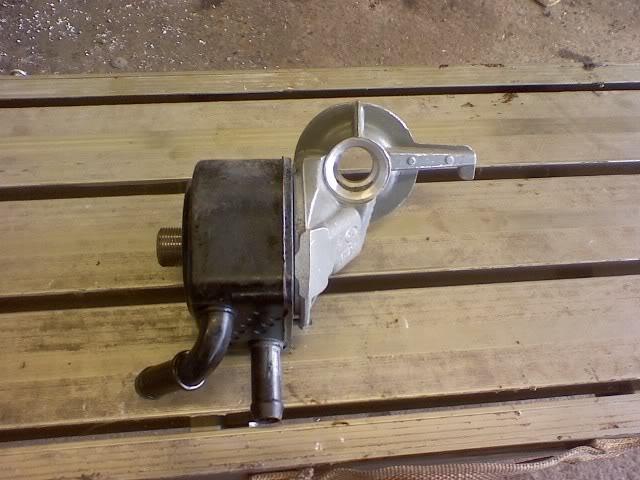

anyway, you could install one of these

Name:  0130081150b.jpg
Views: 0
Size:  59.1 KB

i'm not sure if it would fit in the engine compartment on the 3.0. this is off a newer explorer and you would have to run heater hoses to it and use the larger FL820s filter

next time i change my oil (gasp) i'll see how it looks
Reply With Quote
  #28
Old 10-21-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
What is that Mark?
Reply With Quote
  #29
Old 10-21-2008
04 EDGE
Unregistered User

Posts: n/a
that is a OEM factory installed oil cooler.
Reply With Quote
  #30
Old 10-21-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
you got the inlet an outlet for the cooling lines/rad if you will....i like the idea. But is there really a benefit to installing one on one of our engines?
Reply With Quote
  #31
Old 10-21-2008
04 EDGE
Unregistered User

Posts: n/a
i dont see any benefit of installing an engine oil cooler on a 3.0.

then again i do not see any down sides to installing it either.

the engine oil will be the same temp as the coolant, this is what ford is aiming for as coolant is used to cool the oil. in extreme conditions it could help i guess. from the transmission info i have seems that the same principle apply's to transmission fluid, all newer ford transmission have a internal PCM controlled fluid temp sensor and fluid flow valve. the PCM will not allow fluid to flow through the cooler until it reaches a set temp. the temp is usually the same maybe a little lower then coolant temp, 195 degrees.

although i have no no links to post to back this up nor can i offer any engineering advice.

all you would need to do is tap into your heater hoses.
Reply With Quote
  #32
Old 10-22-2008
Member
Thread Starter

Join Date: Feb 2008
Location: unknown
Posts: 890
Icon6

Quote:
Originally Posted by 04 EDGE View Post
i dont see any benefit of installing an engine oil cooler on a 3.0.

then again i do not see any down sides to installing it either.

the engine oil will be the same temp as the coolant, this is what ford is aiming for as coolant is used to cool the oil. in extreme conditions it could help i guess. from the transmission info i have seems that the same principle apply's to transmission fluid, all newer ford transmission have a internal PCM controlled fluid temp sensor and fluid flow valve. the PCM will not allow fluid to flow through the cooler until it reaches a set temp. the temp is usually the same maybe a little lower then coolant temp, 195 degrees.

although i have no no links to post to back this up nor can i offer any engineering advice.

all you would need to do is tap into your heater hoses.
Thanks. I appreciate that. I got a quote today for paint. $350 bucks maybe $400. Napa has a full line of OEM paints and some custom kolors. Acrylic Enamel 8 parts paint, 4 parts thinner, and 1 part hardener. Not bad at all. $1,300 for the Chevy 350 minus the intake manifold, Carb and valve covers. Plus I got the number for a very reliable speed shop locally. Now All I have to do is save up money.
Reply With Quote
  #33
Old 10-23-2008
mj550's Avatar
Member

Join Date: Apr 2006
Location: USA
Posts: 601
Quote:
Originally Posted by My91Ranger View Post
I would look into the colder thermostat though
I wouldent do that on an 04, I have a 180degree one and get a code for the coolent not being up to temp. Im going back to the stock one.
Reply With Quote
  #34
Old 10-24-2008
Member
Thread Starter

Join Date: Feb 2008
Location: unknown
Posts: 890
Quote:
Originally Posted by mj550 View Post
I wouldent do that on an 04, I have a 180degree one and get a code for the coolent not being up to temp. Im going back to the stock one.
Thanks man. I guess I just better start saving up some dough. I've already got a little saved up. I can get a chevy 350 easier than anything else and for sure alot cheaper. I really wanted to do the 5.7 Hemi with MDS swap but it was way the hell up there. $8,000 for a new one, and about 1/2 for a used one. The used one was an 05 which that model year didn't perform so well. Now they use solid components and shut fuel and air off to 4 of the cylinders.
Reply With Quote
  #35
Old 10-24-2008
mj550's Avatar
Member

Join Date: Apr 2006
Location: USA
Posts: 601
Quote:
Originally Posted by knightmare1015 View Post
Thanks man. I guess I just better start saving up some dough. I've already got a little saved up. I can get a chevy 350 easier than anything else and for sure alot cheaper. I really wanted to do the 5.7 Hemi with MDS swap but it was way the hell up there. $8,000 for a new one, and about 1/2 for a used one. The used one was an 05 which that model year didn't perform so well. Now they use solid components and shut fuel and air off to 4 of the cylinders.
Not a problem, just giving you a heads up
Reply With Quote
  #36
Old 10-25-2008
wydopnthrtl's Avatar
Member
iTrader: (2)

Join Date: Dec 2005
Location: SE, Mi
Posts: 2,342
Quote:
Originally Posted by knightmare1015 View Post
All I'm really looking for is a bit more MPG's without having to do any weight reduction.
Don't want to drag down this thread any more.. however cooling the oil will do the opposite of what you desire.

Without getting into the specifics of oil weights and such.. the cooler an engine oil is the harder it is to pump. If you want to gain mpg.. go with a thinner and semi or fully synthetic oil. You want hot oil.. not cold to remove parasitic losses.


Rich
Reply With Quote
  #37
Old 10-25-2008
wydopnthrtl's Avatar
Member
iTrader: (2)

Join Date: Dec 2005
Location: SE, Mi
Posts: 2,342
Quote:
Originally Posted by mj550 View Post
I wouldent do that on an 04, I have a 180degree one and get a code for the coolent not being up to temp. Im going back to the stock one.

In you sig you say you have a tuner. Your tuning person can lower the temps by 10F and it would fix that.

Rich
Reply With Quote
  #38
Old 10-25-2008
Level I Supporter

Join Date: Aug 2006
Location: Durham, NC
Posts: 3,657
Quote:
Originally Posted by mj550 View Post
I wouldent do that on an 04, I have a 180degree one and get a code for the coolent not being up to temp. Im going back to the stock one.
The stock thermostat (195) will give you less engine wear, and better MPG.
Reply With Quote
  #39
Old 10-26-2008
mj550's Avatar
Member

Join Date: Apr 2006
Location: USA
Posts: 601
Quote:
Originally Posted by Takeda View Post
The stock thermostat (195) will give you less engine wear, and better MPG.
Yeah, I put a new stock motorcraft one back in there last night and all is well.
Reply With Quote
  #40
Old 10-26-2008
wydopnthrtl's Avatar
Member
iTrader: (2)

Join Date: Dec 2005
Location: SE, Mi
Posts: 2,342
Quote:
Originally Posted by Takeda View Post
The stock thermostat (195) will give you less engine wear, and better MPG.
Better MPG yes.. less wear no.
Reply With Quote
  #41
Old 10-26-2008
Level I Supporter

Join Date: Aug 2006
Location: Durham, NC
Posts: 3,657
Quote:
Originally Posted by wydopnthrtl View Post
Better MPG yes.. less wear no.
Less wear due to contaminants being removed from the oil faster at the higher temps, and less gas in the oil, due to the leaner mixtures.
Reply With Quote
  #42
Old 10-26-2008
Member
Thread Starter

Join Date: Feb 2008
Location: unknown
Posts: 890
Quote:
Originally Posted by mj550 View Post
Not a problem, just giving you a heads up
Thanks I appreciate that man.
Reply With Quote
