Icon9 1994 4.0L OHV Emissions help

Hello all. First, just want to say I love this site. Lots of great people sharing knowledge and the information within this site is invaluable!! That said, I need some advice....

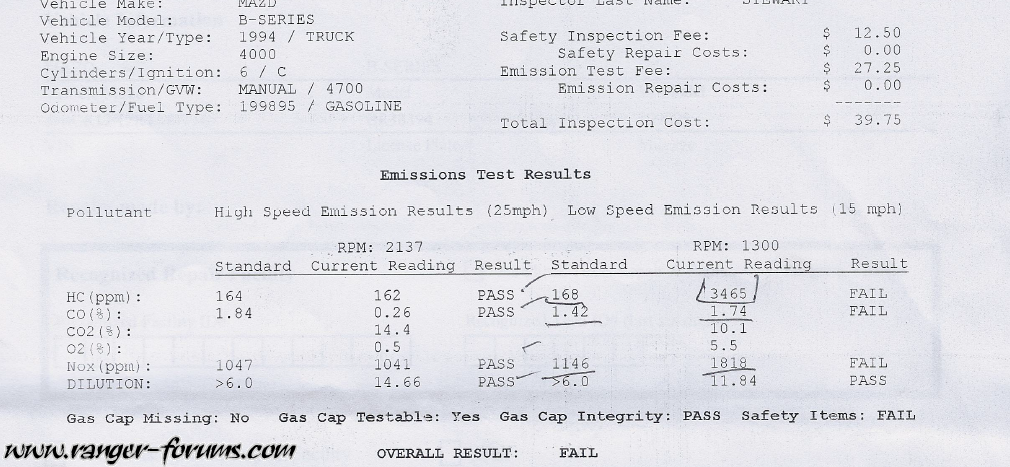

I've got a 94 Mazda B4000 (4.0l OHV) - when I purchased it 4 months ago, this thing was a dog. It barely ran!! I took it to get inspected and of course, it failed. Results below -





.....but thanks to the people on this site, I was able to diagnose and replace the following....MAF, intake manifold gaskets (upper and lower), IAC, plugs, plug wires, & coil pack. I've also removed and cleaned the throttle body. HUGE improvement - truck runs great!!! Still has a small miss but I think its my air intake tube (cracked where it connects to the throttle body).

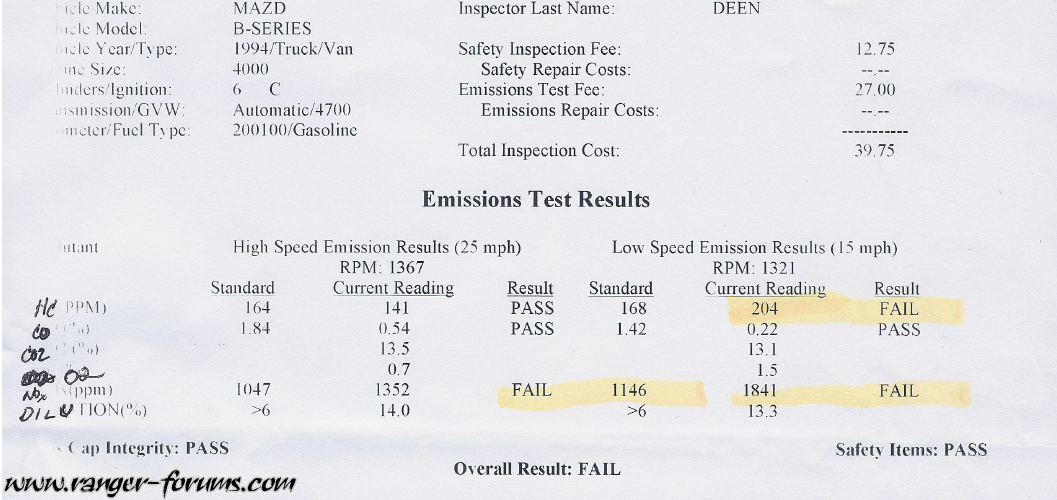

I took it in to get inspected last Tuesday and I was shocked that it failed again. Results below -





Here's my question. What else can I do to adjust/correct the HC levels @ 15mph and the NOx levels?
.
.
.
Attached Thumbnails
1994 4.0L OHV Emissions help-texasdave-45614-albums-6-12-13-2503-picture-emissions-1-15015.png   1994 4.0L OHV Emissions help-texasdave-45614-albums-6-12-13-2503-picture-emission-2-15016.png

Last edited by TexasDave; 06-12-2013 at 11:39 PM.
Reply With Quote
  #2
Old 06-14-2013
patkelly1336's Avatar
Member

Join Date: Mar 2011
Location: Elm Grove, Wisconsin
Posts: 209
Wow dude. I thought emissions tests here in Wisconsin were bad, but ours only tell you on a pass/fail basis, no actual results. From what I know, here in Wisconsin, Pre-1996 vehicles don't have to pass emissions because they utilize an OBD1 style plug, which our newer emissions stations do not test for.
Reply With Quote
  #3
Old 06-14-2013
Member
Thread Starter

Join Date: Jun 2013
Location: Nashville
Posts: 2
Yeah, Texas seems a little strict.

I did some more looking around under the hood. My air intake hose/tube was cracked where it connects to the throttle body. This is probably the intake/vacuum leak I was looking for. I cut the broken pieces off but now the hole is too big. When I tighten the clamp, it leaves about 1/8 to 1/4 size hole/leak because the plastic is folding over.

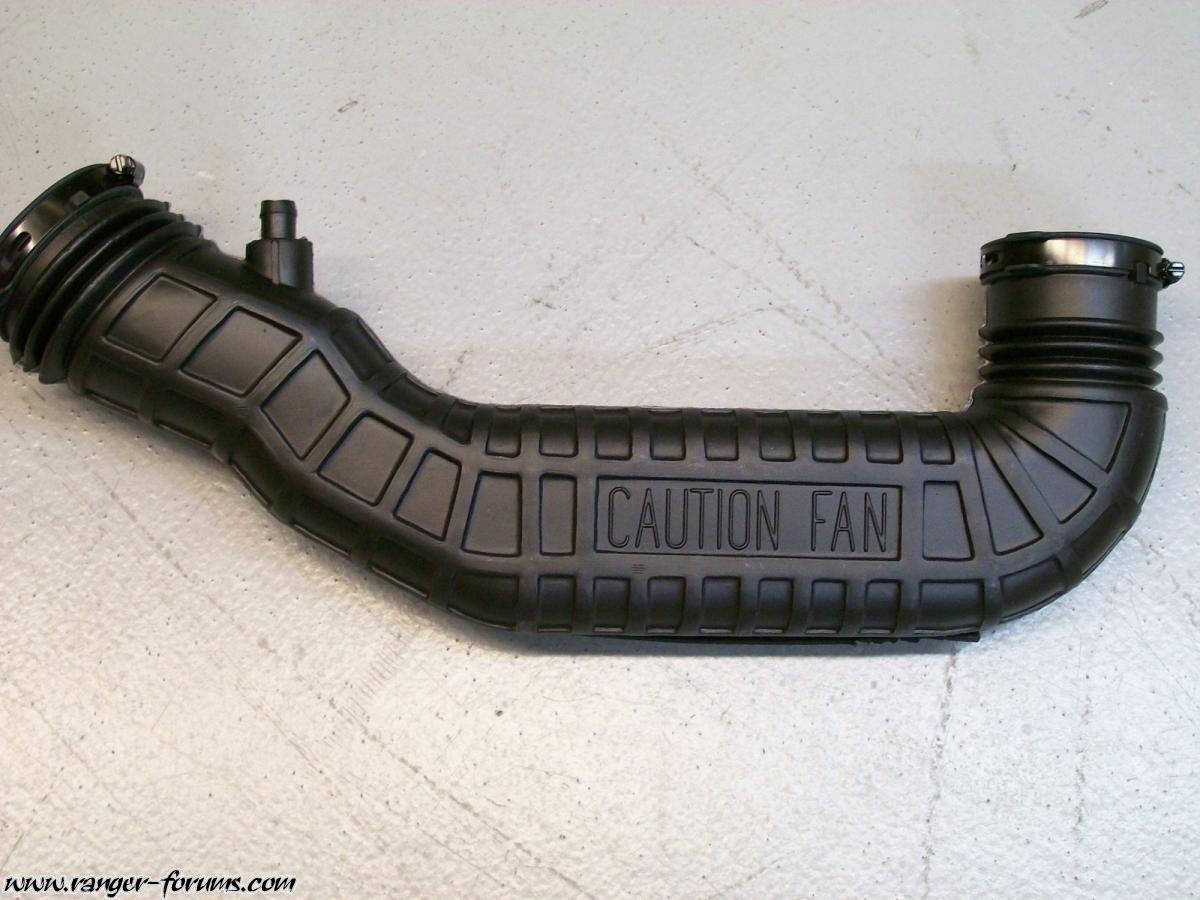

I called a couple of yards near me to find a part but didn't have any luck. Anybody got one? I believe the part I need is interchangeable with 92-94 4.0l Ranger's and Explorer's. Here's a pic of the part.

Attached Thumbnails
1994 4.0L OHV Emissions help-texasdave-45614-albums-6-12-13-2503-picture-intake-tube-15017.jpg

Last edited by TexasDave; 06-14-2013 at 09:57 PM.
Reply With Quote
