A/C Line has a hole in it.

Well, title says it all. After my body lift, I had to zip tie my a/c line (running from the compressor the drier, under the pulleys) to hold it back from rubbing on the pulleys. Well, I didn't notice, but the top end of the line (the metal part) was rubbing up against the alternator, and it rubbed a hole in it, and now I have no a/c. I'm hoping that replacing that hose, and recharging the system will give me a/c again.

Anybody have experience with replacing this line? How involved is it? Any special tools I will need to buy/rent? With that line having a hole in it... do you think my compressor is still ok? Am I going to have the remainder


On to the pics... the hole is in the bend in that metal line to the left of the alternator. It's hard to see.
Name:  IMG_0301.jpg
Views: 3
Size:  78.1 KB

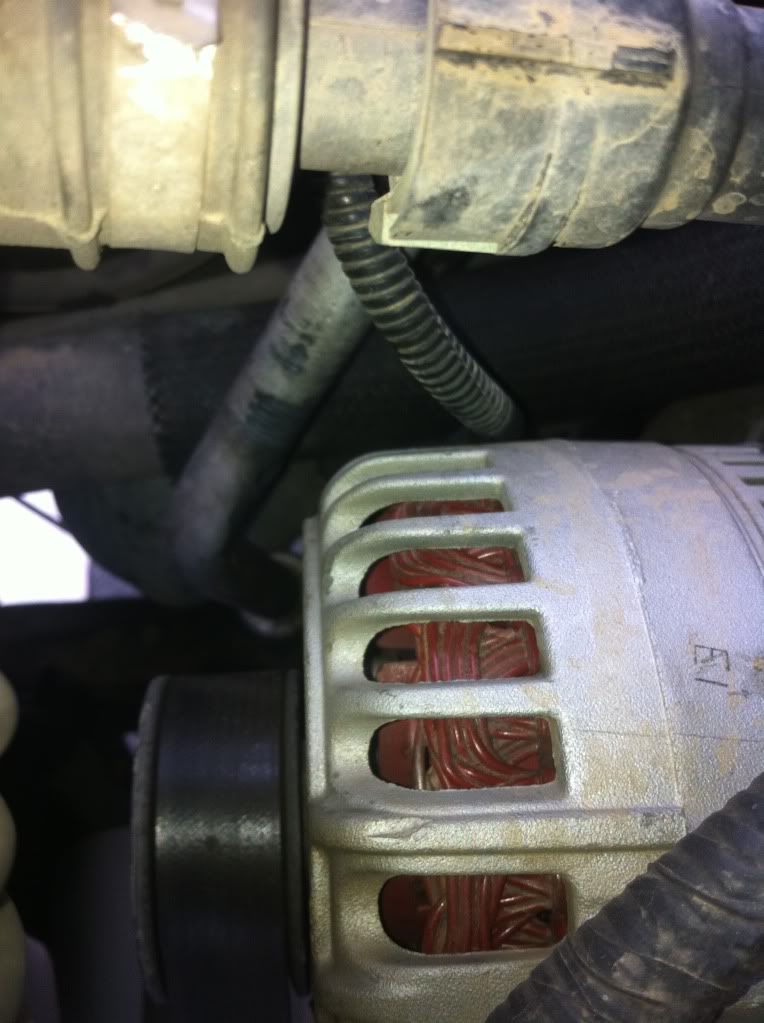

Name:  IMG_0302.jpg
Views: 5
Size:  93.8 KB
Name:  IMG_0303.jpg
Views: 4
Size:  102.3 KB

And this is the replacement line I got from a junk yard.
Name:  IMG_0452.jpg
Views: 4
Size:  129.5 KB

Thanks in advance for any help you all can provide before I dive into this.
Reply With Quote
  #2
Old 01-16-2011
mudranger96's Avatar
Member

Join Date: Oct 2005
Location: Lehigh Acres, FL
Posts: 2,549
Once you have the new line on you will have to evacuate the system to remove any air and noncondensables with a vacuum pump. Then you can recharge the system.
Reply With Quote
  #3
Old 01-16-2011
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Good to know, thanks. I'm sure i'll end up taking it somewhere to get re-charged, i just dont wanna pay labor to put it on. Hopefully they will know to do that, and i will certainly bring it up.
Reply With Quote
  #4
Old 01-16-2011
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Doing a little more research on the subject, it looks like I will probably want to replace the o-rings on the back side of the compressor when I change this hose out. And I think I read that I will need a fuel line disconnect tool to remove the hose from the drier/accumulator... it's held on by a clip and then it's round with what looks like a spring inside of it. Also, if I want to re-charge myself.. I need to either buy or rent a vacuum pump and evacuate the system myself, and then by some cans of refridgerant at pep boys, and I will need the charging hose w/ the gauge on it. Anything I'm not thinking of?

Is there more o-rings than just the ones on the back of the compressor that I'll need to replace? And I'll have to take a closer look at how to get the line off of the condenser as well.

Also, seeing as I have a hole in this line... I shouldn't need to get the refrigerant recovered at a shop should I? I would think it had all leaked out and the system is no longer pressurized? Please correct me if I'm wrong in this assumption... I have never tried to re-charge an A/C system and just want to go into it as informed as possible.

Here is the the ends of the "new" hose I got from the J/Y.

The end going into the condenser.
Name:  IMG_0457.jpg
Views: 2
Size:  66.1 KB

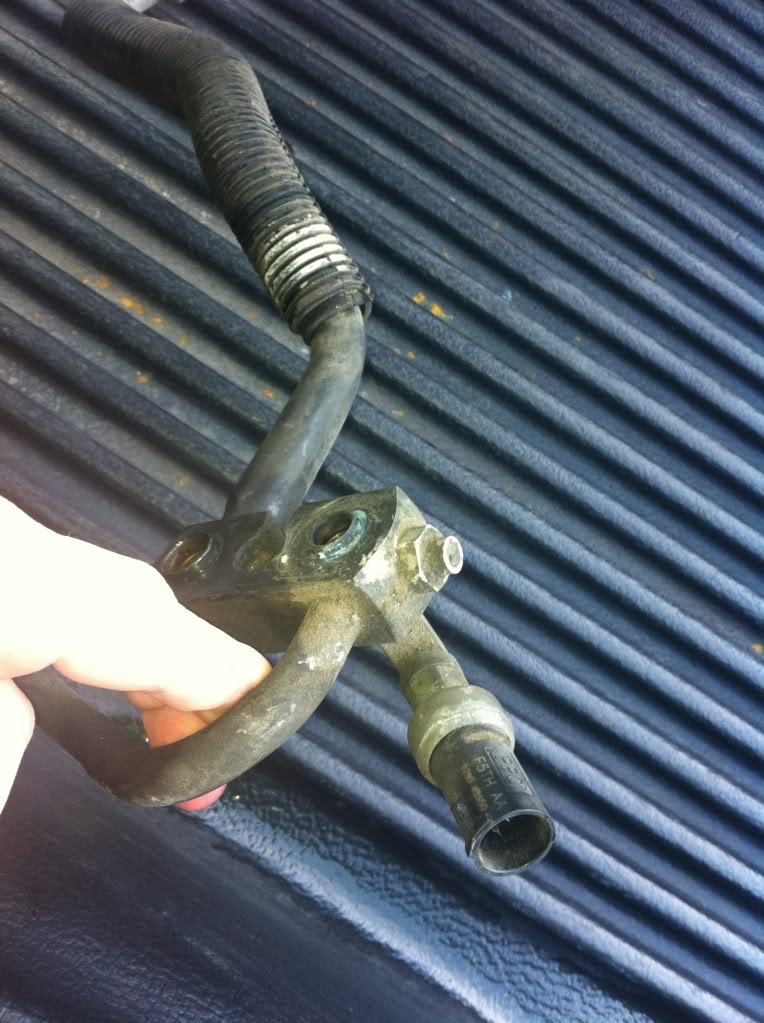

The end going into the back of the compressor.
Name:  IMG_0458.jpg
Views: 4
Size:  129.6 KB

The end going into the drier/accumulator w/ the spring thing.
Name:  IMG_0459.jpg
Views: 3
Size:  72.9 KB

Any help is greatly appreciated. Thanks :)

Last edited by RLong31; 01-16-2011 at 05:14 PM. Reason: added pictures for clarity :)
Reply With Quote
  #5
Old 01-16-2011
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Also... what should I use to clean the inside of the "new" line... it looks dirty and it was sitting outside in a J/Y for who knows how long... any suggestions there as well?
Reply With Quote
  #6
Old 01-17-2011
RLong31's Avatar
The Ban Hammer
Thread Starter
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Bump...
Reply With Quote
  #7
Old 01-17-2011
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
Use carb or brake cleaner and compressed air to clean it. Replace the seals for sure, then you can keep your AC.
