How much trans fluid?
#1
#2
Dropping TrannyPan & changing TrannyFilter does NOT fully drain all the ATF in the Tranny, roughly half the capacity,
so you'll likely need 5~7qts of fresh MerconV to refill, after installing a new Filter + PanGasket + reinstalling Pan.
Buy 2 GallonJugs or 8 QtBottles, then handpump ~1qt from TrannyDipTube every 6mths & refresh with the leftover MerconV.
so you'll likely need 5~7qts of fresh MerconV to refill, after installing a new Filter + PanGasket + reinstalling Pan.
Buy 2 GallonJugs or 8 QtBottles, then handpump ~1qt from TrannyDipTube every 6mths & refresh with the leftover MerconV.
#4
When you drop TrannyPan+Filter, 5~7 quarts will come down with those; messy, so have several shop rags handy.

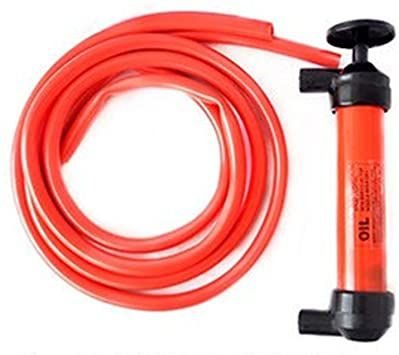

Can minimize mess by first HandPumping 1~2qts from DipTube; I use a HandPump per pic below, kept in a large OilTight ZipLockBag between uses.
After new Filter+PanGasket is installed & Pan is reinstalled, refill Tranny with fresh MerconV until level is just above High on DipStick.
Do a short 15~20min test drive to get Tranny fully warm; check ATF level with Engine IdlingInPark on flat ground;
level should now be lower on DipStick; again IdlingInPark, top off ATF until level is in Upper3rd between marks.
I usually check ATF DipStick one more time after next drive, IdlingInPark; then monthly routine, unless a drip on floor, then I'll check all fluids.
Hope this helps.
Last edited by DILLARD000; 03-16-2022 at 05:23 AM.
#5
The following users liked this post:
DILLARD000 (03-16-2022)
