how much merc V for a trans fluid change? - Ranger-Forums - The Ultimate Ford Ranger Resource


Drivetrain Tech General discussion of drivetrain for the Ford Ranger.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 08-13-2007
Member
Thread Starter

Join Date: Aug 2007
Location: usa
Posts: 166
how much merc V for a trans fluid change?

going to do my filter and fluid in a couple of days, but needed to know how much I need to have on hand and how much to expect to catch.
Reply With Quote
  #2
Old 08-13-2007
04 EDGE
Unregistered User

Posts: n/a
depends on how you do it.
if you just pull the pan and replace the filter 4-5 quarts.
the proper way to drain a ford transmission and get 98% of the fluid out is to un-hook one of the trans lines, put a hose on both ends and place them in a drain pan or 5 gallon bucket then start the engine, leave it in park and let it run untill no more fluid comes out.

then you will need 9-10 quarts, plus when you pull the pan you wont make as big of a mess.

Last edited by 04 EDGE; 08-14-2007 at 10:12 PM.
Reply With Quote
  #3
Old 08-13-2007
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
Quote:
Originally Posted by 04 EDGE
depends on how you do it.
if you just pull the pan and replace the filter 4-5 quarts.
the proper way to drain a ford transmission and get 98% or the fluid out is to un-hook one of the trans lines, put a hose on both ends and place them in a drain pan or 5 gallon bucket then thart the engine, leave it in park and let it run untill no more fluid comes out.

then you will need 9-10 quarts, plus when you pull the pan you wont make as big of a mess.

Not a good idea. Once the sump is dry there is no more lubrication for the transmission.


A better way is to pour fluid in as it comes out. Put in about 12 quarts then reinstall the line and top off as needed.

FYI, the trans will pump about a quart every 30 seconds at 1000 rpm.
Reply With Quote
  #4
Old 08-13-2007
04 EDGE
Unregistered User

Posts: n/a
wow so the ford service manual is wrong???????

this is how ford says to drain the transmission.

this is how i drained mine before i did the 2x4 to 4x4 internal trans swap work, i have had no problems with it after the swap.

this is how i drain every ford transmission at the shop i work at before i do any heavy transmission repair.

Reply With Quote
  #5
Old 08-13-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
dont you have issues with air if you do that mark?
Reply With Quote
  #6
Old 08-14-2007
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
Quote:
Originally Posted by 04 EDGE
wow so the ford service manual is wrong???????

this is how ford says to drain the transmission.

I thought you were describing the drive way fluid flush method. Your step by step is a tad confusing. Changing the filter then draining the trans threw me for a loop.
Reply With Quote
  #7
Old 08-14-2007
04 EDGE
Unregistered User

Posts: n/a
there will be no air issues.

if your gonna change the filter you are better off draining the entire transmission then just the pan.
Reply With Quote
  #8
Old 08-14-2007
Level I Supporter

Join Date: Aug 2006
Location: Durham, NC
Posts: 3,657
Quote:
Originally Posted by 04 EDGE
depends on how you do it.
if you just pull the pan and replace the filter 4-5 quarts.
the proper way to drain a ford transmission and get 98% or the fluid out is to un-hook one of the trans lines, put a hose on both ends and place them in a drain pan or 5 gallon bucket then thart the engine, leave it in park and let it run untill no more fluid comes out.

then you will need 9-10 quarts, plus when you pull the pan you wont make as big of a mess.
I agree, bad idea!!!!! I pump a gallon out at a time, replacing with a gallon of new Mercon V each time. After pumping out the 4th gallon, I drop the pan, replace the filter, and reinstall the pan before replacing the 4th gallon.
Reply With Quote
  #9
Old 08-14-2007
04 EDGE
Unregistered User

Posts: n/a
your a turd and have no clue as to how to work on a car/truck.

my way is how FORD says to drain a automatic transmission and this is how i do it. never had any problems Mr know it all.

i have ASE certs that tell me i know what i am talking about.

go back to the other ford truck forum ok.

and BTW merc V is almost 5 bucks a quart so wasting 4+ gallons is stupid.
Reply With Quote
  #10
Old 08-15-2007
Level I Supporter

Join Date: Aug 2006
Location: Durham, NC
Posts: 3,657
Quote:
Originally Posted by 04 EDGE
...i have ASE certs that tell me i know what i am talking about....
Without a doubt, you are a legend in your own mind!!!

I'm glad you think so highly of yourself......too bad nobody else thinks so!!

And, for your information, Ford (or any other vehicle manufacturer) does not recommend pumping a tranny dry!! The recommended equipment, and procedure pumps fresh ATF in, as the old ATF is pumped out!!

Last edited by Takeda; 08-15-2007 at 05:35 AM.
Reply With Quote
  #11
Old 08-15-2007
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
Quote:
Originally Posted by 04 EDGE
your a turd and have no clue as to how to work on a car/truck.

Name calling, WOW.

My A&P trumps your ASE. On a side note, your grammar is that of a 12 year old.


Obliviously there is more than one way to skin a cat. The mature route is the way things should be done. There is no need for bickering when theres a difference of opinion. It makes everyone involved look like a bleeding vagina.

People disagree with you on this method. You say this is the way ford trained you. Well Ford isn't the king of maintenance, they do things for different reasons. Some to save the tech time, some to cost the customer money.

IMHO, running any lubrication system dry for any reason is asking for trouble.
Reply With Quote
  #12
Old 08-15-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
wow......this will get interesting......

i would happen to more believe a Ford tech than someone who knows all.......

I say prove them wrong Mark, scan in a copy of the page were it says it, or if you can get a screen shot from work....
Reply With Quote
  #13
Old 08-15-2007
04 EDGE
Unregistered User

Posts: n/a
ok i'm working on it as i type
Reply With Quote
  #14
Old 08-15-2007
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804

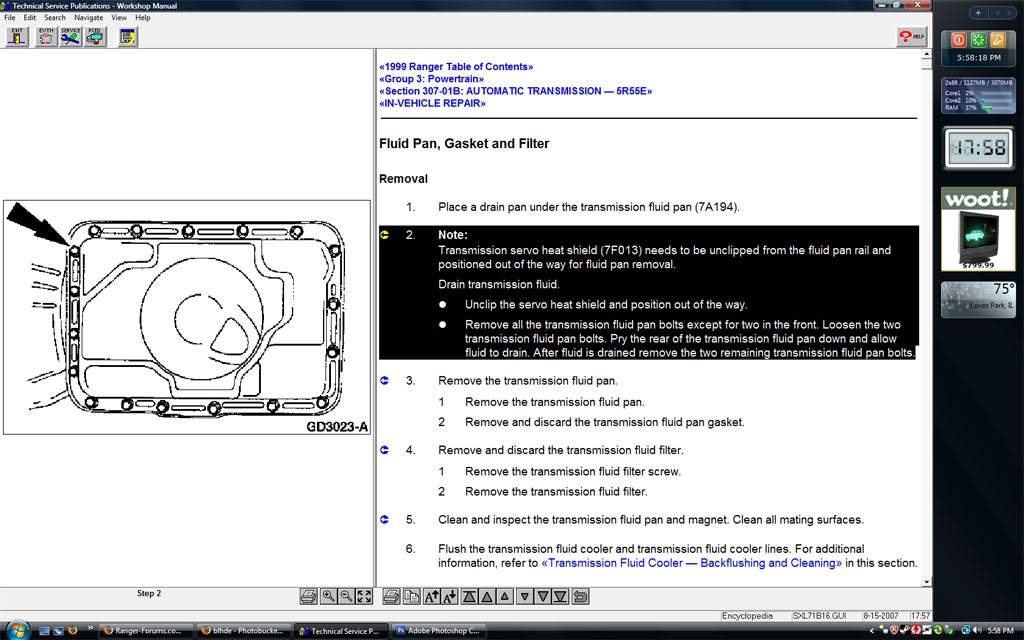

Name:  drain1.jpg
Views: 3
Size:  124.3 KB
Reply With Quote
  #15
Old 08-15-2007
M50B06's Avatar
Member

Join Date: May 2007
Location: Ravenna ohio
Posts: 315
Quote:
Originally Posted by 04 EDGE
depends on how you do it.
if you just pull the pan and replace the filter 4-5 quarts.
the proper way to drain a ford transmission and get 98% of the fluid out is to un-hook one of the trans lines, put a hose on both ends and place them in a drain pan or 5 gallon bucket then start the engine, leave it in park and let it run untill no more fluid comes out.

then you will need 9-10 quarts, plus when you pull the pan you wont make as big of a mess.
I will second this, i just checked my ford service manual-one you will find in the shops office-and it states a similar method, disconnect a line, put a hose on each end and run for 5 minutes to circuate all the fluid
I would scan the picture but the scanner isnt working and print is to small to take a decent picture to post, but this guy may know what hes talking about after all
Reply With Quote
  #16
Old 08-15-2007
TireIron's Avatar
Member

Join Date: Feb 2006
Location: Methuen, MA
Posts: 790
hmmm, the picture Blhde posted does not state to pump the tranny dry, it states to pull the bolts and let the fluid drain out of the pan. I'm curious to see what the link in number 6 refers to.
Reply With Quote
  #17
Old 08-16-2007
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
Quote:
Originally Posted by TireIron
I'm curious to see what the link in number 6 refers to.

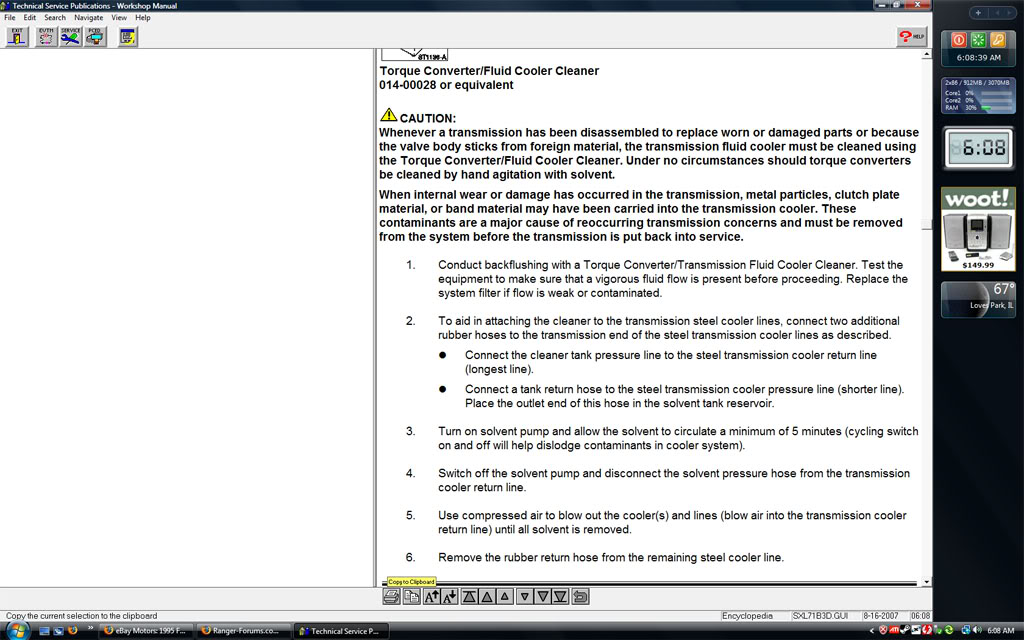

Name:  drain2.jpg
Views: 5
Size:  133.6 KB
Reply With Quote
  #18
Old 08-16-2007
Level I Supporter

Join Date: Aug 2006
Location: Durham, NC
Posts: 3,657
Quote:
Originally Posted by Blhde

That doesn't sound anything like pumping the ATF out until it's dry!!!!
Reply With Quote
  #19
Old 08-16-2007
Level I Supporter

Join Date: Aug 2006
Location: Durham, NC
Posts: 3,657
Quote:
Originally Posted by 04 EDGE
...this is how i drain every ford transmission at the shop i work at.......

Obviously, you DO NOT work at a Ford dealership!! How do you service the
Ford trannies without dipsticks???
Reply With Quote
  #20
Old 08-16-2007
Level I Supporter

Join Date: Aug 2006
Location: Durham, NC
Posts: 3,657
This is what some "TRUE FORD DEALERSHIPS" use for tranny service:

http://www.bgprod.com/products/transmission.html
Reply With Quote
  #21
Old 08-16-2007
Level I Supporter

Join Date: Aug 2006
Location: Durham, NC
Posts: 3,657
Quote:
Originally Posted by M50B06
I will second this, i just checked my ford service manual-one you will find in the shops office-and it states a similar method, disconnect a line, put a hose on each end and run for 5 minutes to circuate all the fluid
In "04 Edge"'s procedure, he isn't circulating the ATF, he is pumping it out of the tranny!!! You need the machine (described in my previous post) to replace the ATF as the old ATF is being removed.......
Reply With Quote
  #22
Old 08-16-2007
M50B06's Avatar
Member

Join Date: May 2007
Location: Ravenna ohio
Posts: 315
Quote:
Originally Posted by Blhde
this is the method as to which the service manual i have says to do, i thought this is what "04edge" was referring to,
I was assuming that when he said he was running till atf was out i thought this was the procedure he was using untill all the atf was out, not literally running all the atf out
I guess that whole never assume statement got me again
Reply With Quote
  #23
Old 08-16-2007
04 EDGE
Unregistered User

Posts: n/a
ok all you idiots be warned, tomorrow i will take a snapshot of "alldata's" way of draining a ford transmission.

this will be taken from the latest copy of alldata 2007 third quarter.


remember you have been warned!
Reply With Quote
  #24
Old 08-16-2007
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
Quote:
Originally Posted by 04 EDGE
ok all you idiots be warned

I see the high road is lost to you.


Alldata is downloading, I may just beat you to the punch.
Reply With Quote
  #25
Old 08-16-2007
04 EDGE
Unregistered User

Posts: n/a
i respect no one who dosn't tell the great people of "ranger forums" there real , at least, first name.

and dont even think for one second about doctoring anything!
Reply With Quote
