PCV Elbow - Fix for a very common CEL!

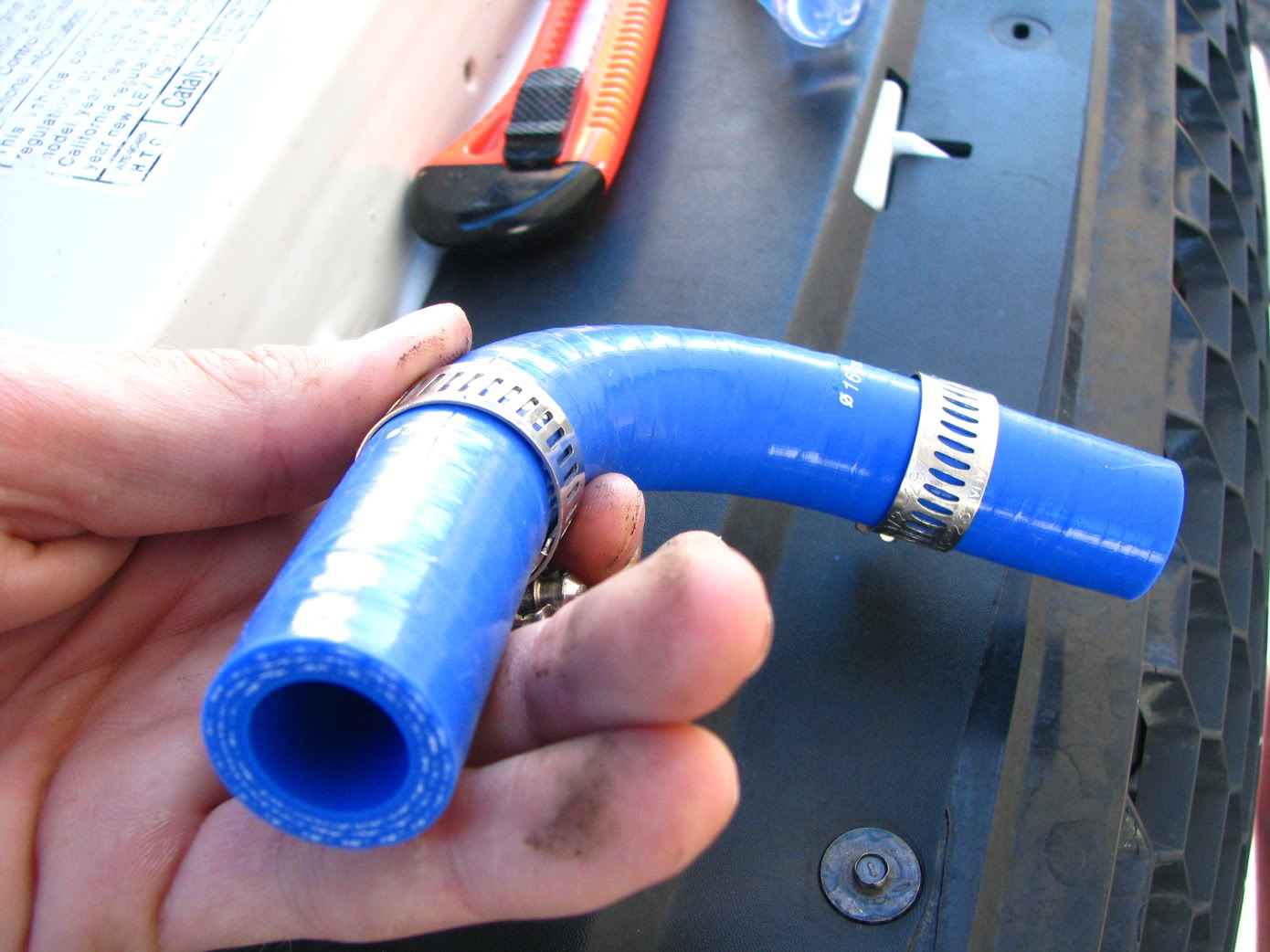

Ordered up a 16mm 5/8" 4"x4" right angle silicone elbow through Racer Parts Wholesale:

Name:  PCVElbow003.jpg
Views: 1228
Size:  178.7 KB

Silicone Hose - SPA Technique 90 Degree Silicone Hose Elbow






To fix this very common problem related to the PCV Valve Assembly:

Name:  PCVElbow001.jpg
Views: 1102
Size:  199.3 KB




The issue with this elbow is - you can't buy JUST the elbow, Ford only sells strictly the entire assembly, which runs close to $40 - RockAuto only sells the entire assembly as well. Switching to a rather aftermarket approach with the silicone elbow - it is guaranteed to last the life of the vehicle, and you have no worries of any heat getting to so soft and pliable that it will crack - as does the origional ford rubber elbow.

The radiator hose runs and rests right against it, putting constant downforce - combine that with the heat of the radiator, plus the engine right next to it - and it causes the rubber to soften up and crack. The replacement to this through ford will just have the same problem again a few years down the road.. might as well do it right the first time eh?



Compared:

Name:  PCVElbow005.jpg
Views: 842
Size:  211.4 KB




To hook it up, all you have to do is take a razor knife and cut an inch off of the engine side of the mount... then slip it all together, and tighten it down:

Name:  PCVElbow006.jpg
Views: 1007
Size:  189.6 KB







This fixes issues related all over the engine throwing bad codes, the symptom that is very noticeable is a high idle (2000-2500) which will last a few seconds before it drops back to where it should be, along with the engine running fairly rough.



Fixed the issue once and for all! And it looks good to - a nice splotch of performance blue under a hood is always a good thing! :-D




Props go to IN2 FX4 for coming up with the original fix idea - PMed him a bit to find info on it - these elbows are actuall yhard to find, and most stores usually don't have this size in stock - took about 3 weeks from order time, to delivery, for it to get to my place.

Last edited by WowMike2001; 09-10-2009 at 11:17 PM.
Reply With Quote
  #2
Old 09-10-2009
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
Nice work man. I'd probably order some black hose but that's just me.
Reply With Quote
  #3
Old 09-10-2009
Grot's Avatar
Member

Join Date: May 2009
Location: Knox, Tennessee
Posts: 122
which engine is this for? i have the same problem i beileve.
Reply With Quote
  #4
Old 09-10-2009
Lord Of War's Avatar
Member
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Very nice. Someone should put this in the "How to" section.
Reply With Quote
  #5
Old 09-10-2009
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
Quote:
Originally Posted by Grot View Post
which engine is this for? i have the same problem i beileve.
SOHC 4.0
Reply With Quote
  #6
Old 09-10-2009
Grot's Avatar
Member

Join Date: May 2009
Location: Knox, Tennessee
Posts: 122
thanks for the clarification, i have similar symptoms with my 2.3 Lima
Reply With Quote
  #7
Old 09-11-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
hmm..I got 2 perfect elbows here...no wait...I got 4. 2 on the truck and 2 not. The one on the back of the driverside valve cover is the same as the one above the thermostat.
Reply With Quote
  #8
Old 09-11-2009
element4all's Avatar
Member
iTrader: (1)

Join Date: Jan 2009
Location: Forest Hill, Maryland
Posts: 570
definately a good post. thanks.
Reply With Quote
  #9
Old 09-11-2009
IN2 FX4's Avatar
Member

Join Date: Feb 2005
Location: Costa Mesa, CA
Posts: 855
I didn't use the hose clamps on mine when I did it. The original hose didn't have them and it is just a light vacuum, plus the silicone hose has a nice snug fit and is reinforced. Mine has been working well that way for over a year but the hose clamps are probably good extra security.

I don't think that size silicone elbow comes in black. At least they did not when I was looking.
Reply With Quote
  #10
Old 09-11-2009
Member

Join Date: Mar 2005
Location: Wichita, KS
Posts: 1,301
Actually ford sells a replacement for it and it cost me $17 after tax. Check jeweler54's how to, it has the part number. Good fix either way.

https://www.ranger-forums.com/forum2...des-p0401.html

Last edited by soccerjohn; 09-11-2009 at 07:57 PM.
Reply With Quote
  #11
Old 09-11-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
I still need to do this. Mine sucks flat and I have the same high idle problem.
Reply With Quote
  #12
Old 09-12-2009
WowMike2001's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Quote:
Originally Posted by IN2 FX4 View Post
I didn't use the hose clamps on mine when I did it. The original hose didn't have them and it is just a light vacuum, plus the silicone hose has a nice snug fit and is reinforced. Mine has been working well that way for over a year but the hose clamps are probably good extra security.

I don't think that size silicone elbow comes in black. At least they did not when I was looking.
Yeah, it was an extra snug fit for sure.. I used the clamps only because I didnt want to risk anythign happening to it :-)

And in terms of colors - only racing colors are available with 90% of silicone aftermarket parts nowadays.. Red, Blue and Yellow are the main ones available.
Reply With Quote
  #13
Old 09-13-2009
IN2 FX4's Avatar
Member

Join Date: Feb 2005
Location: Costa Mesa, CA
Posts: 855
Quote:
Originally Posted by soccerjohn View Post
Actually ford sells a replacement for it and it cost me $17 after tax. Check jeweler54's how to, it has the part number. Good fix either way.

https://www.ranger-forums.com/forum2...des-p0401.html
The idea about this fix is to have a permanent fix. The Ford part is destined to fail again in a few years. I plan on keeping my truck for a long time and don't want to do this repair again. If you don't need a long term repair, use the Ford part.

BTW, I could not find the part for $17. I was quoted over $35 at the dealer and buying online was not much less when shipping was included.
Reply With Quote
  #14
Old 09-13-2009
RedComet6342's Avatar
Member
iTrader: (2)

Join Date: Sep 2009
Location: NC
Posts: 241
i had that same problem, and the mechanic i took it to replaced it for free ive been going to him for a while now and havent had a problem with the repairs he had done

is there a picture of where it is, i cant find it but im probably just blind

Last edited by RedComet6342; 09-13-2009 at 01:12 PM.
Reply With Quote
  #15
Old 09-13-2009
Jazz921's Avatar
Member
iTrader: (2)

Join Date: Sep 2007
Location: Evansville, IN
Posts: 997
Not sure what your dealership told you but you can buy just that elbow from Ford, I have my reciept right here for it and they had 17 of them in stock when I ordered it.
Reply With Quote
  #16
Old 09-14-2009
WowMike2001's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Well, where I went they were onyl abel to order the entire part up so chances are they might have been jipping me - BUT - on the flip side, this tube will last the lifetime of my truck, and Ill never have to worry about it cracking or sucking itself down.. Best to buy the proper tool to fix the job then going back and buying the part that will always fail down the road
Reply With Quote
  #17
Old 09-14-2009
IN2 FX4's Avatar
Member

Join Date: Feb 2005
Location: Costa Mesa, CA
Posts: 855
I had the same problem when I went to the Ford dealer for a replacement part. The only thing that was available was the entire PVC tube assembly. That is the hard long plastic tube with an elbow on each end. I told them I found that hard to believe. They checked into it further and found just the elbow for another engine but no part number existed for just the elbow for the 4.0 SOHC. That is when I decided to look elsewhere.

Maybe some dealers are better at looking up part numbers. That still doesn't change the fact that it is made with a rubber material that is not capable of standing up to that environment long term.
Reply With Quote
  #18
Old 09-19-2009
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Can I get a zoomed out pic?

My tube appears to be too short between the intake and valve cover. I can't really see any cracks in the elbow. I was told by the dealership it was the PCV tube. So I'm not sure what to look for exactly.

EDIT: yup I was definitely looking at the wrong elbow. Most likely I'll do this fix just so I don't have to worry about it.

Last edited by 01RangerEdge; 09-19-2009 at 10:50 AM.
Reply With Quote
  #19
Old 09-19-2009
WowMike2001's Avatar
Member
Thread Starter

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Quote:
Originally Posted by 01RangerEdge View Post
Can I get a zoomed out pic?

My tube appears to be too short between the intake and valve cover. I can't really see any cracks in the elbow. I was told by the dealership it was the PCV tube. So I'm not sure what to look for exactly.

EDIT: yup I was definitely looking at the wrong elbow. Most likely I'll do this fix just so I don't have to worry about it.
Its a good thing to do, whether its a "brand new" tube from ford that will fail in a year, or just order up one of the silicone ones - I find that the way using the silicone is best.. as this part fails all the time on rangers :-(
Reply With Quote
  #20
Old 09-19-2009
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I ordered the silicone one.

I plan on keeping my Ranger for a long time, so a permanent fix is much more sensible.
Reply With Quote
  #21
Old 09-23-2009
03 DEMON 4X4 SOHC's Avatar
Member

Join Date: Aug 2009
Location: Holly Springs NC
Posts: 64
I recomend buying the ford part its not that expensive and it has been changed so that it is plastic on the bend were the crack happens up to the point where it connects to the bottom of the intake
Reply With Quote
  #22
Old 09-24-2009
dr092001's Avatar
Member

Join Date: Aug 2008
Location: Edmonton, Alberta, Canada
Posts: 3
Nice Job ..... I've been looking all over for a similar aftermarket fix, but it was a no-go. NOBODY carries silicone elbows in that diameter up here. I just put in my order and now await with bated breath.
Reply With Quote
  #23
Old 09-25-2009
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Go to racerpartswholesale.com thats where wowmike2001 and I went. They sell the exact one.

The part was only $1 more than the Ford replacement.
Reply With Quote
  #24
Old 12-23-2011
Mistersponge's Avatar
Member

Join Date: Aug 2010
Location: Rochester NY
Posts: 38
Bringing a thread back from the dead! Anyone looking for a BLACK elbow of the same diameter can find one here...

Amazon Amazon
Reply With Quote
  #25
Old 12-23-2011
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Nice, I'd rather have black then blue. Thanks.
Reply With Quote
