Old 12-27-2005
zabeard's Avatar
Thread Starter
iTrader: (8)
Join Date: Nov 2004
Location: IN
Posts: 26,045
Originally Posted by rangererv
^^ sweet, now you can install mine when i buy it...
ah ill help but it wasnt much fun doing it, lol

but hey the second time is always better.

how does it always turnout that my truck is the test truck?

Originally Posted by HighRollerII
MIch boys will do efans, body you could start a business lol..

where the pics at Zach

no pics right now, ran into some trouble, then ran out of time, but it is installed and apears to be working.

Originally Posted by Swoop1156
I'm doing an eFan. I hope do do many install pics on the way. As well as pictures while doing the 3/4 drop, and replacing the leafs and coils.
good luck hope yours goes better than mine, but ive never done one before so i was kinda blind. lol
Reply With Quote
Old 12-29-2005
Join Date: Mar 2005
Location: Cleveland, Ohio
Posts: 288
Ok, heres some tips for ya Zabeard. I did my install about 5 months ago now, so I've gotten all the "bugs" worked out.

Your A/C relay should be on the driver side of the engine running from the cab to the compressor. Did you get an adjustable thermostat? If you did just pull your truck up close to a wall or garage door and let it idle for awhile, once your gauge starts to go past the half-way mark the fan should kick on. If you have an adjustable thermostat and it DOESN'T kick on at that point, adjust until it does. This process could take you a couple of days worth of getting the truck hot, adjusting, etc. It took me 3 weeks or so until I got it perfect.

I'll get some pics of mine ASAP, been meaning to for awhile now...ok its been 10 minutes and I took my lazy a$$ outside and got some pics finally, the last two are of concern for the A/C relay!

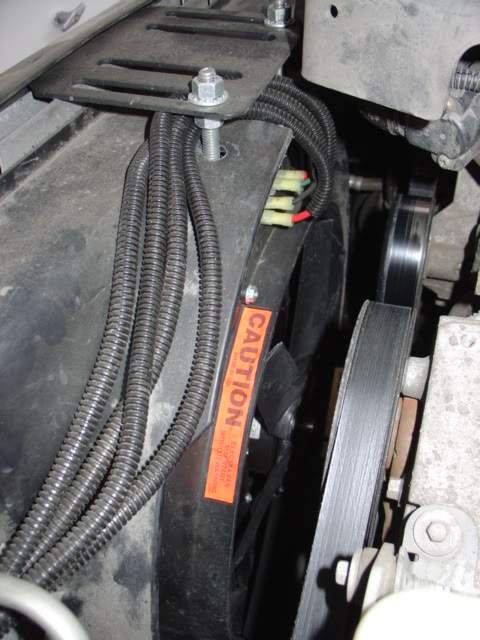

Name:  DSC00961.jpg
Views: 0
Size:  65.1 KB

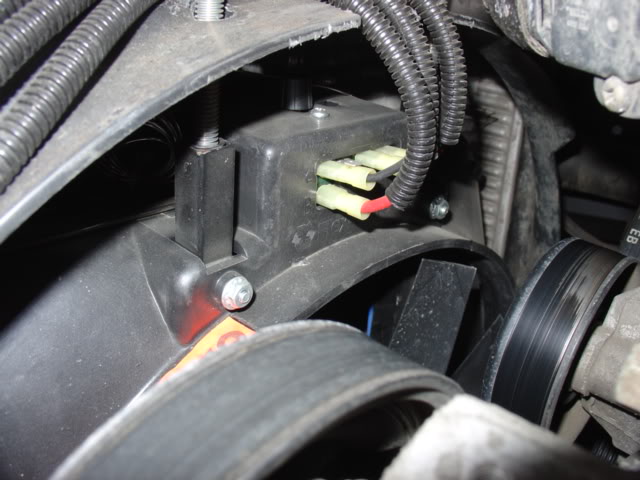

Name:  DSC00962.jpg
Views: 0
Size:  52.6 KB

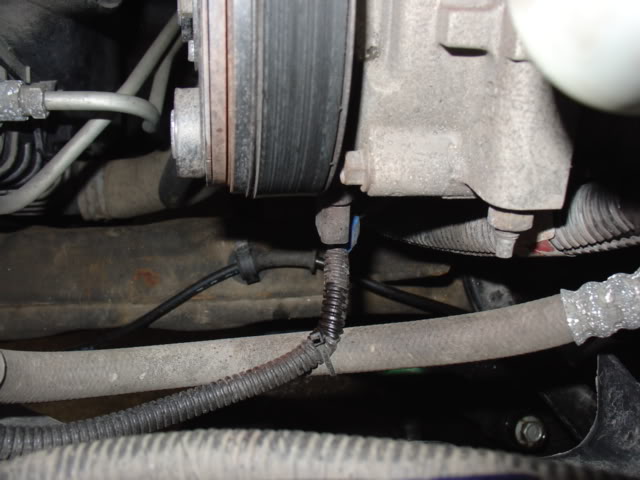

Name:  DSC00964.jpg
Views: 0
Size:  46.0 KB

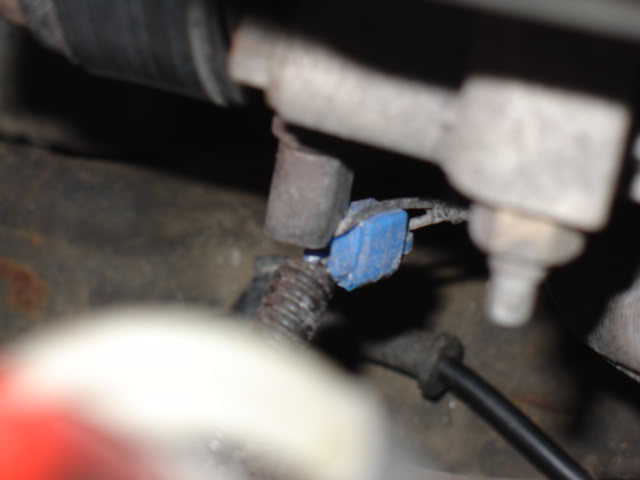

Name:  DSC00966.jpg
Views: 1
Size:  23.5 KB

Last edited by SonicRanger001; 12-29-2005 at 09:46 AM.
Reply With Quote
Old 12-29-2005
zabeard's Avatar
Thread Starter
iTrader: (8)
Join Date: Nov 2004
Location: IN
Posts: 26,045
thanks man. im workin through the bugs right now.

i used the purple wire that was behind the hvac unit, under the radio. works great.

that is another good spot tho, nice clean install btw.
Reply With Quote
