1994 Ranger 4x4 5.0swap

hey guys!
I haven't been on in a while, figured id start a thread of my current project! My 3.0 kept crapping out on me so i decided to finally ditch it and upgrade to a 5.0 the end result will be a carbed 5.0 with a few power adders paired to a 4speed trans with granny. I've already gotten my donor vehicles and most of my parts gathered minus new headers, flywheel, clutch, and a few odds and ends. an more an better pics to come. sorry they are cell pictures though

Donor vehicle for the motor is a 86(i believe) F-150 with a swapped carbed 302, just rebuilt with cam and i believe bored over some.
Name:  IMG00164-20091011-1852.jpg
Views: 244
Size:  95.7 KB

last weekends progress on the ranger:
Name:  Unnamed.jpg
Views: 167
Size:  20.6 KB

Name:  Unnamed-1.jpg
Views: 174
Size:  42.9 KB

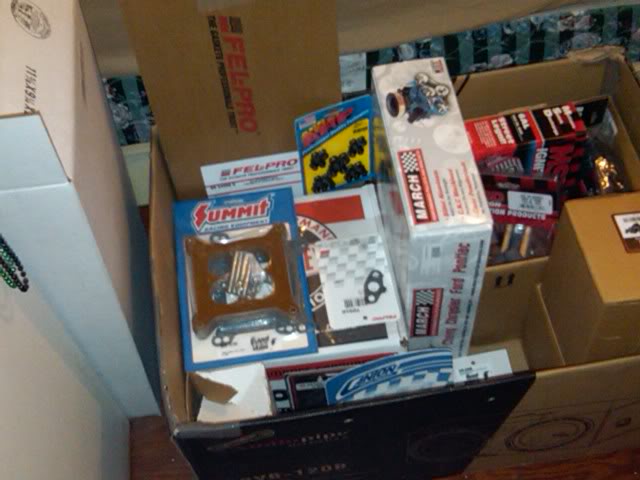

off the top of my head, the parts pile includes:(all new) 95 mustang gt motor mounts, ranger trans mount, fox body dual sump pan, oil pump pickup and all gaskets, arp fastners, march underdrive serpentine conversion pullies, billet fuel pump block off plate, holly 1560 600cfm carb w/ electric choke, 1" phenolic carb spacer and studs, MSD 6AL ignition, MSD blaster coil and mount, Canton 90' oil filter adapter, transdapt oil filter relocator, and an explorer 5.0 rad is all so far i believe lol...

hopefully this weekend ill get the donor motor pulled, cleaned, painted, and placed in the ranger... We'll see! biggest thing i think will be hacking the core support up for this monster of a radiator lol. anyone have any pics of this with this particular rad?? then its on to the wiring
Reply With Quote
  #2
Old 11-18-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
WTF like WTF. I would rather keep the 86. i love them looks to be in decent shape too. please tell me your doing like a 351 in the 86 thats the reason!?
Reply With Quote
  #3
Old 11-19-2009
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
happy frame cutting!!! you need the lift coil springs off that truck?
Reply With Quote
  #4
Old 11-19-2009
ChrisR1S's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Kenbridge, VA
Posts: 263
Stone, the 86 has a list of issues that I need to take care of before it'll be safe on he road. Mainly the hackjob wiring from the previous owner. I figured since the ranger needed a motor I could use this one for the time being while I give the 86 some needed attention then hopefully a built 351.

Which coils? The skyjackers out of the ranger will be up for grabs soon an the 6inch coils from the f150 I haven't totally decided on just yet. Shoot me a pm if interested. An hopefully with Tri-y's I won't need to trim any but I haven't found any solid info on their fitment on a 4x4.

Its been raining all day today so no progress or better pics. Weather depending, hopefully I can pull my trans out of my other donor an clean it up an see if it checks out. Mayb even test fit it in the ranger..
Question: how have you guys wired up electric fuel pumps? The one in the 86 is operated via toggle switch. Is it possible to wire it in the ranger using the stock wiring an relay?
Reply With Quote
  #5
Old 11-19-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
cant wait to see this
Reply With Quote
  #6
Old 11-19-2009
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
yes it is possible you just need it to come on when you turn the key on. wiring diagrams are your friend
Reply With Quote
  #7
Old 11-19-2009
DelaRanger95''s Avatar
Member

Join Date: Jul 2009
Location: Wilmington, DE
Posts: 345
dude! i have a 95 2.3 4x4 and i wana see this!
Reply With Quote
  #8
Old 11-19-2009
ChrisR1S's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Kenbridge, VA
Posts: 263
Yeah I agree with the wiring diagrams being my friend. I think I have all of my wiring planned out for the most part. I highly reccomend the EVTM fron helm. Well worth the 20some bucks. Just haven't really looked into the fuel pump situation. An yeah I haven't seen too many write ups on pre 97 4x4 swaps. S ill try an post up plenty of pics hopefully starting tomorrow.
Reply With Quote
  #9
Old 11-19-2009
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
just need a pressure regulator to turn the pump off so you don't go above the thresh hold of the carburetor psi capacity if that makes sense as in over pressurize the system.
Reply With Quote
  #10
Old 11-19-2009
ChrisR1S's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Kenbridge, VA
Posts: 263
Yeah makes sense, I'm looking at either a Holly or summit regulator an gauge. Gonna try for around 7 1/2 psi. The regulator actually returns the extra fuel instead of shutting the pump off correct?
Reply With Quote
  #11
Old 11-20-2009
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
i would think it would depend on the regulator. on like my old ford i have a mechanical pump so its always pumping just as long as you don't go over what the fuel pressure rating for the 5.0
Reply With Quote
  #12
Old 11-22-2009
ChrisR1S's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Kenbridge, VA
Posts: 263
Not much progress yesterday, just got the trans broke down an cleaned up with new paint an clutch components. Need to I'd my 2transfer cases then ill decide which one I'm running, then get it ready an mate it with the trans. Then ill mock it all up an see where we sit. Pics tom when I can get on the computer
Reply With Quote
  #13
Old 11-22-2009
ChrisR1S's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Kenbridge, VA
Posts: 263
The little bit of progress i made:

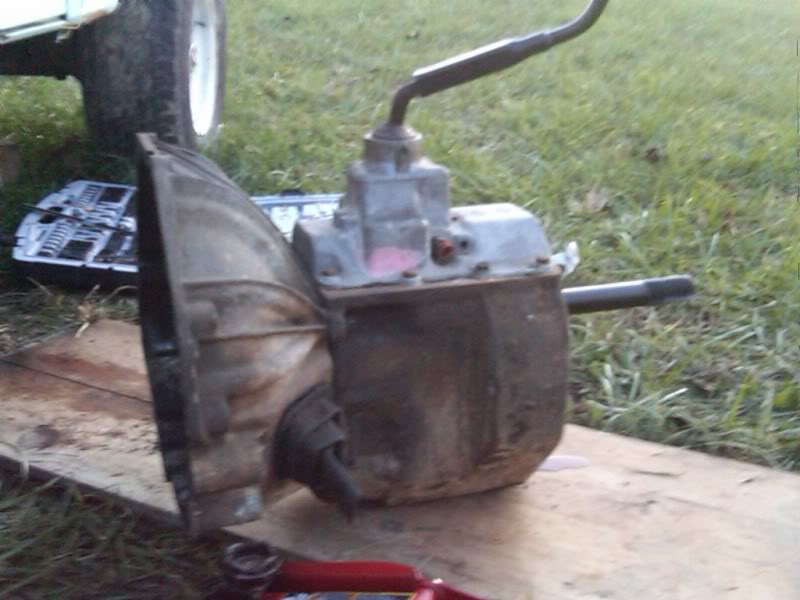

Before:
Name:  IMG00232-20091120-1709.jpg
Views: 163
Size:  57.5 KB
Name:  IMG00233-20091120-1710.jpg
Views: 172
Size:  68.1 KB
After:

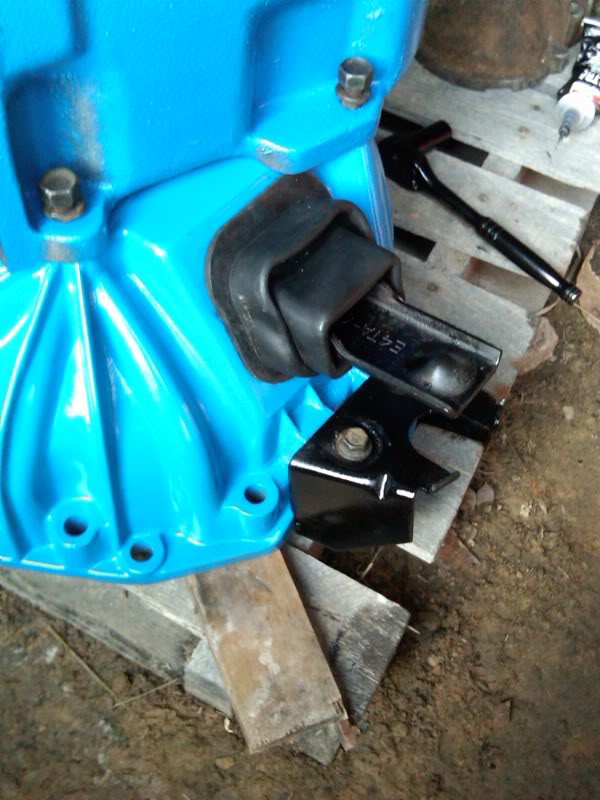

Name:  IMG00235-20091121-1523.jpg
Views: 167
Size:  75.9 KB
Name:  IMG00236-20091121-1535.jpg
Views: 161
Size:  73.6 KB

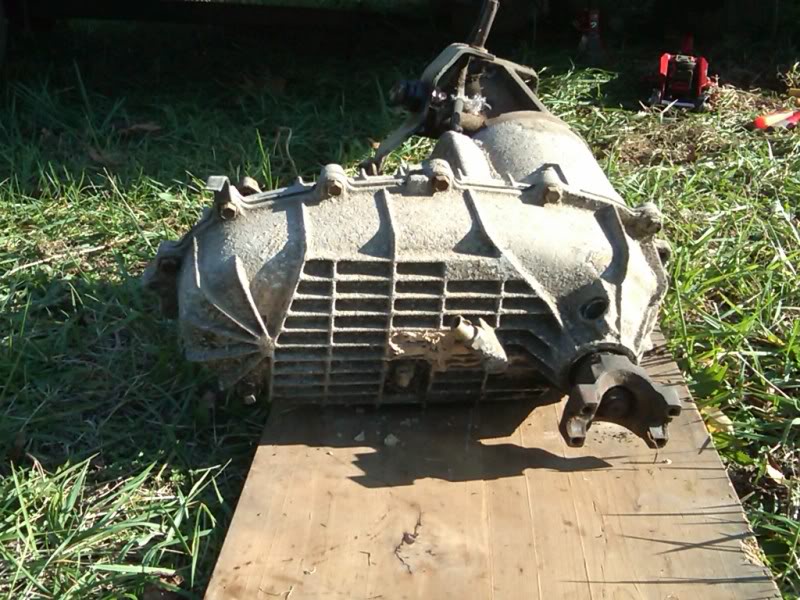

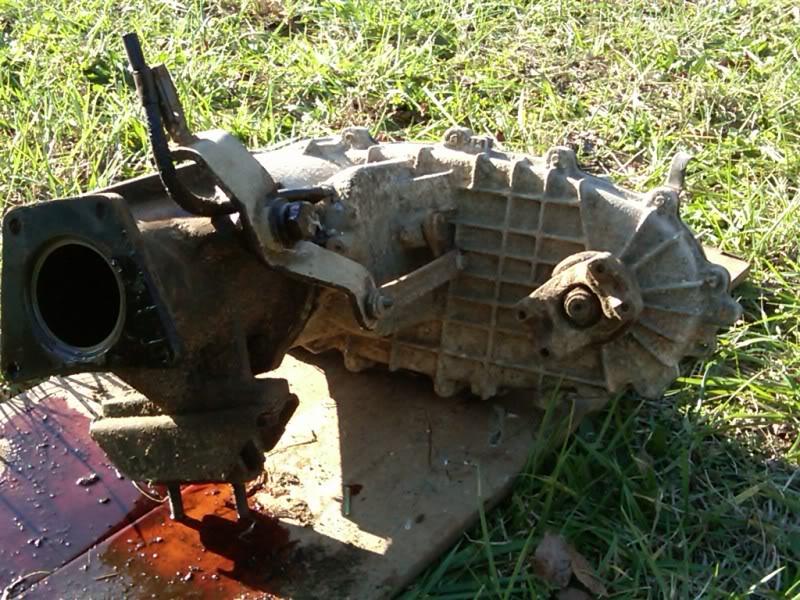

Anyone able to help id this transfercase? borgwarner something i believe? i have the id tag numbers but it really helped none..
Name:  IMG00224-20091120-1434.jpg
Views: 160
Size:  129.9 KB
Name:  IMG00223-20091120-1434.jpg
Views: 165
Size:  115.2 KB

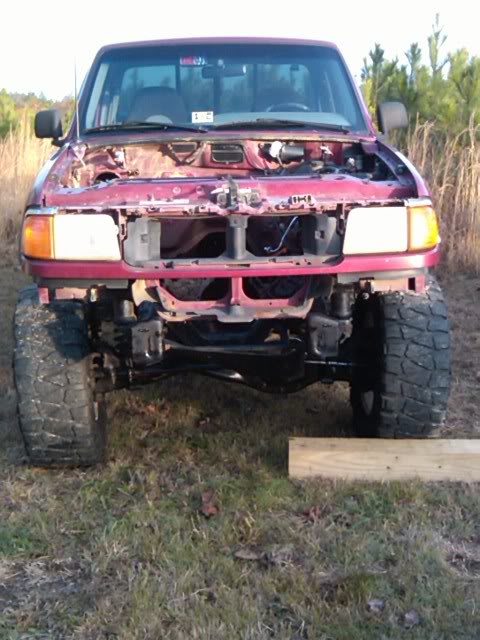

And just a random shot of the naked ranger haha
Name:  IMG00239-20091121-1608.jpg
Views: 167
Size:  62.1 KB
Reply With Quote
  #14
Old 11-22-2009
ford rules's Avatar
Member

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
looks like a BW 1356 whats it out of ?
Reply With Quote
  #15
Old 11-22-2009
ChrisR1S's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Kenbridge, VA
Posts: 263
77 f150.
Reply With Quote
  #16
Old 11-22-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
i would think it would be a bw1356 too
Reply With Quote
  #17
Old 11-23-2009
05prerunner's Avatar
Member

Join Date: Apr 2007
Location: Apison, TN
Posts: 483
Ah... a NP435 transmission! Beef, but not exactly a performance tranmission. I have one in my jeep, the granny is great for pulling and rock crawling, but over all, it is a truck/towing style trans.

If that's what you are going for then it will work great for you!
Reply With Quote
  #18
Old 11-26-2009
ChrisR1S's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Kenbridge, VA
Posts: 263
Quote:
Originally Posted by 05prerunner View Post
Ah... a NP435 transmission! Beef, but not exactly a performance tranmission. I have one in my jeep, the granny is great for pulling and rock crawling, but over all, it is a truck/towing style trans.

If that's what you are going for then it will work great for you!
Yeah i know what the np435 is all about I realize its a bulletproof crawler and not a quick shifting piece. thats what my cobalt ss is for haha. If i end up not liking it afer a while i can always find a 5speed, but im thinking it'll be just fine
Reply With Quote
  #19
Old 11-26-2009
ChrisR1S's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Kenbridge, VA
Posts: 263
Well early this moring i got a little bit of work done. I found the tag on the back of the transfer case in the '86, its a NP208. So from what i remember reading, the BW1356 will be the better more reliable case out of the 2.

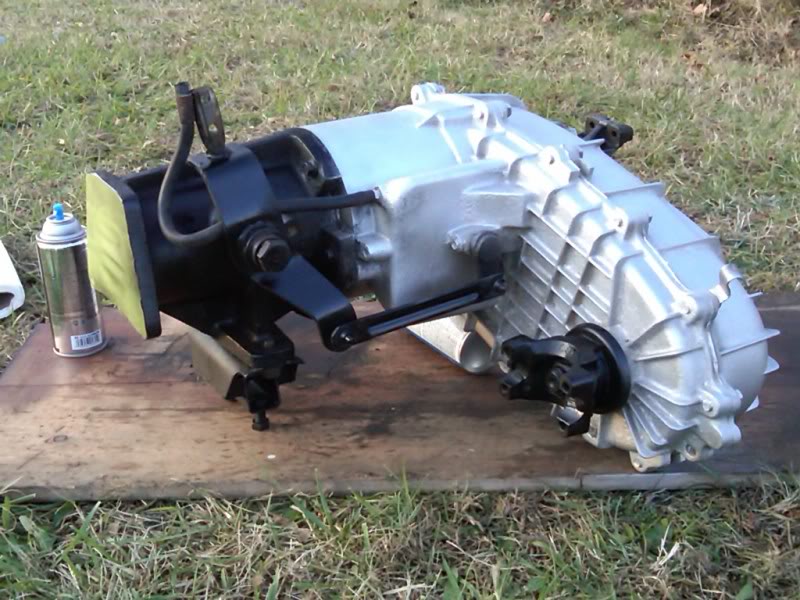

So that being said, i got the BW156 t-case cleaned all up and got a few fresh coats of paint laid down, new trans mount bolted up, and a new vent hose in place. Cleaning and painting have by far been the most time consuming steps thus far in the swap. I offically hate baked on mud! Anywho, i did get a pic for the day:
Name:  utf-8BSU1HMDAyNDgtMjAwOTExMjYtMTYxN.jpg
Views: 280
Size:  100.6 KB
Reply With Quote
  #20
Old 11-27-2009
Hanks Rangers's Avatar
Member

Join Date: Sep 2008
Location: Sandpoint, ID
Posts: 821
stuffs not fun to clean. I think when bob put an f150 trans and t case he had to move the whole assembly to the right 5/8" to get an even amount of clearance on everything
Reply With Quote
  #21
Old 11-27-2009
Member

Join Date: Feb 2008
Location: unknown
Posts: 890
Icon6

It looks good. If you want a manual transmission I would recomend a T5 it's damn near a direct bolt in according to the ranger station. I'll be performing a V8 swap soon myself. Right now I'm going through Get your car sponsored by Car Sponsorships and build your dream car and see if I can get sponsors to help me turn my ranger into a monster. So I'll be taking notes on this one. It will be much easier do one on mine considering it's 2WD instead 4WD.
Reply With Quote
  #22
Old 11-27-2009
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
^^ the t5 wont work since its a 2wd trans and they no longer make the adapter plate fore the 1350 series tcases
Reply With Quote
  #23
Old 11-27-2009
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
The only way to run a T5 for 4wd is to run one from a Jeep that mates up to a Dana 300. Nice t-case with a 4:1 low gear, but it is not a world class and uses one piece brass synchro's which are not favorable.
Reply With Quote
  #24
Old 11-27-2009
ChrisR1S's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Kenbridge, VA
Posts: 263
yeah a T5 is essentially a no-go in a 4x4. i looked all over for an adapter for an adapter for the last 8months up until i bought the donor truck with the NP435
Reply With Quote
  #25
Old 11-27-2009
Member

Join Date: Feb 2008
Location: unknown
Posts: 890
Quote:
Originally Posted by Downey View Post
^^ the t5 wont work since its a 2wd trans and they no longer make the adapter plate fore the 1350 series tcases
Oops. Sorry about that. I was thinking about my truck when this post was made. What would be a good manual tranny for 4WD?
