  #51
Old 12-17-2009
Member

Join Date: Feb 2008
Location: unknown
Posts: 890
Quote:
Originally Posted by ChrisR1S View Post
Ah ok, so no real progress worth mentioning. Just figuring id drop in so it doesnt look like i quit an ran away hahaha.
I did just order the inside the framerail Transmission crossmember from suicidedoors.com (same piece teddyzee has) and a "built not bought" sticker that im sure i can stick somewhere
kool. Have you decided on what headers and exhaust manifolds to use yet? here's part of a "family owned" secret. I'll get disowned and end up being murdered if I exposed all of it. On your exhaust manifolds port them out to the extreme. That's 1/2 of this family secret. look at my last name on my avatar/profile and think Harley Davidson motorcycles and you'll see what I'm talking about. Ford already guessed one part of it by using a "roller camshaft". the other part is internally and isn't exactly street legal either and that is where I'm told to stop. So bore out the exhaust manifolds from the inside out and you'll notice a big difference in the sound of your engine as well as a noticable power increase. Make sure they put a rifle style bore in the exhaust ports and see if you can get the round ones.

Last edited by knightmare1015; 12-17-2009 at 11:16 PM.
Reply With Quote
  #52
Old 01-13-2010
ChrisR1S's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Kenbridge, VA
Posts: 263
UPDATE: No major progress due to work and weather. Donor motor was completely pulled and is ready for teardown. Also scored a set of steel GT40s for $400 that im supposed to pick up friday morning. They have new valves and springs that are good to 525lift heads are milled 0.020. owner claims they havent been installed since they came back from the machine shop last month. woohooo! and a few pics

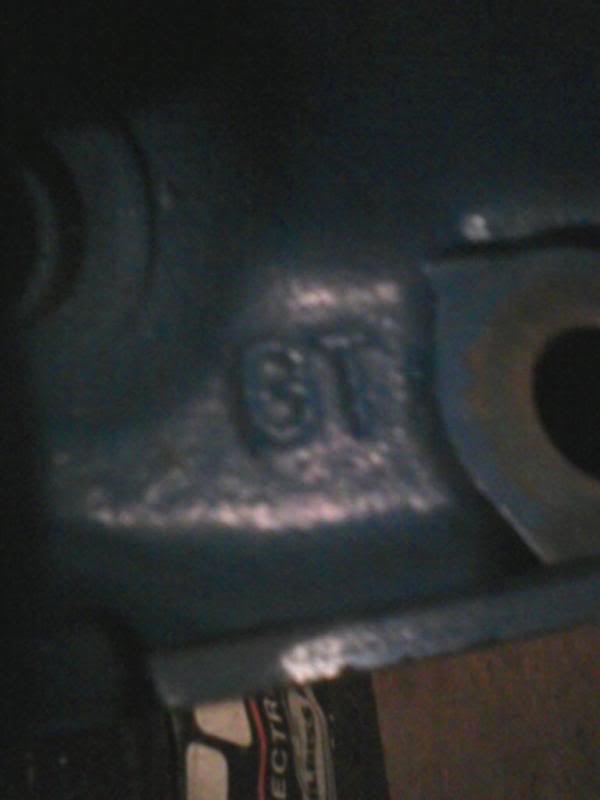

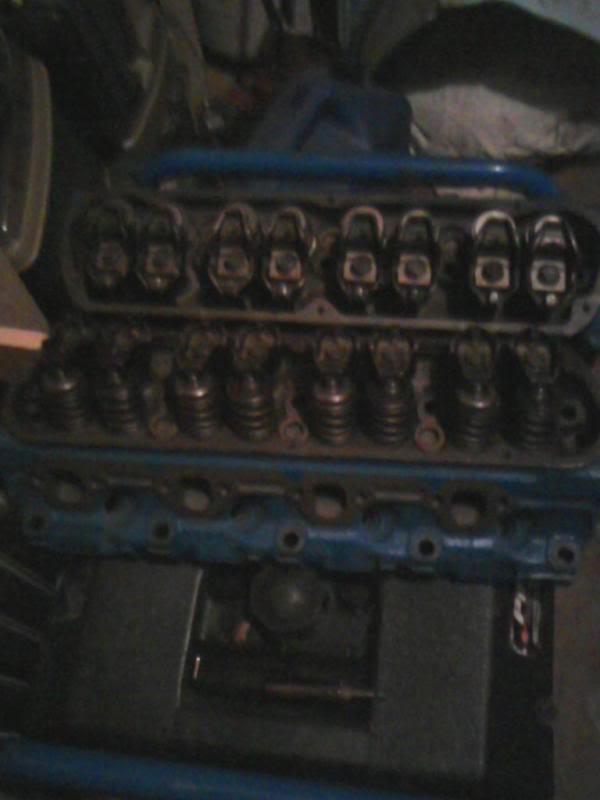

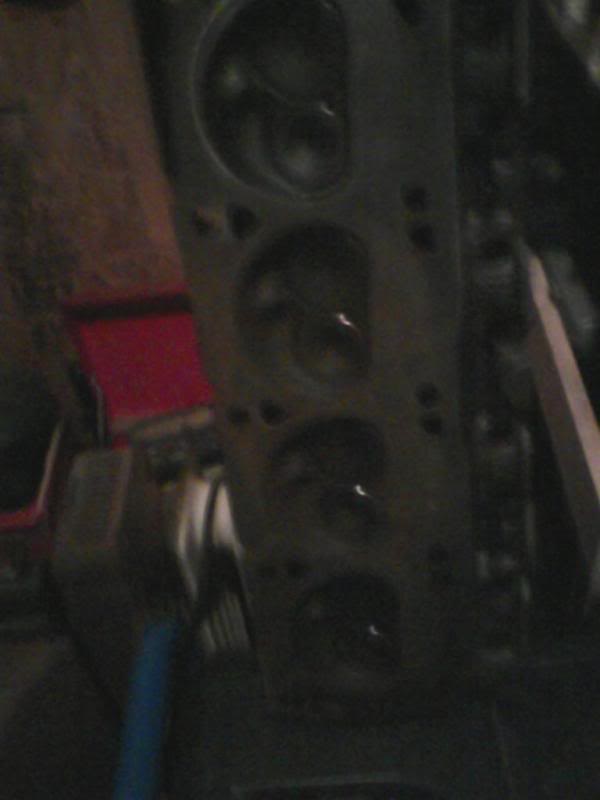

The GT40s:
Name:  Unnamed-3.jpg
Views: 66
Size:  32.1 KB
Name:  Unnamed-4.jpg
Views: 66
Size:  23.8 KB
Name:  Unnamed-2.jpg
Views: 65
Size:  24.1 KB

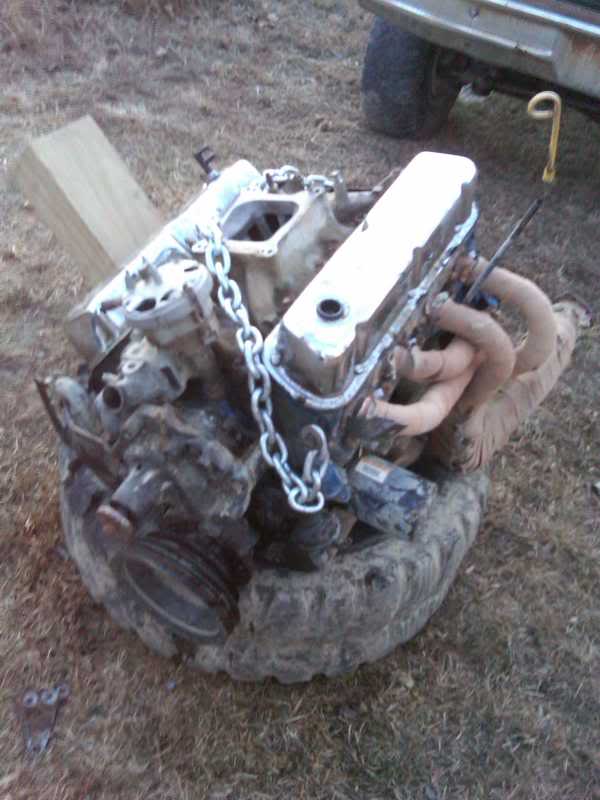

The motor awaiting some needed attention:
Name:  IMG00343-20100110-1725.jpg
Views: 62
Size:  46.8 KB

Last edited by ChrisR1S; 01-13-2010 at 11:31 PM.
Reply With Quote
  #53
Old 01-14-2010
ford rules's Avatar
Member

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Did you mill the intake to fit with the heads milled down?
Reply With Quote
  #54
Old 01-15-2010
My91Ranger's Avatar
Member
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
If they are only milled 20 thousand he might be okay without it. I know if you run an efi intake manifold you can go to about 40 thousand without having to mill the intake as well.
Reply With Quote
  #55
Old 01-15-2010
ChrisR1S's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Kenbridge, VA
Posts: 263
Im still researching to decide what intake im going to run; so no it(intake) hasnt been milled. Im hoping it will be ok without. How would i know if everything is still within specs? And i do have the heads, just got back from picking them up. well outside i go to make some progress.......
Reply With Quote
  #56
Old 01-15-2010
ford rules's Avatar
Member

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
If you bolt the heads to the block then you made the galley a tiny bit bigger that the intake will sit on so there fore you need to take the same amount off the intake for the bolts to line up someone please correct me if i am wrong but i have always been told this and it makes perfect sence. (to me atleast)
Reply With Quote
  #57
Old 01-15-2010
ChrisR1S's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Kenbridge, VA
Posts: 263
It makes sense to me as well. Im going to google it and mayb make some phonecalls and see what i can find out.
But i got the motor stripped down to the block; other than the pan and the timing cover. (Heads that i pulled off have the casting: E7TE, which i believe are E7s, my book isnt infront of me currently!) Transmission & bellhousing were repainted red so they can be sat in place for mock up tomorrow. I have a few pics ill post up either tonight or tomorrow.

Tomorrows goals are:
- snag a non-ac heater box if i can find one
- Have trans and t-case under the truck for mock-up
- put the oil pan and heads on for mock up so i can drill holes for motor mounts. hopefully i can do it and still have enough adjustment for headers when they get here
Reply With Quote
  #58
Old 01-16-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
hey man im back over here now too lol
Reply With Quote
  #59
Old 01-16-2010
ChrisR1S's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Kenbridge, VA
Posts: 263
Yeah i flilp-flop between here and TRS, member of RPS too just never posted lol. Helps when doing something llike this because i get a lot more comments, feedback, and questions that help me out. ah well back outside to get that trans under the ranger!
Reply With Quote
  #60
Old 01-16-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
sweet man take some pics of where it comes though the floor
Reply With Quote
  #61
Old 01-16-2010
ChrisR1S's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Kenbridge, VA
Posts: 263
Alright, well the transmission and the ungodly enormous transfer case are in place. Currently i have the face of the bellhousing resting flush with the firewall until i can get the engine in. rain kinda prevented me from getting that done.

Downey, idk if ill have to slide the transmission around any but as it sits right now the shifter is about i reckon 2inches forward of the stock location.(see pics!)

And here are some pics for the day haha:

Name:  IMG00384-20100116-1536.jpg
Views: 59
Size:  2.1 KB

Name:  IMG00359-20100115-1534.jpg
Views: 59
Size:  6.2 KB
Block turns out to be from an '87 F-150 but the bosses arent drilled so ill just throw a flat tappet cam in it and be happy with the old-school sound

Name:  IMG00369-20100116-1349.jpg
Views: 59
Size:  73.4 KB

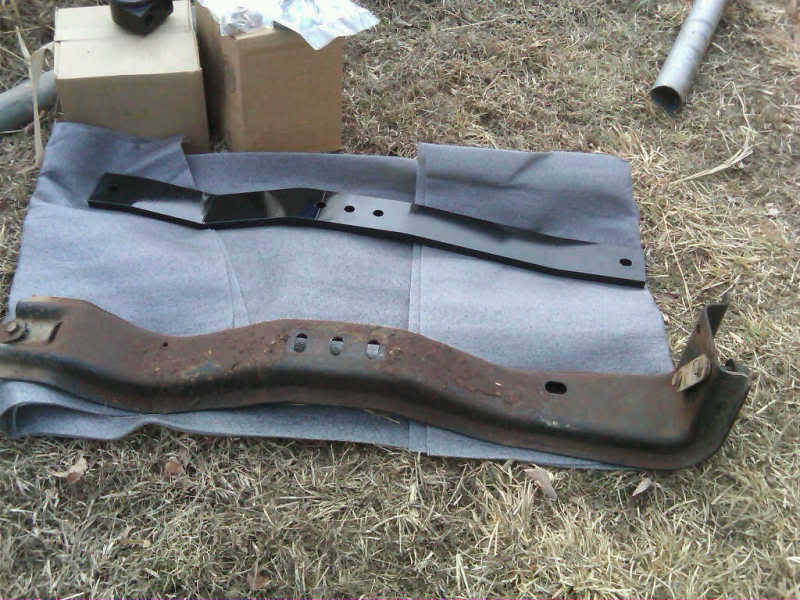

Stock 4x4 crossmember and the suicidedoors.com crossmember. SD crossmember was well worth the money; everything was perfect, no trimming, drilling, or adjusting was required.

Name:  IMG00377-20100116-1521.jpg
Views: 59
Size:  5.1 KB
That bellhousing takes up more room than i imagined it would... Not looking so promising for the tri-y's

Name:  IMG00376-20100116-1520.jpg
Views: 59
Size:  3.5 KB The fraction of an inch between the framerail and t-case. Case may come back out for some grinding

Name:  IMG00374-20100116-1519.jpg
Views: 59
Size:  4.0 KB
Clearance from the top of the T-case to the floor pan

Name:  IMG00383-20100116-1536.jpg
Views: 59
Size:  3.3 KB
If it slides back some i'm going to have to go with a fuel cell....

Name:  IMG00375-20100116-1519.jpg
Views: 59
Size:  2.3 KB
Shifter location from the bottom

Name:  IMG00379-20100116-1528.jpg
Views: 59
Size:  22.0 KB

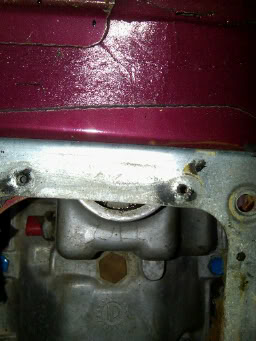

from above

Name:  IMG00378-20100116-1528.jpg
Views: 59
Size:  17.3 KB

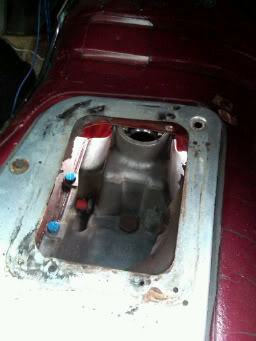

and again

Name:  IMG00380-20100116-1529.jpg
Views: 59
Size:  22.5 KB

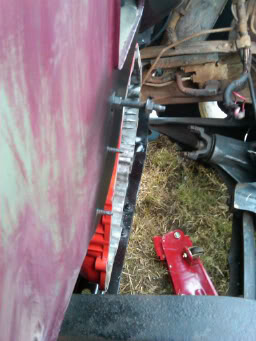

Trans flush with firewall

Name:  IMG00381-20100116-1529.jpg
Views: 59
Size:  4.9 KB
another angle

Name:  IMG00386-20100116-1542.jpg
Views: 59
Size:  4.6 KB
oil pressure sender? located between oil filter and location for mech. fuel pump

Name:  IMG00385-20100116-1541.jpg
Views: 59
Size:  4.7 KB
loosely on for mock up. real nice piece

questions, comments, suggestions??
