My 01 V8 Ranger Build..

Well figured I start a build thread for my 01 Ranger. It's a 3.0 V6/Auto, 2wd short bed.

My plan is to go with a 302 or 351w and not sure of trans yet. Also not sure if I should go carb or EFI. From what I've read so far it doesn't look like many people do V8 swaps in 01 and up rangers. I see they make a V8 conversion kits but none for 98 and up? Can I use V8 engine mounts from an Explorer? what would be a good trans to go with?

Thanks in advance for the help! :beer: Here are some pictures of the truck and how it looked when I bought it... :icon_cheers:


Attached Thumbnails
My 01 V8 Ranger Build..-odem.jpg   My 01 V8 Ranger Build..-eow8.jpg
Reply With Quote
  #2
Old 09-10-2013
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Sweet. Can't wait for the progress!
Reply With Quote
  #3
Old 09-11-2013
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
If you find a 2001 Explorer with a 302 most of it should swap right in.
Reply With Quote
  #4
Old 09-11-2013
Member
Thread Starter

Join Date: Sep 2013
Location: Forest City PA
Posts: 13
If I didn't pick up a V8 explorer for a donor would I buy engine mounts for the same year V8 explorer? What needs to be done to the frame to use the V8 engine mounts on a ranger?
Reply With Quote
  #5
Old 09-11-2013
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Assuming you are doing a 302 then i would think so. Someone would have to confirm that though. I am not certain. 302s are just little motors. Cant be too bad.
Reply With Quote
  #6
Old 09-11-2013
05edge's Avatar
Member

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
99-01 explorer would be the best years for your 2001. The explorers engine mounts will bolt right into the rangers frame. Depending on your state, If you swap to carb you might have a really hard time getting it inspected. I think you should go 351w and do a step by step write up for me:)
Reply With Quote
  #7
Old 09-11-2013
05edge's Avatar
Member

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
Quote:
Originally Posted by zabeard View Post
302s are just little motors. Cant be too bad.
Hey, a 330 isnt all that big either :p ... this is my jealousy talking.
Reply With Quote
  #8
Old 09-11-2013
Member
Thread Starter

Join Date: Sep 2013
Location: Forest City PA
Posts: 13
If I go carbed it will most certainly be a 351w with a Ford C4 auto but they are both getting really hard to find anymore. I built a street rod using a 351w/C4 and it took me a long time to find them.

Where I live (the sticks LOL) they don't test emissions plus I'm going to run high flow cats anyways. I did this on a mustang and didn't have an issue. I still may go EFI just depends if I find a good donor.
Reply With Quote
  #9
Old 09-11-2013
Member
Thread Starter

Join Date: Sep 2013
Location: Forest City PA
Posts: 13
This is today's project....Cleaning this pig up! LOL Then pulling off the truck cap and then breaking out the pressure washer.

Attached Thumbnails
My 01 V8 Ranger Build..-pyzx.jpg
Reply With Quote
  #10
Old 09-11-2013
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by 05edge View Post
Hey, a 330 isnt all that big either :p ... this is my jealousy talking.
lol, im just messing with you.
Reply With Quote
  #11
Old 09-11-2013
05edge's Avatar
Member

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
Quote:
Originally Posted by zabeard View Post
lol, im just messing with you.
Haha I know. I agree though a 302 is pretty small.
Reply With Quote
  #12
Old 09-11-2013
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Quote:
The explorers engine mounts will bolt right into the rangers frame.
The stock 5.0 Explorer mounts and engine plates will work in 98+ torsion bar Rangers only. This includes 98+ 4x4, Trailhead, Edge and the newer Sport model that replaced the Edge.

On the other hand, 98+ 2WD coil spring frames (like the OP's) will not accept the Explorer engine mount setup. Custom plates would need to be fabbed.
Reply With Quote
  #13
Old 09-11-2013
Member
Thread Starter

Join Date: Sep 2013
Location: Forest City PA
Posts: 13
Quote:
Originally Posted by rwenzing View Post
The stock 5.0 Explorer mounts and engine plates will work in 98+ torsion bar Rangers only. This includes 98+ 4x4, Trailhead, Edge and the newer Sport model that replaced the Edge.

On the other hand, 98+ 2WD coil spring frames (like the OP's) will not accept the Explorer engine mount setup. Custom plates would need to be fabbed.
No body sells or makes these plates? Is there a template available? So with these plates I could use explorer V8 engine mounts?
Reply With Quote
  #14
Old 09-11-2013
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,833
Check with member strada shop on RPS.

5.0 coil spring motor mounts.
Reply With Quote
  #15
Old 09-12-2013
Member
Thread Starter

Join Date: Sep 2013
Location: Forest City PA
Posts: 13
Quote:
Originally Posted by rwenzing View Post
Check with member strada shop on RPS.

5.0 coil spring motor mounts.

Thank you! Sent him a PM. Hope he still makes them.
Reply With Quote
  #16
Old 09-12-2013
Member
Thread Starter

Join Date: Sep 2013
Location: Forest City PA
Posts: 13
Strata Shop hasn't been on RPS for over a month now. I found prints that Brian designed so I'll try and have a machine shop do them if I can find one around here.
Reply With Quote
  #17
Old 09-19-2013
Fordranger1998's Avatar
Member

Join Date: May 2007
Location: Illinois
Posts: 757
I have the plates that strada made my motor had to be raised 3/4 inch to clear the steering rack not to difficult though an explorer efi 5.0 is def your easiest bet most everything is plug and play for 98-00 don't know a whole lot about the 01+ models
Reply With Quote
  #18
Old 09-19-2013
Member
Thread Starter

Join Date: Sep 2013
Location: Forest City PA
Posts: 13
Quote:
Originally Posted by Fordranger1998 View Post
I have the plates that strada made my motor had to be raised 3/4 inch to clear the steering rack not to difficult though an explorer efi 5.0 is def your easiest bet most everything is plug and play for 98-00 don't know a whole lot about the 01+ models
Unfortunately Strada isn't making the plates anymore.
Reply With Quote
  #19
Old 09-19-2013
Fordranger1998's Avatar
Member

Join Date: May 2007
Location: Illinois
Posts: 757
Yes I know price to make them went up so he got away from it but when he did great product
Reply With Quote
  #20
Old 09-19-2013
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773

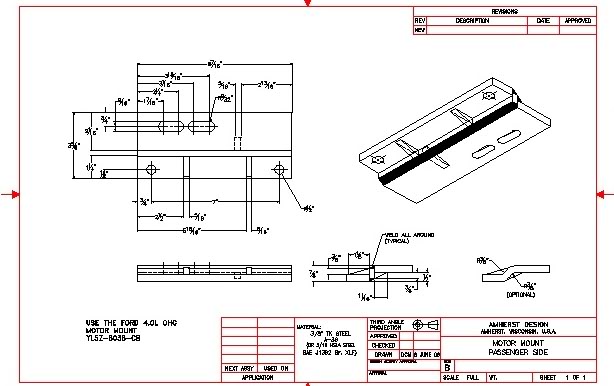

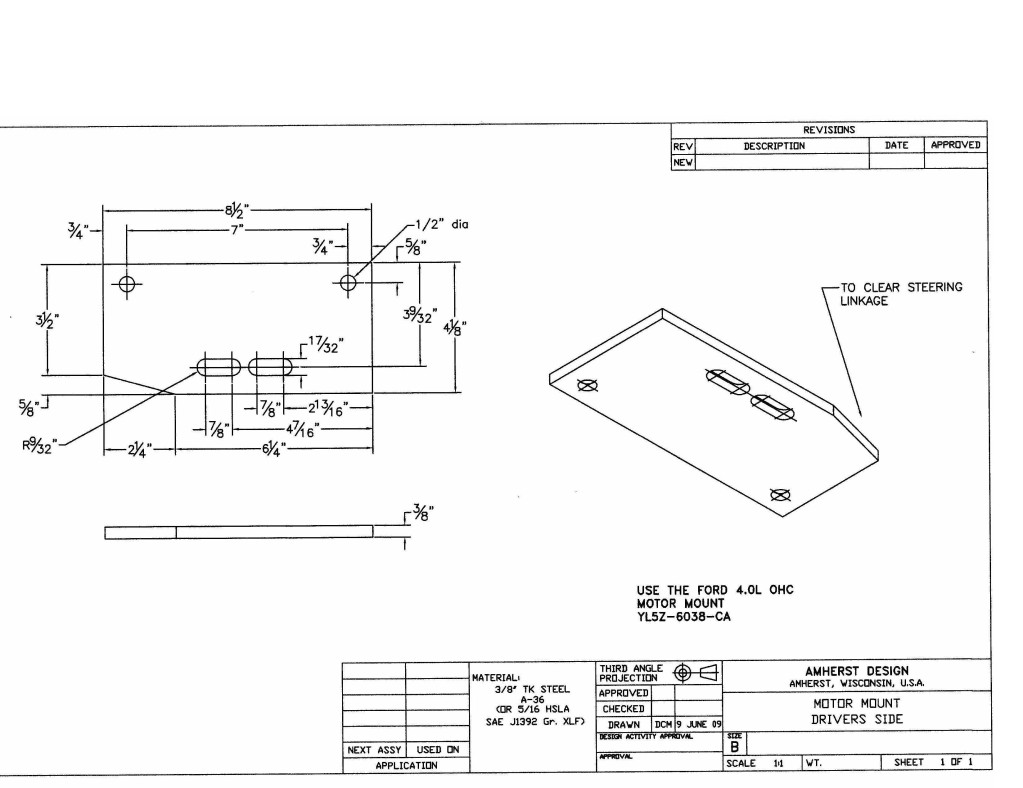

Anyone have the measurements ?

Maybe a drawing ?
Reply With Quote
  #21
Old 09-19-2013
Member
Thread Starter

Join Date: Sep 2013
Location: Forest City PA
Posts: 13
Quote:
Originally Posted by Scrambler82 View Post
Anyone have the measurements ?

Maybe a drawing ?


Attached Thumbnails
My 01 V8 Ranger Build..-passengerside_zps2f68f1d3.jpg   My 01 V8 Ranger Build..-driverssideplate.jpg   My 01 V8 Ranger Build..-passengersideplate.jpg
Reply With Quote
  #22
Old 09-27-2013
Fordranger1998's Avatar
Member

Join Date: May 2007
Location: Illinois
Posts: 757
Strada is selling plates again he has some so if your in need still look him up
