2003 Reg Cab Full System Install

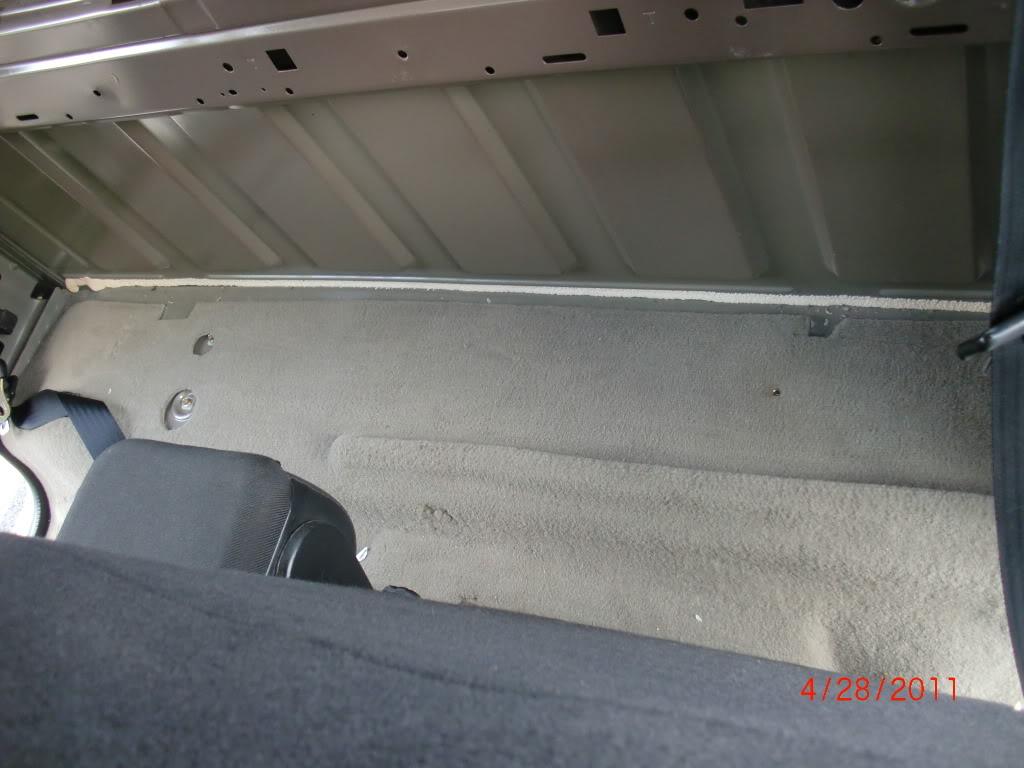

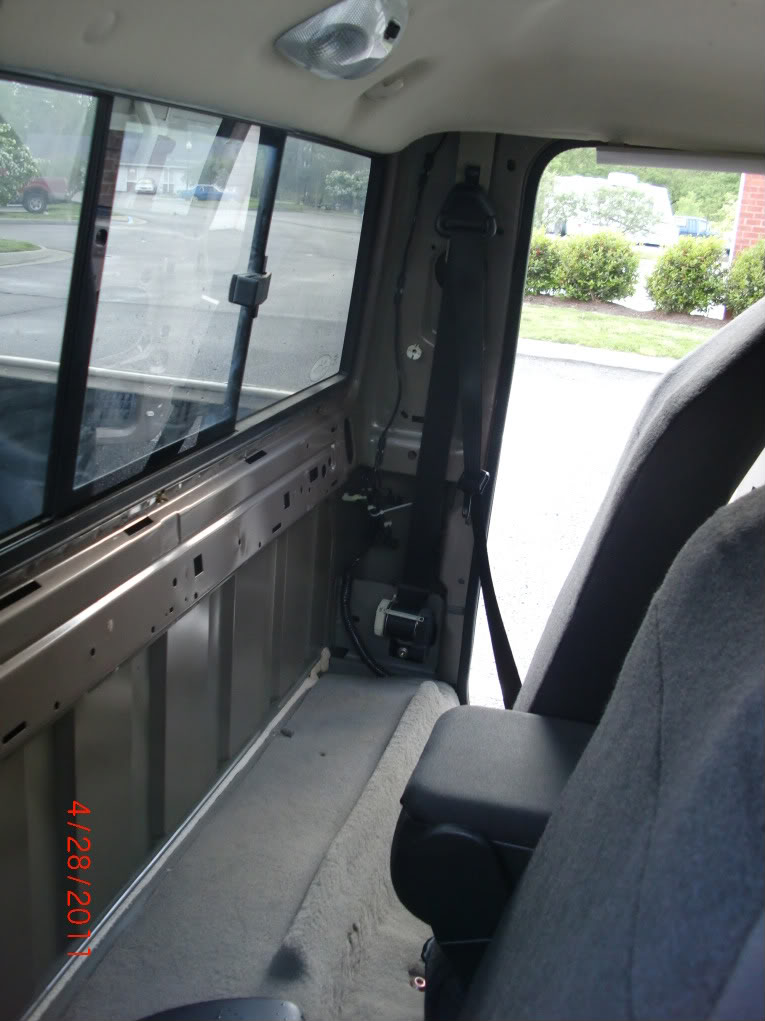

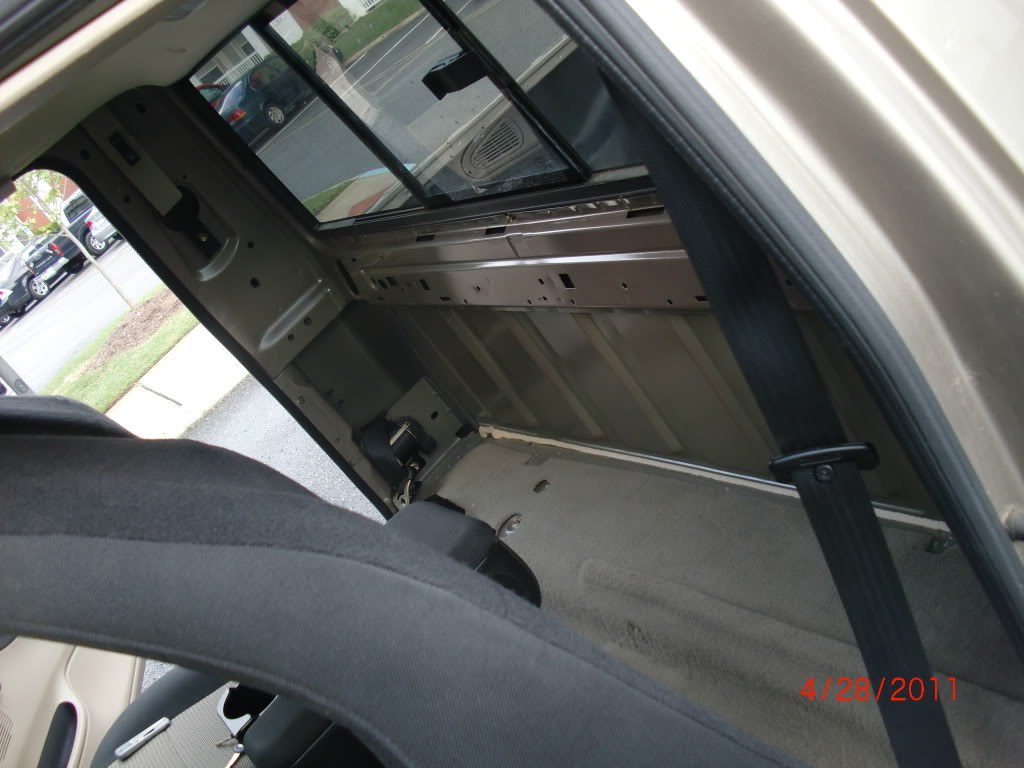

Started the build tonight. Interior is jussssst about completely out. I wasn't planning on starting tonight buttttttttt it just happened. :)

Here is the plan.

1) H/U Kenwood KDC-X994 (hoping to receive in May for birthday, if not this may change WAITING TEMPORARY SETUP IS CRAPPY INSIGNIA H/U left over from another project
2) Deaden and seal doors and back wall with e45 and v4 IN PROCESS
3) 1/0 power/ground to a distro for two amps WIRING RUN EXCEPT DISTRO WIRES
4) Front Stage eD 6500's HAVE
5) Front Stage Amp Avionixx 640 WAITING TEMPORARY SETUP IS ORION 265xp
6) Sub Stage 13Av.2 downfiring at an angle ported in 2.2 at 28Hz TBD TEMPORARY SETUP IS 16Ov.2 PORTED
7) Sub Stage Amp Digital Designs M.80 HAVE
8) Door lock actuators with keyless DONE

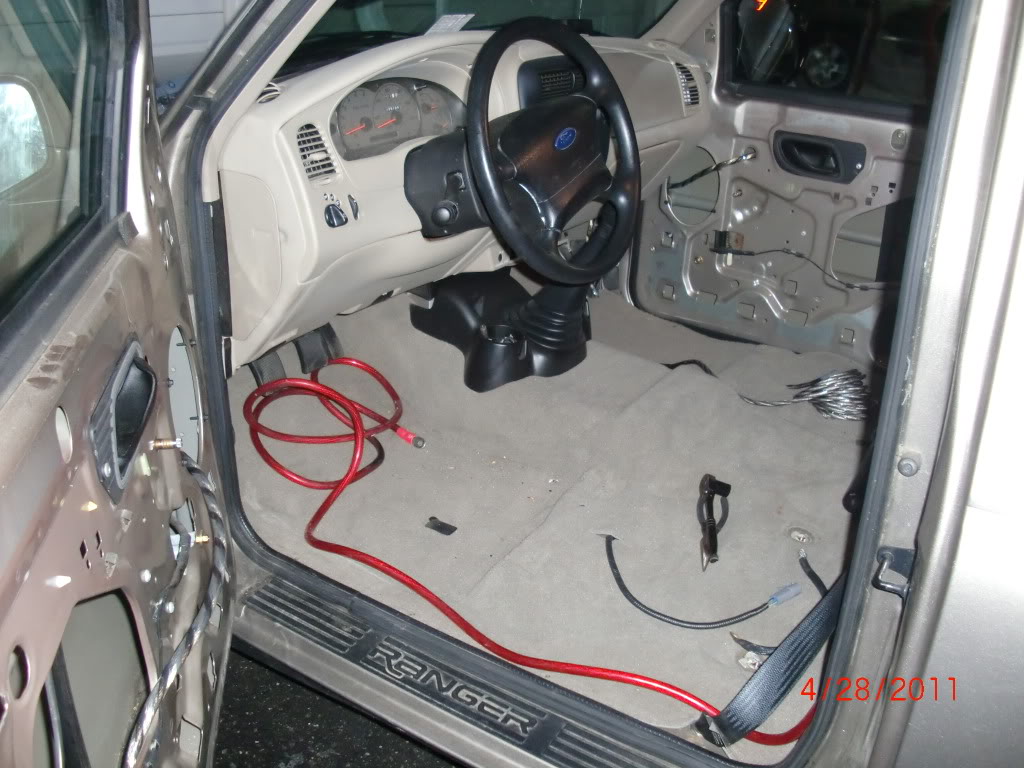

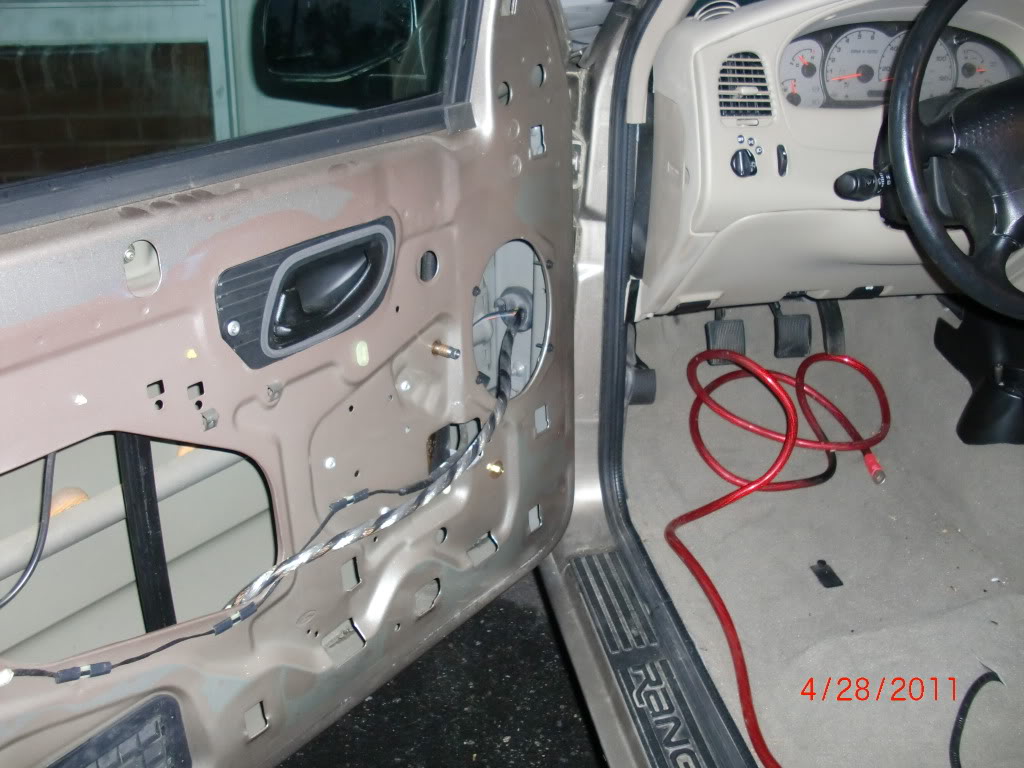

Tonight I got the front stage wiring run from the amp spot and through the door grommets. Tomorrow I should have the power wires run.

Any questions let me know.

Name:  EasterRanger033.jpg
Views: 22
Size:  96.7 KB

Name:  EasterRanger034.jpg
Views: 22
Size:  94.5 KB

Name:  EasterRanger035.jpg
Views: 22
Size:  102.2 KB

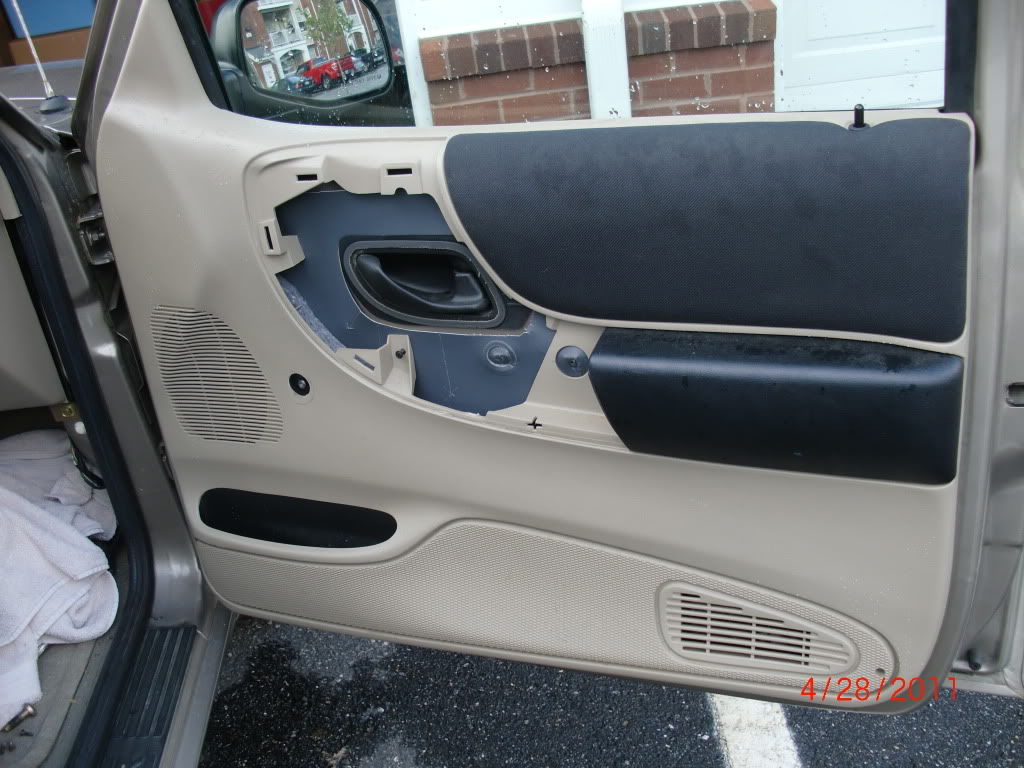

Name:  EasterRanger036.jpg
Views: 19
Size:  140.7 KB

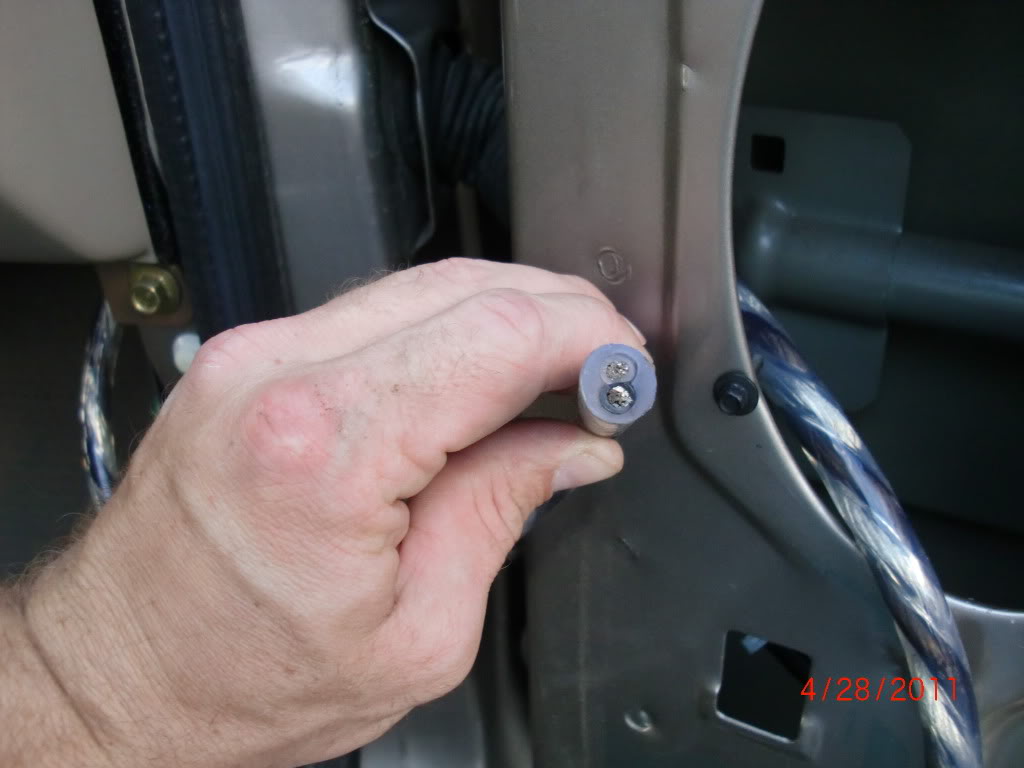

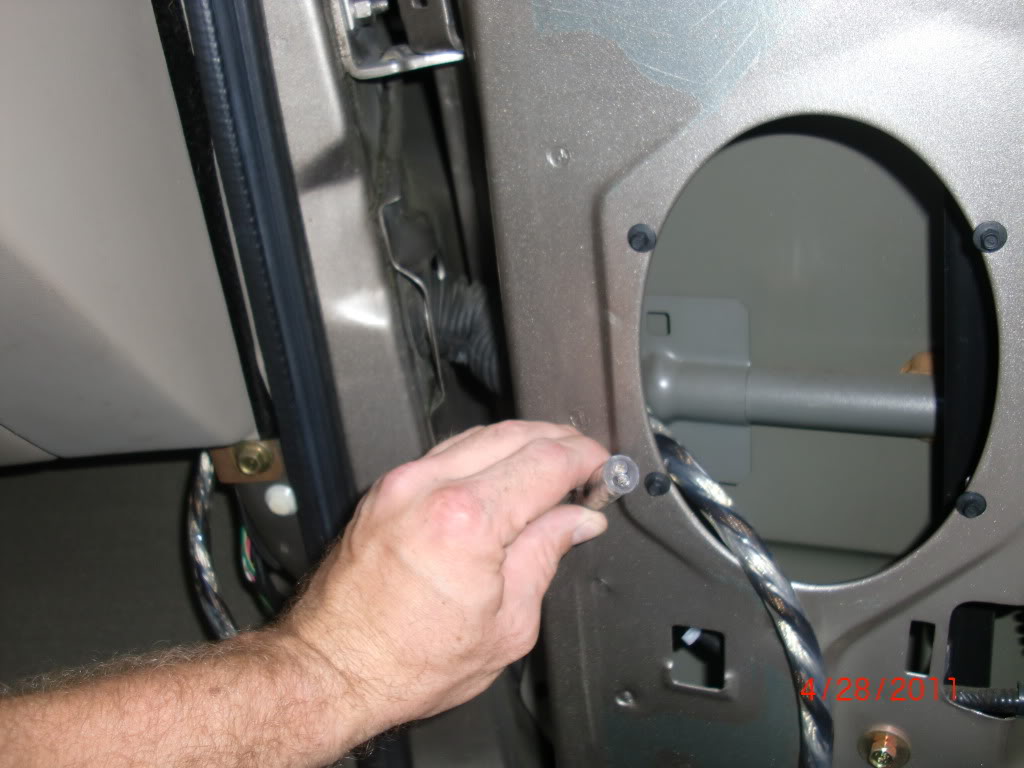

Is 10awg overkill for my front stage??
Name:  EasterRanger037.jpg
Views: 21
Size:  88.5 KB

Name:  EasterRanger038.jpg
Views: 20
Size:  63.2 KB

Name:  EasterRanger039.jpg
Views: 22
Size:  131.0 KB

Name:  EasterRanger040.jpg
Views: 18
Size:  116.4 KB

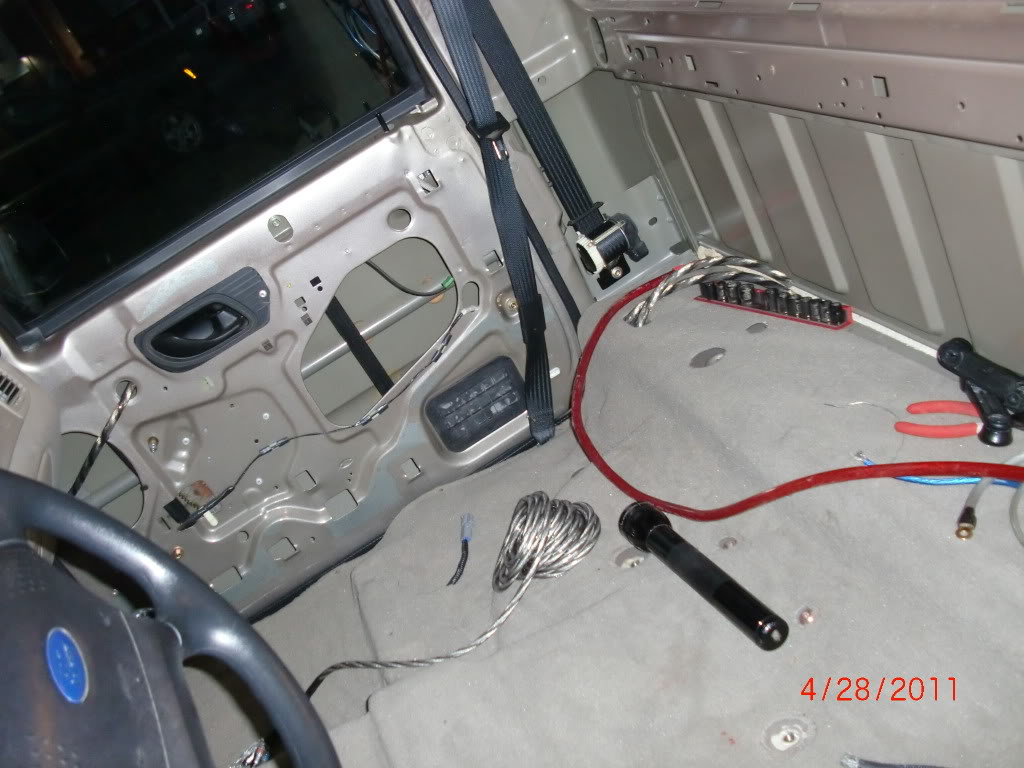

Name:  EasterRanger041.jpg
Views: 21
Size:  108.0 KB

Last edited by Joeybutts; 05-01-2011 at 11:13 PM.
Reply With Quote
  #2
Old 04-28-2011
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Doesn't look too bad. That 10g is a little ridiculous though for your front stage.
Reply With Quote
  #3
Old 04-28-2011
Member
Thread Starter

Join Date: Mar 2011
Location: Hampton, VA
Posts: 103
Quote:
Originally Posted by rangerboy101 View Post
Doesn't look too bad. That 10g is a little ridiculous though for your front stage.
Trust me, if I didn't get it at the price I got it, it wouldn't be in use for my front stage, but this truck allows me a much better SQ build than my convertible so don't mind a little overkill.

Wait till you see the enclosure part of the build. I love bracing.
Reply With Quote
  #4
Old 04-29-2011
the Answer's Avatar
Member

Join Date: Feb 2010
Location: Webster, Fl.
Posts: 363
KnuKonceptz FTW
Reply With Quote
  #5
Old 04-29-2011
Member
Thread Starter

Join Date: Mar 2011
Location: Hampton, VA
Posts: 103
Was moving right along before I was interrupted by a dishwasher emergency and had to stop. Would have had a fair amount of deadening done.

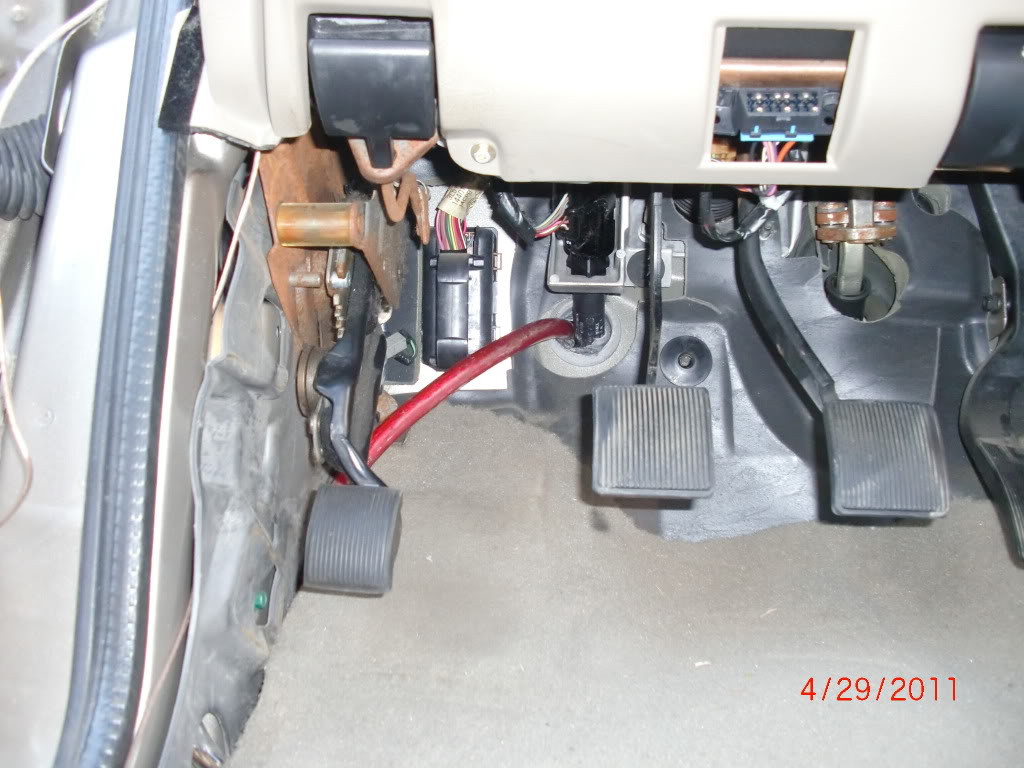

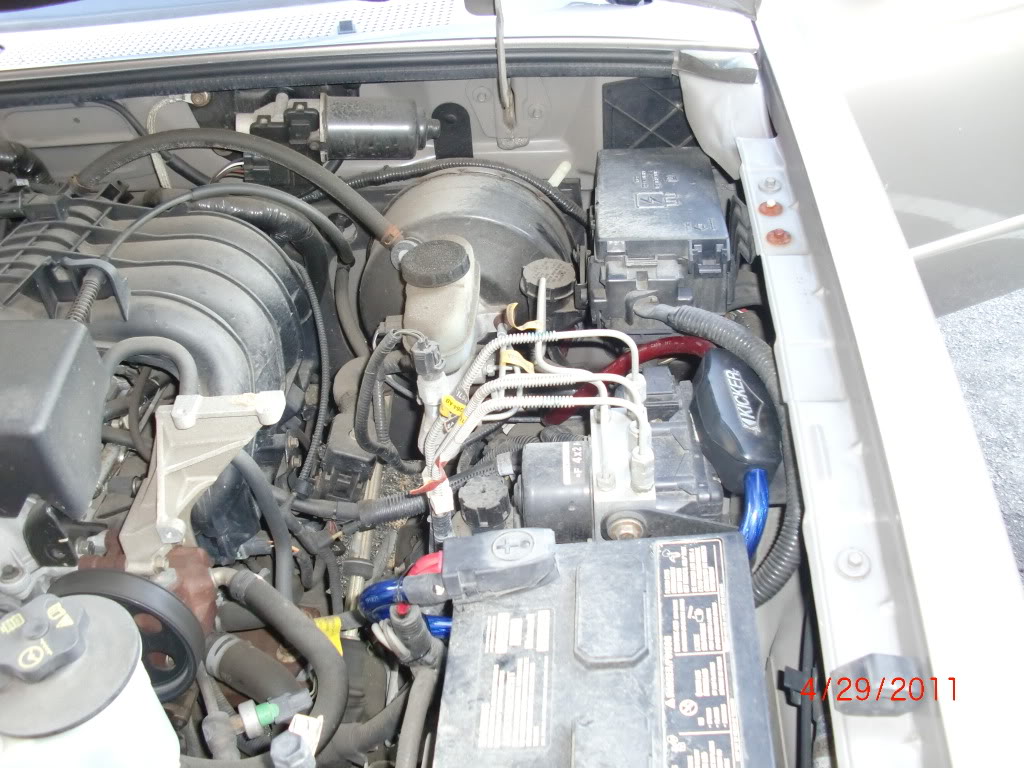

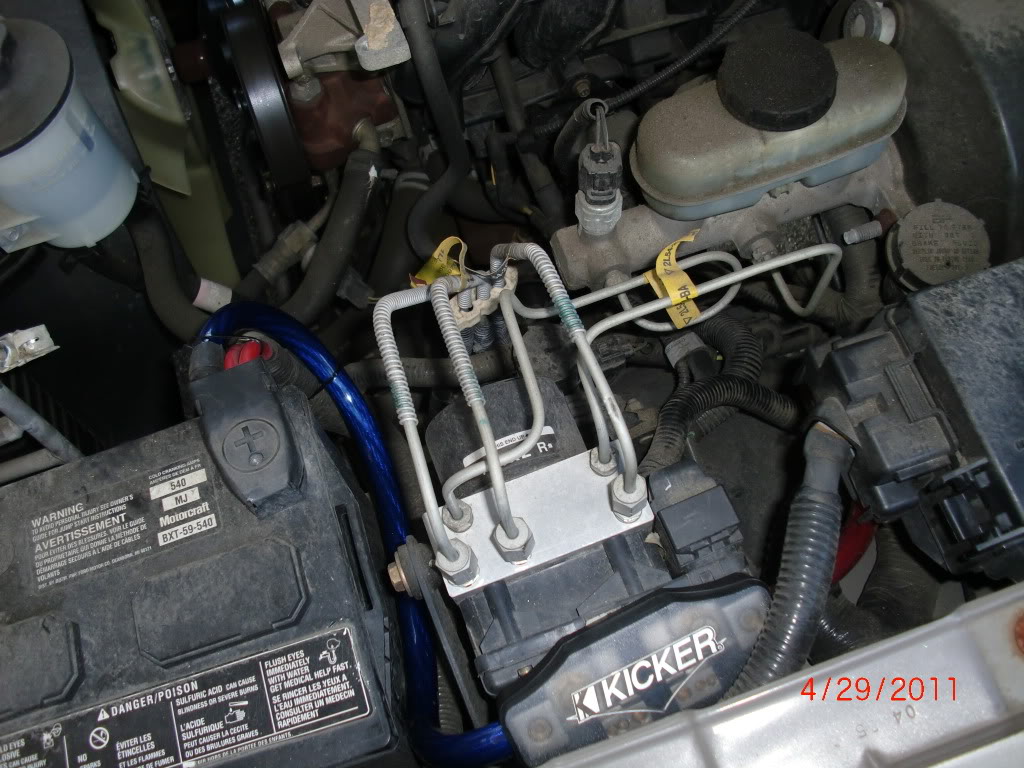

Power wire ready. Just needs a fuse.

Name:  Ranger009.jpg
Views: 18
Size:  147.4 KB

Name:  Ranger008.jpg
Views: 19
Size:  149.0 KB

Name:  Ranger006.jpg
Views: 19
Size:  114.1 KB

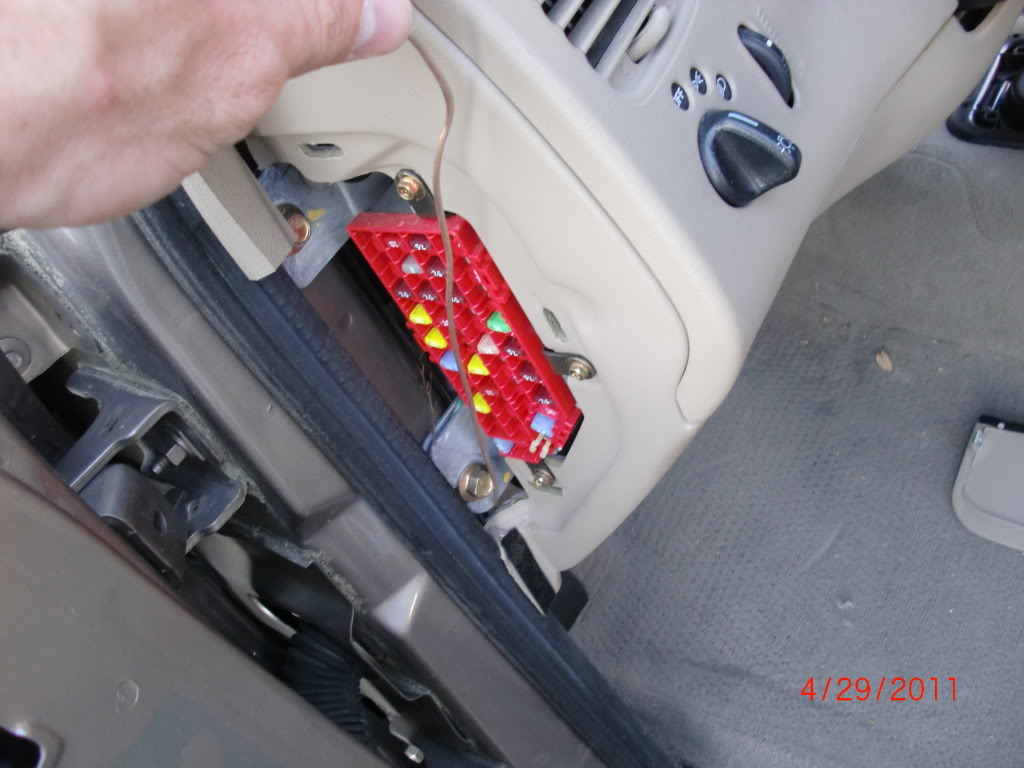

Remote wire ready for an add-a-fuse.
Name:  Ranger007.jpg
Views: 15
Size:  87.7 KB

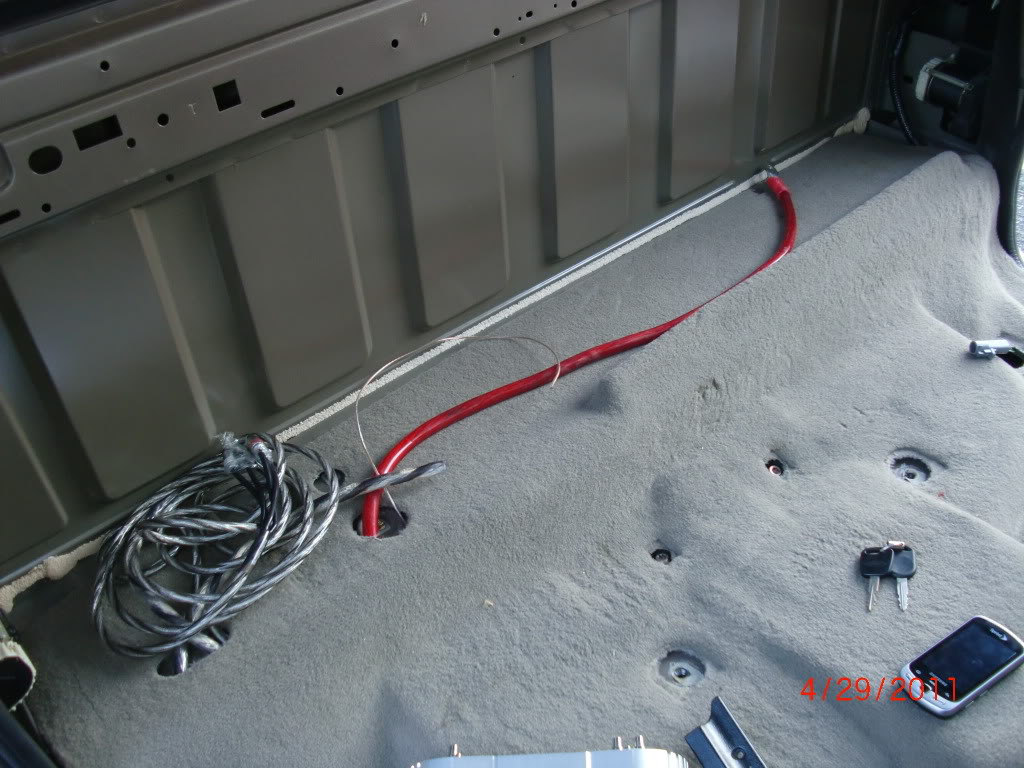

All wires to amps location.
Name:  Ranger005.jpg
Views: 18
Size:  131.4 KB

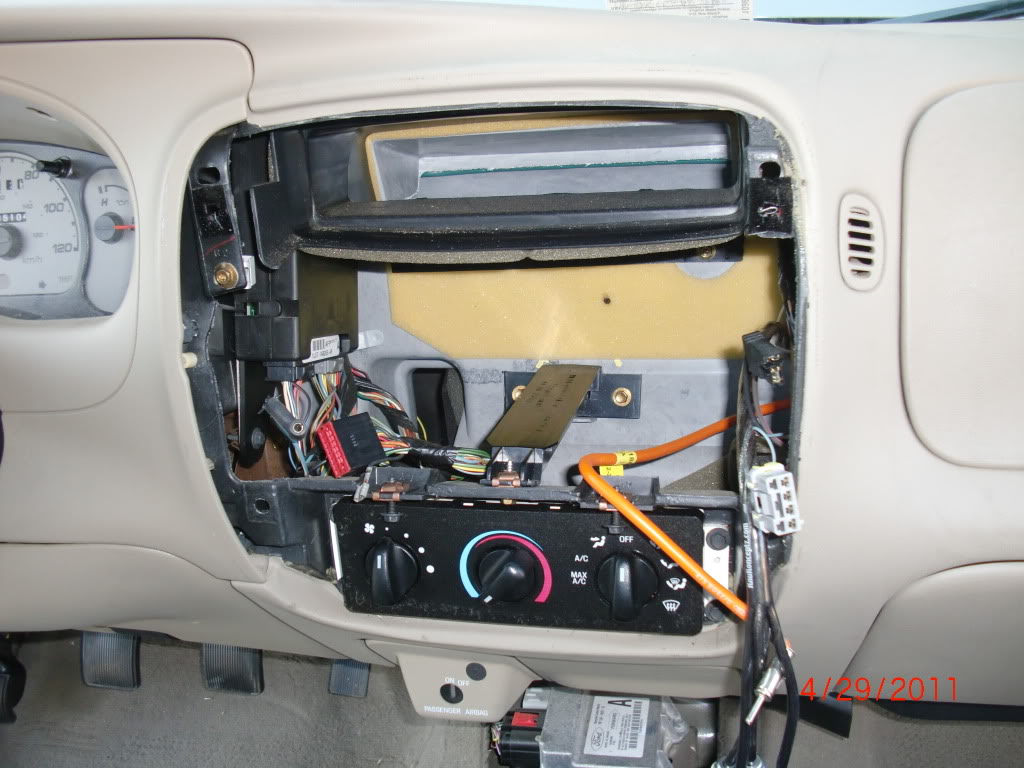

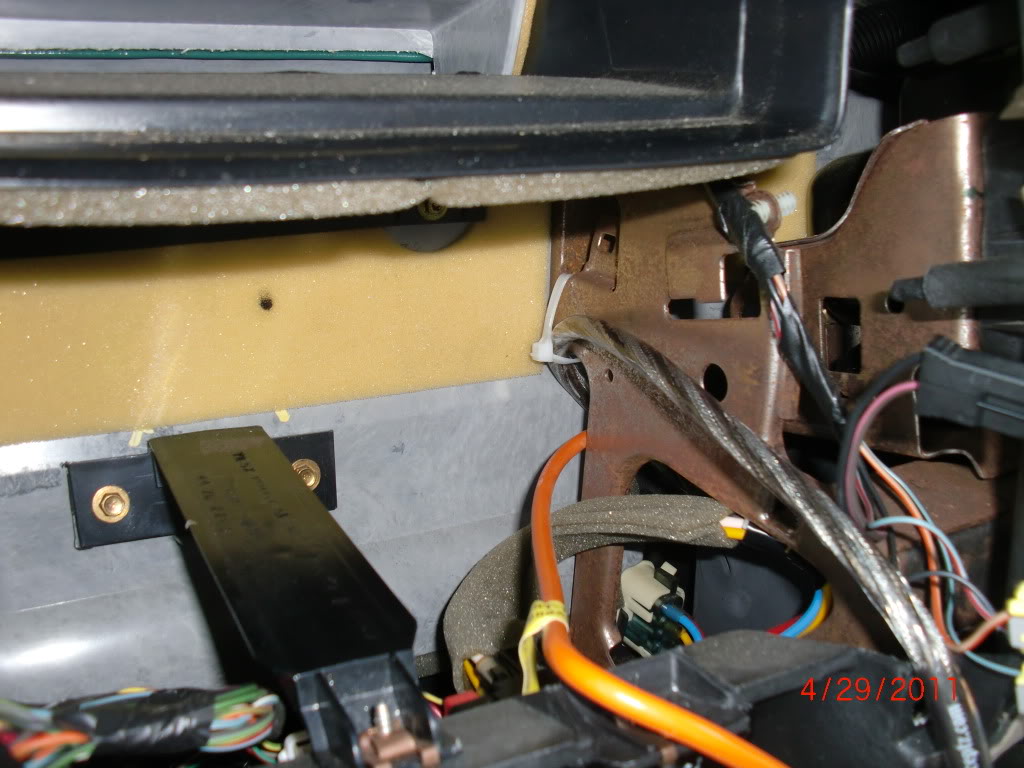

Stock H/U out and RCA's run
Name:  Ranger001.jpg
Views: 16
Size:  118.1 KB

Name:  Ranger002.jpg
Views: 14
Size:  109.3 KB

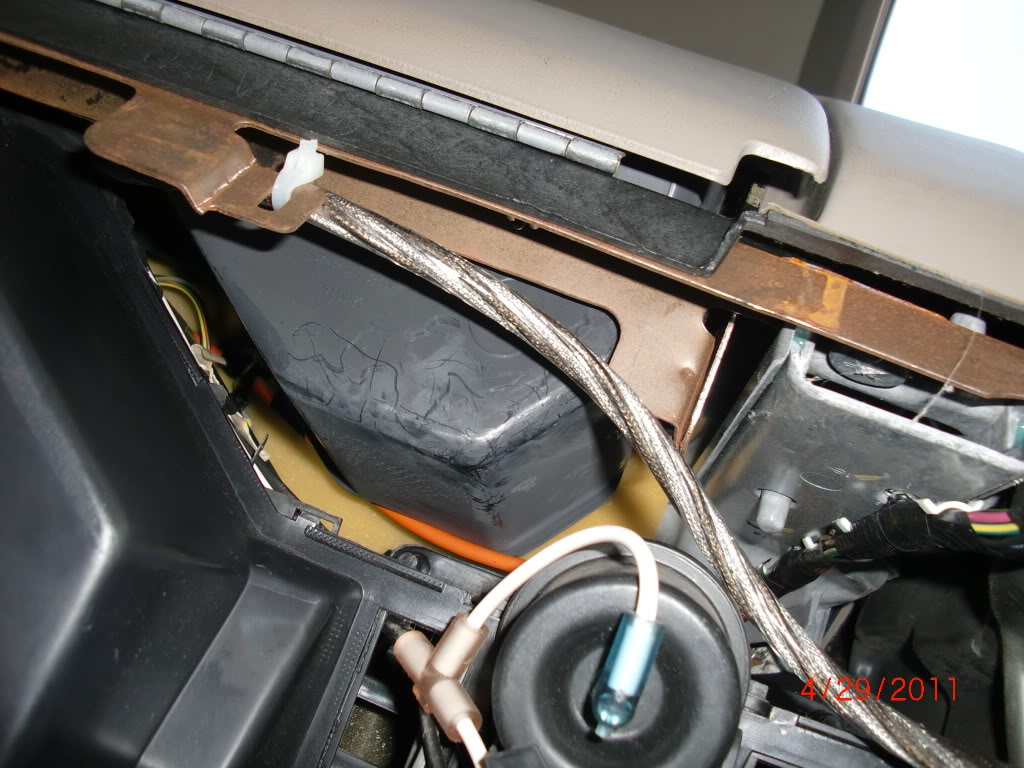

Under glovebox.
Name:  Ranger003.jpg
Views: 16
Size:  139.9 KB

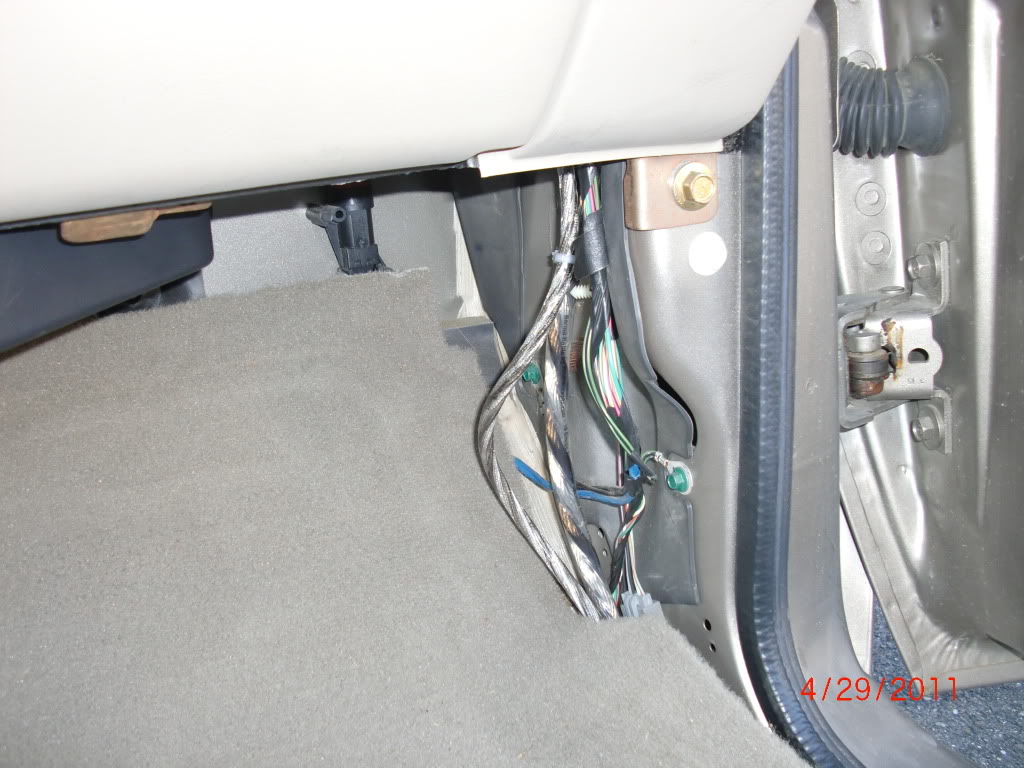

Passenger kick.
Name:  Ranger004.jpg
Views: 14
Size:  129.7 KB

Let's see what happens tomorrow! :D
Reply With Quote
  #6
Old 04-29-2011
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Lookin good! i'm subscribed, this looks like a fun install.
Reply With Quote
  #7
Old 04-30-2011
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
I run a std cab too, interested to see where this goes.
Reply With Quote
  #8
Old 04-30-2011
Member

Join Date: Apr 2011
Location: hawaii
Posts: 14
Looks like its gonna be a real clean install. I also am looking forward to where your headed wih this. I've got a reg cab too.
Reply With Quote
  #9
Old 04-30-2011
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Looks to be clean. Are you going to clean up the passenger side wires? Or hide them somehow?
Reply With Quote
  #10
Old 04-30-2011
Member

Join Date: Oct 2010
Location: Scott City
Posts: 32
wow... ij ust put mine in a week ago. and i ran all my wires the exact same as u did bro.
Reply With Quote
  #11
Old 05-01-2011
Member

Join Date: Aug 2009
Location: Valdosta,Georgia
Posts: 140
I like how everything is coming along!
Reply With Quote
  #12
Old 05-01-2011
Member
Thread Starter

Join Date: Mar 2011
Location: Hampton, VA
Posts: 103
Thanks a lot fellas! Everything is going well. Got power keyless door locks in this weekend and also started the deadening. Pics to come, just don't have the tie right now.

Yes Adam! wires will be clean and hidden. Shouldn't even know there is a system in the truck unless you spot the tweeters and look behind the seats.
Reply With Quote
  #13
Old 05-01-2011
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
this looks like its going to be very clean. subscribed.
Reply With Quote
  #14
Old 05-01-2011
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
You mentioned sound deadening, did you do the floor ?
I found when I did the floor a lot of road and gear noise went away.

Keep posting the progress.
Reply With Quote
  #15
Old 05-01-2011
Member
Thread Starter

Join Date: Mar 2011
Location: Hampton, VA
Posts: 103
No, I was not planning on doing the floor, but will consider it in the future as I won't have enough deadener to do that as well. The doors and back wall will be thoroughly deadened and the doors sealed as well. Hopefully I have the full interior back in the truck by Wed.

I'm going to have to listen when I am driving it soon to see if I hear anything through the floor. I haven't noticed any gear or excessive road noise, but I may have just overlooked it.

I miss driving my Ranger. :)
Reply With Quote
  #16
Old 05-02-2011
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by Joeybutts View Post
No, I was not planning on doing the floor, but will consider it in the future as I won't have enough deadener to do that as well. The doors and back wall will be thoroughly deadened and the doors sealed as well. Hopefully I have the full interior back in the truck by Wed.

I'm going to have to listen when I am driving it soon to see if I hear anything through the floor. I haven't noticed any gear or excessive road noise, but I may have just overlooked it.

I miss driving my Ranger. :)
I couldn’t believe the before and after cab noise when I did the floor; who would’ve thunk there was that much coming through the floor, really quiet.
I now have the cab deadened (floor, back under window and sides, but not the doors or roof, I am waiting to get to the speakers for the doors but not sure when and if the roof will do anything.
I have never done doors before they look like a PITA.
Time will tell.
Do you have pics of the door deadening, I can put up a pic on the floor if you are interested ?
also, are you using speaker pockets or what ever they are called, the foam cups that go over the speakers, yes or no and way if possible ?

Thanks,ltr
Reply With Quote
  #17
Old 05-02-2011
Member
Thread Starter

Join Date: Mar 2011
Location: Hampton, VA
Posts: 103
Deadening the doors isn't too bad, but just takes time to prep, cut, stick, etc etc. But man does that with sealing the doors make a HUGE difference. Truck sounds/feels solid closing the doors now.

I did bang on the floor a little bit and think I am going to deaden the highest flat floor areas and up under the seats, but not the floor boards.

I do not use foam baffles for speakers, I seal the doors. 95% of component coaxial speakers are intended to be used IB or in an EXTREMELY large sealed enclosure. By sealing the doors you accomplish two things; one you separate the front wave from the back wave more effectively, and two increase the ever coveted and important mid-bass. I'll be doing that some time this week so stay tuned for that, lots of different ways to accomplish that. Will the foam pods help, maybe, but I have never liked the response from using them and I don't have the resources for proper equalization.
Reply With Quote
  #18
Old 05-02-2011
Member
Thread Starter

Join Date: Mar 2011
Location: Hampton, VA
Posts: 103
Well! A lot done since last build post.

First is Saturday's activities.

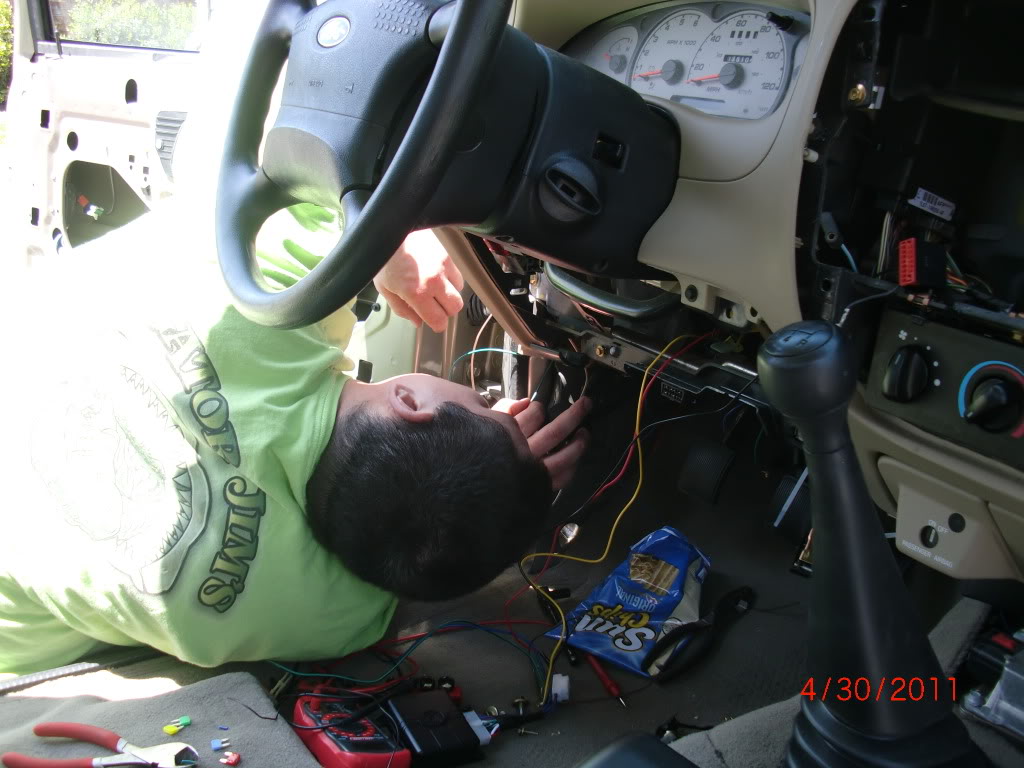

Pat slaving on the keyless door locks.
Name:  Ranger001-1.jpg
Views: 18
Size:  113.2 KB
Name:  Ranger007-1.jpg
Views: 16
Size:  145.2 KB

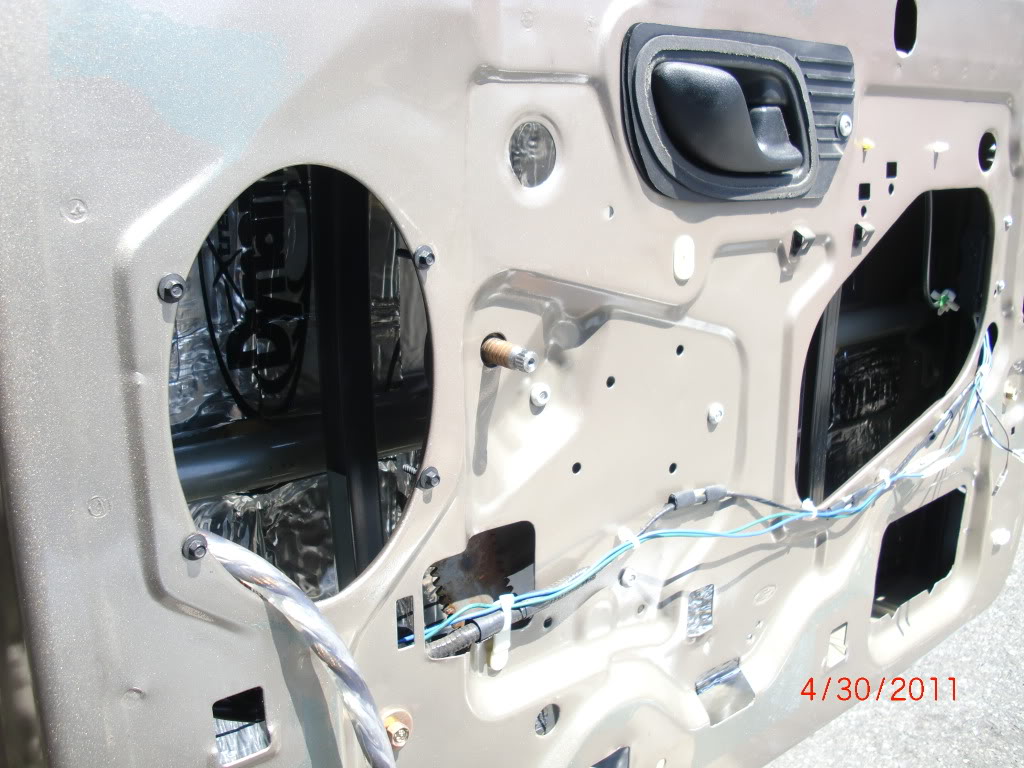

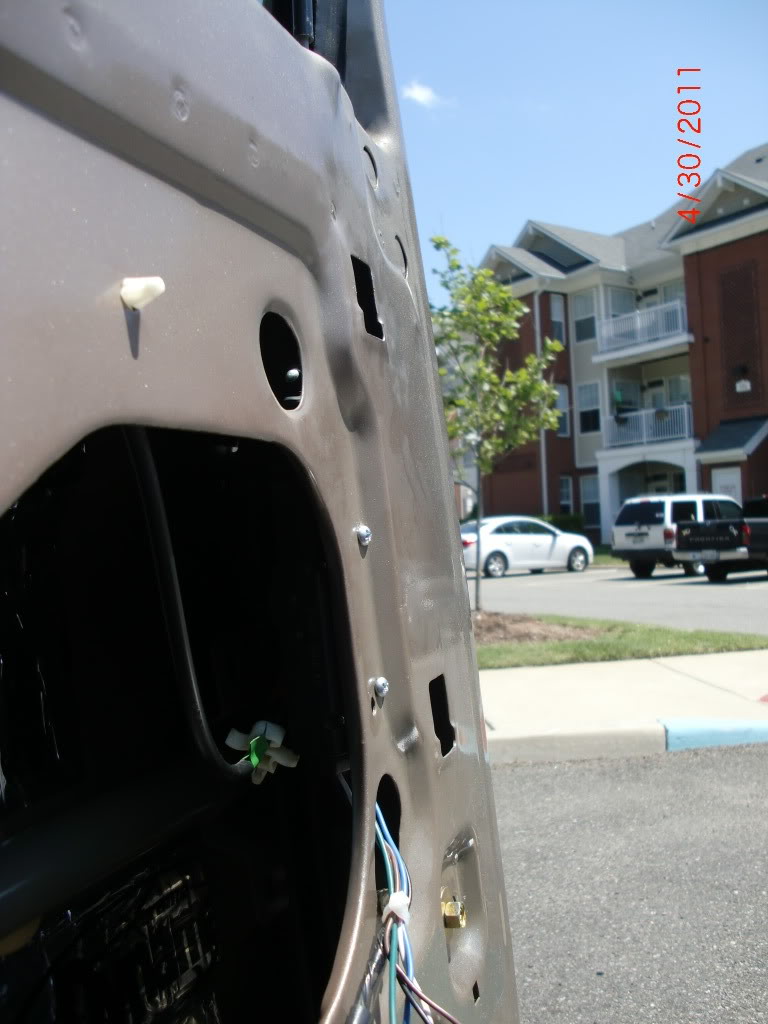

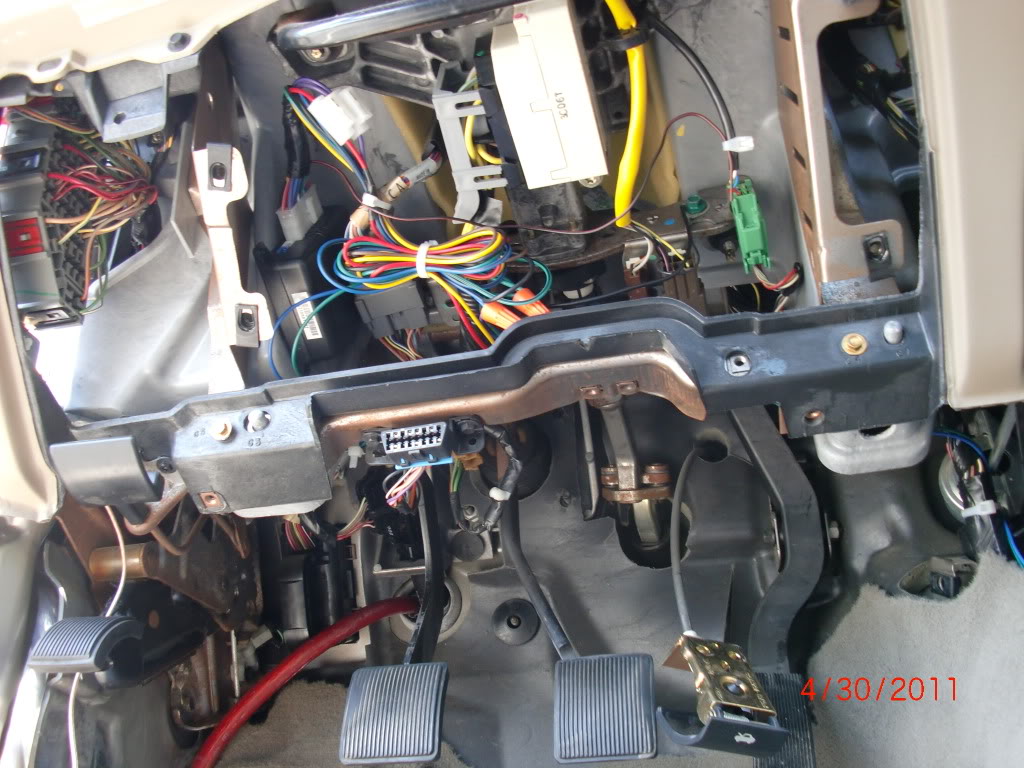

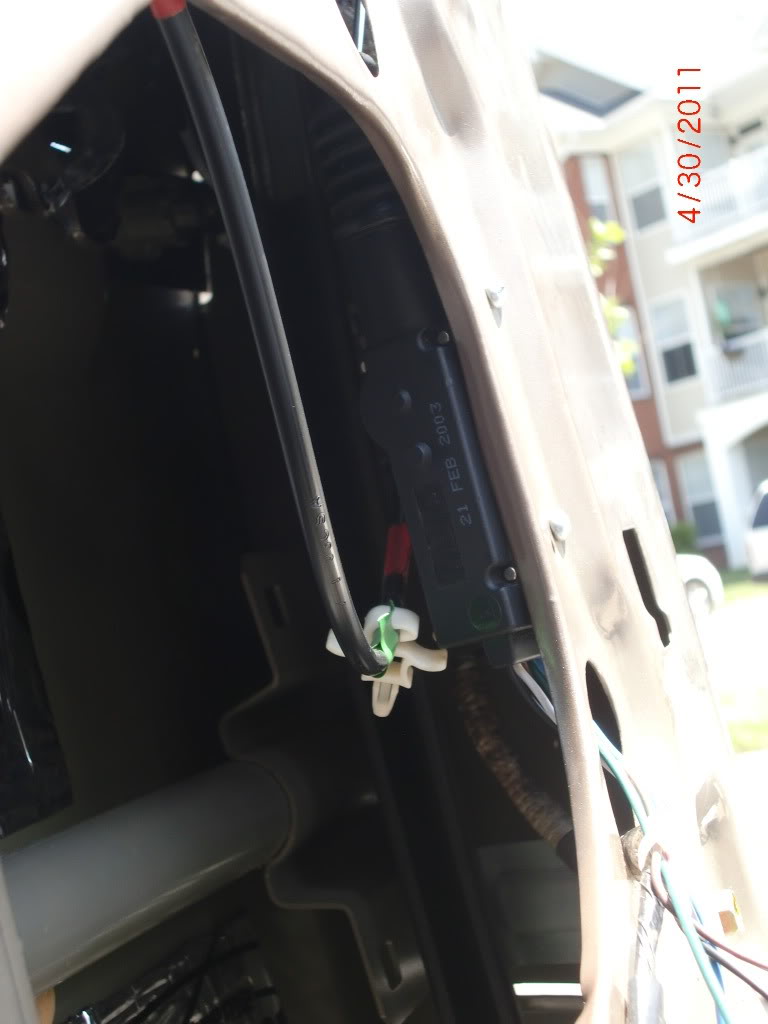

Wires run (blue and green) for actuators and you can just make out the actuator in the door hole all the way to the right.
Name:  Ranger002-1.jpg
Views: 18
Size:  130.7 KB
Name:  Ranger003-1.jpg
Views: 15
Size:  90.1 KB
Name:  Ranger005-1.jpg
Views: 16
Size:  62.3 KB

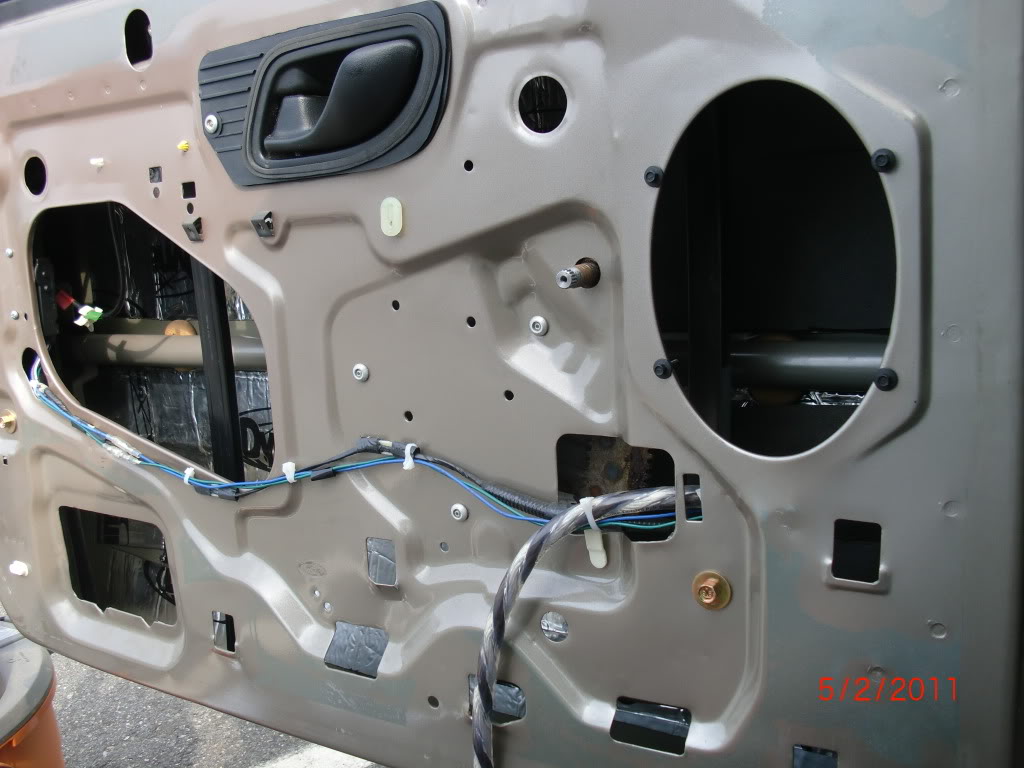

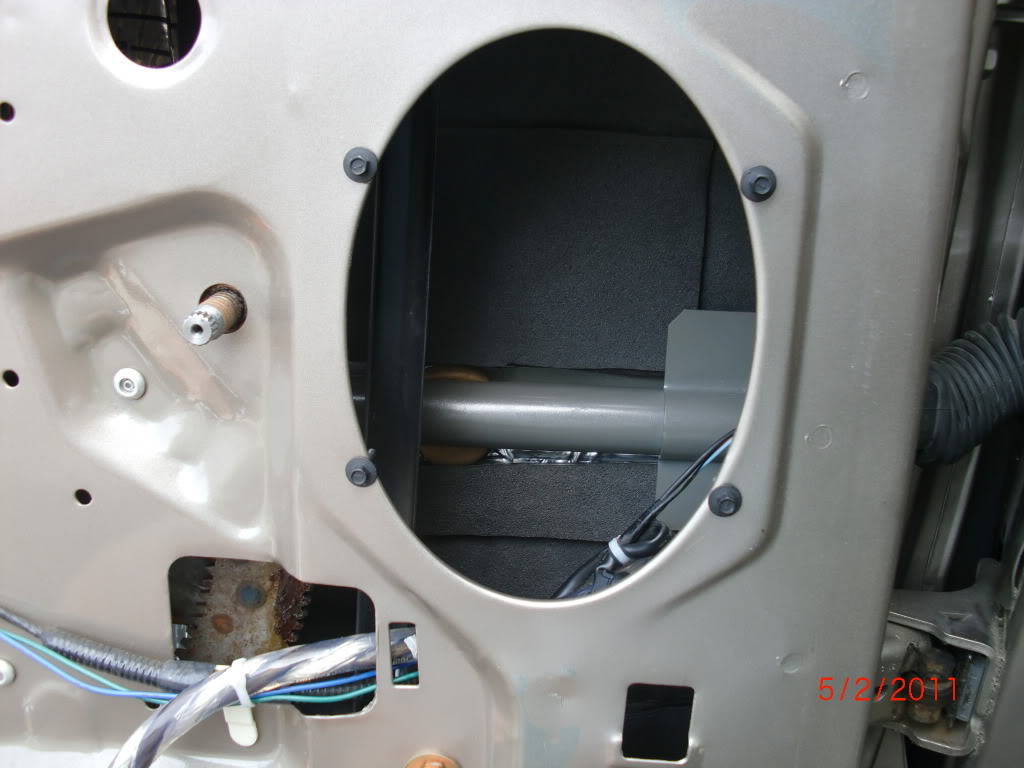

Doors deadened. One full layer for the entire door, two layers on the front half of the door, three layers behind the driver and two layers of v4 behind the driver.
Name:  Ranger006-1.jpg
Views: 15
Size:  96.1 KB
Name:  Ranger011.jpg
Views: 18
Size:  97.3 KB
Name:  Ranger012.jpg
Views: 16
Size:  81.4 KB

Pizza boxes make for great cutting boards of deadener. :p
Name:  Ranger013.jpg
Views: 17
Size:  222.1 KB

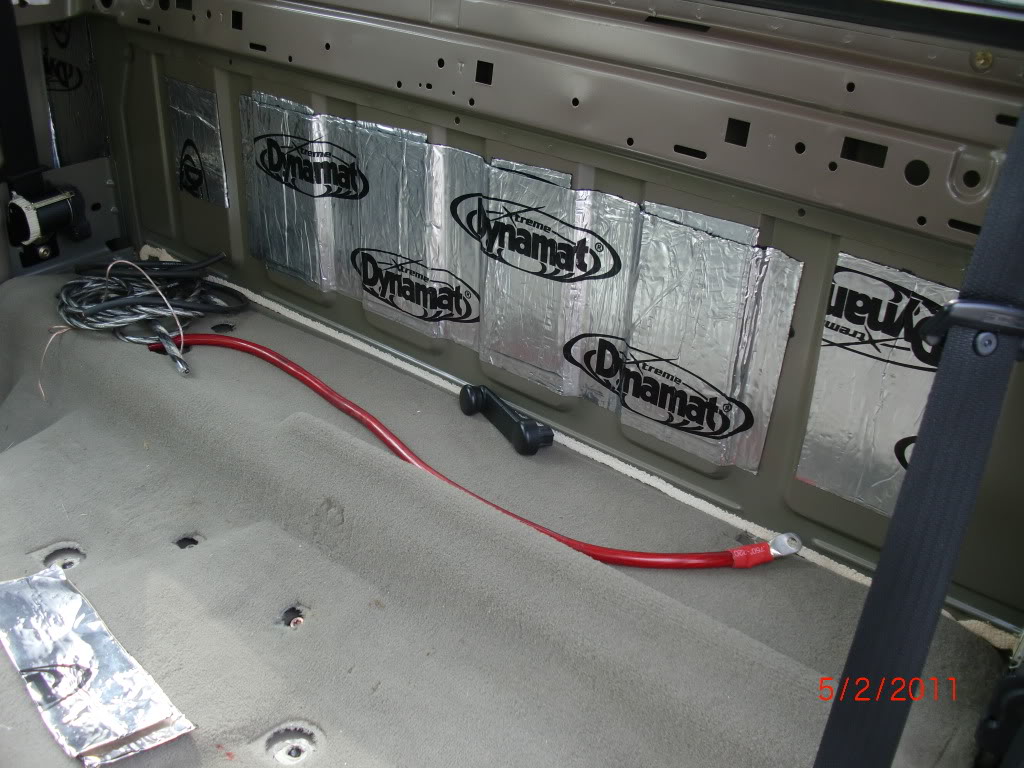

Back wall deadened. This greatly helped. Two layers on the high points.
Name:  Ranger014.jpg
Views: 14
Size:  143.3 KB

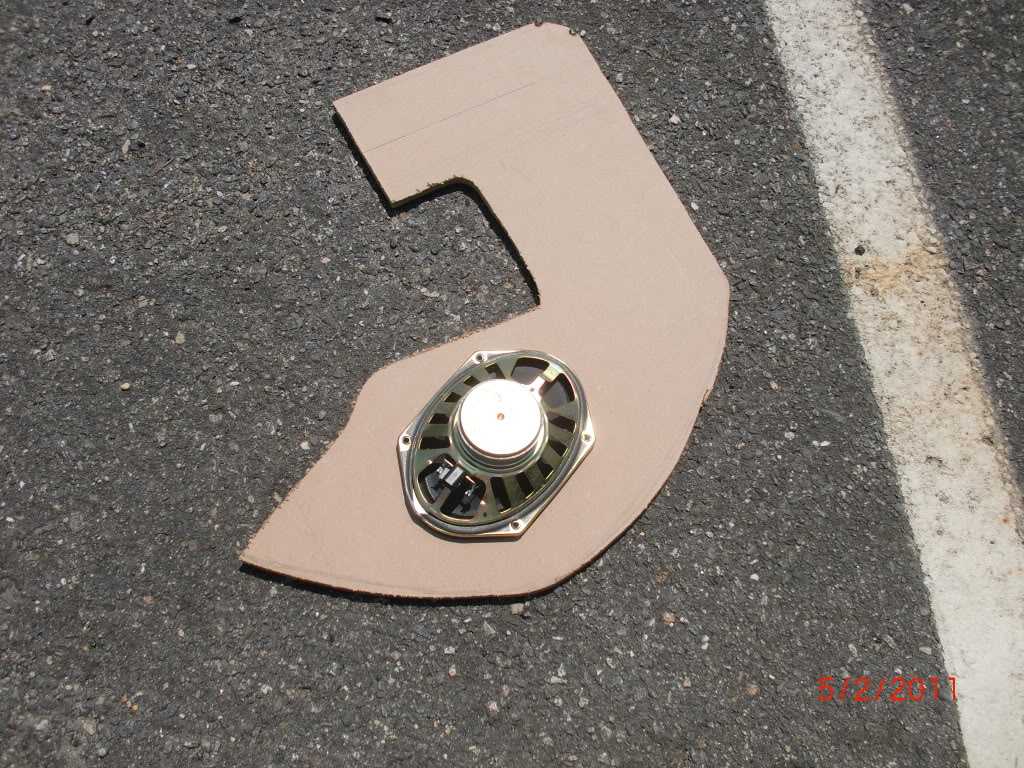

Using factory speaker as a template for mid baffles.
Name:  Ranger015.jpg
Views: 15
Size:  272.9 KB
Name:  Ranger017.jpg
Views: 17
Size:  94.7 KB

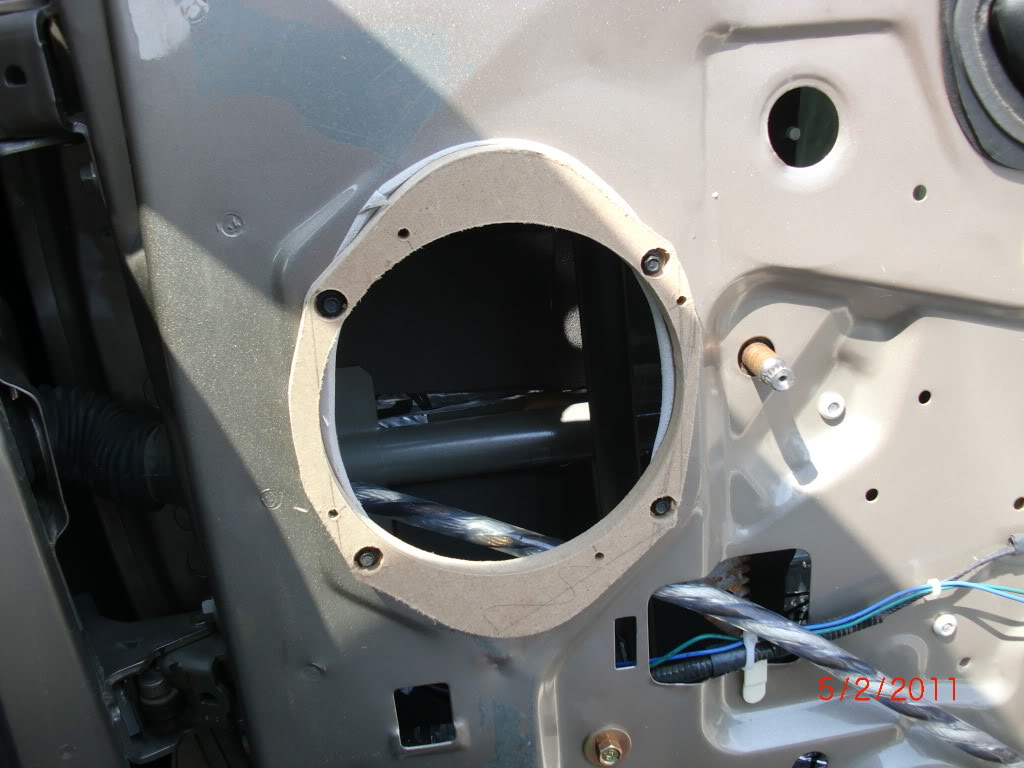

Using 1/2" MDF for the baffles pushed out the driver JUST too far, so I trimmed the inside of the door panel grill and now there is perfect clearance. Took some time with my dremel to not screw this up.

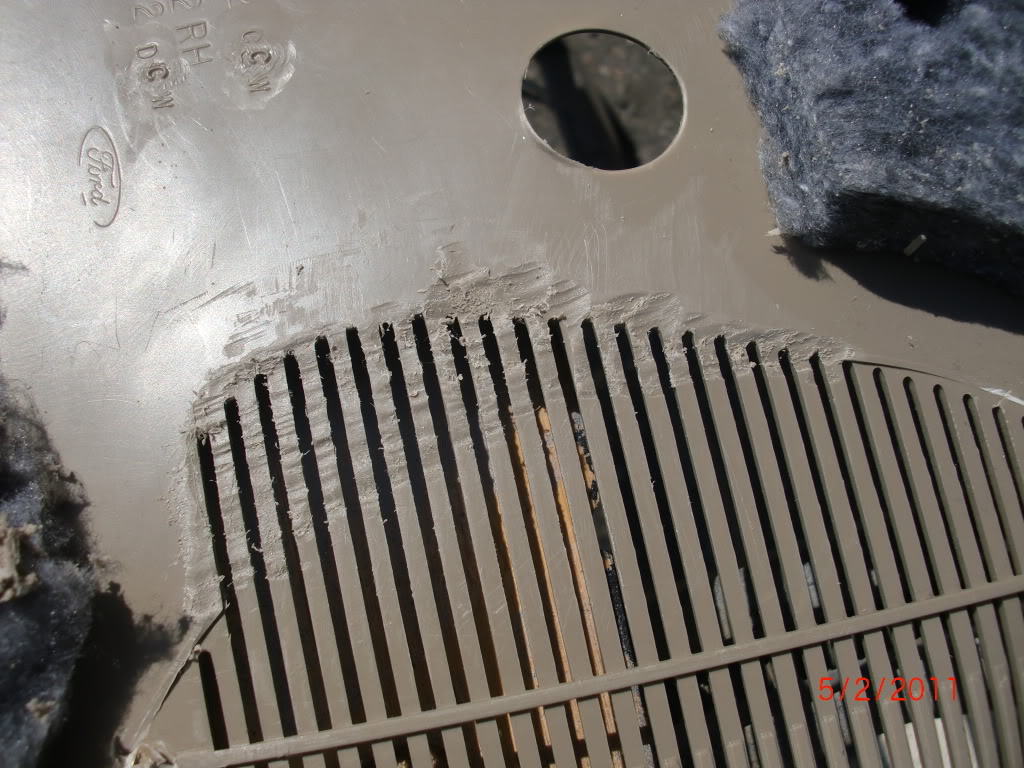

Inside the door
Name:  Ranger018.jpg
Views: 18
Size:  163.9 KB

Inside the cabin
Name:  Ranger019.jpg
Views: 18
Size:  126.5 KB

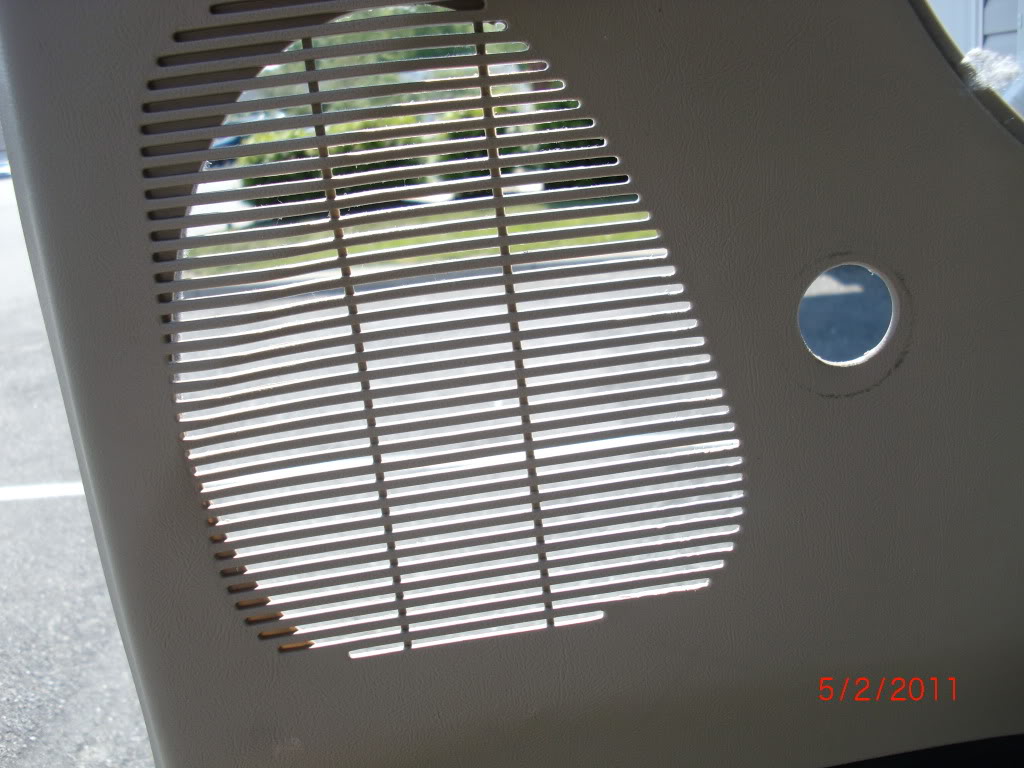

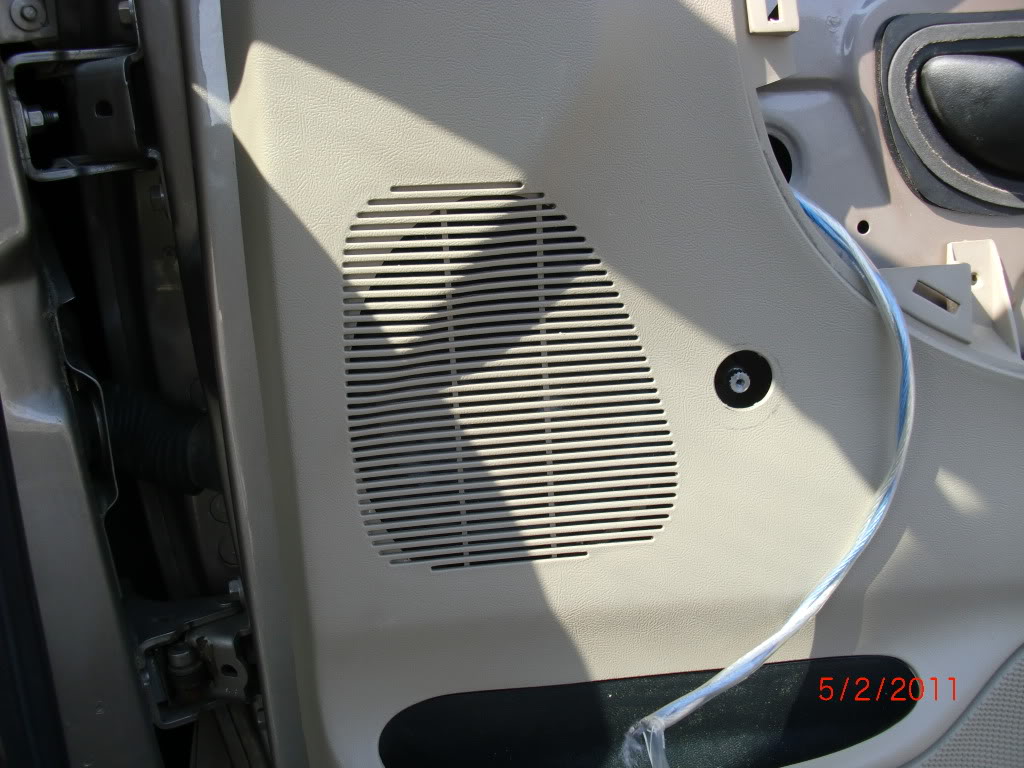

Back on the door.
Name:  Ranger020.jpg
Views: 18
Size:  124.7 KB

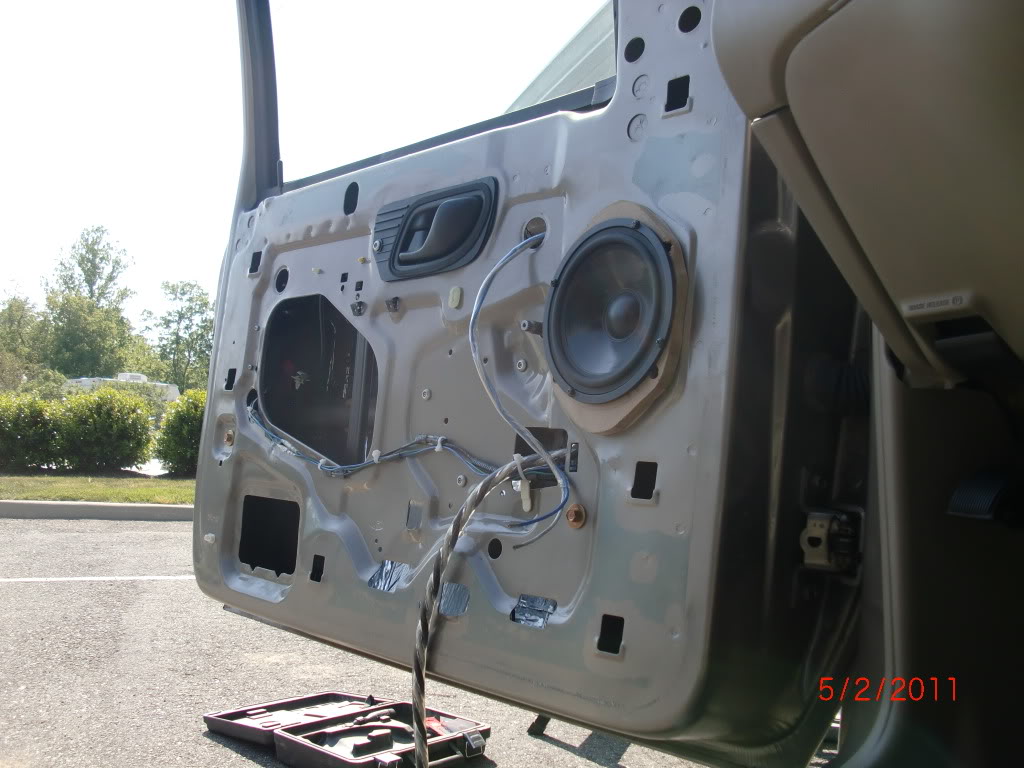

Mid mounted in the baffle.
Name:  Ranger021.jpg
Views: 34
Size:  117.5 KB

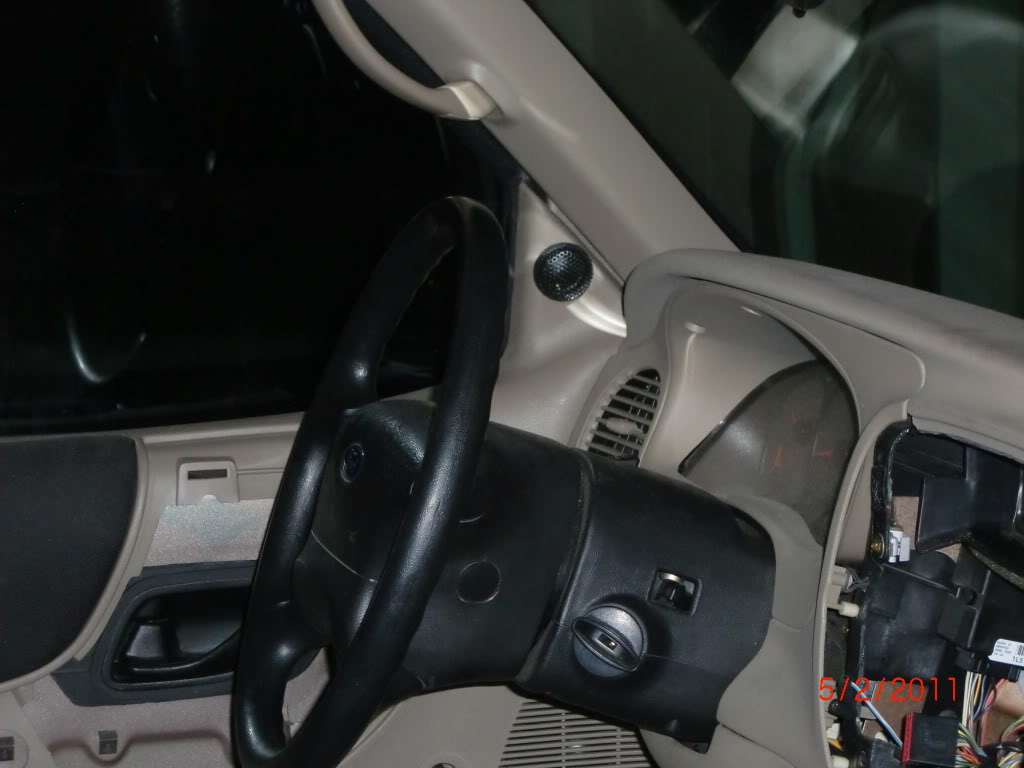

Tweeters mounted up today as well. Should have the components up and running tomorrow!

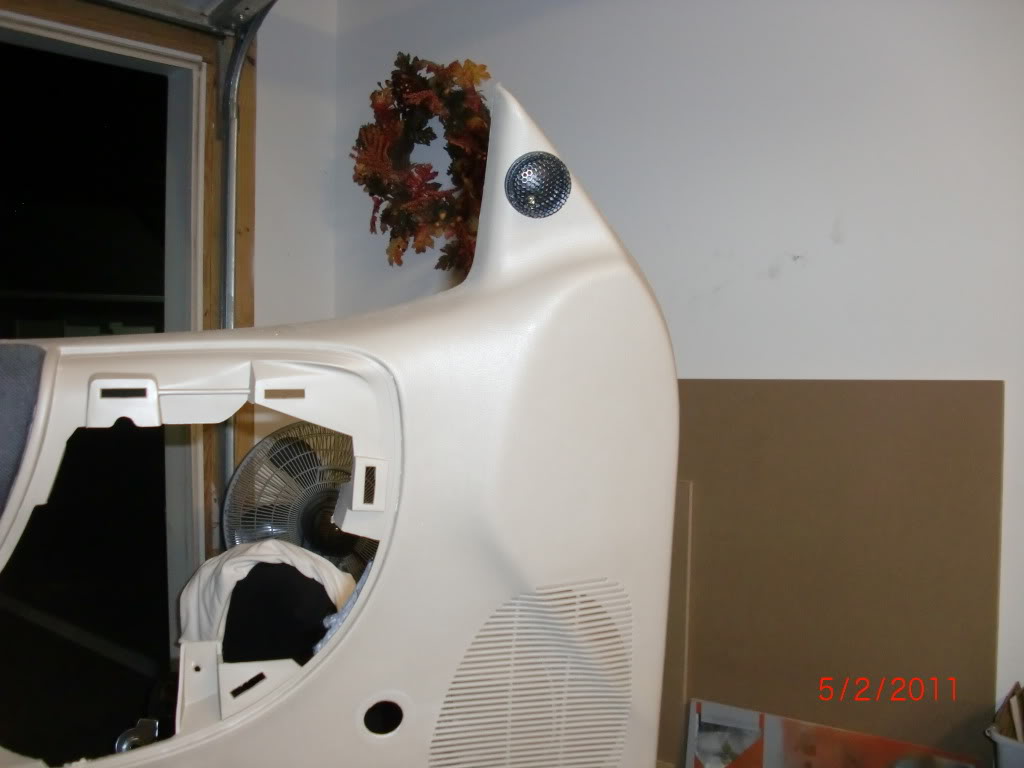

Tweeters pushed in and hotglued in the sail panels.
Name:  Ranger022.jpg
Views: 20
Size:  61.1 KB

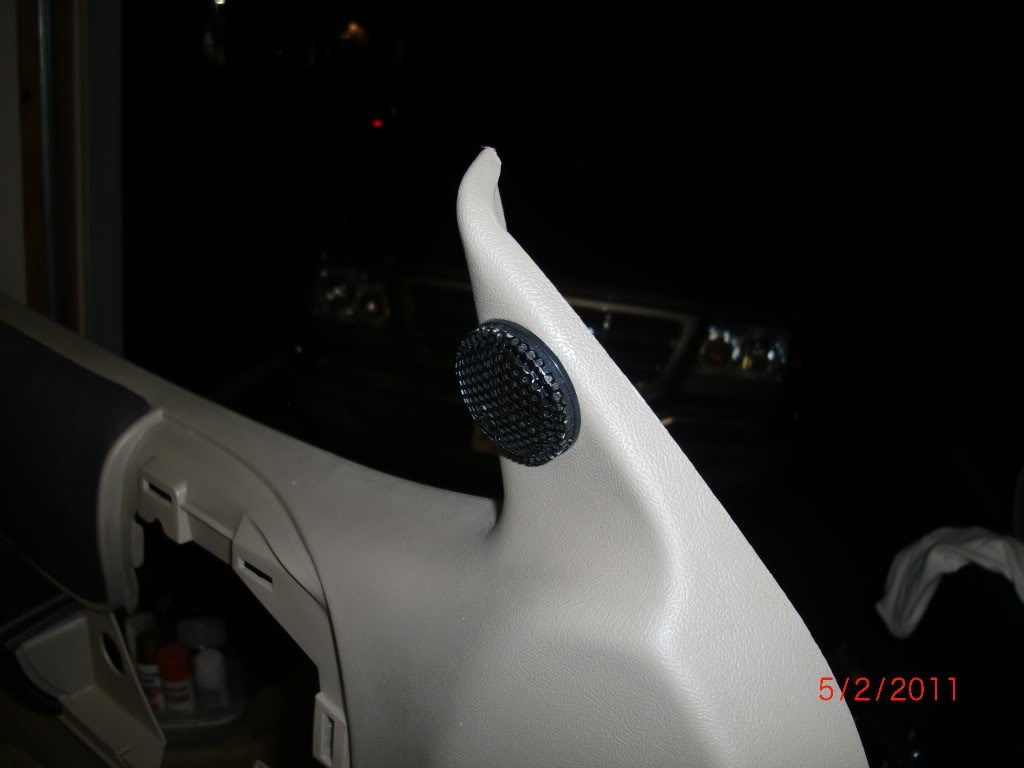

View from the dash of the tweeter.
Name:  Ranger023.jpg
Views: 16
Size:  53.4 KB

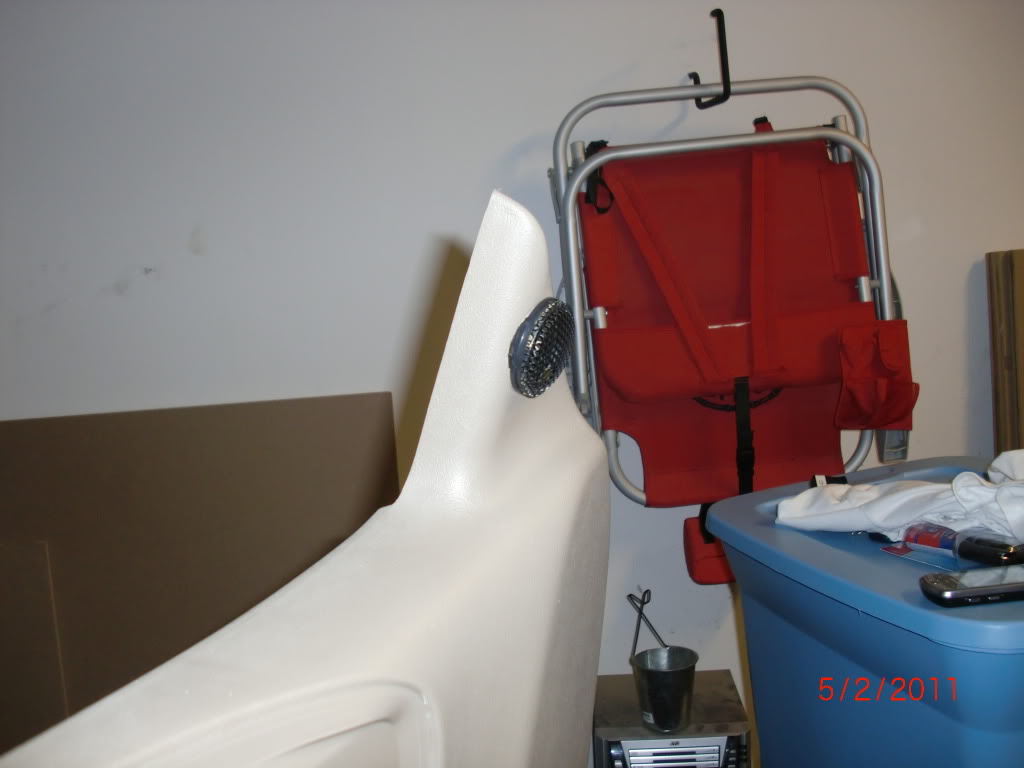

View from the seats.
Name:  Ranger024.jpg
Views: 17
Size:  55.7 KB

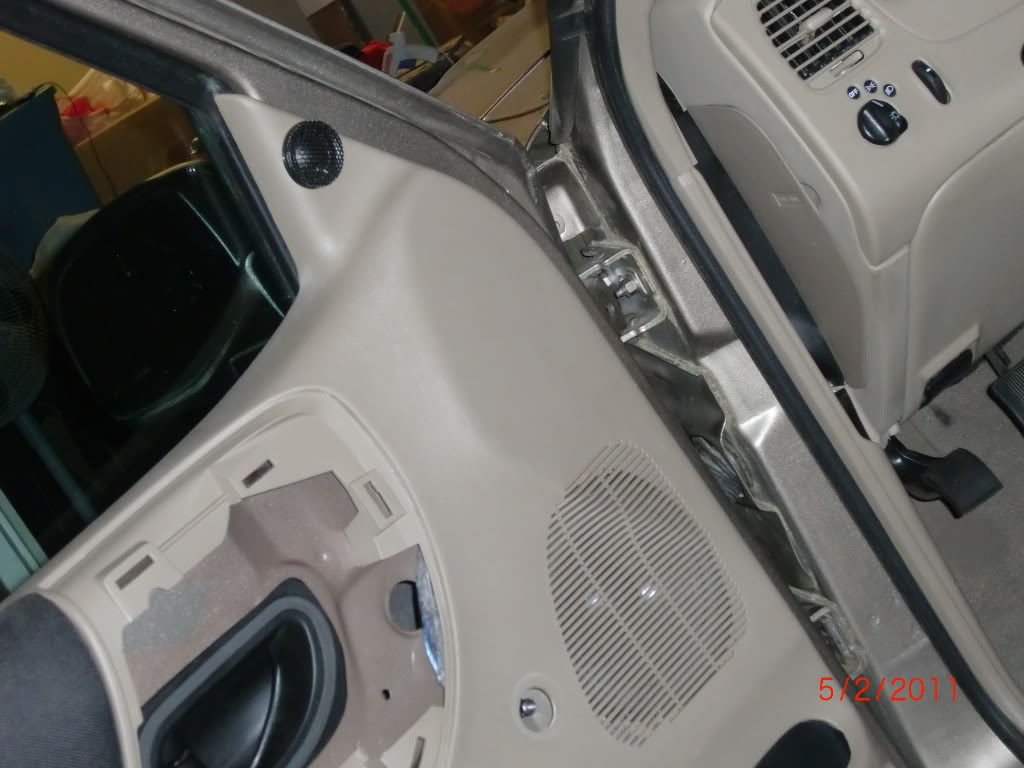

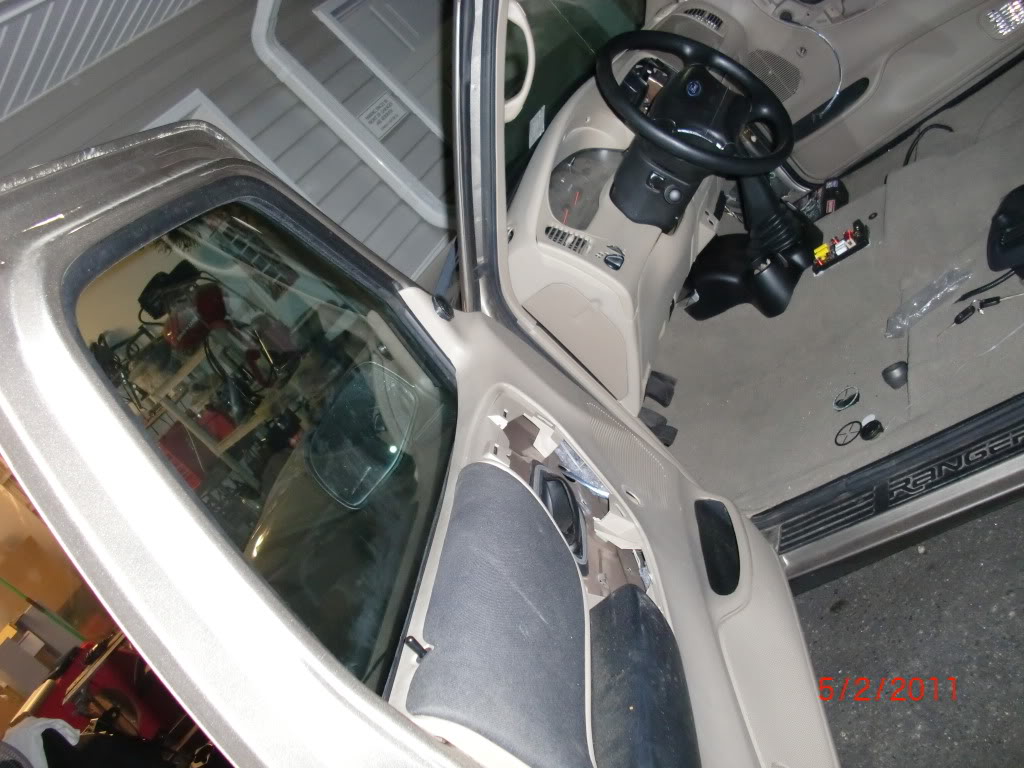

Back on the door!
Name:  Ranger026.jpg
Views: 16
Size:  95.6 KB
Name:  Ranger027.jpg
Views: 14
Size:  124.7 KB

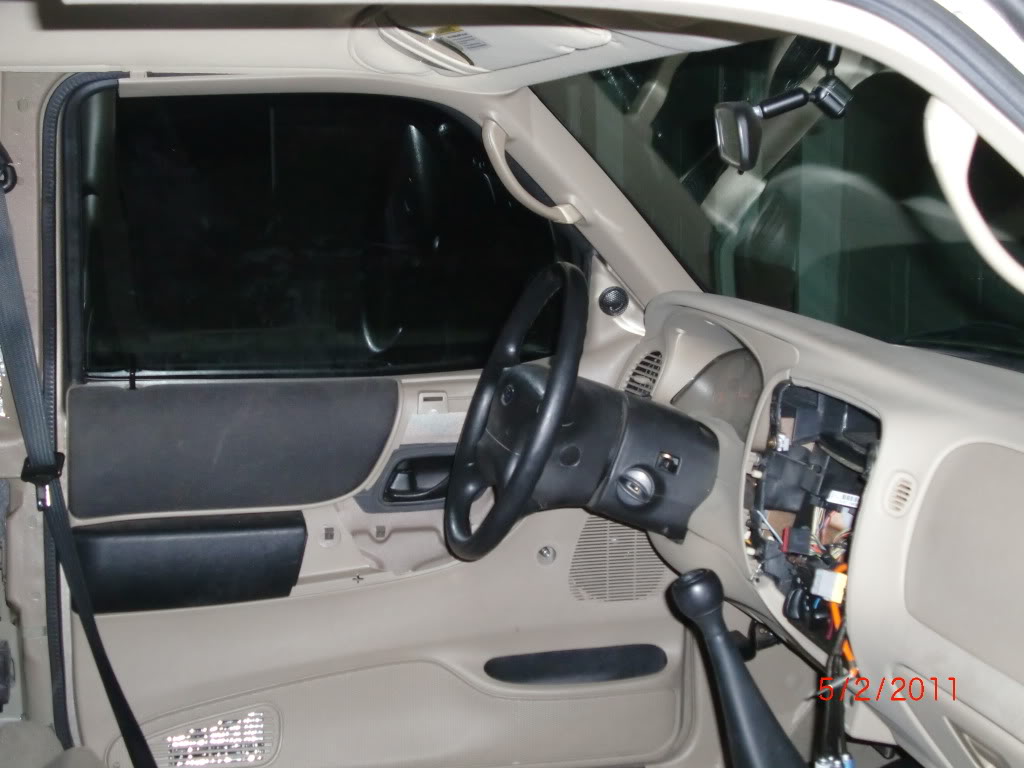

Name:  Ranger028.jpg
Views: 18
Size:  88.6 KB
Name:  Ranger029.jpg
Views: 17
Size:  73.9 KB

That's where we currently stand! Tomorrow the crossovers go in the doors, comps get wired, and head unit is installed! Amp will be hooked up and running but not officially installed....
Reply With Quote
  #19
Old 05-02-2011
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Whoo, looks like some fun. that wiring is a mess, i've only been in there a couple of times for my truck. it just gives me a headache.
Reply With Quote
  #20
Old 05-03-2011
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by Joeybutts View Post
Deadening the doors isn't too bad, but just takes time to prep, cut, stick, etc etc. But man does that with sealing the doors make a HUGE difference. Truck sounds/feels solid closing the doors now.

I did bang on the floor a little bit and think I am going to deaden the highest flat floor areas and up under the seats, but not the floor boards.

I do not use foam baffles for speakers, I seal the doors. 95% of component coaxial speakers are intended to be used IB or in an EXTREMELY large sealed enclosure. By sealing the doors you accomplish two things; one you separate the front wave from the back wave more effectively, and two increase the ever coveted and important mid-bass. I'll be doing that some time this week so stay tuned for that, lots of different ways to accomplish that. Will the foam pods help, maybe, but I have never liked the response from using them and I don't have the resources for proper equalization.

Thanks on the info.

While the seats are out it is easier to just pick up the carpet and do it.
Dyna Mat is $$$ so doing the whole floor is a lot of money.
I used FatMat, worked great and cost less.
Ok on the Pods, thks.
Wow, all of the disassembly, a lot of work for good sounds.

The Tweeter Location is approximately where I wanted to put mine so thanks for the pic on that one.

Look’n good.

ltr
Reply With Quote
  #21
Old 05-03-2011
Member
Thread Starter

Join Date: Mar 2011
Location: Hampton, VA
Posts: 103
Alex, it definitely can be, but a little planning and some time for searching usually does the trick. Thank the Lord for color-coding!

DEFINITELY easier to do it with the seats out. I'm probably going to order the materials today so they are hear before the weekend. I only used the dynamat because it was left over from another install I did for someone. It is CRAZY expensive compared, but I will say it is quite quality.

A heads up on the tweeter location. There is a slide post behind the sail panel, and I contemplated cutting it off to fit the tweeter better. It would have looked better lowered about 1/2" but decided to go with the slightly less aesthetically pleasing location. The reason I say less aesthetically pleasing is that I don't have the trim rings for fluch mounting so you can see from the seats the slight gap between the seat of the tweeter and the sail and also you can see the edges of the tweeter grill, but that doesn't bother me too much. I think I am going to fabricate covers from the angle mounts I have, but that is going to take some time and precision and can be done with no disassembly, so I'll make that a last priority.
Reply With Quote
  #22
Old 05-03-2011
Member
Thread Starter

Join Date: Mar 2011
Location: Hampton, VA
Posts: 103
Well, the plug for my temporary Front Stage amp didn't arrive yet, so no sound yet, but everything else is done to produce sound. I didn't get to seal the doors either but that is 20 min before deadening so no issues.

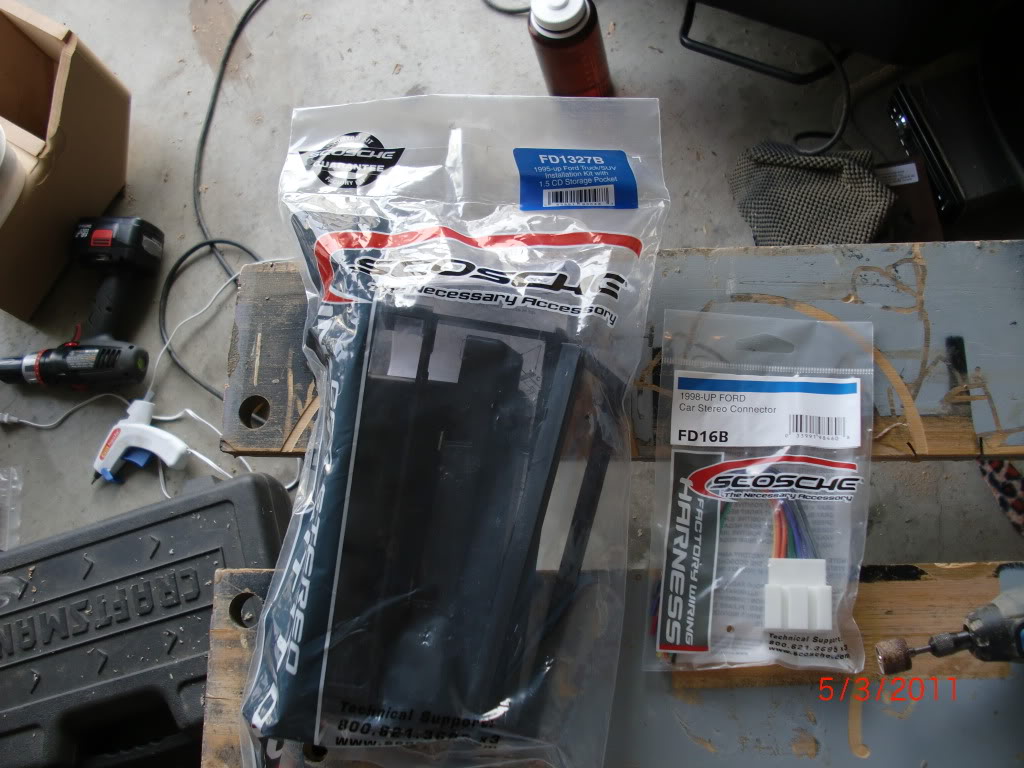

Dash kit and wiring harness made it at the perfect time...today!
Name:  Ranger001-2.jpg
Views: 20
Size:  127.2 KB

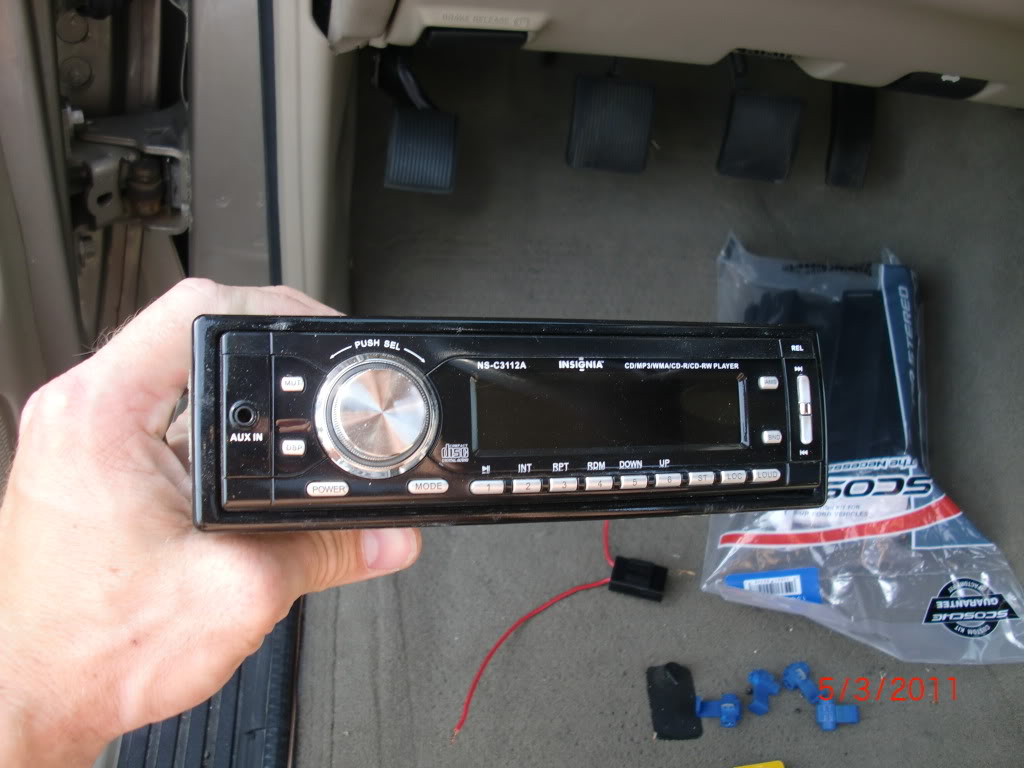

Temporary H/U in great aesthetic and mechanical shape. Not bad for $35.
Name:  Ranger002-2.jpg
Views: 16
Size:  95.5 KB

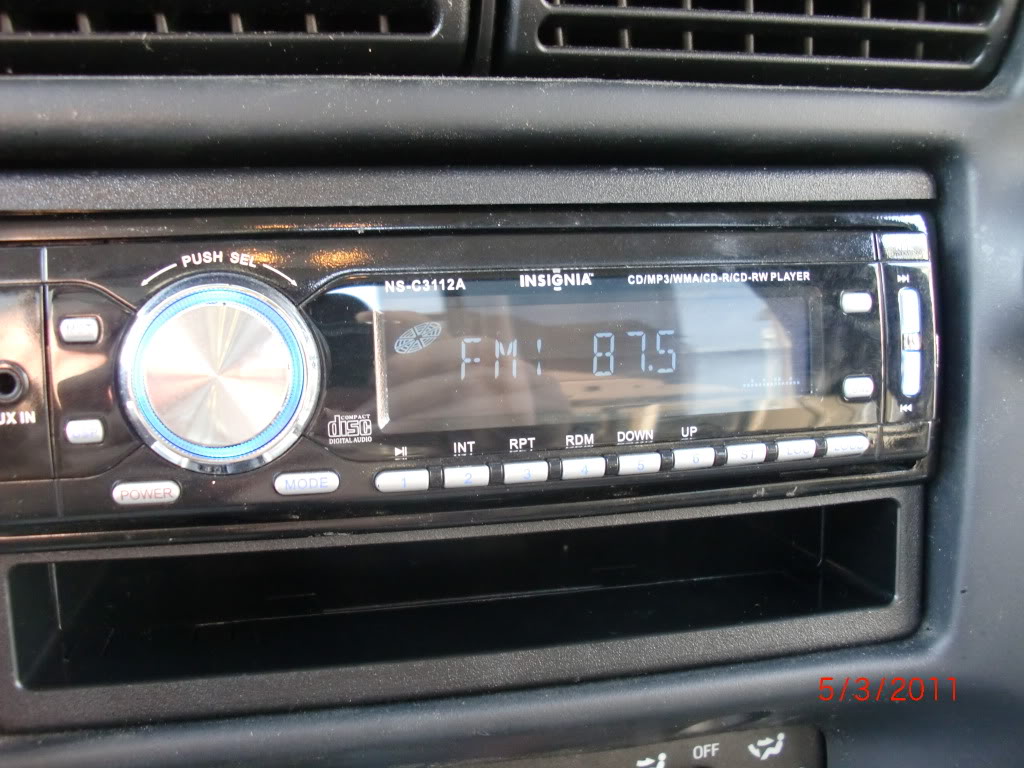

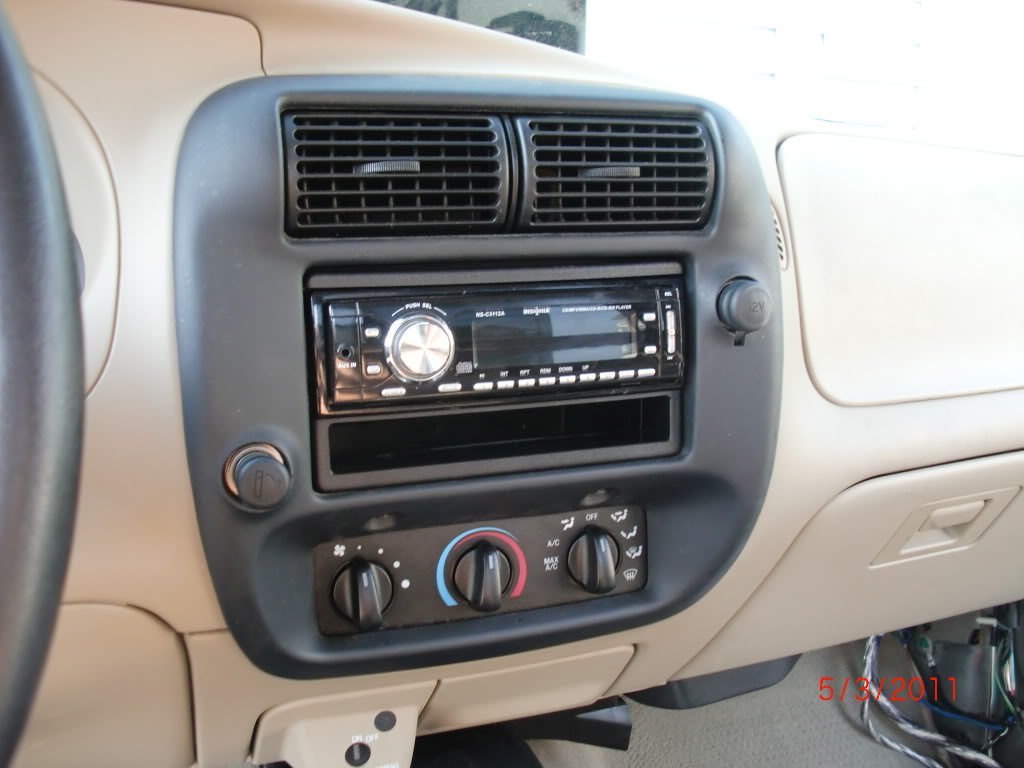

Dash back together! Looks good! Not as good as the Kenwood I plan on getting but nice for temporary. Has an aux in and plays MP3's and WMA's so a basic set of goodies....
Name:  Ranger003-2.jpg
Views: 18
Size:  84.2 KB
Name:  Ranger004-2.jpg
Views: 18
Size:  126.8 KB

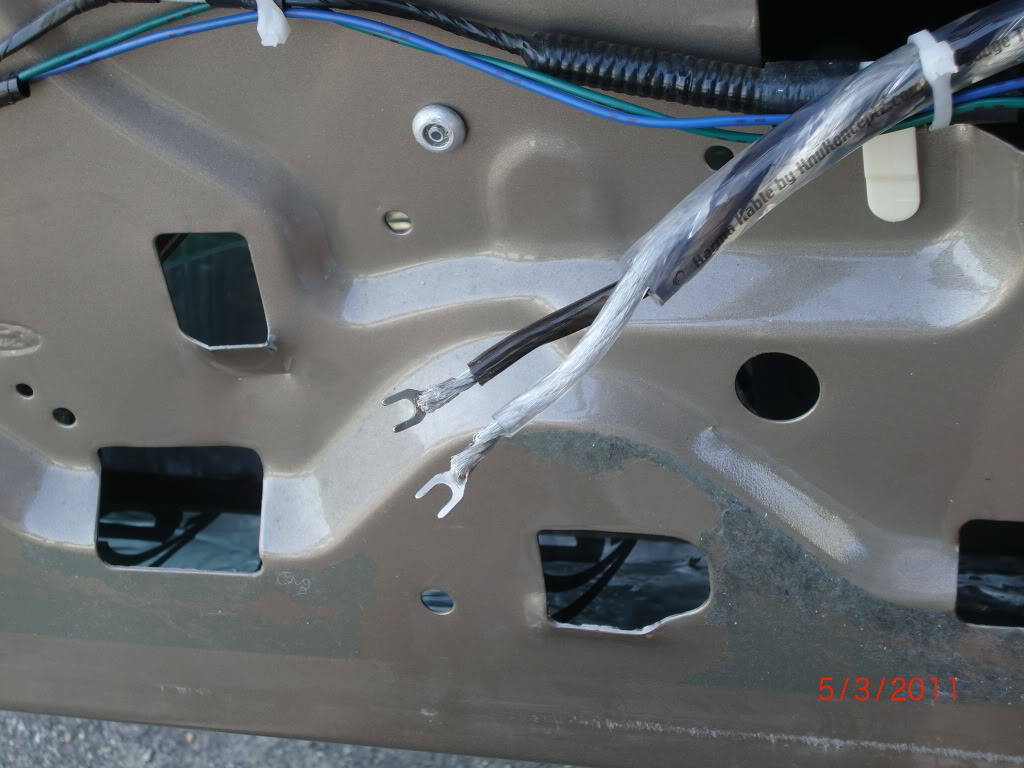

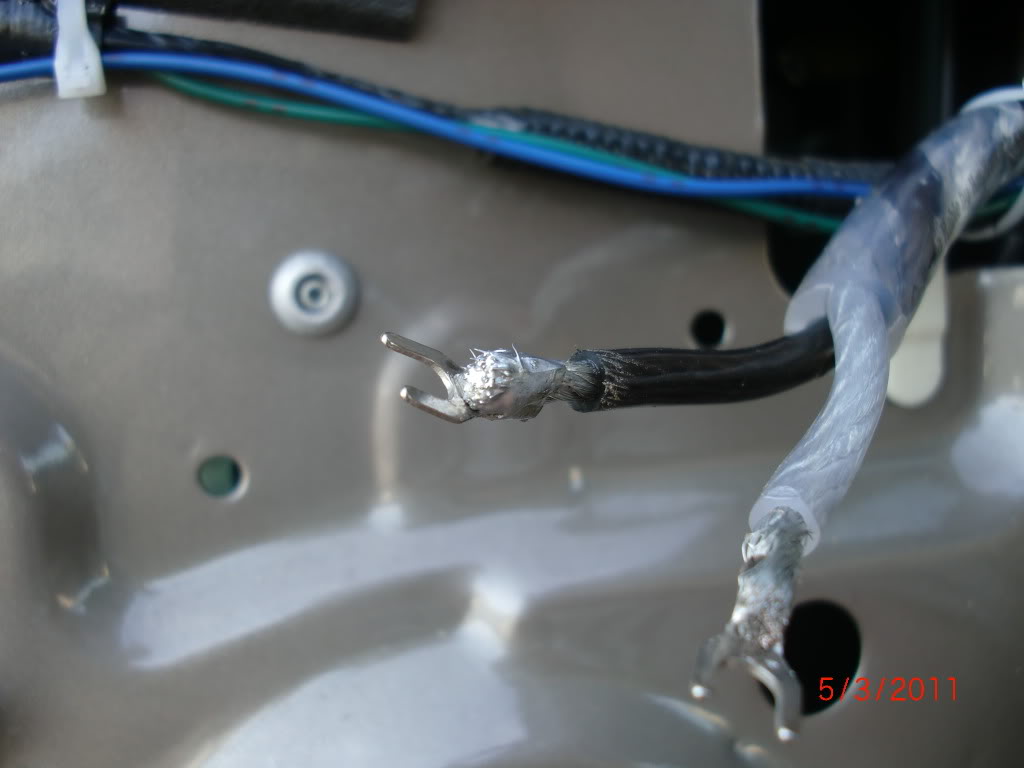

Time to install the crossovers! Adding spades to the 10awg instead of trying to stuff 10lbs in a 5lb bag. Crimped and soldered.
Name:  Ranger006-2.jpg
Views: 17
Size:  100.8 KB
Name:  Ranger007-2.jpg
Views: 17
Size:  50.5 KB

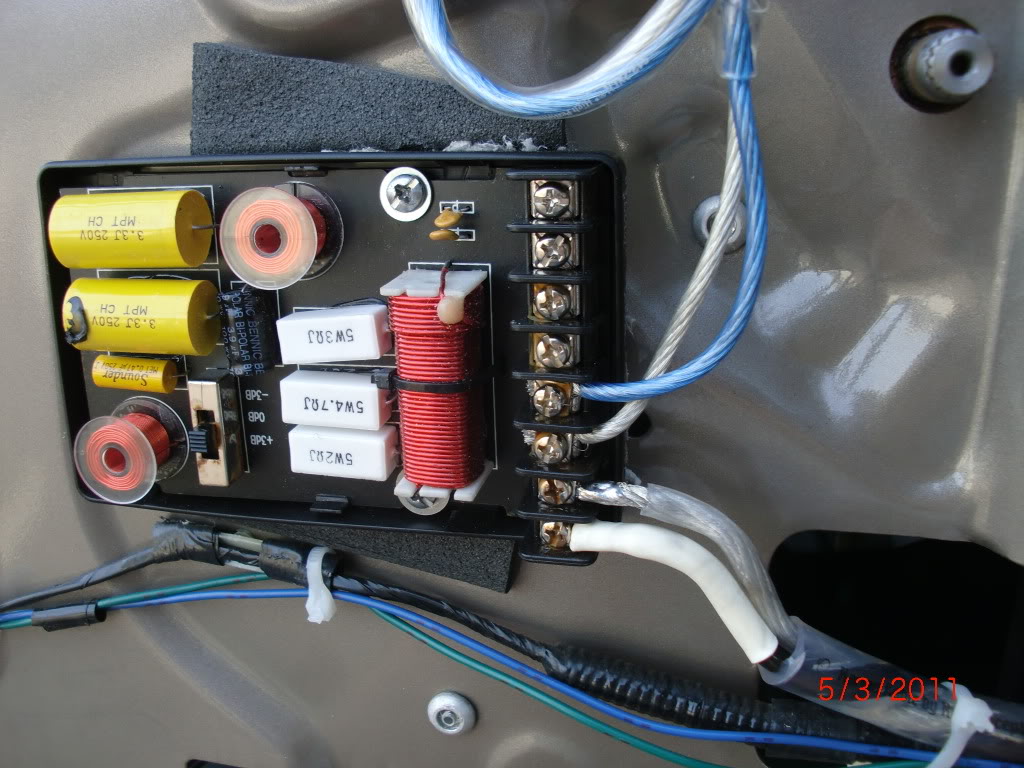

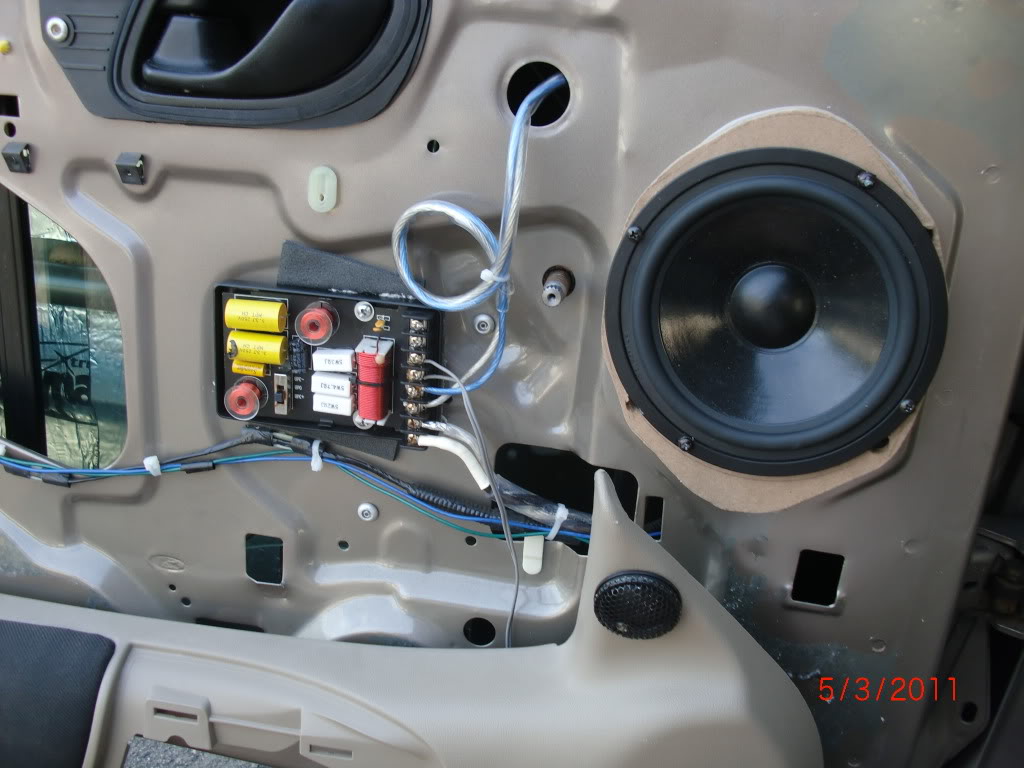

This is the driver's side door crossover. I put some v4 behind the crossover so there is no rattling. Just in case. :)
Name:  Ranger008-1.jpg
Views: 14
Size:  136.8 KB

All parts wired up.
Name:  Ranger009-1.jpg
Views: 18
Size:  99.4 KB

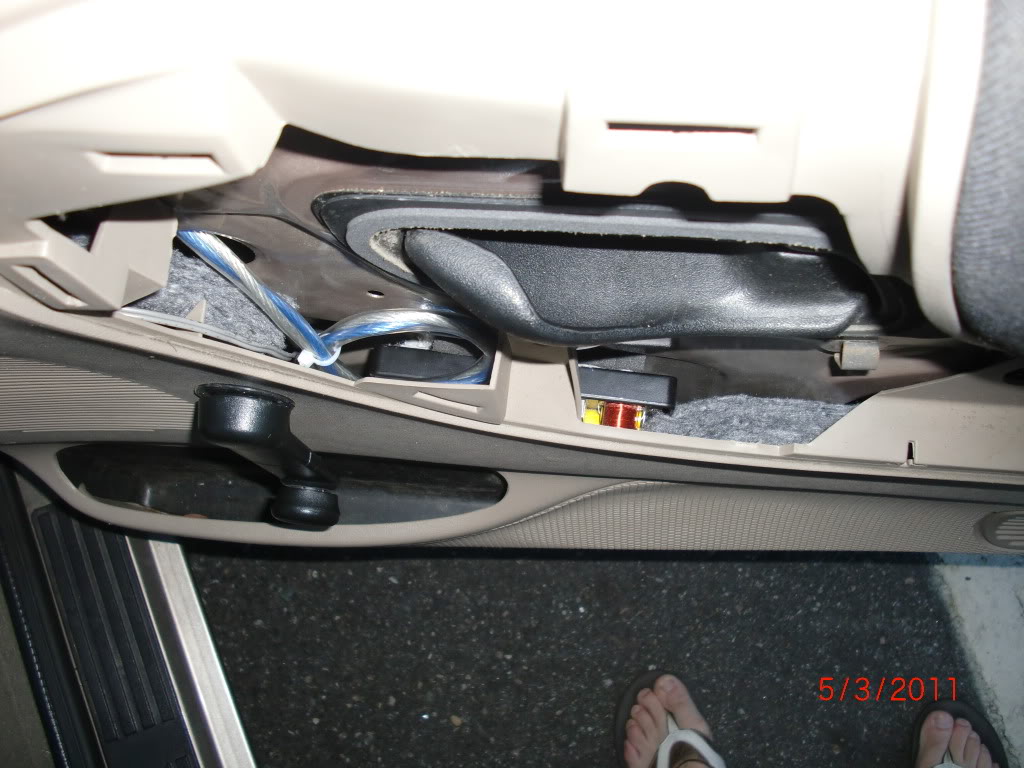

With door panel on. Don't mind the toes. :p
Name:  Ranger010.jpg
Views: 17
Size:  117.4 KB

Fused distro in on the small 1/0 with 100A for sub stage and 80A for front stage. Tsunami cut back on the quality of their products cause I have an older version of this model and it is much nicer, much more stout and the cover was more to my liking, but this will work just fine.

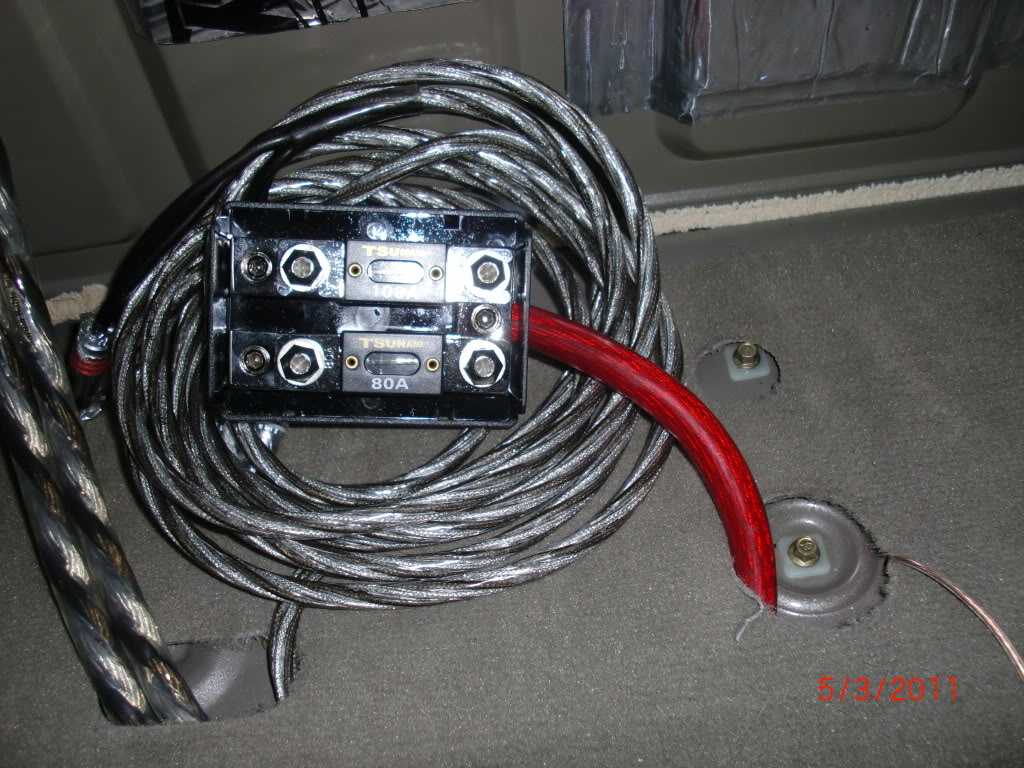

Without cover
Name:  Ranger013-1.jpg
Views: 15
Size:  201.5 KB

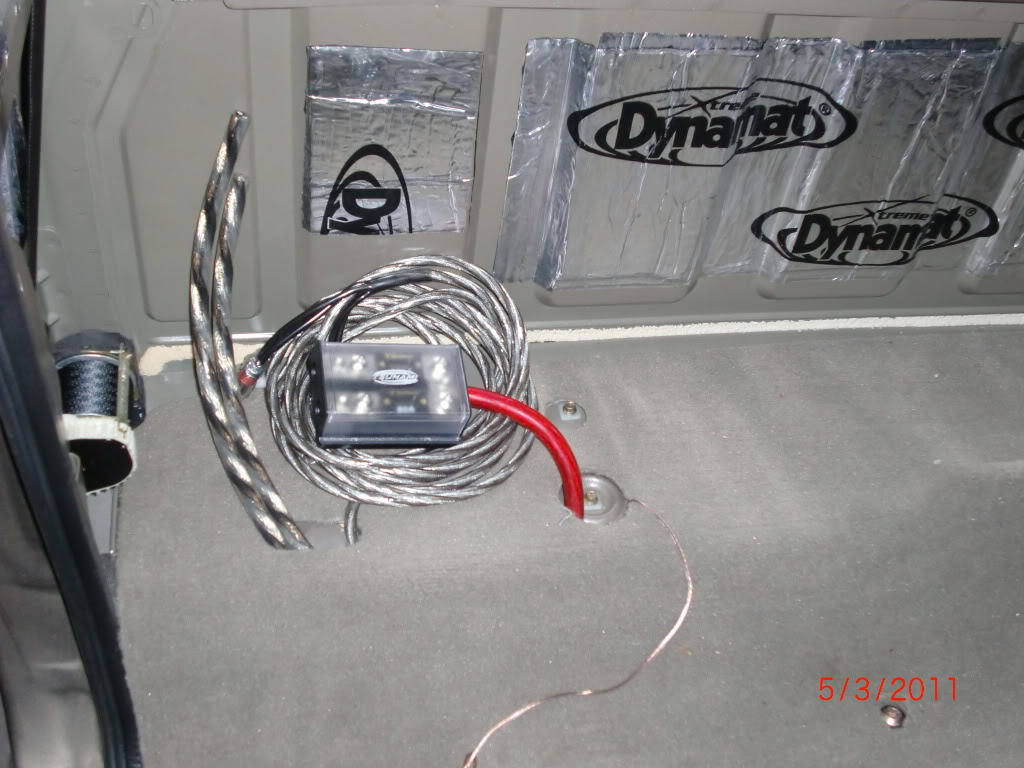

With cover
Name:  Ranger015-1.jpg
Views: 18
Size:  115.4 KB

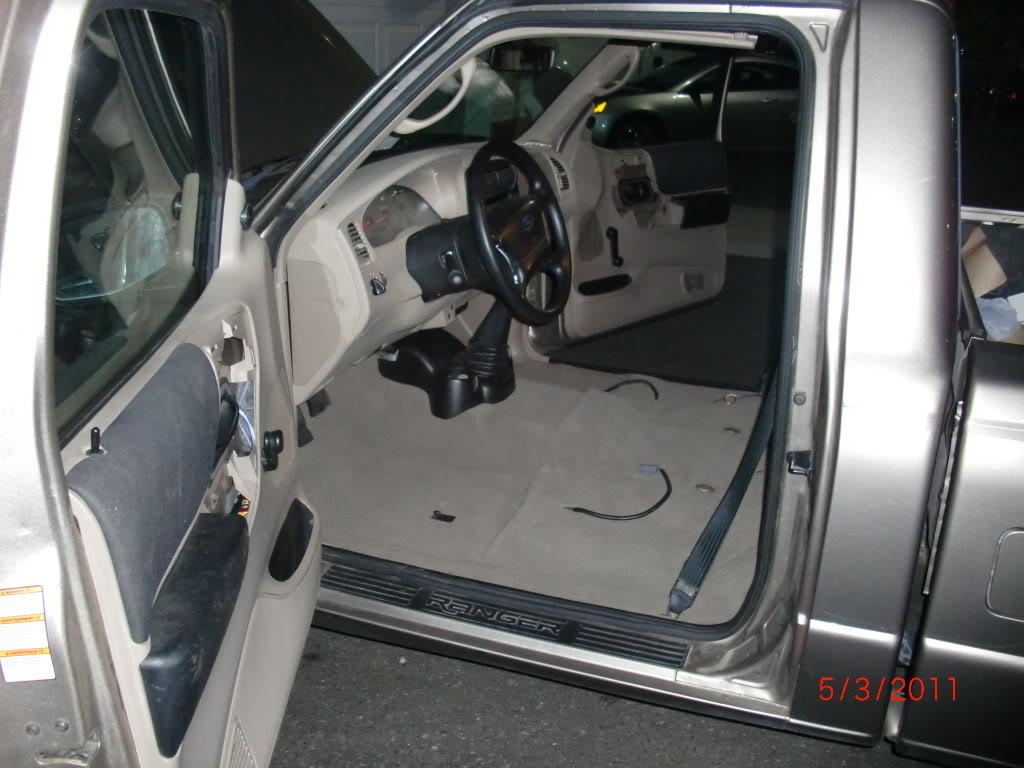

Eager to get things done!!!
Name:  Ranger018-1.jpg
Views: 17
Size:  109.0 KB

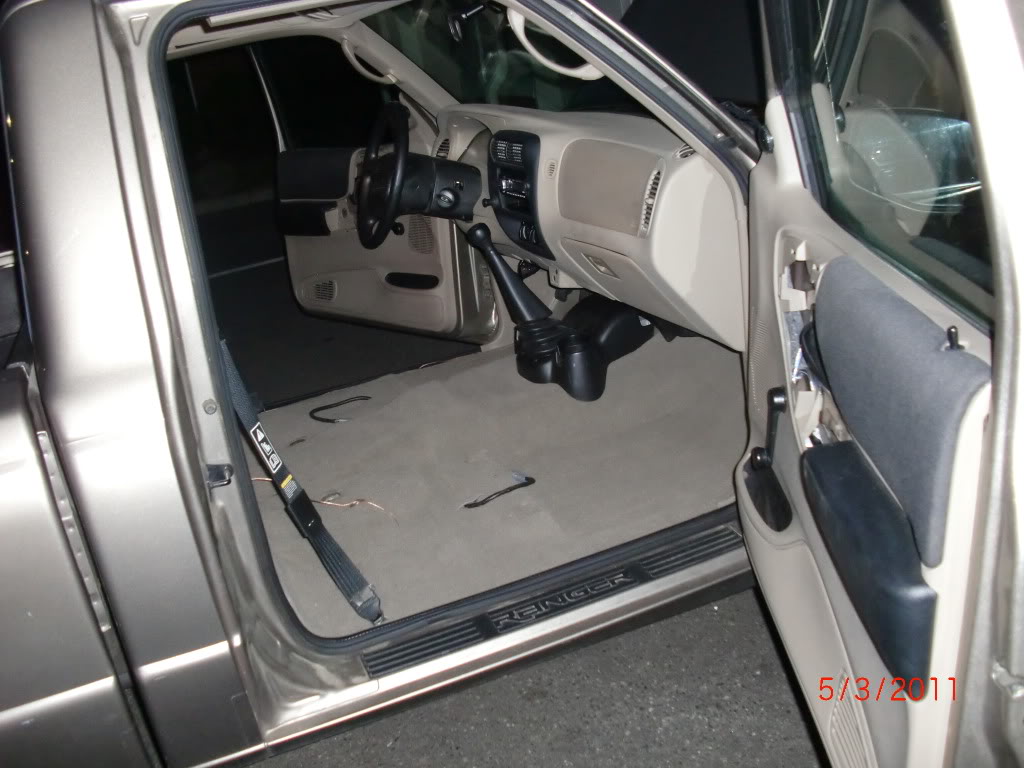

Name:  Ranger020-1.jpg
Views: 17
Size:  105.0 KB

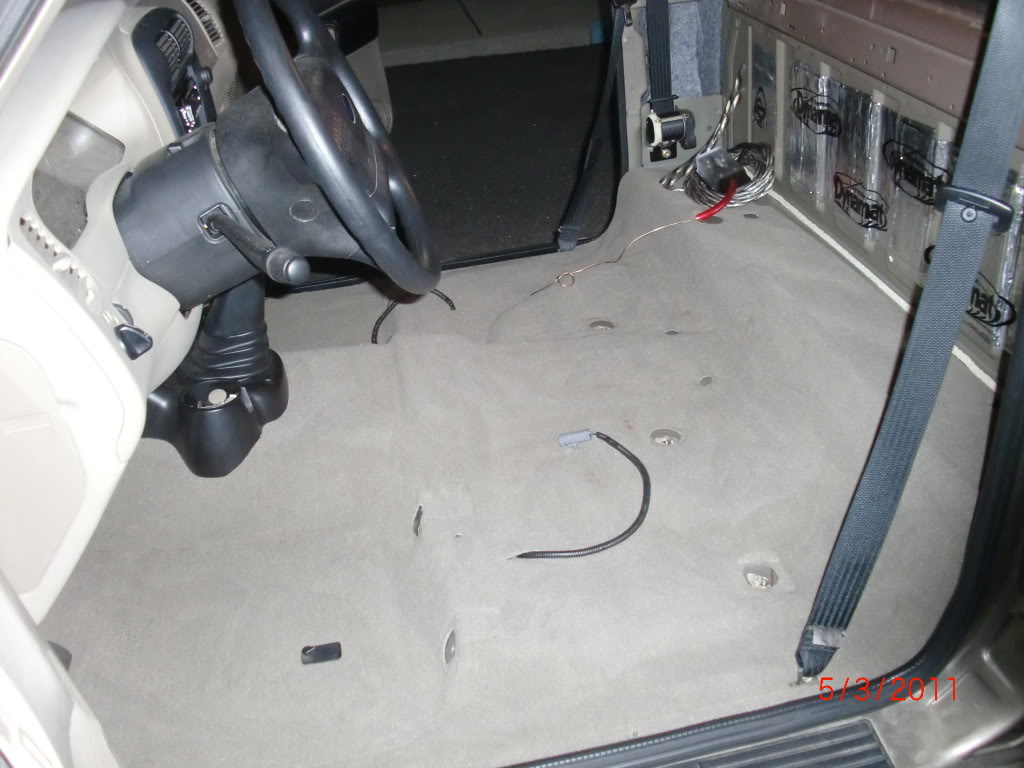

Name:  Ranger019-1.jpg
Views: 19
Size:  99.7 KB

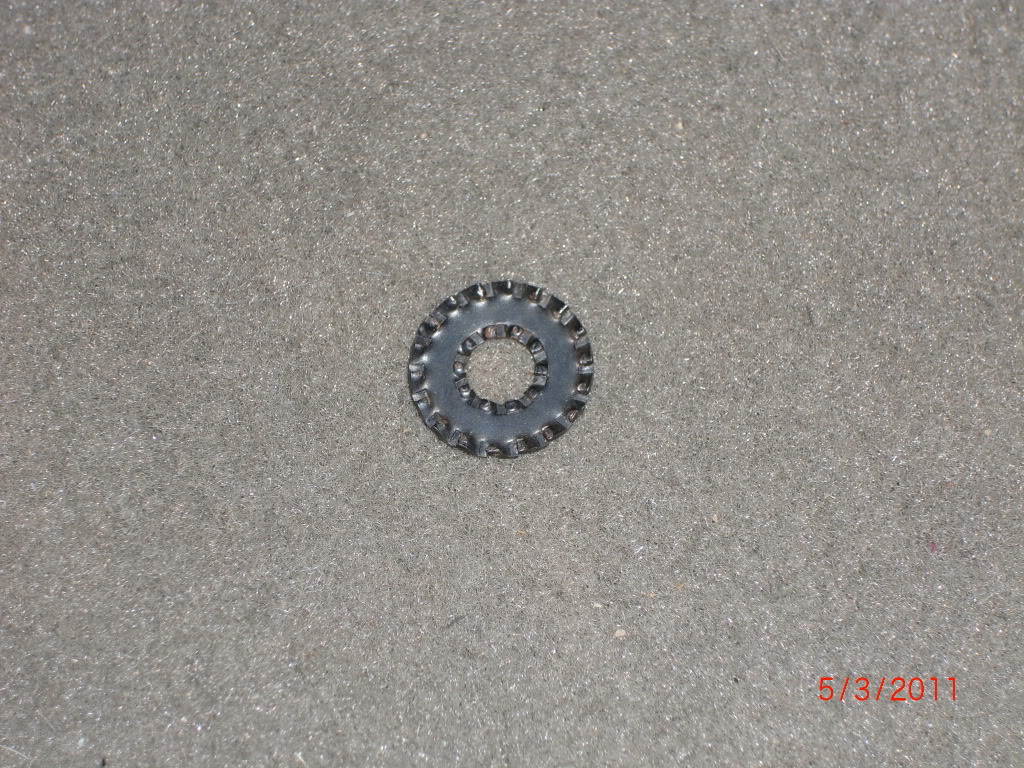

Also, anybody know what the hell this washer is? It could be completely random, it could be for something, I have no idea. I can't see anywhere it could go. It doesn't fit on the window crank anywhere...sooooo.....could just be garbage. I did buy the truck used. It's about the size of a quarter.
Name:  Ranger017-1.jpg
Views: 17
Size:  262.8 KB

So what's next?! Amp plug needs to come in, tomorrow hopefully, build a quick dirty amp rack since this front stage amp is temporary, and build the temporary enclosure for the 16Ov.2. Hopefully that is only a one night activity.
Reply With Quote
  #23
Old 05-04-2011
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
I wish I could see the pics. I think I'm going to redo pretty much everything in mine this summer. I know for a fact I'll be running the two sa-15's and I'll either be getting an Audiopipe 3k or I'll run my MB Quart for a little while. I am def going to get new RCA's though. I got these Stinger pro series and they straight up SUCK. I like my crappy Schosche ones better. Anyways... good luck on the box build haha
Reply With Quote
  #24
Old 05-04-2011
Member
Thread Starter

Join Date: Mar 2011
Location: Hampton, VA
Posts: 103
Can you not see them due to a filter or are they blocked?

I have used Tsunami and Knu RCA's and never had an issue. Check those out if you like.

I'm eager for my buddy to get his SA-8's in to check those out, I've only messed with the E8.v2s.
Reply With Quote
  #25
Old 05-04-2011
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by Joeybutts View Post
Started the build tonight. Interior is jussssst about completely out. I wasn't planning on starting tonight buttttttttt it just happened. :)

Here is the plan.

1) H/U Kenwood KDC-X994
2) Deaden and seal doors and back wall
3) 1/0 power/ground to a distro for two amps
4) Front Stage eD 6500's HAVE
5) Front Stage Amp Avionixx 640
6) Sub Stage 13Av.2 downfiring at an angle ported in 2.2 at 28Hz
7) Sub Stage Amp Digital Designs M.80 HAVE
8) Door lock actuators with keyless DONE

Tonight I got the front stage wiring run from the amp spot and through the door grommets. Tomorrow I should have the power wires run.
Any questions let me know.
You seem to have you $hit together but I was wonder if you made the decision on what to use with what ?
Is there a Site to go to that will actually tell you about what will work together or give an honest opinion on what you want to run without looking at their inventories and trying to sell what they have ?

I talked to Crutchfield and they want to sell you what they have.
SonicElectronics is lower prices but they too do the same thing.
6th Ave only tried to sell me what they had but from my list so that isn’t as bad.

Keep the picture coming and the data, it all looks good and the info is a great help.

ltr
Reply With Quote
Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
any thoughts on putting an 06 reg cab on 1990 full sized bronco frame ? cbeal New Ideas 3 06-10-2016 03:19 PM
Joey with a 2003 Ranger XLT Reg Cab! Joeybutts Member Introductions 17 05-23-2011 08:05 AM
6.75" polk momo install pics , reg cab system, jvc 3.5" etc NewfieRanger Audio & Video Tech 5 09-03-2007 02:28 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -6. The time now is 03:00 PM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
