8" Subs

I was looking to get a pair of 8" subs for my truck. I have a older style JBL amp thats 600W. Thats all i know about it without going home and looking at it some more. What kinda subs could i get that the amp wont hurt the speakers? Also currently running 2 6 1/2 polks, 2 6X9 polks and 1 3 1/2 pioneer. Reason why i want 8's is cause i just want some bass not overpowering to where i can hear the lyrics and ****.

Last edited by Ranger2.394; 05-16-2012 at 01:32 PM.
Reply With Quote
  #2
Old 05-16-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Saginaw, tx
Posts: 41
Heres some specs on the amp. Its a JBL BP600.1

Power Handling (JBL does not specify peak power capabilities of this amplifier):
600W RMS x 1 @ 2 Ohms
300W RMS x 1 @ 4 ohms
1 Ohm Stable (Can Push Four 4 Ohm subs wired in parallel)
Frequency Response: 10-320 Hz
Variable Low-Pass Electronic Crossover: 32-320 Hz, 12 dB/octave slope (non-defeatable)
Variable Bass Boost (Up to 6dB @ 50Hz)
"Common-Sense" feature automatically turns on amp when it senses signal through the speaker-level inputs
"Universal Interface" includes four preamp and four speaker-level inputs for convenient hook-up with a variety of head units
S/N Ratio: 90 dB
12-9/16"L x 9-1/16"W x 2-11/16"H
Reply With Quote
  #3
Old 05-16-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Saginaw, tx
Posts: 41
I am by no means an audio guru. So any advice would help.
Reply With Quote
  #4
Old 05-17-2012
Chris98's Avatar
Member
iTrader: (3)

Join Date: Feb 2010
Location: Thornton, CO
Posts: 705
I just bought a pair of these to install in my truck. Haven't got around to building enclosures for them yet though. They should pair up just fine with your amp at 300 watt rms a piece as long as you run them at 2 ohms. But they are def built to quality, weighing in at 10lbs a piece.

http://www.ebay.com/itm/180867736532...84.m1497.l2649
Reply With Quote
  #5
Old 05-17-2012
Level III Supporter
iTrader: (2)

Join Date: Nov 2010
Location: Maine
Posts: 1,220
I've got a single Lanzar MaxP8 in a 0.25 cu ft box under one of the rear jump seats running on only 140W, and it does quite well. They will handle up to 800W each, so your amp should be fine to run a pair. For the quality of these speakers, they're a great deal IMO. IIRC, I got mine for $40 shipped. I chose them for their ability to sound good in a smaller box.
Reply With Quote
  #6
Old 05-17-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Saginaw, tx
Posts: 41
I got a guy i talked to on another board and he had a pair of 10s with the box he was gonna sell for $80. Which is pretty damn good IMO. lol. Imma check em out. Hopefully the box will fit..
Reply With Quote
  #7
Old 06-05-2012
sonicbluestx's Avatar
Member
iTrader: (1)

Join Date: Apr 2009
Location: Dover Delaware
Posts: 315

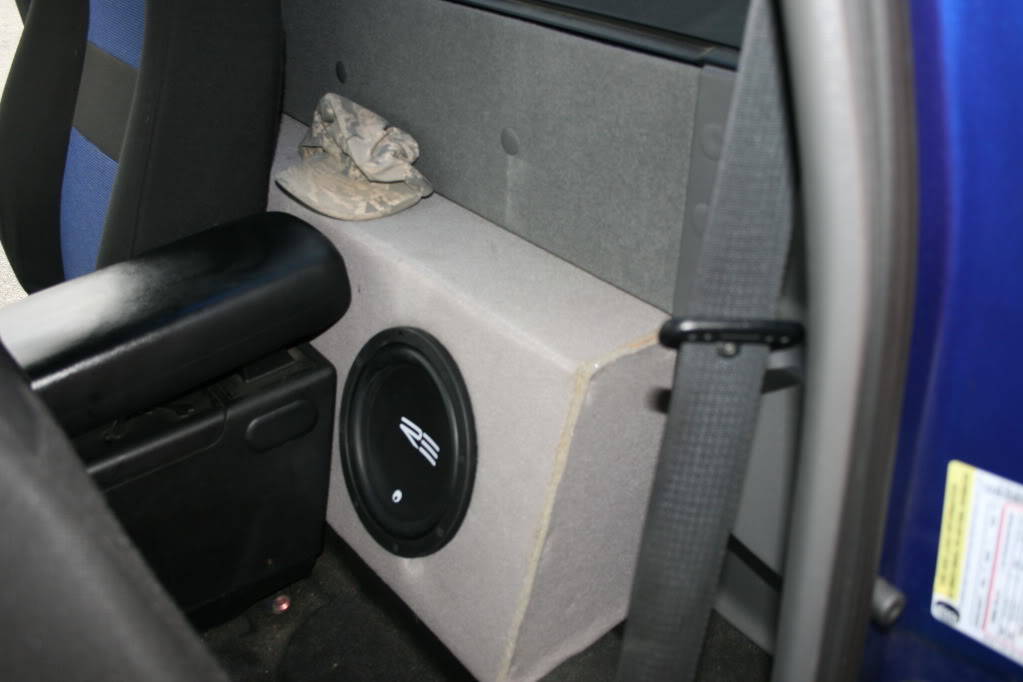

I built a box for two RE Audio REX8D4's. I have factory buckets in my truck and the box sits snugly between the rear speakers side to side, from the rear of the cab to the center console and it sits under the lip on the rear of the cab.

Attached Thumbnails
8" Subs-img_5347.jpg
Reply With Quote
  #8
Old 06-09-2012
Member
Thread Starter

Join Date: Feb 2012
Location: Saginaw, tx
Posts: 41
Well i just bought some 10s and whats the bottom length on yours? The current single boxes i have are 8" long at the bottom and thats even a lil long for my 84 C10 with a bench seat.
Reply With Quote
  #9
Old 06-09-2012
sonicbluestx's Avatar
Member
iTrader: (1)

Join Date: Apr 2009
Location: Dover Delaware
Posts: 315
I want to say its like 7.75" bottom and 4.5" top. The magnet clears by less than .25"
