Building a new setup

Recently I had my subs die on me as I didn't have the correct amplifier for them or have it setup correctly, my mistake. But oh well I've been wanting to redo some of the equipment that I went cheap on and what I rushed before.

Currently I have a Alpine CDA-105 headunit, 4 JBL 6X9" 3 Way rated for 300w max power, I have a JBL 4 Channel 600w amp powering those. For the subwoofers I had 2 JBL 8" 800w max power, powered by a bridged Kenwood 4 channel 640 watts max power amplifier that was given to me for free and was only suppose to be a temporary thing, but funds were tight and I never got around to replacing it with the correct setup.

I'm going to be keeping the headunit, the 6x9s and the JBL amplifier. I'm replacing the 4 channel Kenwood with a Monoblock Kenwood. It's rms power is 4 ohms: 500 watts x 1 chan, 2 ohms: 900 watts x 1 chan and 1 ohm: >900 watts x 1 chan. I ordered 100 ft of 12 gauge with 295x2 Strands and 25 ft of 8 gauge with 735x2 strands. I wanted to make sure I had enough wire this time, unlike last time I didn't have enough wire and the wires were pulled tight. All new gold plated terminals and a grounding block. I purchased 2 120mm pc fans to keep the box cool for the amplifiers and 2 relays to turn the fans on. Here in a couple of weeks I am planning on ordering 2 10" Polk Audio MM1040. From my research they should do just fine for what I want to do with them. Here's the specs on them.
Power Handling:
Peak: 700 watts
RMS: 350 watts
Impedance: Single 4 Ohm
Polymer woofer cone
Butyl rubber surround
Carbon Composite Basket is very lightweight and will not flex during use
Marine Certified
Heavy duty terminals can be used with speaker wire up to 8 gauge or two twisted pairs of 12 gauge
Klippel Distortion Analyzer results in the best possible performance at any listening level
2" High temperature copper voice coil
Frequency response: 24-200 Hz
Sensitivity: 91 dB

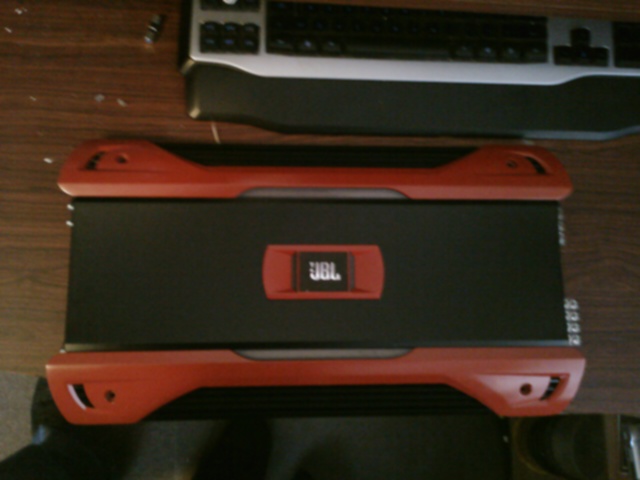

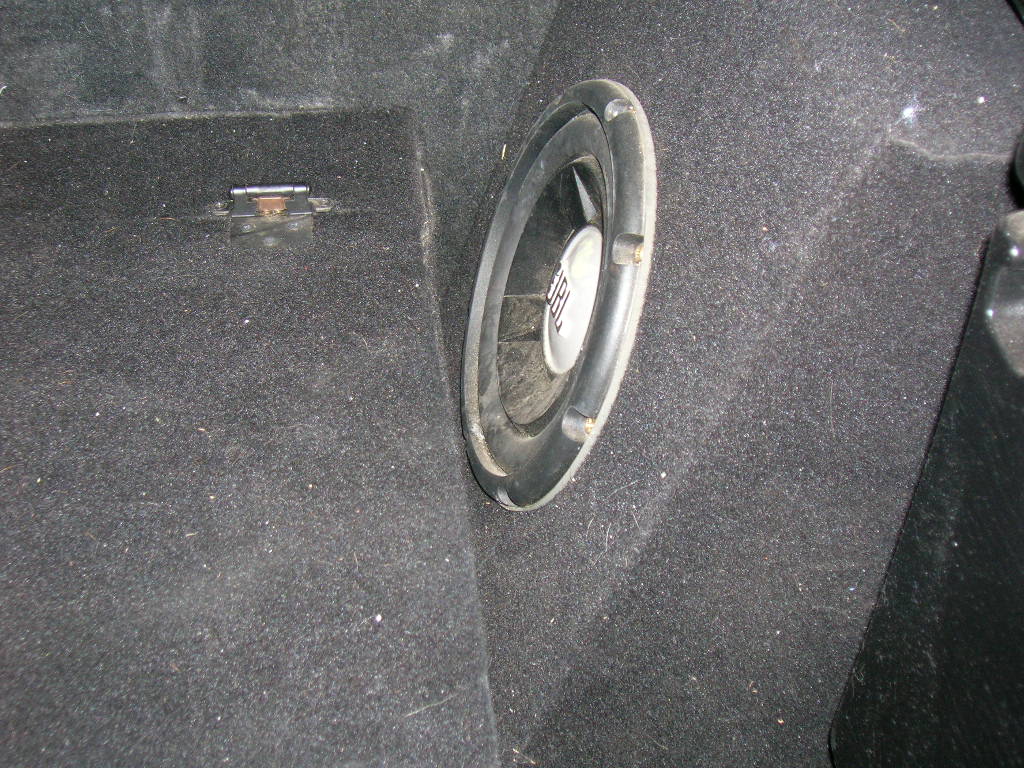

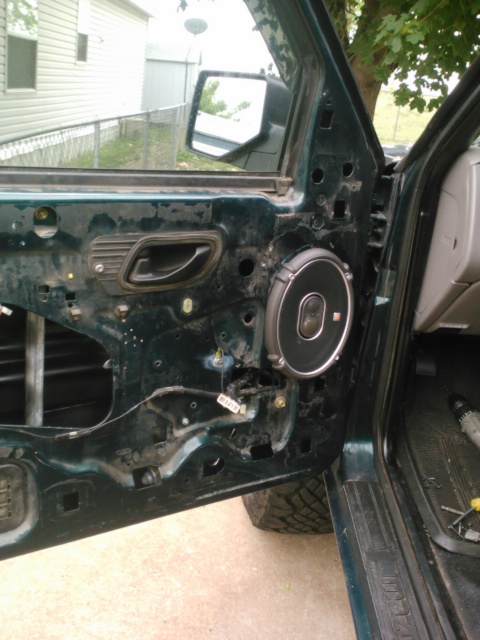

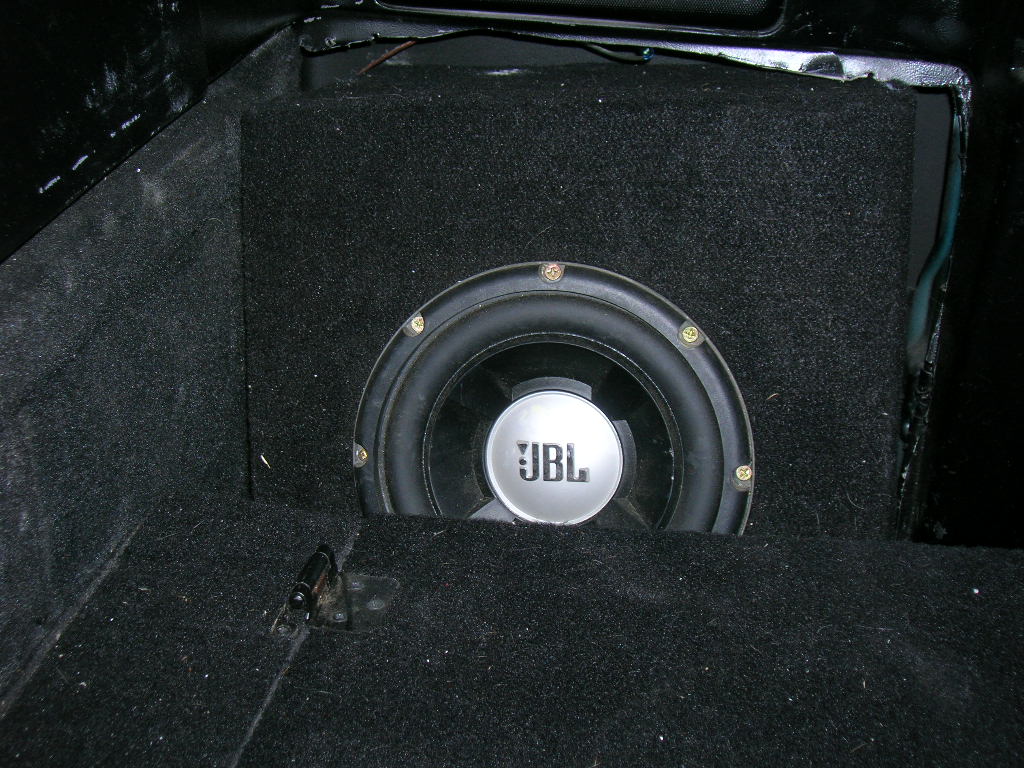

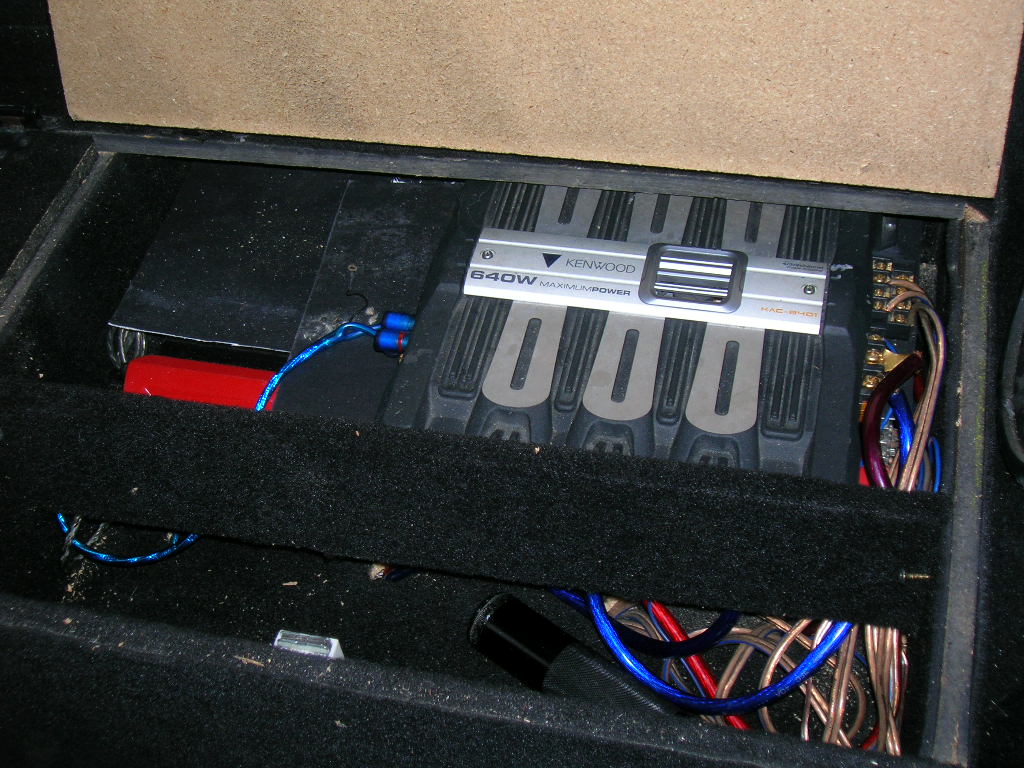

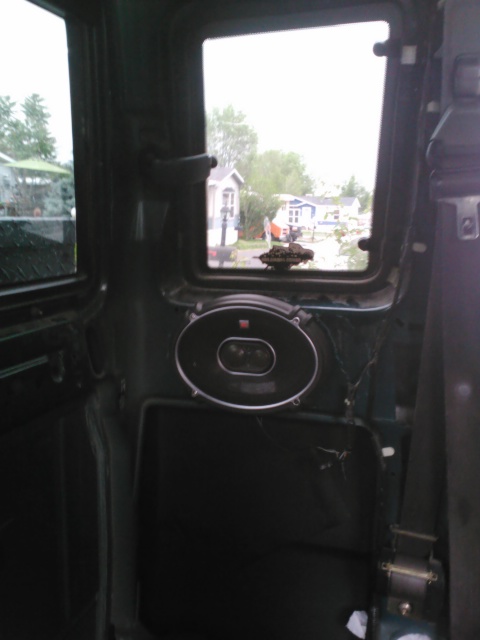

Here's pics of my current installation. I'll update this thread as progress on the build goes.

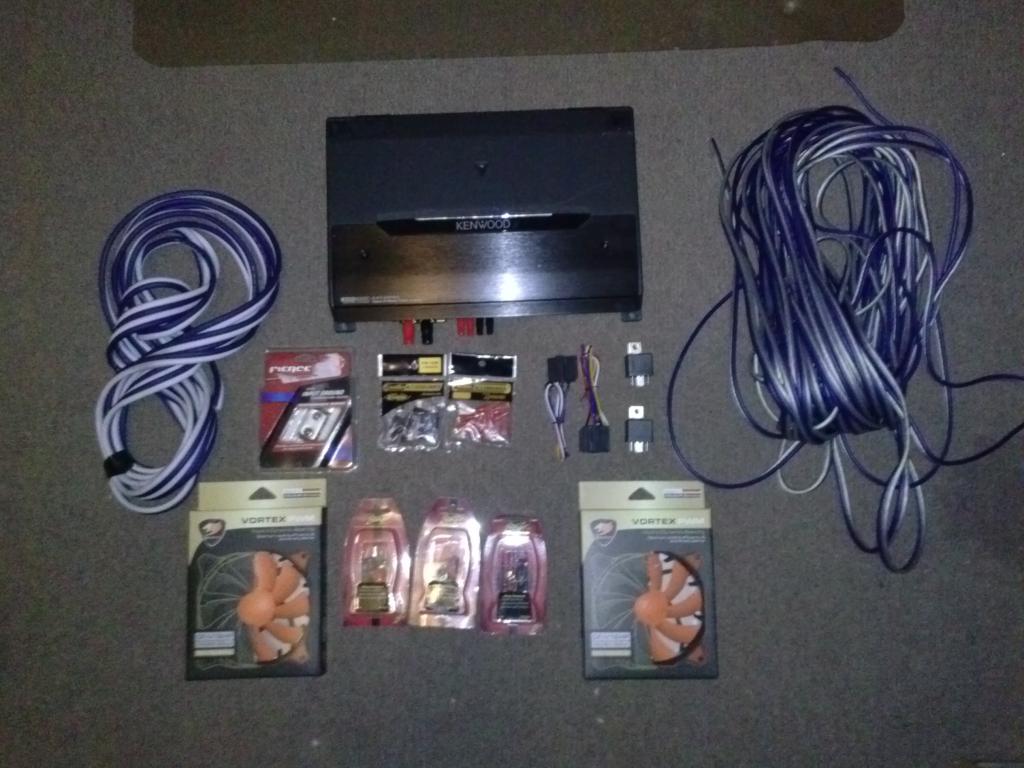

And the new stuff waiting to be installed.
Attached Thumbnails
Building a new setup-img132_zpscfa23019.jpg   Building a new setup-dscn0678_zps93ef7fa8.jpg   Building a new setup-img156_zps5384c26f.jpg   Building a new setup-img158_zpse60e7342.jpg   Building a new setup-dscn0683_zpsdf6c50a8.jpg

Building a new setup-dscn0679_zps0f508e00.jpg   Building a new setup-cam00198_zps18a9305a.jpg
Reply With Quote
  #2
Old 10-30-2013
Member

Join Date: Jul 2010
Location: Delaware, Ohio
Posts: 82
This should be a nice build thread. I wish I would have went with 2 10" subs instead of just the 1 I got. My ears are greedy and always want more boom. :(

Looks like you've got a nice setup though. I'll look forward to progress pics.
Reply With Quote
  #3
Old 10-30-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
After 9 years I've hesitated to change my setup, my current audio combination hits hard sounds great.

On the other hand I think I would like another sub and do another custom box.

Maybe this thread will inspire me
Reply With Quote
  #4
Old 10-31-2013
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
I also have some parts. I am also on the fense
Reply With Quote
  #5
Old 10-31-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Bring it over ya stinkin Canuck.
Reply With Quote
  #6
Old 11-03-2013
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Moose lodge fab is open for business ya dick!
Reply With Quote
  #7
Old 11-04-2013
Chris98's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Feb 2010
Location: Thornton, CO
Posts: 705
I got some progress done on Saturday. Got the new wiring ran and got the new vinyl floor in.

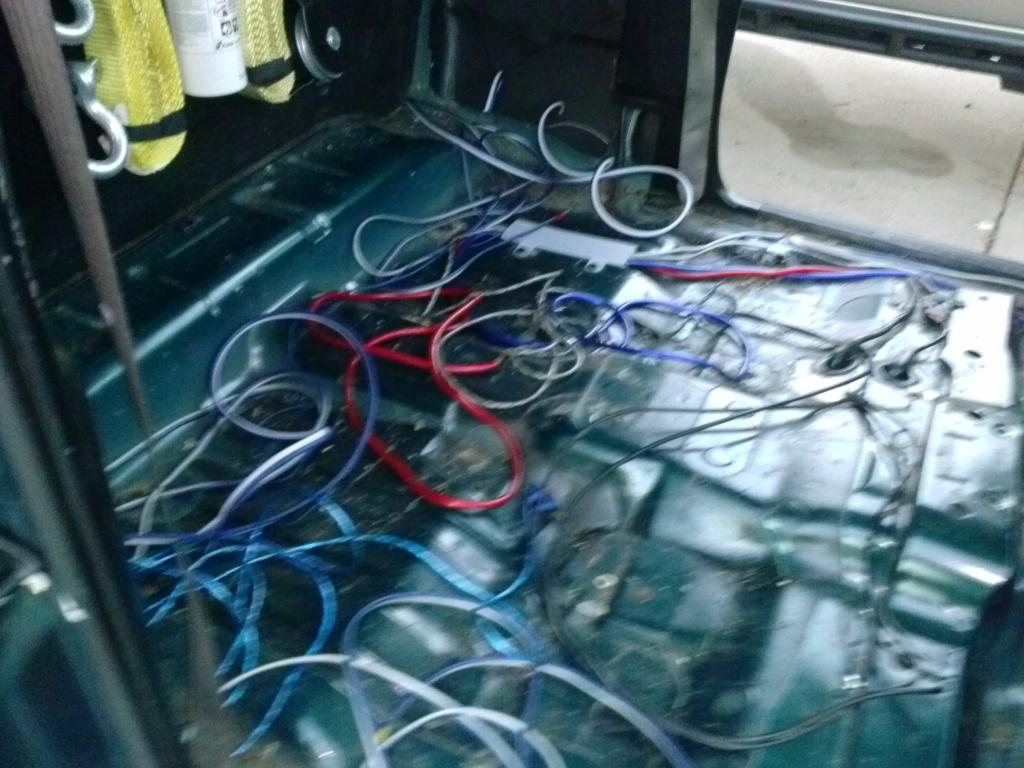

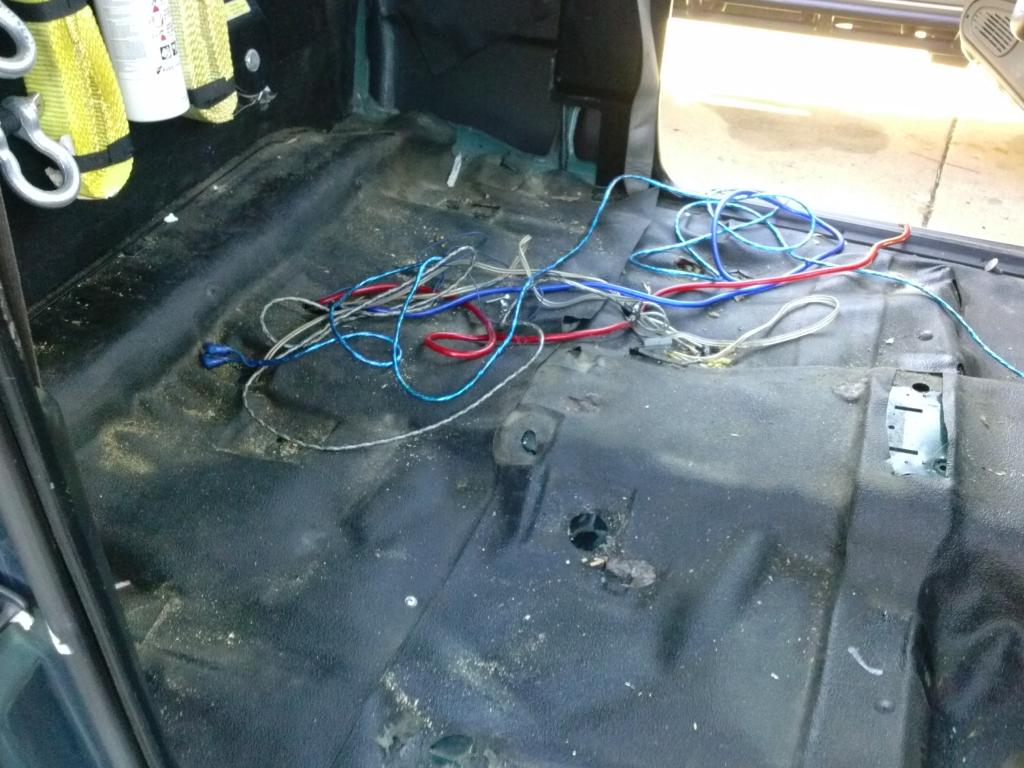

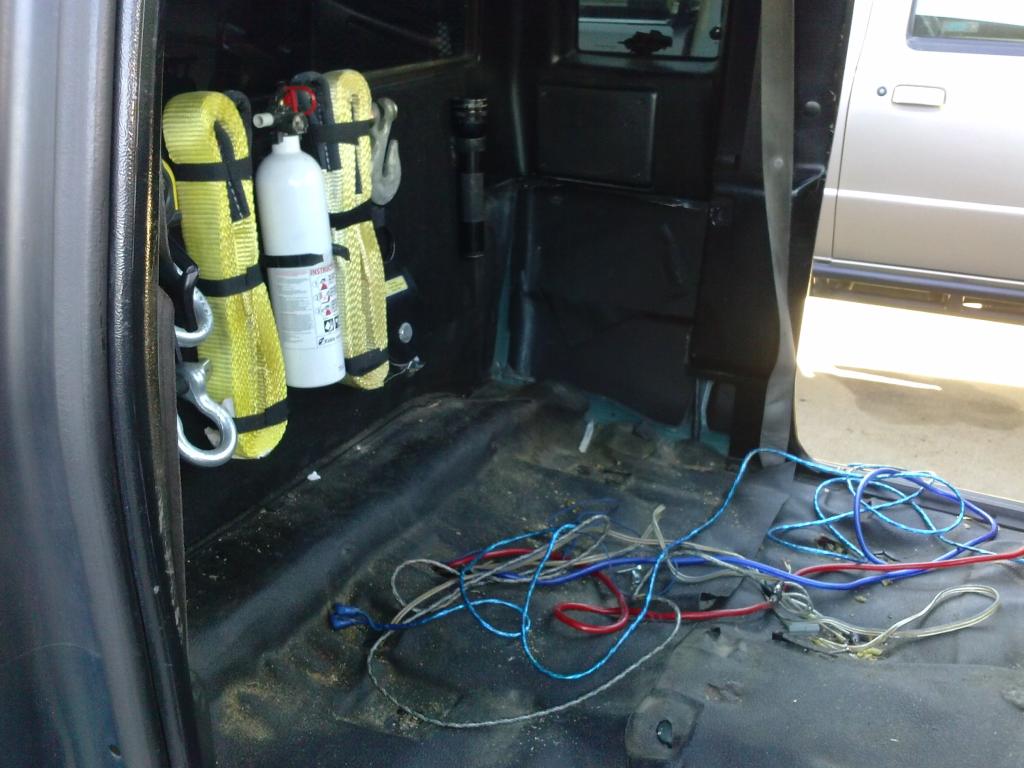

Seats and all the boxes taken out. Old wiring mess.

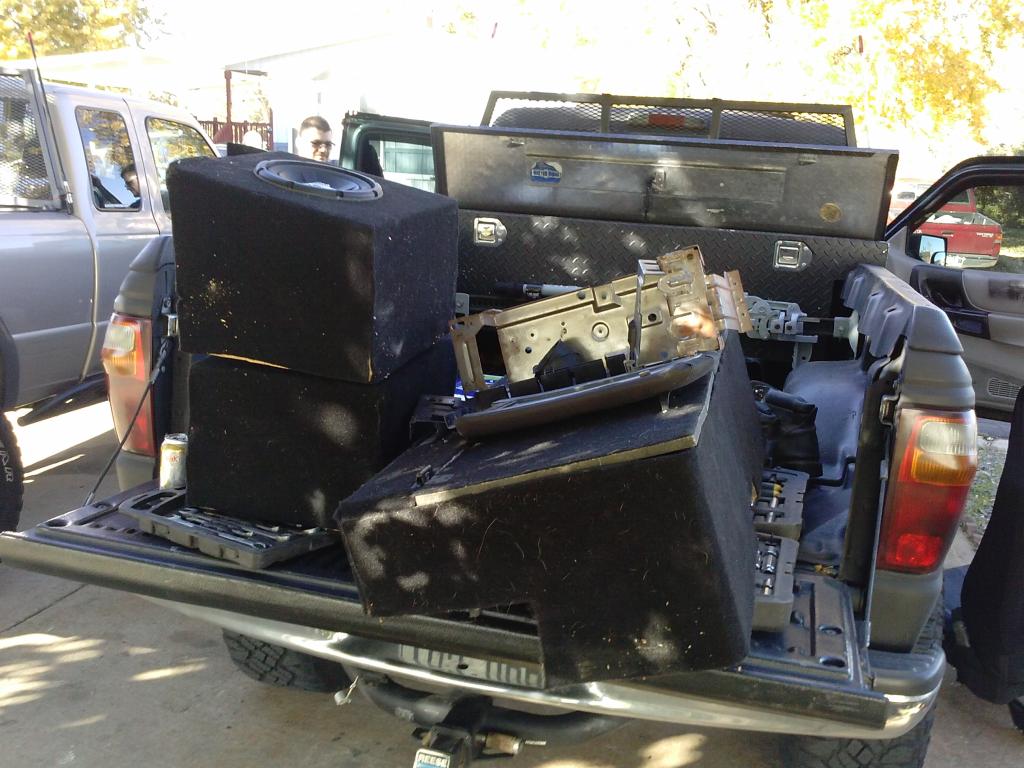

Parts sitting in the bed

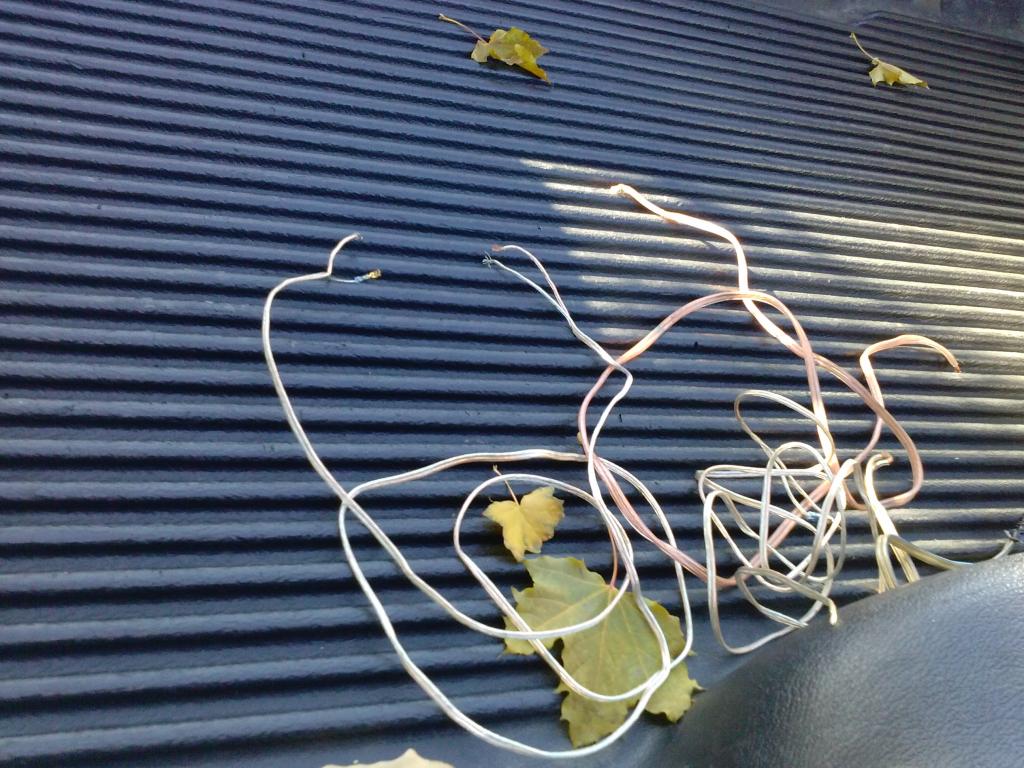

Some old wires removed

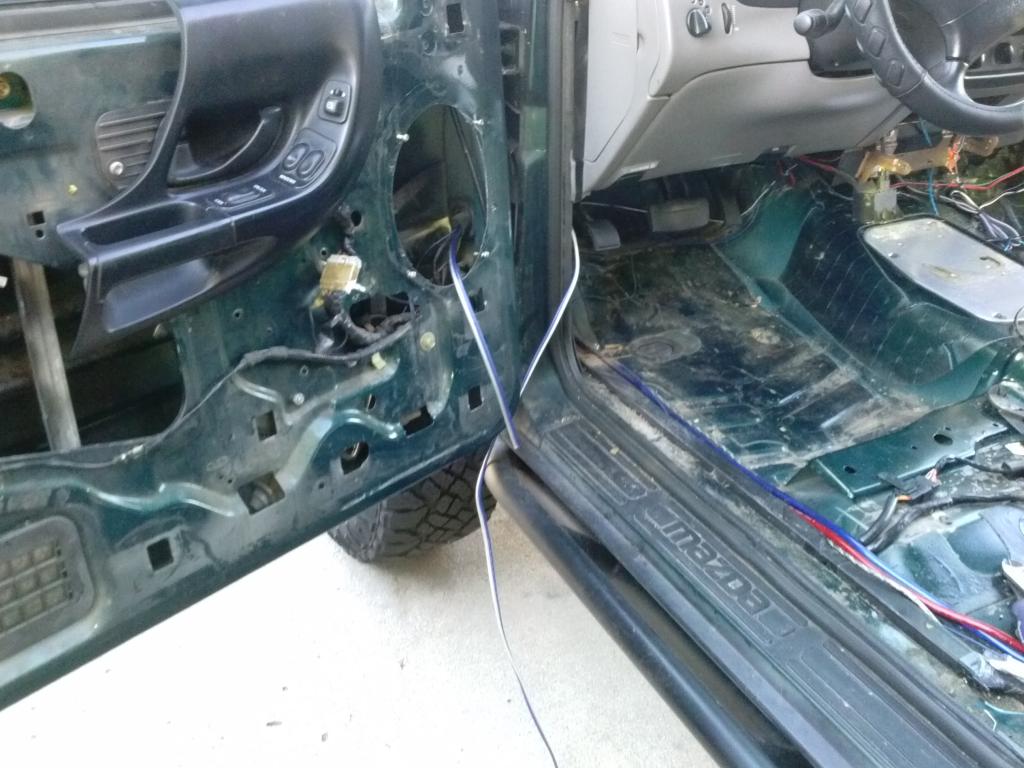

New wire pulled through the door jam

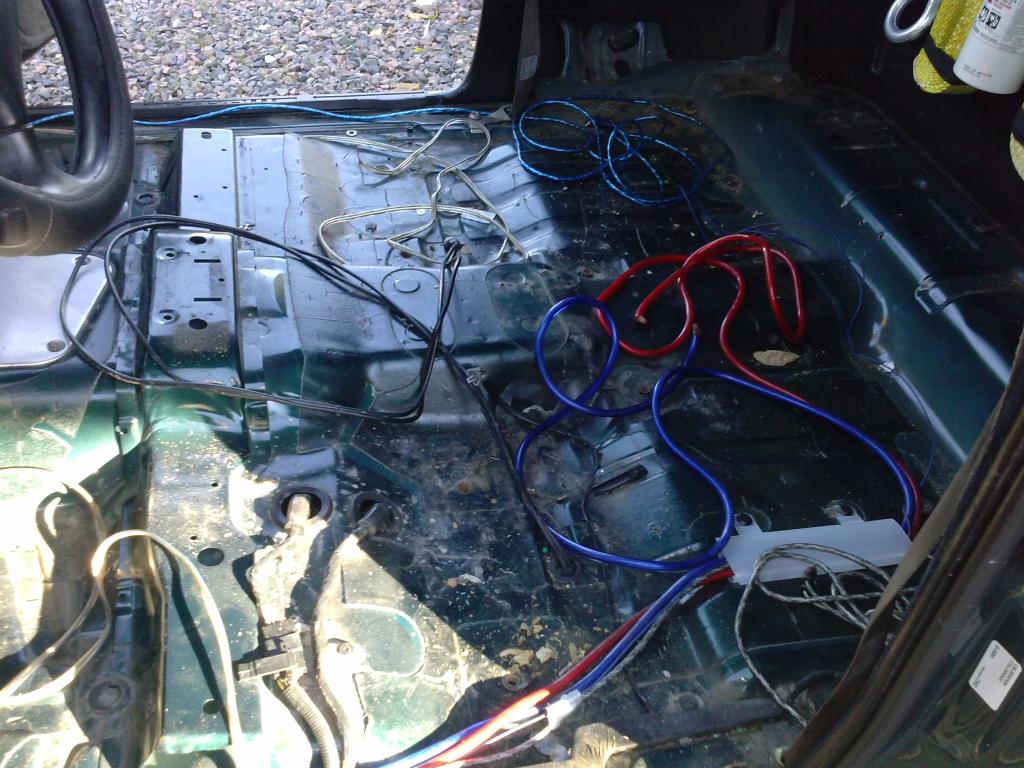

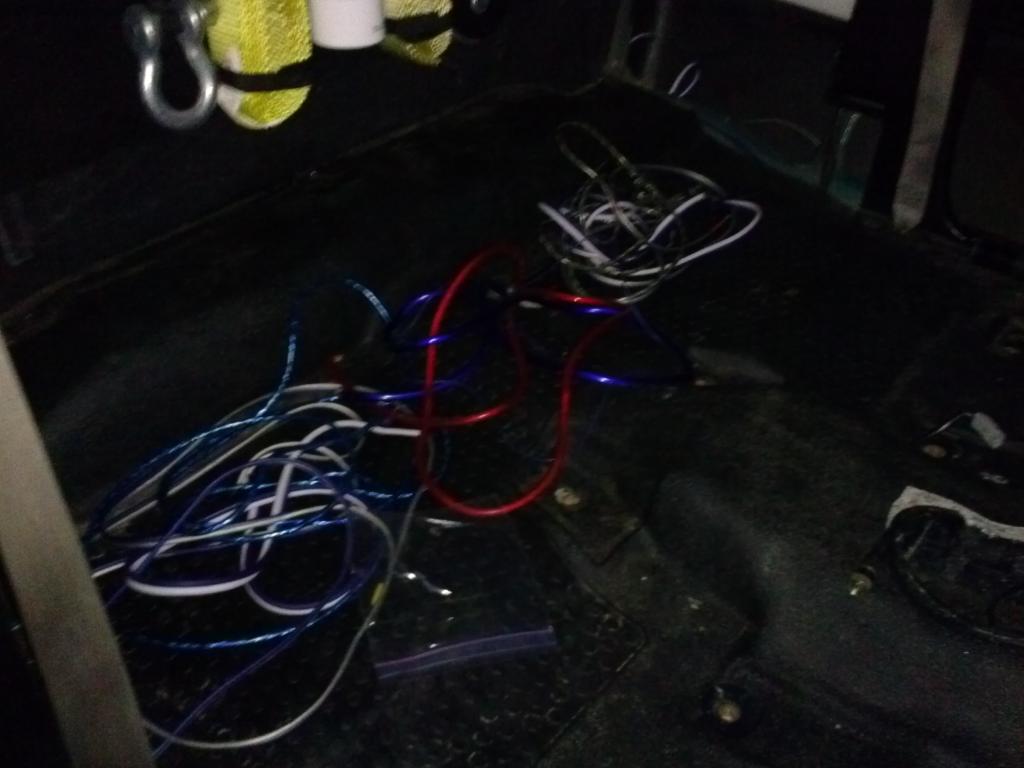

All the wiring ran. Shitty picture


New floor in and the wires carefully pulled through some well placed holes in the floor.

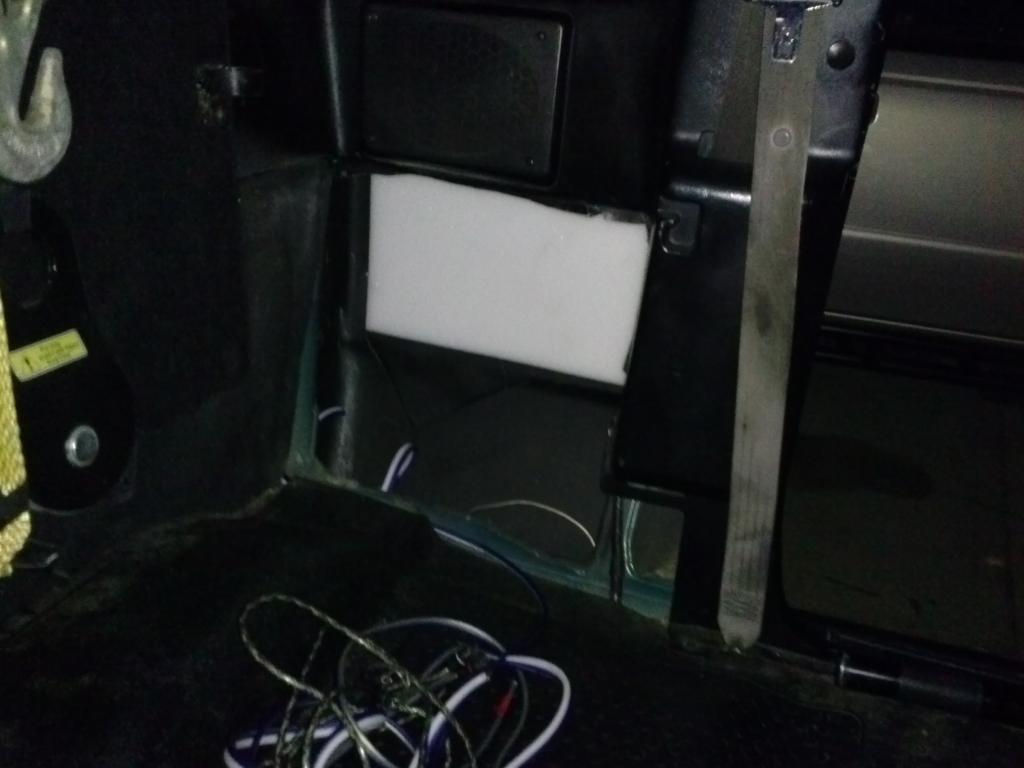

Install some 1" thick foam behind where the sub boxes go as I was sick of hearing them hit the side of the body once in a while in there. Also installed it behind the plastic interior molding to stop the vibrations.
Attached Thumbnails
Building a new setup-cam00202_zps88c907aa.jpg   Building a new setup-cam00203_zps683084d7.jpg   Building a new setup-cam00204_zps807f00a8.jpg   Building a new setup-cam00205_zps7255b458.jpg   Building a new setup-cam00206_zps69ad87d5.jpg

Building a new setup-cam00207_zps9d8e7eb0.jpg   Building a new setup-cam00208_zps36a6c0ed.jpg   Building a new setup-cam00210_zpsed216dda.jpg   Building a new setup-cam00211_zps78113f88.jpg
Reply With Quote
  #8
Old 11-14-2013
Chris98's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Feb 2010
Location: Thornton, CO
Posts: 705
I got my system installed today. Waited all day on the UPS guy to deliver my subs. So I didn't get any good pics of the setup as it got dark. But I did get a video of the system playing a little mix song I found online to test the subs.

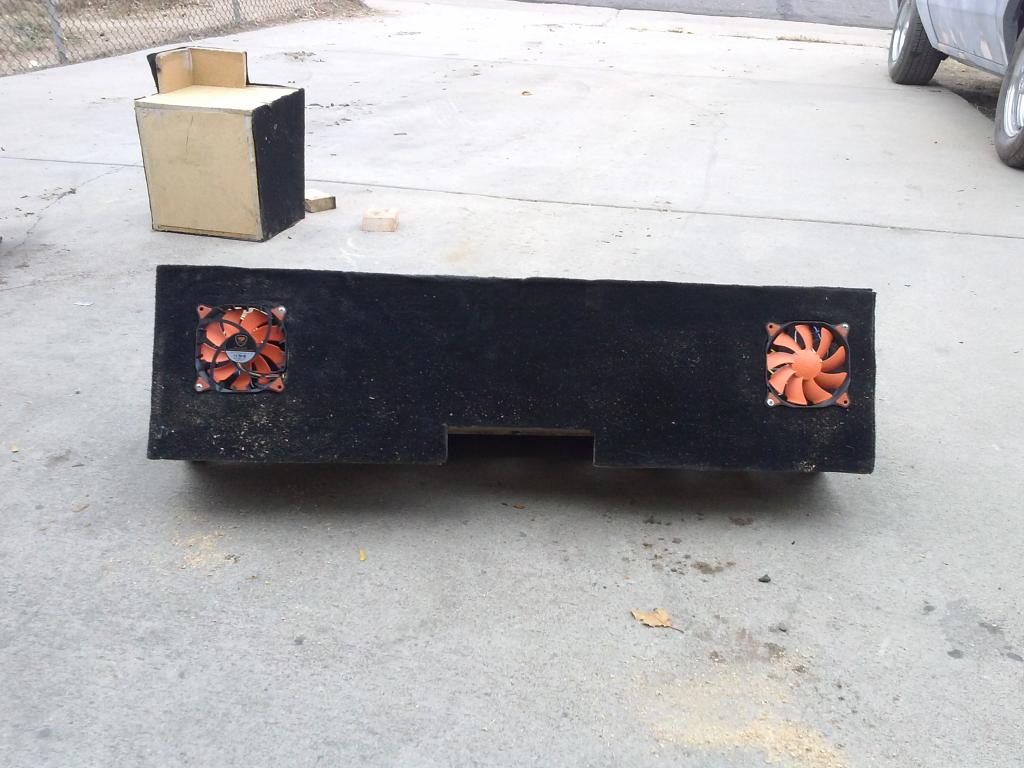

Here's a pic of the amp box with the fans installed

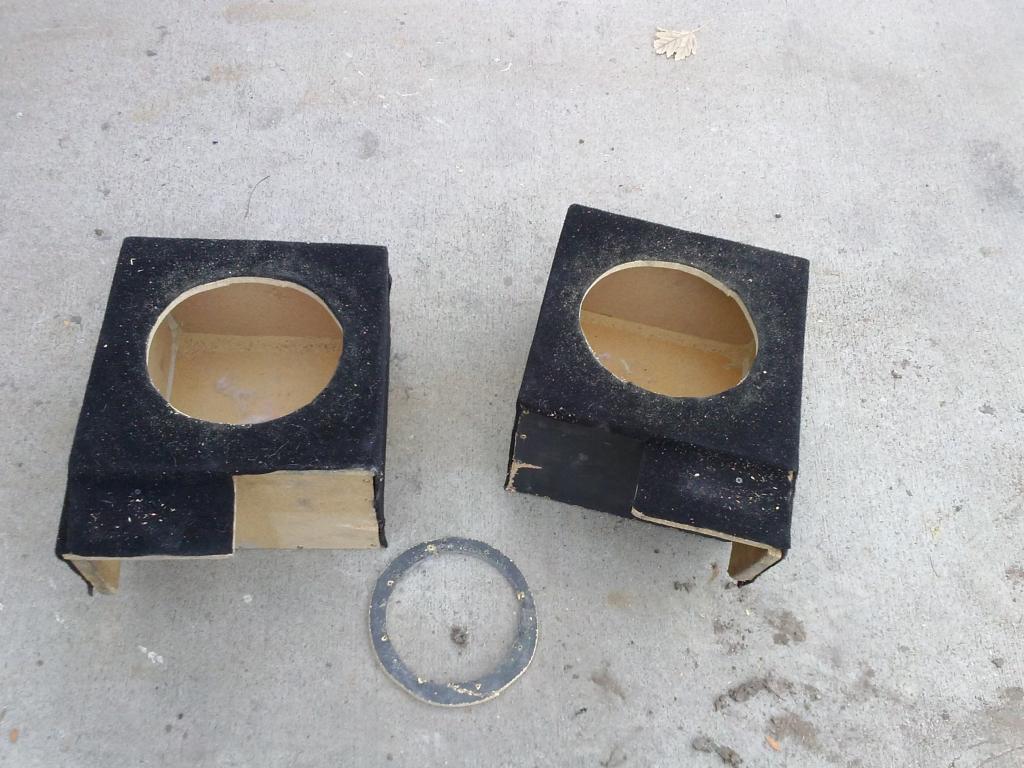

Holes cut out larger in the sub boxes to hold a 10" subwoofer

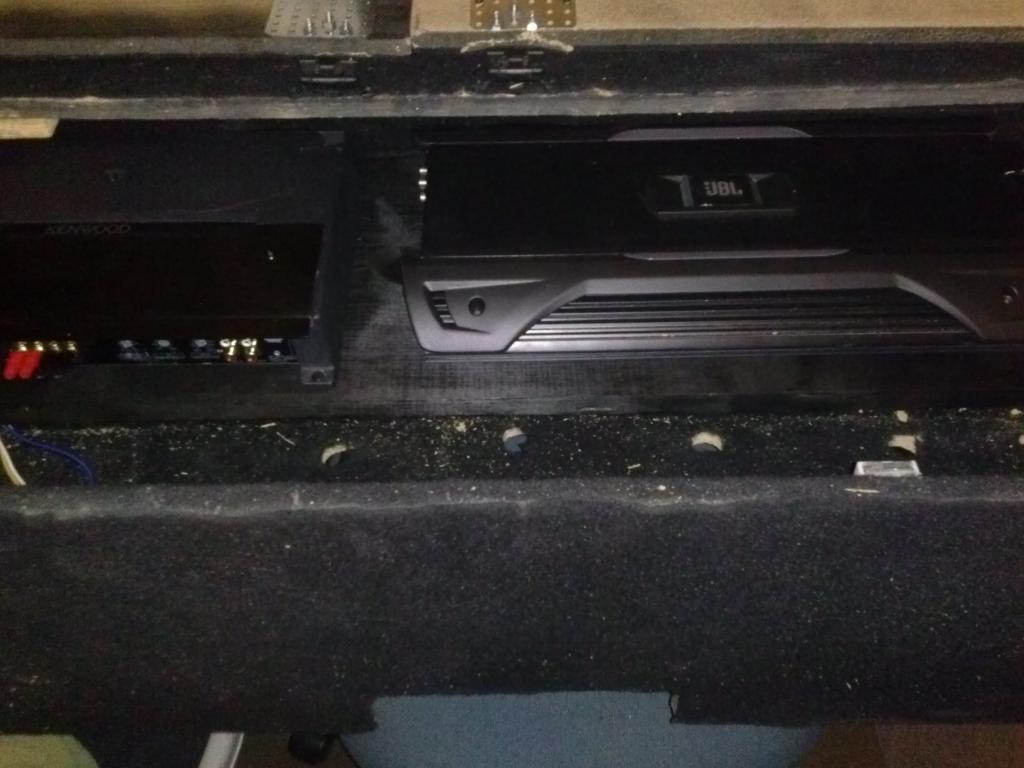

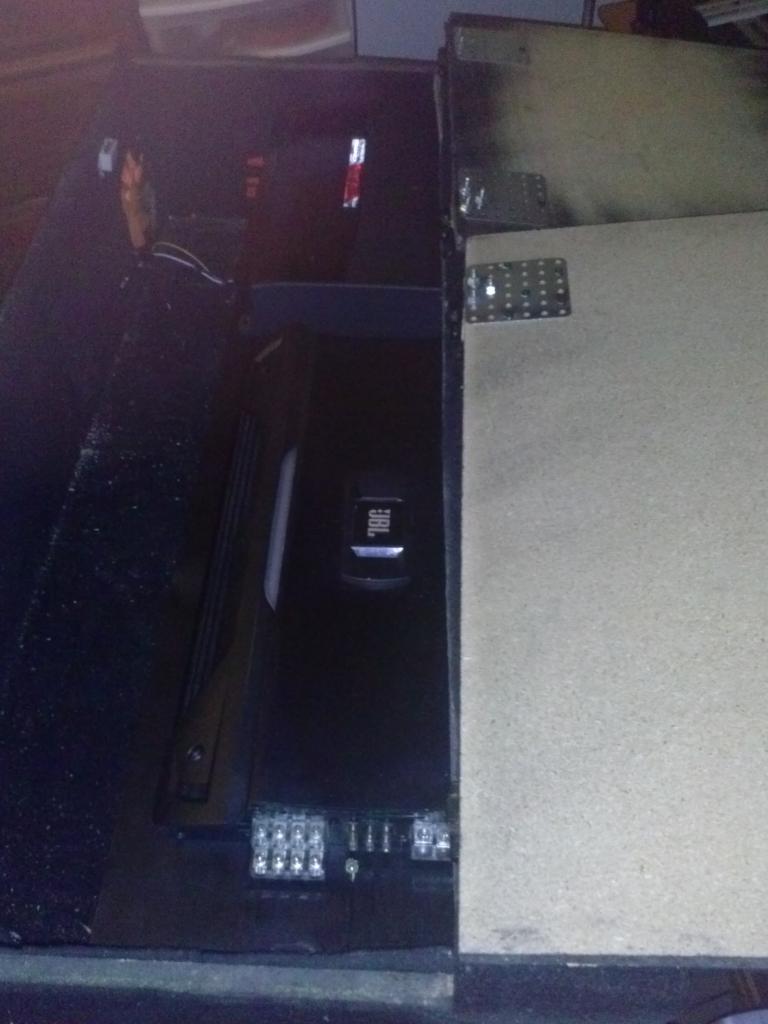

Amplifier mocked up in the box

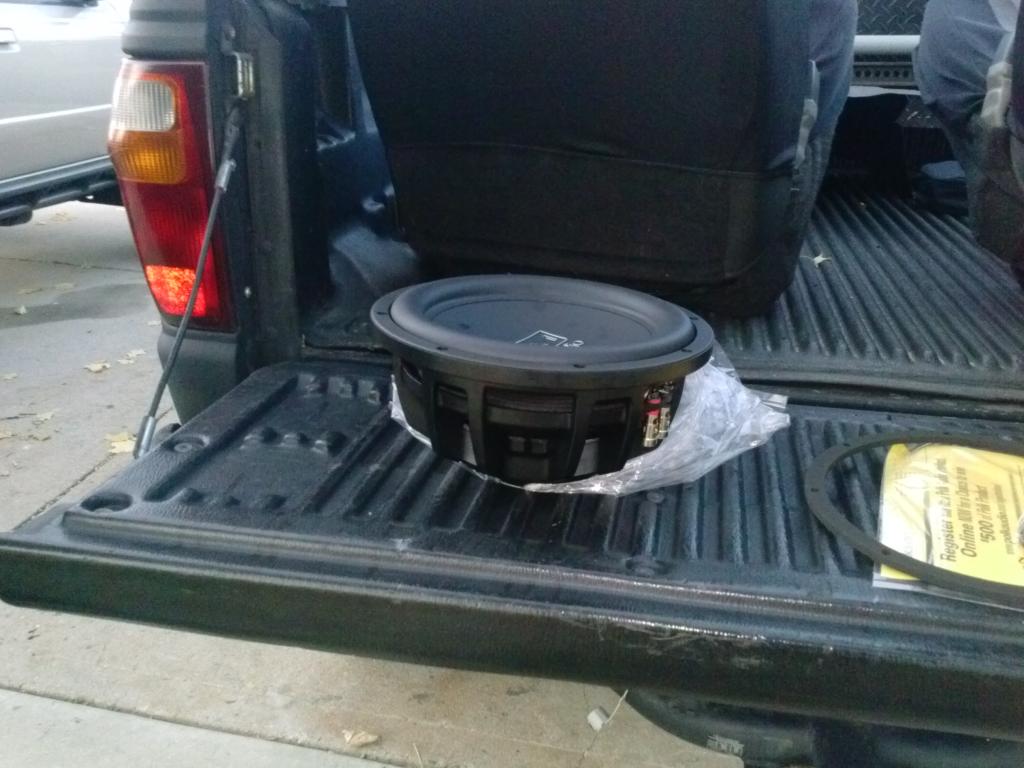

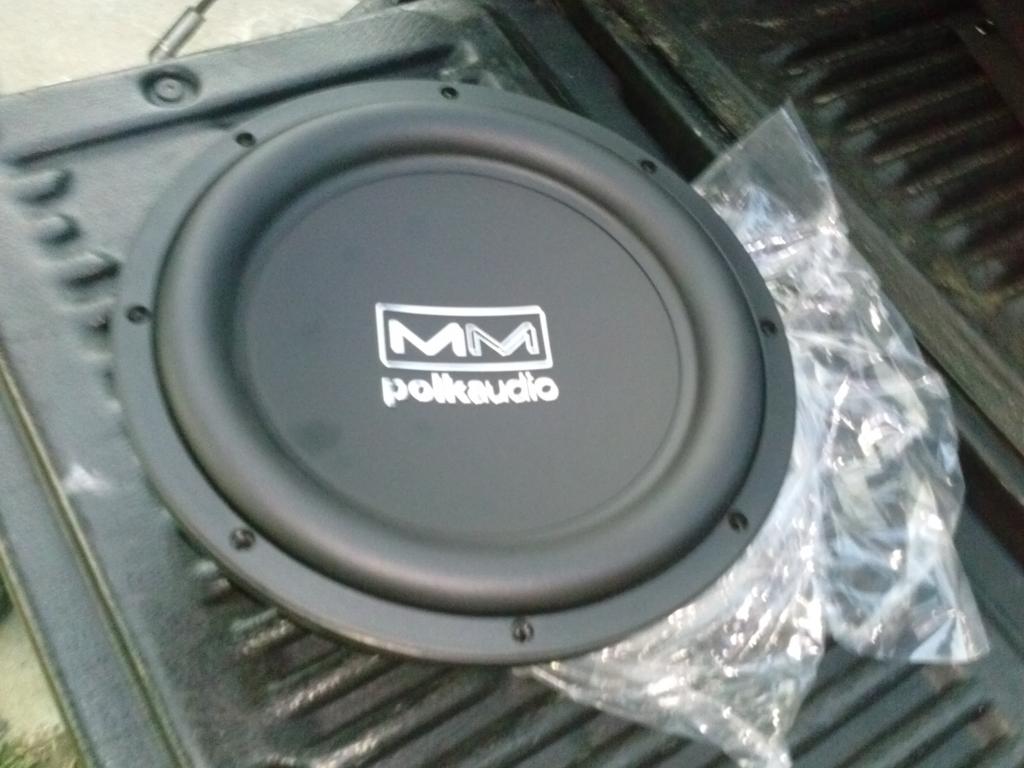

New sub



Sorry for the horrible quality my phone does a really shitty job recording stuff
Attached Thumbnails
Building a new setup-cam00212_zps387bb4f0.jpg   Building a new setup-cam00213_zps4e8424c4.jpg   Building a new setup-cam00214_zps09070d9d.jpg   Building a new setup-cam00216_zpsc9698753.jpg   Building a new setup-cam00217_zpsa0534e95.jpg

Building a new setup-cam00219_zps98e6f0d1.jpg
Reply With Quote
