Hell yea!

I just got a present from the FedEx guy



Audioque HDC3 12" powered by a MB Quart DSC 2000.1d @ .5ohm

Last edited by rangerboy101; 06-24-2010 at 07:20 PM.
Reply With Quote
  #2
Old 06-24-2010
the Answer's Avatar
Member

Join Date: Feb 2010
Location: Webster, Fl.
Posts: 363
sdc2.5 or hdc3?
Reply With Quote
  #3
Old 06-24-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
HD
Reply With Quote
  #4
Old 06-24-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
This needs to be installed pronto
Reply With Quote
  #5
Old 06-24-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Tell me about it. I'm running wire today. I have my wire ran under the cab. Now I'm just trying to figure out a way to get it into the cab.
Reply With Quote
  #6
Old 06-24-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Just drill it through the floor and make yourself a grommet to seal it up
Reply With Quote
  #7
Old 06-24-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
If only it were that easy.
Reply With Quote
  #8
Old 06-24-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Theres a couple of stock grommets you can use. Just look around under the truck for them, I think one is near the driver and passanger foot well.
Reply With Quote
  #9
Old 06-24-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
There is one on each side, they're pretty good size, but be careful, mine came loose and let water in, after I ran the wires for my temp sensor I siliconed it
Reply With Quote
  #10
Old 06-24-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
Quote:
Originally Posted by 01RangerEdge View Post
This needs to be installed pronto
No need to send it to me!
And I would run the wires through the firewall and inside the cab. Minimize the chance of water/moisture entering the cab and less likely to rub on anything under the cab
Reply With Quote
  #11
Old 06-24-2010
Sonic04Edge's Avatar
RF Veteran

iTrader: (6)

Join Date: Jun 2004
Location: Madison. AL
Posts: 5,715
Quote:
Originally Posted by 04blackedge View Post
Theres a couple of stock grommets you can use. Just look around under the truck for them, I think one is near the driver and passanger foot well.
On my old 04 there is a spot near the steering shaft on the firewall I went through.
Reply With Quote
  #12
Old 06-24-2010
99MazdaB4000's Avatar
Member

Join Date: Apr 2008
Location: Kutztown, PA
Posts: 1,980
I just tapped a tiny pre-existing hole through my firewall for mine.

Last edited by 99MazdaB4000; 06-24-2010 at 04:34 PM. Reason: .
Reply With Quote
  #13
Old 06-24-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by Sonic04Edge View Post
On my old 04 there is a spot near the steering shaft on the firewall I went through.
He already has the wires under the cab though, not in the engine bay.
Reply With Quote
  #14
Old 06-24-2010
ClemsonRanger03's Avatar
Member
iTrader: (1)

Join Date: Mar 2009
Location: Clemson, SC
Posts: 804
Yeah its pretty easy to go through the fire wall under the dash, or behind the fender and then in by the e brake.
Reply With Quote
  #15
Old 06-24-2010
Sonic04Edge's Avatar
RF Veteran

iTrader: (6)

Join Date: Jun 2004
Location: Madison. AL
Posts: 5,715
Quote:
Originally Posted by 04blackedge View Post
He already has the wires under the cab though, not in the engine bay.
If he is ever going to truely offroad that truck I wouldn't put them under the cab. I'd go through the firewall. It wouldn't take long to change that.
Reply With Quote
  #16
Old 06-24-2010
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
there should be a gromet under the rear seats assuming you have 4 door. they are just at the back of the cab. i run my antenna wire for my CB through there.
Reply With Quote
  #17
Old 06-24-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
I'll try and take a picture of how I ran my wires later when I tie everything up for the night. I ran the wire from the battery, behind the wheel well, and underneath the rockers. It's open under there and it was a perfect spot. The wires are zip-tied up so you can't see them and then I drilled out a hole by the rear cab mount and drilled a hole through the grommet and just ran my wire up through there. David(Mothman99) has his wires ran in the same spot as I did mine and he wheels his truck a good bit(I think) And besides, it's bigass 0g. It'll take a lot for something to hurt/break it.
Reply With Quote
  #18
Old 06-24-2010
Member

Join Date: Oct 2007
Location: Sanford, NC
Posts: 503
Post pics man. Im interested to see this setup.
Reply With Quote
  #19
Old 06-24-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
It'll be like a week before I build my box but I'll be sure to post pics. I'll take some pictures in the morning showing my wires underneath the truck. I'll take some tonight of everything else though.
Reply With Quote
  #20
Old 06-24-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by Sonic04Edge View Post
If he is ever going to truely offroad that truck I wouldn't put them under the cab. I'd go through the firewall. It wouldn't take long to change that.
Theres nothing wrong at all with running them under the cab if you do it correctly. You know how many wires Ford has running under there?
Reply With Quote
  #21
Old 06-24-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Got about 15 new pictures to add here. Be prepared!
Reply With Quote
  #22
Old 06-25-2010
MothMan999's Avatar
Member
iTrader: (3)

Join Date: Mar 2009
Location: Chantilly, VA
Posts: 858
Quote:
Originally Posted by Sonic04Edge View Post
If he is ever going to truely offroad that truck I wouldn't put them under the cab. I'd go through the firewall. It wouldn't take long to change that.
Ive got my wires run there with a hole drilled and i have NEVER had any problems with it. Ive wheeled my truck a pretty good amount(driven through streams and mud holes) and its been fine.
Reply With Quote
  #23
Old 06-25-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187

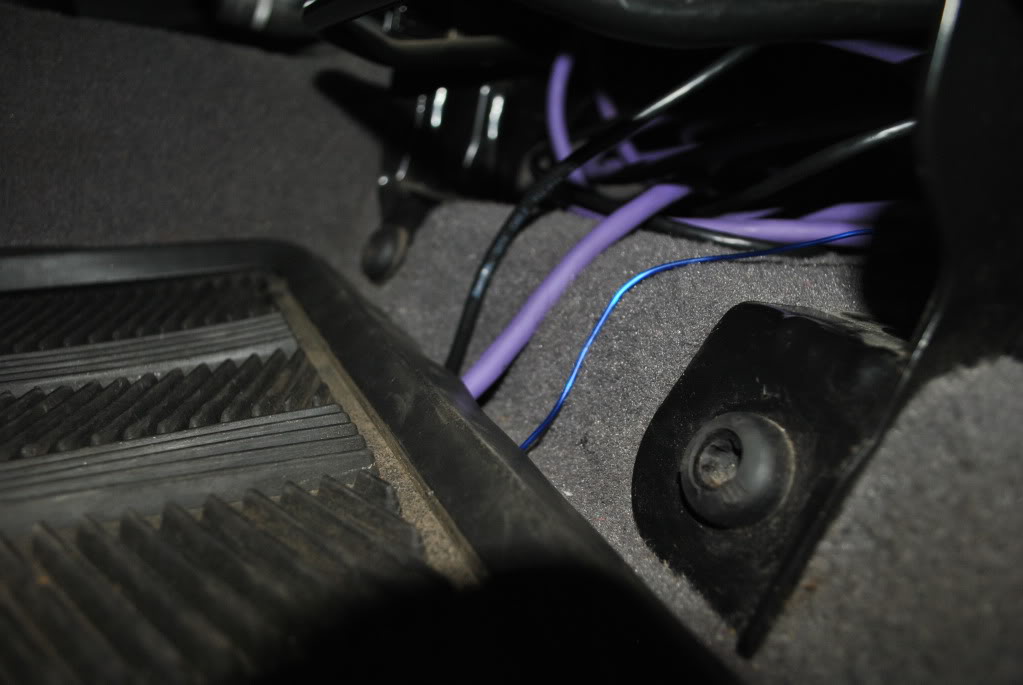

Name:  00210.jpg
Views: 0
Size:  92.9 KB

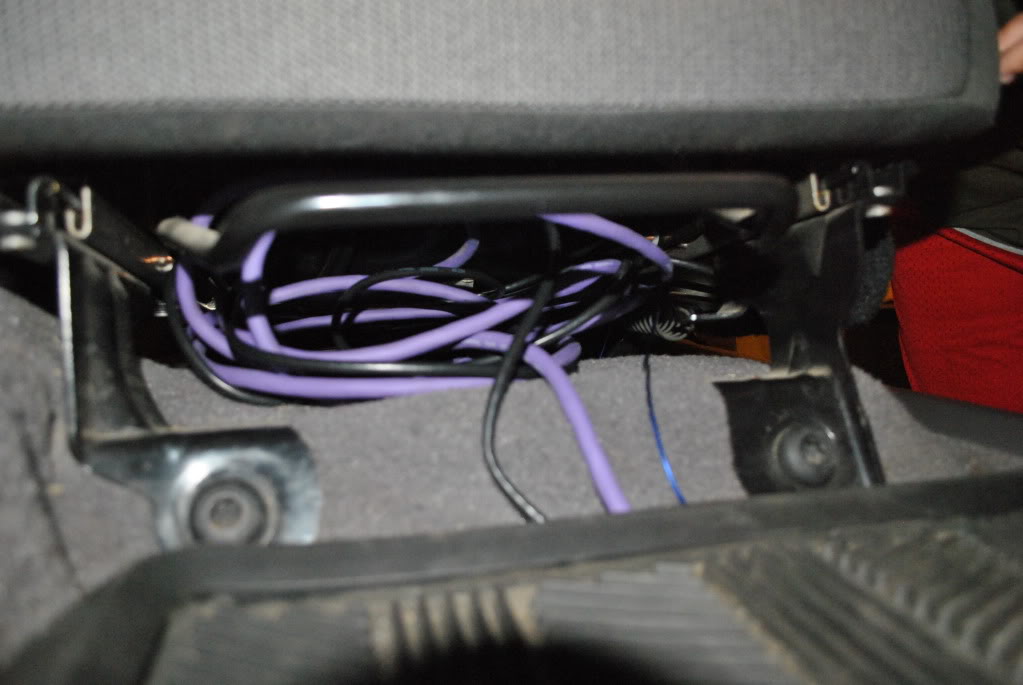

What's hidden under the seat:
Name:  0019.jpg
Views: 0
Size:  93.5 KB

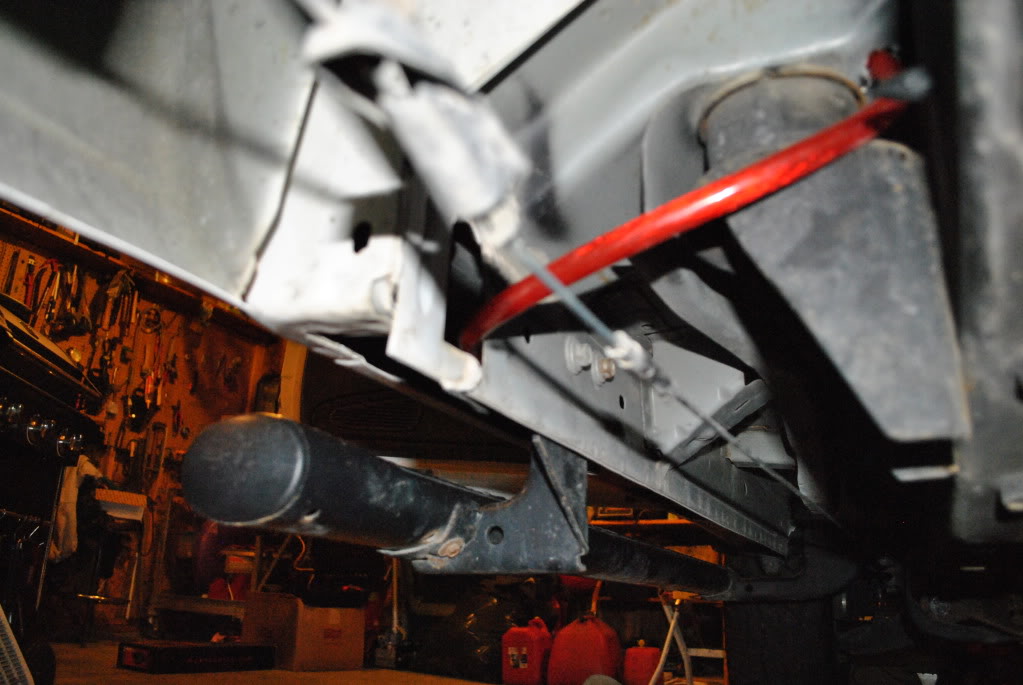

A bad picture of how I ran my wire:
Name:  0047.jpg
Views: 0
Size:  122.1 KB

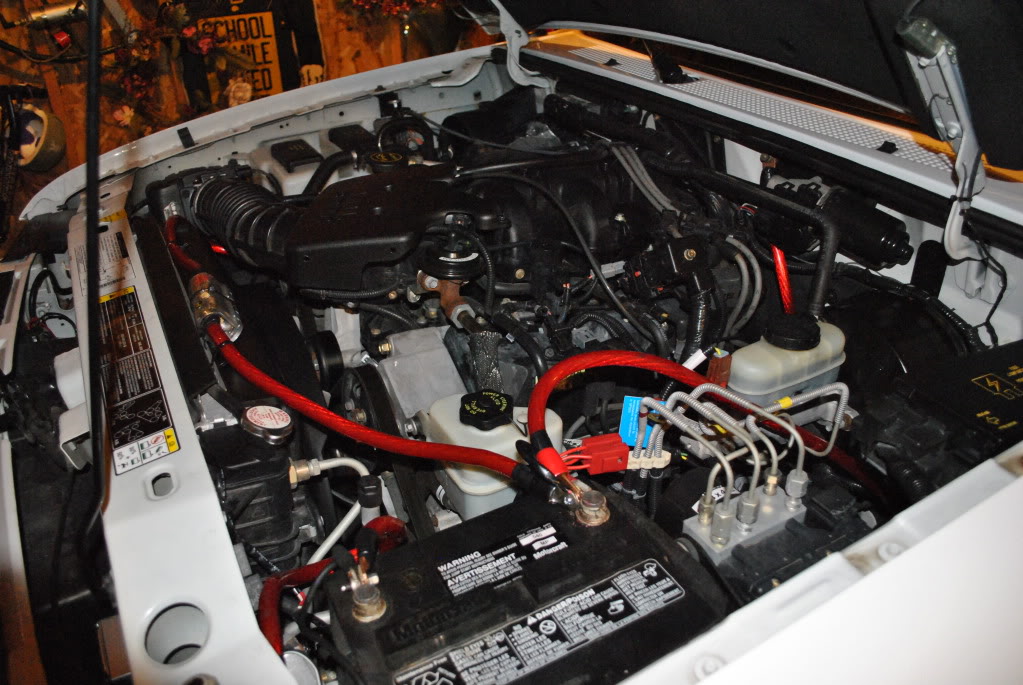

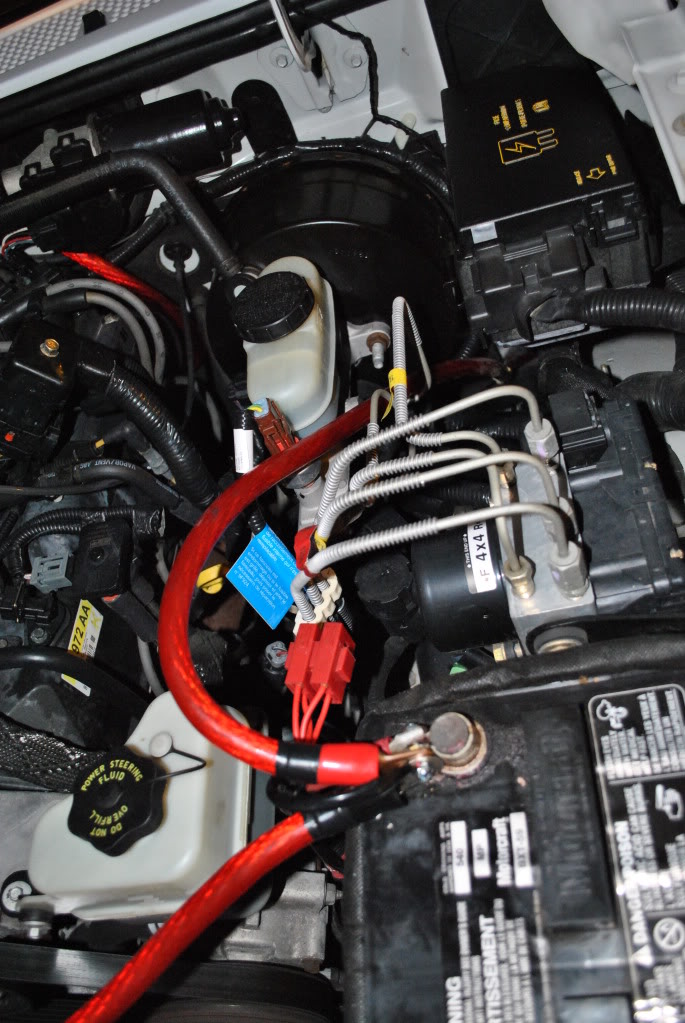

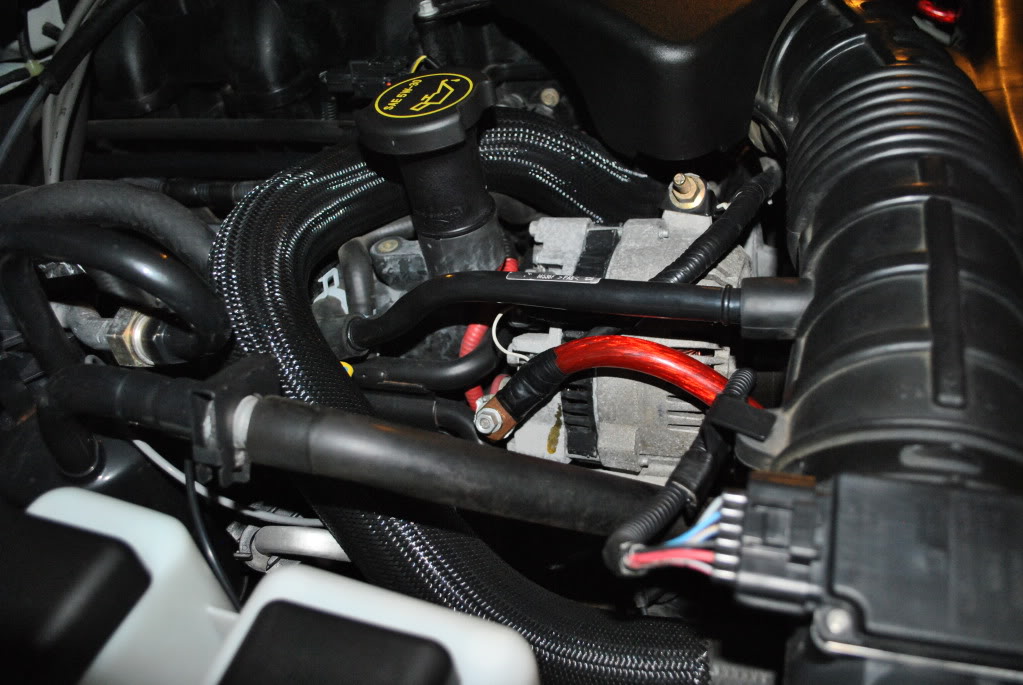

And some randoms:
Name:  0057.jpg
Views: 0
Size:  181.4 KB
Name:  0069.jpg
Views: 0
Size:  173.1 KB
Name:  0076.jpg
Views: 0
Size:  141.9 KB

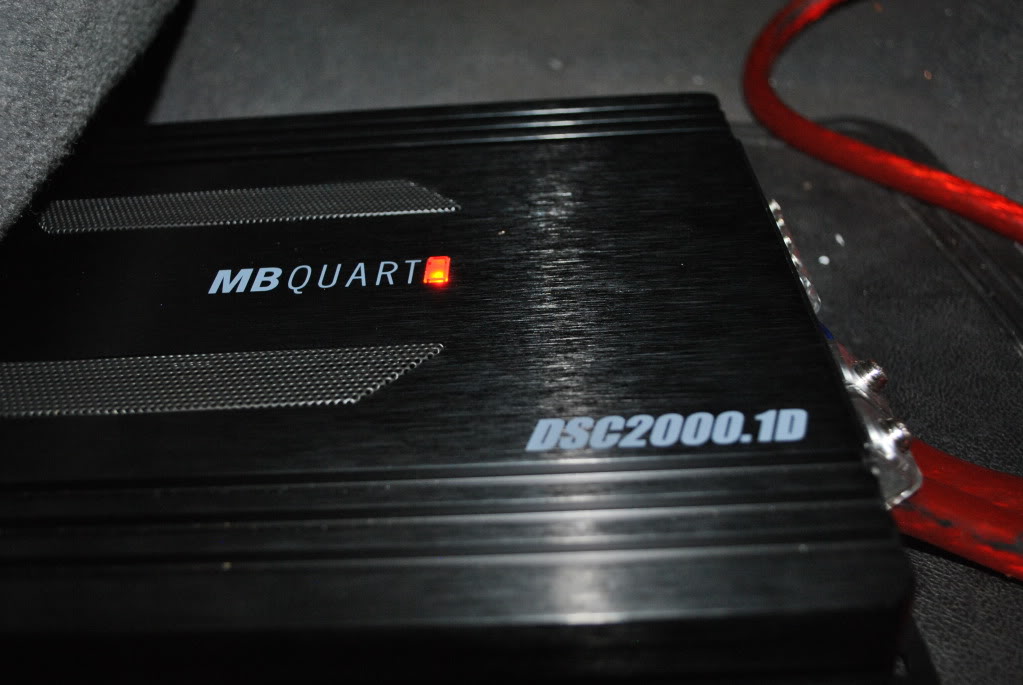

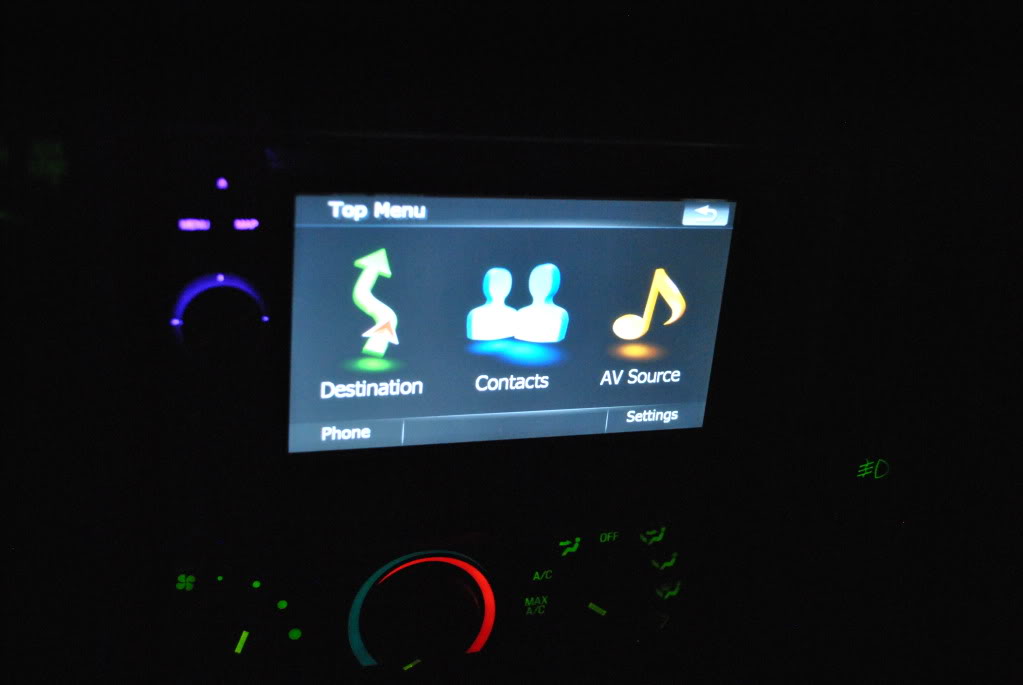

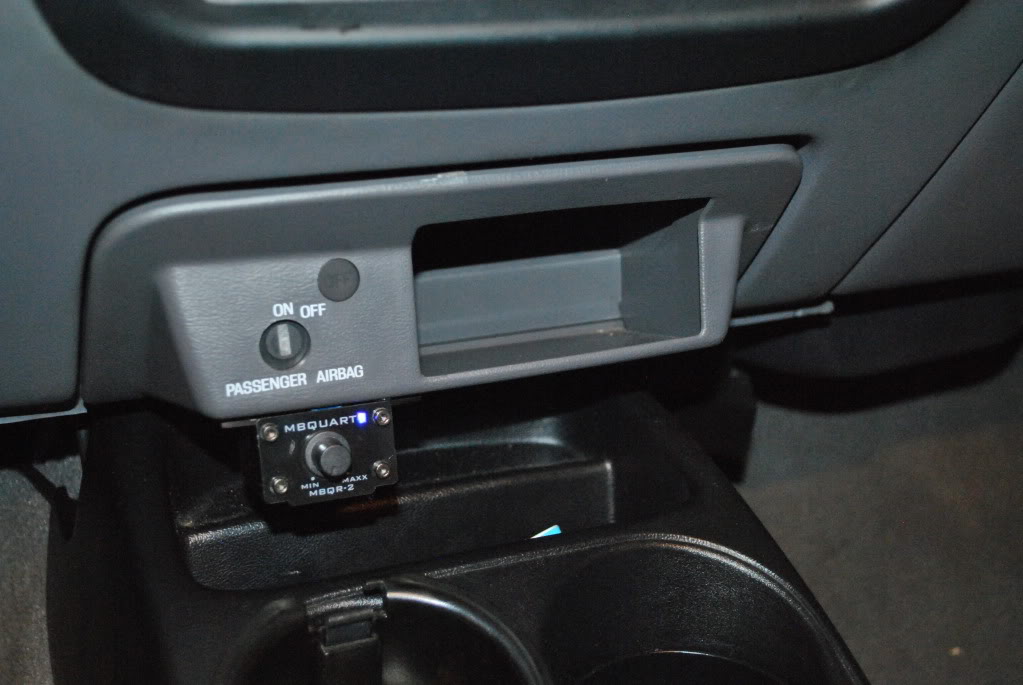

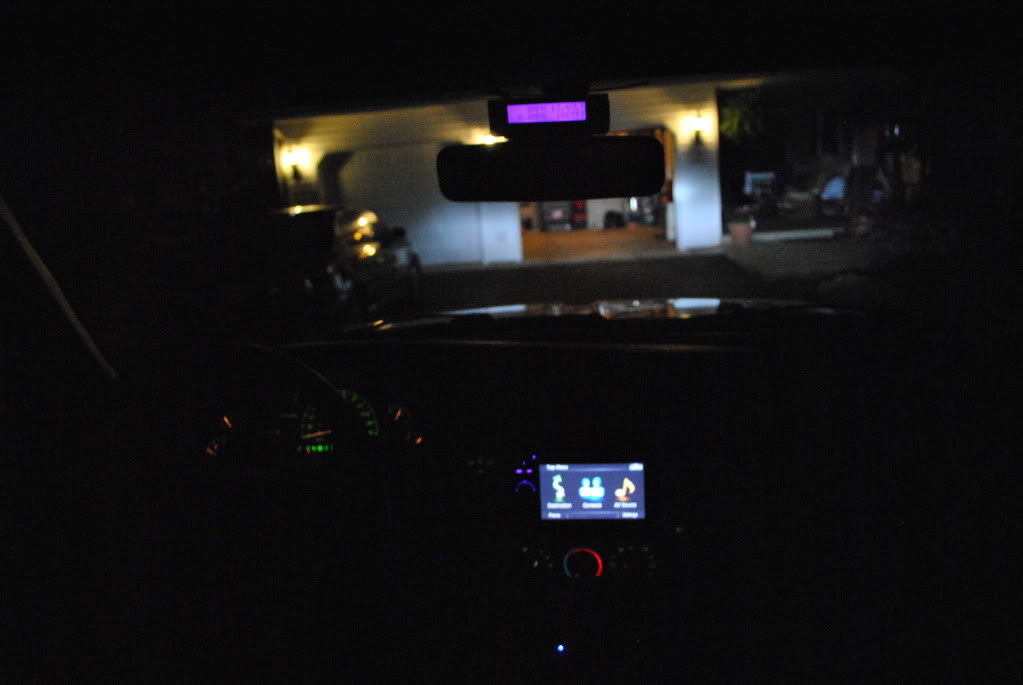

My clean *** bass **** set up. Held on with hot glue haha:
Name:  0107.jpg
Views: 0
Size:  106.1 KB
Name:  0117.jpg
Views: 0
Size:  106.9 KB
Name:  0127.jpg
Views: 0
Size:  67.3 KB
Name:  0135.jpg
Views: 0
Size:  66.2 KB
Reply With Quote
  #24
Old 06-25-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
Quote:
Originally Posted by Sonic04Edge View Post
On my old 04 there is a spot near the steering shaft on the firewall I went through.
i used that one for my pop n' lock.
Reply With Quote
  #25
Old 06-25-2010
dangelj316's Avatar
Member
iTrader: (1)

Join Date: Feb 2006
Location: Yuma, AZ
Posts: 813
Nice!
